Boardcon MINI507 Cost Optimized System Module
Introduction
About this Manual
This manual is intended to provide the user with an overview of the board and benefits, complete features specifications, and set up procedures. It contains important safety information as well.
Feedback and Update to this Manual
To help our customers make the most of our products, we are continually making additional and updated resources available on the Boardcon website (www.boardcon.com , www.armdesigner.com). These include manuals, application notes, programming examples, and updated software and hardware. Check in periodically to see what’s new! When we are prioritizing work on these updated resources, feedback from customers is the number one influence, If you have questions, comments, or concerns about your product or project, please no hesitate to contact us at support@armdesigner.com.
Limited Warranty
Boardcon warrants this product to be free of defects in material and workmanship for a period of one year from date of buy. During this warranty period Boardcon will repair or replace the defective unit in accordance with the following process: A copy of the original invoice must be included when returning the defective unit to Boardcon. This limited warranty does not cover damages resulting from lighting or other power surges, misuse, abuse, abnormal conditions of operation, or attempts to alter or modify the function of the product. This warranty is limited to the repair or replacement of the defective unit. In no event shall Boardcon be liable or responsible for any loss or damages, including but not limited to any lost profits, incidental or consequential damages, loss of business, or anticipatory profits arising from the use or inability to use this product. Repairs make after the expiration of the warranty period are subject to a repair charge and the cost of return shipping. Please contact Boardcon to arrange for any repair service and to obtain repair charge information.
MINI507 Introduction
Summary

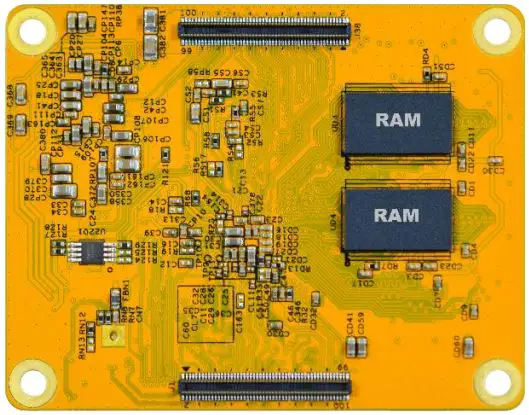

The MINI507 system-on-module is equipped with Allwinner’s T507 quad-core Cortex-A53, G31 MP2 GPU. It is designed specifically for the smart devices such as industrial controller, IoT devices, digital cluster and automotive devices. The high performance and low power solution can help customers to introduce new technologies more quickly and enhance the overall solution efficiency. In especial, T507 is qualified to AEC-Q100 testing.
Features
- Microprocessor
- Quad-core Cortex-A53 up to 1.5G
- 32KB I-cache, 32KB D-cache, 512KB L2 cache
- Memory Organization
- DDR4 RAM up to 4GB
- EMMC up to 64GB
- Boot ROM
- Supports system code download through USB OTG
- Security ID
- Size up to 2Kbit for security chip ID
- Video Decoder/Encoder
- Supports video decoding up to 4K@30fps
- Supports H.264 encode
- H.264 HP encoding up to 4K@25fps
- Picture size up t0 4096×4096
- Display Subsystem
- Video Output
- Supports HDMI 2.0 transmitter with HDCP 1.4, up to 4K@30fps (T507H option)
- Supports Serial RGB interface up to 800×640@60fps
- Supports LVDS interface Dual link up to 1920×1080@60fps and Single link up to 1366×768@60fps Supports RGB interface up to 1920×1080@60fps
- Supports BT656 interface up to 1920×1080@30fps
- Supports 1ch TV output with plug detecting
- Image in
- Supports MIPI CSI input up to 8M@30fps or 4x1080P@25fps
- Supports parallel interfaces up to 1080P@30fps
- Supports BT656/BT1120
- Analog audio
- One stereo headphone output
- I2S/PCM/ AC97
- Three I2S/PCM interface
- Support up to 8-CH DMIC
- One SPDIF input and output
- USB
- Four USB 2.0 interfaces
- One USB 2.0 OTG, and three USB hosts
- Ethernet
- Support two Ethernet interface
- One 10/100M PHY on CPU Board
- One GMAC/EMAC interface
- I2C
- Up to five I2Cs
- Support standard mode and fast mode(up to 400kbit/s)
- Smart Card Reader
- Support ISO/IEC 7816-3 and EMV2000(4.0) specifications
- Support synchronous and any other non-ISO 7816 and non-EMVcards
- SPI
- Two SPI controllers, each SPI controller with two CS signals
- Full-duplex synchronous serial interface
- 3 or 4-wire mode
- UART
- Up to 6 UART controllers
- UART0/5 with 2 wires
- UART1/2/3/4 each with 4 wires
- UART0 default for debug
- Compatible with industry-standard 16550 UARTs
- Support RS485 mode on 4 wires UARTs
- CIR
- One CIR controllers
- Flexible receiver for consumer IR remote control
- TSC
- Support multiple transport stream format
- Support DVB-CSA V1.1/2.1 Descrambler
- ADC
- Four ADC input
- 12-bit resolution
- Voltage input range between 0V to 1.8V
- KEYADC
- One ADC channel for key application
- 6-bit resolution
- Voltage input range between 0V to 1.8V
- Support ingle, normal and continuous mode
- PWM
- 6 PWMs (3 PWM pairs) with interrupt-based operation
- up to 24/100MHz output frequency
- Minimum resolution is 1/65536
- Interrupt Controller
- Support 28 interrupts
- 3D Graphics Engine
- ARM G31 MP2 supply
- Support OpenGL ES 3.2/2.0/1.1, Vulkan1.1, Open CL 2.0 standard
- Power unit
- AXP853T on board
- OVP/UVP/OTP/OCP protections
- DCDC6 0.5~3.4V@1A output
- DCDC1 3.3V@300mA output for Carry board GPIO
- ALDO5 0.5~3.3V@300mA output
- BLDO5 0.5~3.3V@500mA output
- Ext-RTC IC on board (option)
- Very low RTC consume current, less 5uA at 3V button Cell (option)
- Temperature
- Industrial grade, Operating temperature: -40 ~ 85°C
Block Diagram
T507 Block Diagram
Development board (EMT507) Block Diagram
Mini507 specifications
| Feature | Specifications |
| CPU | Quad-core Cortex-A53 |
| DDR | 2GB DDR4 (up to 4GB) |
| eMMC FLASH | 8GB (up to 64GB) |
| Power | DC 5V |
| LVDS | Dual CH up to 4-Lane |
| I2S | 3-CH |
| MIPI_CSI | 1-CH |
| TSC | 1-CH |
| HDMI out | 1-CH(option) |
| Camera | 1-CH(DVP) |
| USB | 3-CH (USB HOST2.0), 1-CH(OTG 2.0) |
|
Ethernet |
1000M GMAC
And 100M PHY |
| SDMMC | 2-CH |
| SPDIF RX/TX | 1-CH |
| I2C | 5-CH |
| SPI | 2-CH |
| UART | 5-CH, 1-CH(DEBUG) |
| PWM | 6-CH |
| ADC IN | 4-CH |
| Board Dimension | 51 x 65mm |

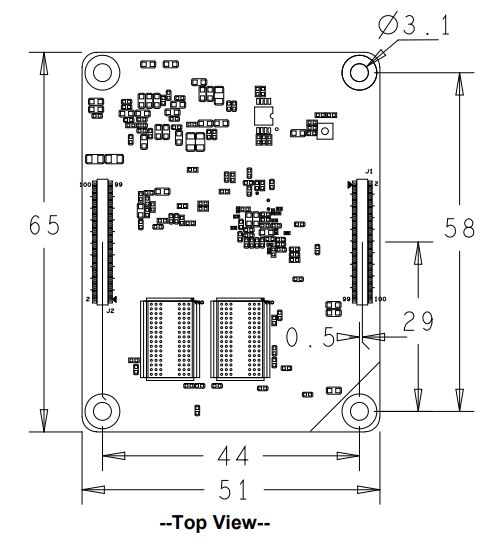

Mini507 PCB Dimension
MINI507 Pin Definition
| J1 | Signal | Description | Alternate functions | IO Voltage |
| 1 | MDI-RN | 100M PHY MDI | 1.8V | |
| 2 | MDI-TN | 100M PHY MDI | 1.8V | |
| 3 | MDI-RP | 100M PHY MDI | 1.8V | |
| 4 | MDI-TP | 100M PHY MDI | 1.8V | |
| 5 | LED0/PHYAD0 | 100M PHY Link LED- | 3.3V | |
| 6 | LED3/PHYAD3 | 100M PHY Speed LED+ | 3.3V | |
| 7 | GND | Ground | 0V |
| J1 | Signal | Description | Alternate functions | IO Voltage |
| 8 | GND | Ground | 0V | |
|
9 |
LVDS0-CLKN/LCD-
D7 |
LVDS or RGB display interface |
PD7/EINT7/TS0-D3 |
3.3V |
|
10 |
LVDS0-D3N/LCD-D
9 |
LVDS or RGB display interface |
PD9/EINT9/TS0-D5 |
3.3V |
|
11 |
LVDS0-CLKP/LCD-
D6 |
LVDS or RGB display interface |
PD6/EINT6/TS0-D2 |
3.3V |
|
12 |
LVDS0-D3P/LCD-D
8 |
LVDS or RGB display interface |
PD8/EINT8/TS0-D4 |
3.3V |
|
13 |
LVDS0-D2P/LCD-D
4 |
LVDS or RGB display interface |
PD4/EINT4/TS0-D0 |
3.3V |
|
14 |
LVDS0-D1N/LCD-D
3 |
LVDS or RGB display interface |
PD3/EINT3/TS0-DVL
D |
3.3V |
|
15 |
LVDS0-D2N/LCD-D
5 |
LVDS or RGB display interface |
PD5/EINT5/TS0-D1 |
3.3V |
|
16 |
LVDS0-D1P/LCD-D
2 |
LVDS or RGB display interface |
PD2/EINT2/TS0-SYN
C |
3.3V |
|
17 |
LVDS1-D3N/LCD-D
19 |
LVDS or RGB display interface |
PD19/EINT19 |
3.3V |
|
18 |
LVDS0-D0N/LCD-D
1 |
LVDS or RGB display interface |
PD1/EINT1/TS0-EER |
3.3V |
|
19 |
LVDS1-D3P/LCD-D
18 |
LVDS or RGB display interface |
PD18/EINT18/SIM0-
DET |
3.3V |
|
20 |
LVDS0-D0P/LCD-D
0 |
LVDS or RGB display interface |
PD0/EINT0/TS0-CLK |
3.3V |
|
21 |
LVDS1-D2N/LCD-D
15 |
LVDS or RGB display interface |
PD15/EINT15/SIM0-
CLK |
3.3V |
|
22 |
LVDS1-CLKN/LCD-
D17 |
LVDS or RGB display interface |
PD17/EINT17/SIM0-
RST |
3.3V |
|
23 |
LVDS1-D2P/LCD-D
14 |
LVDS or RGB display interface |
PD14/EINT14/SIM0-
PWREN |
3.3V |
|
24 |
LVDS1-CLKP/LCD-
D16 |
LVDS or RGB display interface |
PD16/EINT16/SIM0-
DATA |
3.3V |
|
25 |
LVDS1-D1N/LCD-D
13 |
LVDS or RGB display interface |
PD13/EINT13/SIM0-
VPPPP |
3.3V |
|
26 |
LVDS1-D0N/LCD-D
11 |
LVDS or RGB display interface |
PD11/EINT11/TS0-D
7 |
3.3V |
|
27 |
LVDS1-D1P/LCD-D
12 |
LVDS or RGB display interface |
PD12/EINT12/SIM0-
VPPEN |
3.3V |
|
28 |
LVDS1-D0P/LCD-D
10 |
LVDS or RGB display interface |
PD10/EINT10/TS0-D
6 |
3.3V |
| 29 | LCD-D20 | RGB display interface | PD20/EINT20 | 3.3V |
| J1 | Signal | Description | Alternate functions | IO Voltage |
| 30 | LCD-D22 | RGB display interface | PD22/EINT22 | 3.3V |
| 31 | LCD-D21 | RGB display interface | PD21/EINT21 | 3.3V |
| 32 | LCD-D23 | RGB display interface | PD23/EINT23 | 3.3V |
| 33 | LCD-PWM | PWM0 | PD28/EINT28 | 3.3V |
| 34 | LCD-HSYNC | RGB display interface | PD26/EINT26 | 3.3V |
| 35 | GND | Ground | 0V | |
| 36 | LCD-VSYNC | RGB display interface | PD27/EINT27 | 3.3V |
| 37 | LCD-CLK | RGB display interface | PD24/EINT24 | 3.3V |
| 38 | LCD-DE | RGB display interface | PD25/EINT25 | 3.3V |
| 39 | GND | Ground | 0V | |
| 40 | GND | Ground | 0V | |
| 41 | USB3-DM | USB3 data – | 3.3V | |
| 42 | HTX2N | HDMI output data2- | 1.8V | |
| 43 | USB3-DP | USB3 data + | 3.3V | |
| 44 | HTX2P | HDMI output data2+ | 1.8V | |
| 45 | USB2-DM | USB2 data – | 3.3V | |
| 46 | HTX1N | HDMI output data1- | 1.8V | |
| 47 | USB2-DP | USB2 data + | 3.3V | |
| 48 | HTX1P | HDMI output data1+ | 1.8V | |
| 49 | USB1-DM | USB1 data – | 3.3V | |
| 50 | HTX0N | HDMI output data0- | 1.8V | |
| 51 | USB1-DP | USB1 data + | 3.3V | |
| 52 | HTX0P | HDMI output data0+ | 1.8V | |
| 53 | USB0-DM | USB0 data – | 3.3V | |
| 54 | HTXCN | HDMI Clock – | 1.8V | |
| 55 | USB0-DP | USB0 data + | 3.3V | |
| 56 | HTXCP | HDMI Clock + | 1.8V | |
| 57 | GND | Ground | 0V | |
| 58 | HSDA | HDMI serial data | Need Pull up 5V | 5V |
| 59 | UART0-TX | Debug Uart | PH0/EINT0/PWM3 | 3.3V |
| 60 | HSCL | HDMI serial CLK | Need Pull up 5V | 5V |
| 61 | UART0-RX | Debug Uart | PH1/EINT1/PWM4 | 3.3V |
| 62 | HHPD | HDMI hot plug detect | 5V | |
| 63 | PH4 | GPIO or SPDIF output | I2C3_SCL/PH-EINT4 | 3.3V |
|
64 |
HCEC |
HDMI consumer electronics
control |
3.3V |
|
| 65 | GND | Ground | 0V | |
| 66 | GND | Ground | 0V | |
| 67 | MCSI-D3N | MIPI CSI differential data 3N | 1.8V | |
| 68 | MCSI-D2N | MIPI CSI differential data 2N | 1.8V | |
| 69 | MCSI-D3P | MIPI CSI differential data 3P | 1.8V | |
| 70 | MCSI-D2P | MIPI CSI differential data 2P | 1.8V |
| J1 | Signal | Description | Alternate functions | IO Voltage |
| 71 | MCSI-CLKN | MIPI CSI differential clock N | 1.8V | |
| 72 | MCSI-D1N | MIPI CSI differential data 1N | 1.8V | |
| 73 | MCSI-CLKP | MIPI CSI differential clock P | 1.8V | |
| 74 | MCSI-D1P | MIPI CSI differential data 1P | 1.8V | |
| 75 | GND | Ground | 0V | |
| 76 | MCSI-D0N | MIPI CSI differential data 0N | 1.8V | |
| 77 | UART5-RX | UART5 or SPDIF in or I2C2SDA | PH3/EINT3/PWM1 | 3.3V |
| 78 | MCSI-D0P | MIPI CSI differential data 0P | 1.8V | |
|
79 |
UART5-TX |
UART5 or SPDIF CLK or
I2C2SCL |
PH2/EINT2/PWM2 |
3.3V |
| 80 | PH-I2S3-DOUT0 | I2S-D0 or DIN1/SPI1-MISO | PH8/EINT8/CTS2 | 3.3V |
| 81 | LINEOUTR | Audio Analog R line output | Need Coupling CAP | 1.8V |
| 82 | PH-I2S3-MCLK | I2S-CLK/SPI1-CS0/UART2-TX | PH5/EINT5/I2C3SDA | 3.3V |
| 83 | LINEOUTL | Audio Analog L line output | Need Coupling CAP | 1.8V |
| 84 | PH-I2S3-DIN0 | I2S-D1 or DIN0/SPI1-CS1 | PH9/EINT9 | 3.3V |
| 85 | AGND | Audio Ground | 0V | |
| 86 | PH-I2S3-LRLK | I2S-CLK/SPI1MOSI/UART2RTS | PH7/EINT7/I2C4SDA | 3.3V |
| 87 | PC3 | Boot-SEL1/SPI0-CS0 | PC-EINT3 | 1.8V |
| 88 | PH-I2S3-BCLK | I2S-CLK/SPI1-CLK/UART2-RX | PH6/EINT6/I2C4SCL | 3.3V |
| 89 | PC4 | Boot-SEL2/SPI0-MISO | PC-EINT4 | 1.8V |
| 90 | LRADC | Key 6bit ADC input | 1.8V | |
| 91 | GPADC3 | General 12bit ADC3 in | 1.8V | |
| 92 | GPADC1 | General 12bit ADC1 in | 1.8V | |
| 93 | GPADC0 | General 12bit ADC0 in | 1.8V | |
| 94 | GPADC2 | General 12bit ADC2 in | 1.8V | |
| 95 | TV-OUT | CVBS output | 1.0V | |
| 96 | PA/TWI3-SDA | PA11/EINT11 | 3.3V | |
| 97 | IR-RX | IR input | PH10/EINT10 | 3.3V |
| 98 | PA/TWI3-SCK | PA10/EINT10 | 3.3V | |
| 99 | PC7 | SPI0-CS1 | PC-EINT7 | 1.8V |
| 100 | GND | Ground | 0V | |
| J2 | Signal | Description | Alternate functions | IO Voltage |
| 1 | PE13 | CSI0-D9 | PE13/EINT14 | 3.3V |
| 2 | GND | Ground | 0V | |
| 3 | PE14 | CSI0-D10 | PE14/EINT15 | 3.3V |
| 4 | SPI0_CLK_1V8 | PC0/EINT0 | 1.8V | |
| 5 | PE15 | CSI0-D11 | PE-EINT16 | 3.3V |
| 6 | PE12 | CSI0-D8 | PE-EINT13 | 3.3V |
| 7 | PE0 | CSI0-PCLK | PE-EINT1 | 3.3V |
| 8 | PE18 | CSI0-D14 | PE-EINT19 | 3.3V |
| 9 | PE16 | CSI0-D12 | PE-EINT17 | 3.3V |
| 10 | PE19 | CSI0-D15 | PE-EINT20 | 3.3V |
| J2 | Signal | Description | Alternate functions | IO Voltage |
| 11 | PE17 | CSI0-D13 | PE-EINT18 | 3.3V |
| 12 | PE8 | CSI0-D4 | PE-EINT9 | 3.3V |
| 13 | SDC0-DET | SD card detection | PF6/EINT6 | 3.3V |
| 14 | PE3 | CSI0-VSYNC | PE-EINT4 | 3.3V |
| 15 | GND | Ground | 0V | |
| 16 | PE2 | CSI0-HSYNC | PE-EINT3 | 3.3V |
| 17 | SDC0-D0 | SD Data0 | PF1/EINT1 | 3.3V |
| 18 | PE1 | CSI0-MCLK | PE-EINT2 | 3.3V |
| 19 | SDC0-D1 | SD Data1 | PF0/EINT0 | 3.3V |
| 20 | SPI0_MOSI_1V8 | PC2/EINT2 | 1.8V | |
| 21 | SDC0-D2 | SD Data2 | PF5/EINT5 | 0V |
| 22 | PE4 | CSI0-D0 | PE-EINT5 | 3.3V |
| 23 | SDC0-D3 | SD Data3 | PF4/EINT4/ | 3.3V |
| 24 | PE5 | CSI0-D1 | PE-EINT6 | 3.3V |
| 25 | SDC0-CMD | SD Command Signal | PF3/EINT3 | 3.3V |
| 26 | PE7 | CSI0-D3 | PE-EINT8 | 3.3V |
| 27 | SDC0-CLK | SD Clock output | PF2/EINT2 | 3.3V |
| 28 | PE6 | CSI0-D2 | PE-EINT7 | 3.3V |
| 29 | GND | Ground | 0V | |
| 30 | PE9 | CSI0-D5 | PE-EINT10 | 3.3V |
| 31 | EPHY-CLK-25M | UART4CTS/CLK-Fanout1 | PI16/EINT16/TS0-D7 | 3.3V |
| 32 | PE10 | CSI0-D6 | PE-EINT11 | 3.3V |
| 33 | RGMII-MDIO | UART4RTS/CLK-Fanout0 | PI15/EINT15/TS0-D6 | 3.3V |
| 34 | PE11 | CSI0-D7 | PE-EINT12 | 3.3V |
| 35 | RGMII-MDC | UART4-RX/PWM4 | PI14/EINT14/TS0-D5 | 3.3V |
| 36 | CK32KO | I2S2-MCLK/AC-MCLK | PG10/EINT10 | 1.8V |
| 37 | RGMII-RXCK | H-I2S0-DIN0/DO1 | PI4/EINT4/DMIC-D3 | 3.3V |
| 38 | GND | Ground | 0V | |
| 39 | RGMII-RXD3 | H-I2S0-MCLK | PI0/EINT0/DMICCLK | 3.3V |
| 40 | PG-MCSI-SCK | I2C3-SCL/UART2-RTS | PG17/EINT17 | 1.8V |
| 41 | RGMII-RXD2 | H-I2S0-BCLK | PI1/EINT1/DMIC-D0 | 3.3V |
| 42 | PG-MCSI-SDA | I2C3-SDA/UART2-CTS | PG18/EINT18 | 1.8V |
| 43 | RGMII-RXD1 | RMII-RXD1/H-I2S0-LRCK | PI2/EINT2/DMIC-D1 | 3.3V |
| 44 | PE-TWI2-SCK | CSI0-SCK | PE20-EINT21 | 3.3V |
| 45 | RGMII-RXD0 | RMII-RXD0/H-I2S0-DO0/DIN1 | PI1/EINT1/DMIC-D2 | 3.3V |
| 46 | PE-TWI2-SDA | CSI0-SDA | PE21-EINT22 | 3.3V |
| 47 | RGMII-RXCTL | RMII-CRS/UART2TX/I2C0SCL | PI5/EINT5/TS0-CLK | 3.3V |
| 48 | BT-PCM-CLK | H-I2S2-BCLK/AC-SYNC | PG11/EINT11 | 1.8V |
| 49 | GND | Ground | 0V | |
| 50 | BT-PCM-SYNC | H-I2S2-LRCLK/AC-ADCL | PG12/EINT12 | 1.8V |
| 51 | RGMII-TXCK | RMII-TXCK/UART3RTS/PWM1 | PI11/EINT11/TS0-D2 | 3.3V |
| 52 | BT-PCM-DOUT | H-I2S2-DO0/DIN1/AC-ADCR | PG13/EINT13 | 1.8V |
| J2 | Signal | Description | Alternate functions | IO Voltage |
| 53 | RGMII-TXCTL | RMII-TXEN/UART3CTS/PWM2 | PI12/EINT12/TS0-D3 | 3.3V |
| 54 | BT-PCM-DIN | H-I2S2-DO1/DIN0/AC-ADCX | PG14/EINT14 | 1.8V |
| 55 | RGMII-TXD3 | UART2-RTS/I2C1-SCL | PI7/EINT7/TS0SYNC | 3.3V |
| 56 | BT-UART-RTS | UART1-RTS/PLL-LOCK-DBG | PG8/EINT8 | 1.8V |
| 57 | RGMII-TXD2 | UART2-CTS/I2C1-SDA | PI8/EINT8/TS0DVLD | 3.3V |
| 58 | BT-UART-CTS | UART1-CTS/AC-ADCY | PG9/EINT9 | 1.8V |
| 59 | RGMII-TXD1 | RMII-TXD1/UART3TX/I2C2SCL | PI9/EINT9/TS0-D0 | 3.3V |
| 60 | BT-UART-RX | UART1-RX | PG7/EINT7 | 1.8V |
| 61 | RGMII-TXD0 | RMII-TXD0/UART3RX/I2C2SDA | PI10/EINT10/TS0-D1 | 3.3V |
| 62 | BT-UART-TX | UART1-TX | PG6/EINT6 | 1.8V |
| 63 | GND | Ground | 0V | |
| 64 | GND | Ground | 0V | |
| 65 | RGMII-CLKIN-125M | UART4-TX/PWM3 | PI13/EINT13/TS0-D4 | 3.3V |
| 66 | WL-SDIO-D0 | SDC1-D0 | PG2/EINT2 | 1.8V |
|
67 |
PHYRSTB |
RMII-RXER/UART2-RX/I2C0-S
DA |
PI6/EINT6/TS0-EER |
3.3V |
| 68 | WL-SDIO-D1 | SDC1-D1 | PG3/EINT3 | 1.8V |
| 69 | GND | Ground | 0V | |
| 70 | WL-SDIO-D2 | SDC1-D2 | PG4/EINT4 | 1.8V |
| 71 | MCSI-MCLK | PWM1 | PG19/EINT19 | 1.8V |
| 72 | WL-SDIO-D3 | SDC1-D3 | PG5/EINT5 | 1.8V |
| 73 | GND | Ground | 0V | |
| 74 | WL-SDIO-CMD | SDC1-CMD | PG1/EINT1 | 1.8V |
| 75 | PG-TWI4-SCK | I2C4-SCL/UART2-TX | PG15/EINT15 | 1.8V |
| 76 | WL-SDIO-CLK | SDC1-CLK | PG0/EINT0 | 1.8V |
| 77 | PG-TWI4-SDA | I2C4-SDA/UART2-RX | PG16/EINT16 | 1.8V |
| 78 | GND | Ground | 0V | |
|
79 |
FEL |
Boot mode select:
Low: download from USB, High: fast boot |
3.3V |
|
| 80 | ALDO5 | PMU ALDO5 default 1.8V output | Max:300mA | 1.8V |
| 81 | EXT-IRQ | External IRQ input | OD | |
| 82 | BLDO5 | PMU ALDO5 default 1.2V output | Max:500mA | 1.2V |
| 83 | PMU-PWRON | Connect to Power Key | 1.8V | |
| 84 | GND | Ground | 0V | |
| 85 | RTC-BAT | RTC battery input | 1.8-3.3V | |
| 86 | VSYS_3V3 | System 3.3V output | Max: 300mA | 3.3V |
| 87 | GND | Ground | 0V | |
| 88 | DCDC6 | PMU DCDC6 out(default 3V3) | Max: 1000mA | 3.3V |
| 89 | SOC-RESET | System Reset output | Connect to RST key | 1.8V |
| 90 | DCDC6 | PMU DCDC6 out(default 3V3) | Max: 1000mA | 3.3V |
| 91 | GND | Ground | 0V |
| J2 | Signal | Description | Alternate functions | IO Voltage |
| 92 | GND | Ground | 0V | |
| 93 | DCIN | Main Power input | 3.4V-5.5V | |
| 94 | DCIN | Main Power input | 3.4V-5.5V | |
| 95 | DCIN | Main Power input | 3.4V-5.5V | |
| 96 | DCIN | Main Power input | 3.4V-5.5V | |
| 97 | DCIN | Main Power input | 3.4V-5.5V | |
| 98 | DCIN | Main Power input | 3.4V-5.5V | |
| 99 | DCIN | Main Power input | 3.4V-5.5V | |
| 100 | DCIN | Main Power input | 3.4V-5.5V | |
| Note
1. J1 Pin87/89(PC3/PC4) is Boot-SEL associated, please do not pull H or L. 2. PC/PG unit is 1.8V level default, but can change to 3.3V. |
||||
Development Kit (EMT507)
Hardware Design Guide
Peripheral Circuit Reference
External Power
Debug Circuit
USB OTG Interface Circuit
HDMI Interface Circuit
Power Tree

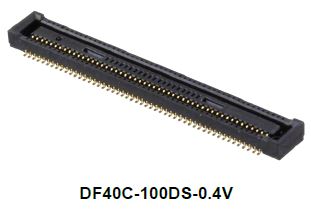

B2B connector for carrier board
Product Electrical Characteristics
Dissipation and Temperature
| Symbol | Parameter | Min | Typ | Max | Unit |
|
DCIN |
System Voltage |
3.4 |
5 |
5.5 |
V |
|
VSYS_3V3 |
System IO
Voltage |
3.3-5% |
3.3 |
3.3+5% |
V |
|
DCDC6_3V3 |
Peripheral
Voltage |
3.3-5% |
3.3 |
3.3+5% |
V |
|
ALDO5 |
Camera IO
Voltage |
0.5 |
1.8 |
3.3 |
V |
|
BLDO5 |
Camera Core
Voltage |
0.5 |
1.2 |
3.3 |
V |
|
Idcin |
DCIN
input Current |
500 |
mA |
||
|
VCC_RTC |
RTC Voltage |
1.8 |
3 |
3.4 |
V |
|
Iirtc |
RTC input
Current |
TDB |
uA |
||
|
Ta |
Operating
Temperature |
-40 |
85 |
°C |
|
|
Tstg |
Storage Temperature |
-40 |
120 |
°C |
Reliability of Test
| High-Temperature Operating Test | ||
| Contents | Operating 8h in high-temperature | 55°C±2°C |
| Result | TDB | |
| Operating Life Test | ||
| Contents | Operating in room | 120h |
| Result | TDB | |
Documents / Resources
 |
Boardcon MINI507 Cost Optimized System Module [pdf] User Manual T507, V1.202308, MINI507, MINI507 Cost Optimized System Module, Cost Optimized System Module, Optimized System Module, System Module, Module |
