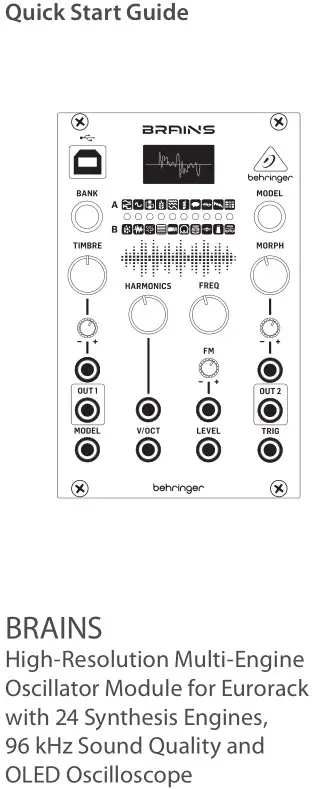

Controls
- DISPLAY Produces a waveform of the audio content for quick visual feedback.
- USB Connect a standard USB cable for firmware updates.
- BANK button Toggles between red, green and yellow banks.
- TIMBRE knob Function varies depending on the model selected, but generally sweeps from darker to brighter content.
- HARMONICS knob Function varies depending on the model selected, but generally adjusts frequency spread or tonal balance.
- TIMBRE CV LEVEL Attenuates the voltage received at the Timbre CV input. If the CV input is not patched, and a signal is received at the Trig input, this knob will instead control the amount of modulation from the internal envelope generator.
- TIMBRE CV Control the Timbre parameter via external control voltage.
- OUT 1 Sends the main processed signal via 3.5 mm TS cable.
- MODEL jack Allows model selection to be made remotely via external control voltage.
- MODEL button Scrolls through the available models in the currently-active bank. The current model is displayed on the OLED display (1).
- MODEL/BANK LEDs indicate the current model and bank, in either red, green or yellow.
- MORPH knob Function varies depending on the model selected, but generally controls the character.
- FREQ knob Covers a range of 8 octaves, but can be narrowed down to 14 semitones.
- MORPH CV LEVEL Attenuates the voltage received at the Morph CV input. If the CV input is not patched, and a signal is received at the Trig input, this knob will instead control the amount of modulation from the internal envelope generator.
- MORPH CV Control the Morph parameter via external control voltage.
- OUT 2 Sends an alternate or variant of the Out 1 signal via 3.5 mm TS cable.
- TRIG Performs several functions: · Triggers the internal envelope generator. · Excites the physical and percussive models. · Strikes the internal low-pass gate. · Samples and holds the value of the Model CV input.
- HARMONICS CV Control the Harmonics parameter via external control voltage.
- V/OCT Controls the fundamental frequency relative to the root selected by the Freq knob.
- FM CV Control the FM parameter via external control voltage.
- LEVEL Opens the internal low-pass gate on the output signal, controlling both output level and brightness. Also triggers an accent when the physical or percussive models are active.
- FM CV LEVEL Attenuates the voltage received at the FM CV input.

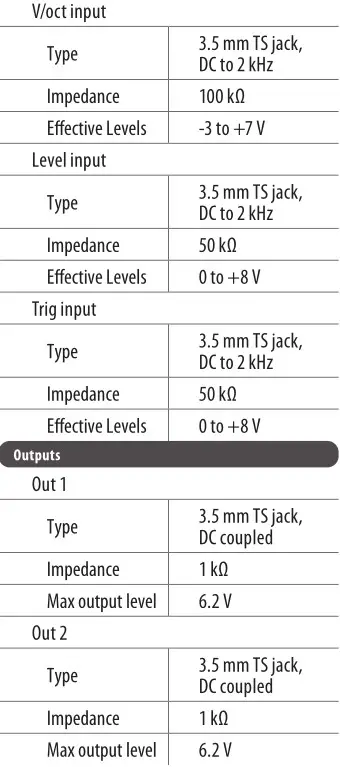

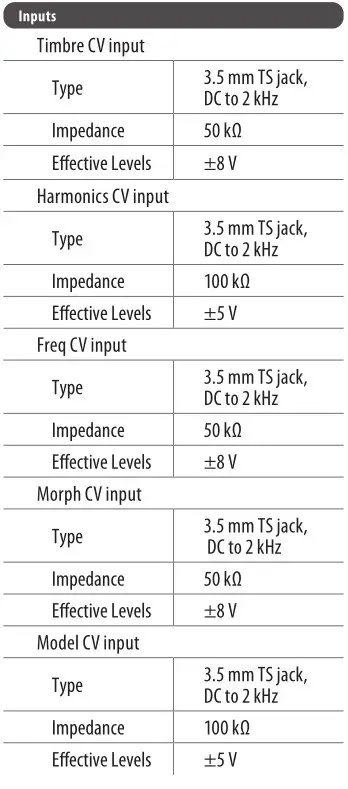

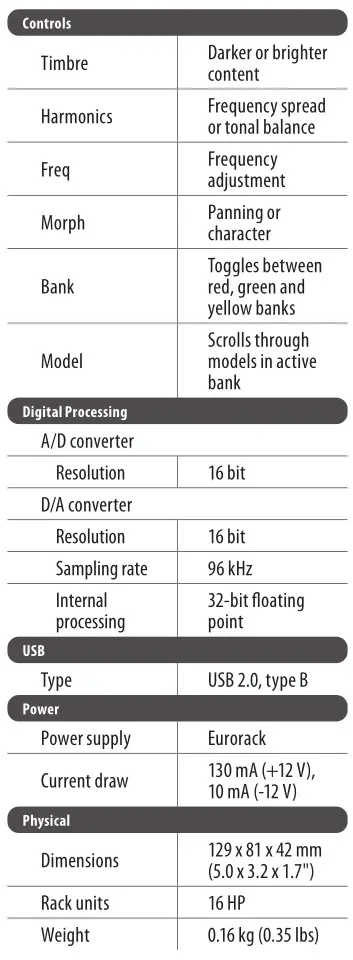

Specifications

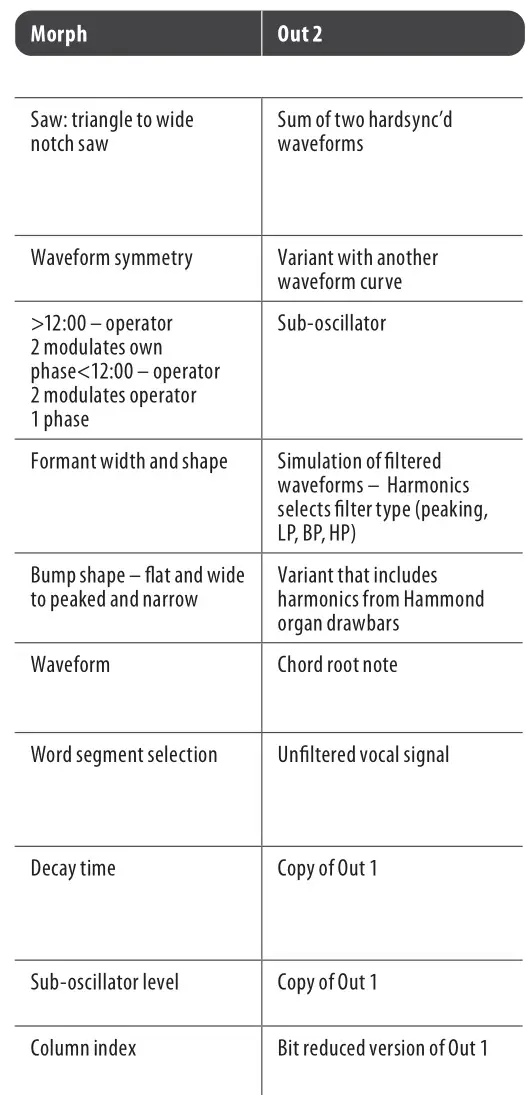

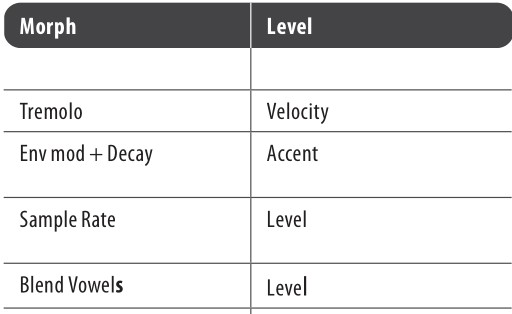

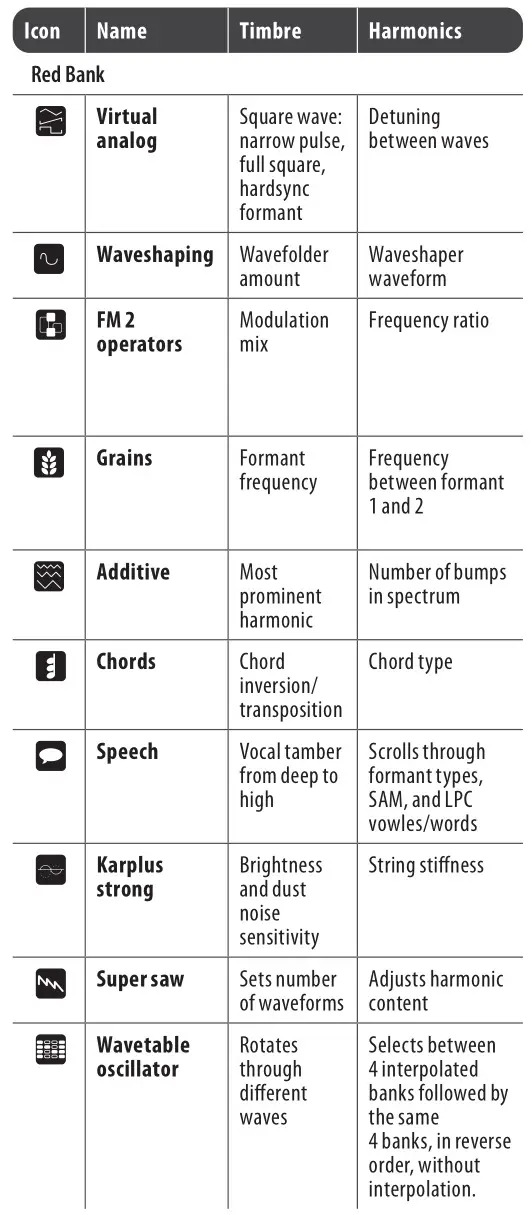

Waveform Parameters
Note 1: for BX7 mode, it is possible to send a DX7 Sysex file using USB, the Sysex will overwrite the presets present in BRAINS memory.
Note 2: Model input only controls the red/green engines.
Note 3: Audio Scope input is via V/Oct socket.
Low Pass Gate and Envelope
To adjust the Low Pass Gate press and hold the Bank button (3) and use the Timbre control to adjust its response from being a VCA when fully clockwise to being a true low pass gate when fully counter-clockwise or the Morph control (12) to adjust its ring time and increase the decay of the internal envelope. The settings are shown by the number of yellow LEDs lit, from 1 4.
Low Pass Gates reduce level and cutoff simultaneously, resulting in the signal losing high frequency content as it gets quieter.
Frequency Range
Press and hold the Model button (10) and use the Harmonics control (5) to set the range of the Frequency control (13). The number of lit LEDs corresponds to the range. 1 LED represents C0 +/- 7 semitones, 2 LEDs C1 +/- 7 semitones until 8 LEDs represents C7 +/- 7 semitones. When all LEDs are lit then the Frequency control has an eight octave range covering C0 to C8.
CALIBRATION
The BRAINS is factory calibrated with high precision instruments and should not need any further calibration. If it does become necessary to calibrate it, please follow this procedure:
- Disconnect all CV inputs except v/oct, which should be connected to a well calibrated CV keyboard or MIDI/CV converter.
- Press the BANK and MODEL buttons simultaneously, the first LED will flash green.
- Send 1 V to the v/oct input from the keyboard.
- Press any button, the first LED will now flash in orange.
- Send 3 V to the v/oct input from the keyboard.
- Press any button, the BRAINS will now leave calibration mode.
To check that the BRAINS is correctly calibrated follow this procedure:
- Send 0 V to the v/oct input from the keyboard.
- Use the FREQ control (13) to tune the output to 110 Hz (MIDI A2)
- Send 1 V to the v/oct input from the keyboard. The tuner should now show 220 Hz (A3).
- Send 2 V to the v/oct input from the keyboard. The tuner should now show 440 Hz (A4).
- Send 3 V to the v/oct input from the keyboard. The tuner should now show 880 Hz (A5).
