Quick Start Guide
CP3A-M Legendary Analog Mixer Utility Module for Eurorack
CP3A-M MIXER
Legendary Analog Mixer/Utility Module for Eurorack
Safety Instruction
- Please read and follow all instructions.
- Keep the apparatus away from water, except for outdoor products.
- Clean only with a dry cloth.
- Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.
- Do not install near any heat sources such as radiators, heat registers, stoves or other apparatus (including amplifiers) that produce heat.
- Use only attachments/accessories specified by the manufacturer.
- Use only specified carts, stands, tripods, brackets, or tables. Use caution to prevent tip-over when moving the cart/ apparatus combination.
- Avoid installing in confined spaces like bookcases.
- Do not place near naked flame sources, such as lighted candles.
- Operating temperature range 5° to 45°C (41° to 113°F).
LEGAL DISCLAIMER
Music Tribe accepts no liability for any loss which may be suffered by any person who relies either wholly or in part upon any description, photograph, or statement contained herein. Technical specifications, appearances and other information are subject to change without notice. All trademarks are the property of their respective owners. Midas, Klark Teknik, Lab Gruppen, Lake, Tannoy, Turbosound, TC Electronic, TC Helicon, Behringer, Bugera, Aston Microphones and Coolaudio are trademarks or registered trademarks of Music Tribe Global Brands Ltd. © Music Tribe Global Brands Ltd. 2024 All rights reserved.
LIMITED WARRANTY
For the applicable warranty terms and conditions and additional information regarding Music Tribe’s Limited Warranty, please see complete details online at community.musictribe.com/support.
CP3A-M MIXER Controls

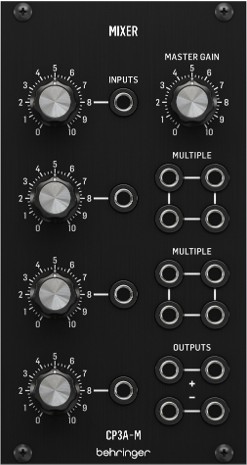

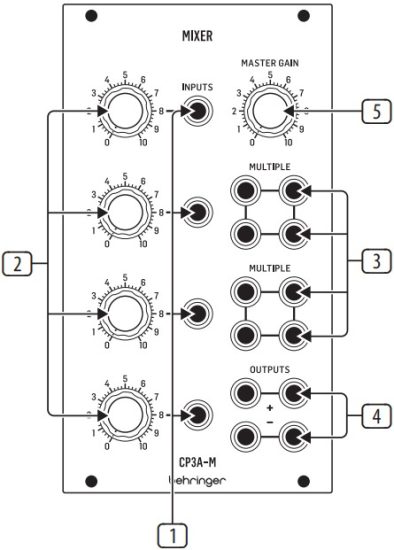

Controls
- CHANNELINPUTS connect the incoming signals via cables with 3.5 mm TS connectors.
- CHANNEL GAIN knobs adjust the input volume for the CHANNEL INPUTS.
- MULTIPLE connections act as a patchbay so that copies of the input signals can be routed out to other modules for further processing.
- OUTPUTS connections send out the mixer module’s final, summed signal.
The OUTPUTS section features two sets of output jacks with negative and positive polarity. - MASTER GAIN controls the final volume at the OUTPUTS jacks.
Power Connection
Connect end P11 to the module socket
Connect end P2 to the power supply
The CP3A-M MIXER comes with the required power cable for connecting to a standard Eurorack power supply system. Follow these steps to connect power to the module. It is easier to make these connections before the module has been mounted into a rack case.
- Turn the power supply or rack case power off and disconnect the power cable.
- Insert the 16-pin connector on the power cable into the socket on the power supply or rack case. The connector has a tab that will align with the gap in the socket, so it cannot be inserted incorrectly. If the power supply does not have a keyed socket, be sure to orient pin 1 (-12 V) with the red stripe on the cable.
- Insert the 10-pin connector into the socket on the back of the module. The connector has a tab that will align with the socket for correct orientation.
- After both ends of the power cable have been securely attached, you may mount the module in a case and turn on the power supply.
Installation
The necessary screws are included with the module for mounting in a Eurorack case. Connect the power cable before mounting.
Depending on the rack case, there may be a series of fixed holes spaced 2 HP apart along the length of the case, or a track that allows individual threaded plates to slide along the length of the case. The free-moving threaded plates allow precise positioning of the module, but each plate should be positioned in the approximate relation to the mounting holes in your module before attaching the screws.
Hold the module against the Eurorack rails so that each of the mounting holes are aligned with a threaded rail or threaded plate. Attach the screws part way to start, which will allow small adjustments to the positioning while you get them all aligned. After the final position has been established, tighten the screws down.
Specifications
| Controls | |
| Channel gain | 4 x rotary knob |
| Maximum input level | +14 d Bu |
| Master gain | 1 x rotary knob |
| Maximum output level | +14 dBu |
| Signal Connections | |
| Inputs | 4 x 3.5 mm TS jack, mono |
| Impedance | 10 kΩ unbalanced |
| Multiple | 8 x 3.5 mm TS jack, mono |
| Arrangement | 2 sets of 4 parallel jacks, passive |
| Compatibility | CV and audio signals |
| Outputs | 4 x 3.5 mm TS jack, mono |
| Impedance | 220 Ω to 5 kΩ, unbalanced |
| Output noise | <-85 dBu, 22 Hz – 22 kHz |
| Power | |
| Power supply | Eurorack |
| Current draw | 30 mA (+12 V), 30 mA (-12 V) |
| Physical | |
| Dimensions (H x W x D) | 129 x 71 x 35 mm (5.1 x 2.8 x 1.4″) |
| Rack units | 14 HP |
| Weight | 0.16 kg (0.35 lbs) |
