Важныя інструкцыі па бяспецы
- Always ensure the heater is fully submerged in water before powering on. Operating the heater out of water can cause damage and pose a safety risk.
- The external controller is not waterproof. Do not immerse the controller in water.
- Unplug the heater from the power outlet before performing any maintenance, water changes, or cleaning tasks. Allow the heater to cool for at least 15 minutes before handling.
- Place the heater in an area of the tank with good water circulation to ensure even heat distribution.
- Regularly inspect the heater and power cord for any signs of damage. Do not use if damaged.
- Захоўваць у месцах, недаступных дзецям і хатнім жывёлам.
Прадукт скончаныview
The hygger 150W Submersible Aquarium Heater (Model HG273) is designed to provide stable and consistent heating for 20-30 gallon freshwater or saltwater aquariums. It features a digital temperature controller for precise temperature management and includes advanced safety features such as overheat and out-of-water protection.
Асноўныя характарыстыкі:
- Лічбавы рэгулятар тэмпературы: External controller displays real-time water temperature and allows easy adjustment of the desired temperature between 59-93°F (15-34°C).
- Абарона ад перагрэву: Automatically stops heating and displays an "EE" error code if the water temperature exceeds 97°F.
- Out-of-Water Protection: Shuts off power and displays an "ER" error code if the heater is exposed to air, preventing dry burning.
- Трывалая канструкцыя: Made with explosion-proof quartz glass and silicon carbide for enhanced safety and longevity. Insulated ends reduce burn risks for aquatic life.
- Кампактны дызайн: Measuring 8.1 inches in length, it is suitable for various tank types including betta, turtle, and nano tanks.
Змест пакета
- 1 x hygger 150W Submersible Aquarium Heater (Model HG273)
Тэхнічныя характарыстыкі
| Атрыбут | Каштоўнасць |
|---|---|
| Назва мадэлі | HG273 |
| Магутнасць | 150 Вт |
| Памер акварыума | 20-30 галонаў |
| Дыяпазон тэмператур | 59-93°F (15-34°C) |
| Дакладнасць тэмпературы | 0.5°F (0.5°C) |
| Пераноснасць тэмпературы | ± 1 ° F (± 1 ° C) |
| Heating Rod Size | 8.1 цалі х 1.06 цалі |
| тtage | AC 110-120V/60Hz (US Standard) |
| Даўжыня шнура | 2.6ft + 3.9ft / 0.8m + 1.2m |
| Вага прадмета | 13.1 унцыі |
| Матэрыял | Explosion-proof Quartz Glass |
Настройка
Follow these steps to properly install your hygger aquarium heater:
- Распакуйце: Carefully remove the heater and controller from the packaging. Inspect for any damage.
- Размяшчэнне: Position the heater fully submerged in your aquarium. It can be placed vertically or horizontally. Ensure the heater is at least 5cm below the water surface.
- Бяспечны: Use the included strong suction cups to firmly attach the heater to the inside wall of your tank.
- Размяшчэнне кантролера: Place the digital temperature controller outside the aquarium in a dry location. Remember, the controller is not waterproof.
- Падключэнне сілкавання: Once the heater is securely placed and fully submerged, plug the power cord into a suitable electrical outlet.
Інструкцыя па эксплуатацыі
Your hygger aquarium heater is designed for easy operation with its external digital controller.
Ўстаноўка тэмпературы:
- Upon power connection, the controller will display the real-time water temperature.
- Press the "SET" button briefly to increase the preset temperature. Each press will cycle through the available temperature range (59-93°F).
- Once your desired temperature is displayed, stop pressing the "SET" button. The display will flash briefly and then return to showing the actual water temperature. The set temperature is now saved.
Светавыя індыкатары:
- Чырвонае святло: Indicates the heater is actively heating the water.
- Зялёнае святло: Indicates the heater has stopped heating and the water is at the set temperature (standby mode).
Відэа прадукту:
Тэхнічнае абслугоўванне
Правільнае абслугоўванне гарантуе даўгавечнасць і эфектыўную працу вашага абагравальніка.
- Уборка: Periodically clean the heater rod to remove algae or mineral buildup. Always unplug the heater and allow it to cool for 15 minutes before removing it from the tank for cleaning. Use a soft brush or cloth and aquarium-safe cleaning solutions if necessary.
- Падмена вады: During water changes, ensure the heater remains fully submerged. If the water level drops below the heater, it will automatically shut off (displaying "ER"). Always unplug the heater before draining significant amounts of water.
- агляд: Regularly check the heater's glass tube and power cord for any cracks, fraying, or other signs of wear or damage. Replace the heater if any damage is observed.
Ліквідацыю непаладак
If you encounter issues with your hygger aquarium heater, refer to the following common problems and solutions:
| Код памылкі / Сімптом | Апісанне | Рашэнне |
|---|---|---|

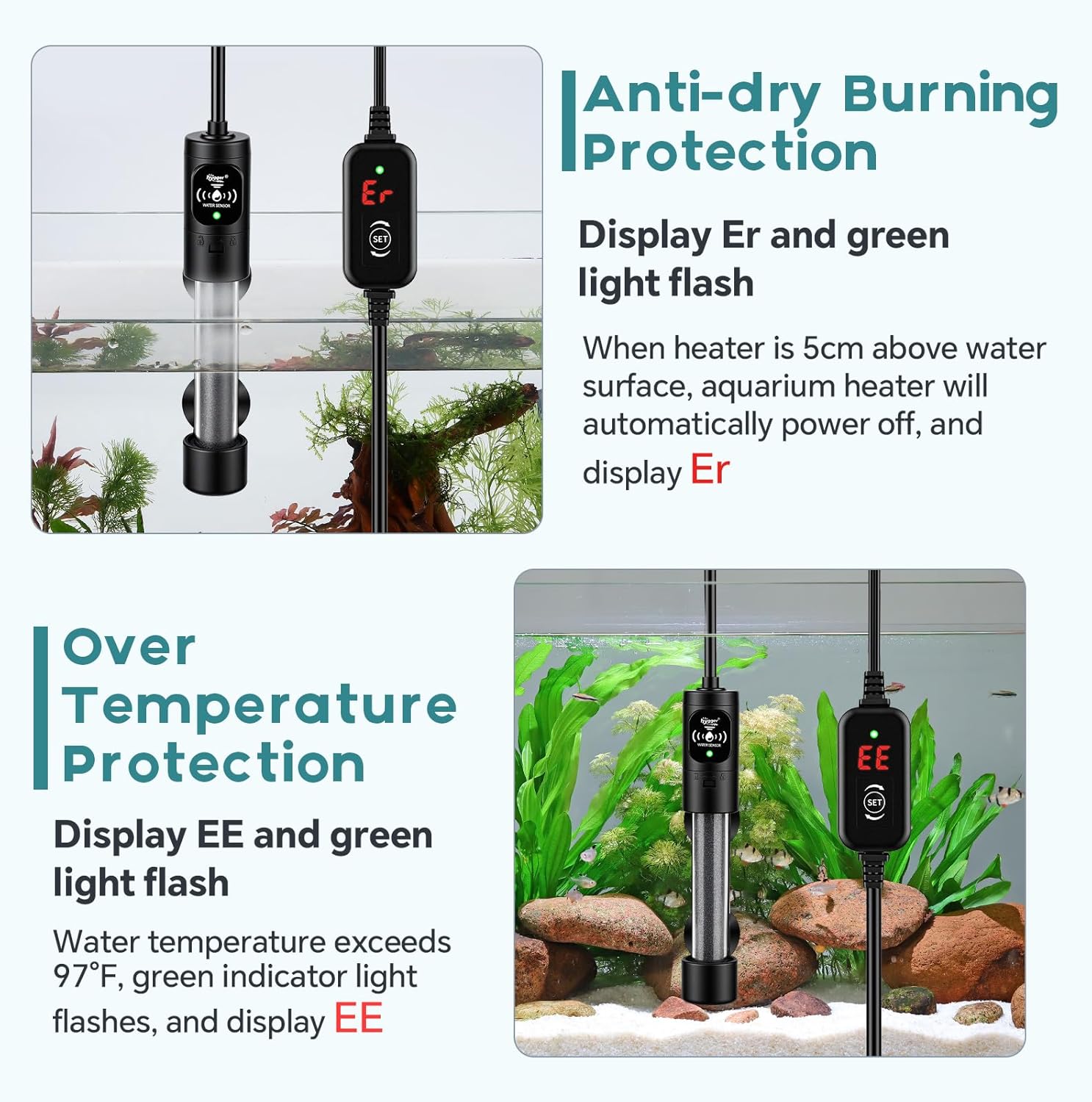

| "ER" displayed on controller | Heater is out of water or water level is too low (dry-run protection activated). | Ensure the heater is fully submerged in water. If the water level is low, add water to the tank. The heater will resume normal operation once fully submerged. |
| "EE" displayed on controller | Water temperature exceeds 97°F (overheat protection activated). | Check the ambient room temperature. If the tank is in a warm environment, consider moving it or using a chiller. The heater will stop heating until the temperature drops below the safety threshold. |
| Абагравальнік не награвае | The red indicator light is off, and the water temperature is below the set point. | Check if the heater is plugged in correctly. Verify the set temperature is higher than the current water temperature. Ensure there are no error codes displayed. If issues persist, contact customer support. |
Гарантыя
This hygger aquarium heater comes with a 2-гадовая гарантыя ад вытворцы. Please retain your proof of purchase for warranty claims. The warranty covers defects in materials and workmanship under normal use. It does not cover damage resulting from misuse, accident, modification, or unauthorized repair.
Падтрымка
For technical assistance, troubleshooting beyond this manual, or warranty inquiries, please contact hygger customer support through the retailer where the product was purchased or visit the official hygger webсайт для кантактнай інфармацыі.
