Аўтаматычныя дзверы для куратніка FOFNON з сонечнай батарэяй: інструкцыя па эксплуатацыі

1. Уводзіны

The FOFNON Automatic Chicken Coop Door provides a convenient and reliable solution for managing your poultry. Designed with advanced features such as solar power, intelligent timing, and light sensing, it ensures your chickens are safely secured at night and released in the morning without manual intervention. Its robust construction and anti-pinch mechanism prioritize the safety and well-being of your flock.

Асноўныя функцыі ўключаюць у сябе:

• На сонечнай энергіі: Equipped with a 2000mAh battery, rechargeable via solar panel or USB-C, providing up to 45 days of operation on a full charge.
• Timing & Light Sensing: Automated opening and closing based on pre-set times or natural light conditions.
• Anti-Pinch Protection: The door reopens and closes again if an obstruction is detected during closing, ensuring poultry safety.
• Трывалая канструкцыя: Made from aluminum alloy and ABS, designed to withstand harsh weather conditions (-35°C to 60°C), including snow, rain, and dust.
• Універсальны памер: Door opening of 9.4" high and 10.8" wide, suitable for various poultry like ducks, geese, and rabbits under 10 lbs.

2. Змесціва ўпакоўкі

Upon opening your FOFNON Automatic Chicken Coop Door package, you should find the following items:

• 1 × Automatic Chicken Door
• 1 × Інструкцыя па эксплуатацыі
• 1 × Solar Power Supply
• 1 × Пульт дыстанцыйнага кіравання
• 1 × USB-кабель для зарадкі
• 10 × Шрубы

Figure 2.1: All components included in the FOFNON Automatic Chicken Coop Door package.

3. Важная інфармацыя па бяспецы

• Fully charge the chicken door with the USB-C cable before first use to ensure optimal battery performance.
• Solar panels must be placed in an area with good exposure to direct sunlight for efficient charging.
• Regularly apply lubricant to the door mechanism to prevent sticking and ensure smooth operation.
• Periodically clear away any debris or obstructions around the automatic chicken coop door to prevent the door from getting stuck or malfunctioning.
• Ensure the door is installed securely to prevent unauthorized access by predators.

4. Кіраўніцтва па наладцы

Follow these steps to properly install your FOFNON Automatic Chicken Coop Door:

1. Выберыце месцазнаходжанне: Select a suitable location on your chicken coop for installation. Ensure the area is flat and provides enough space for the door to operate freely. The door opening is 9.4" high and 10.8" wide.
2. Падрыхтуйце адкрыццё: If necessary, create an opening in your coop that matches the dimensions of the door frame.
3. Mount Door: Position the automatic chicken door over the prepared opening. Use the provided screws to securely fasten the door frame to the coop. The installation process typically takes about 10 minutes.
4. Усталяваць сонечную панэль: Connect the solar power supply cable to the door unit. Mount the solar panel in a location that receives maximum direct sunlight throughout the day. It can be mounted on the coop wall using the included bracket or staked into the ground.
5. Першапачатковая плата: Before first use, fully charge the door's internal battery using the provided USB-C charging cable.

Figure 4.1: Securely mounting the automatic chicken coop door to the coop.

Figure 4.2: Proper placement of the solar panel for optimal charging.

5. Рэжымы працы

The FOFNON Automatic Chicken Coop Door offers four convenient operating modes:

• Рэжым зандзіравання святла: The door automatically opens at dawn and closes at dusk based on ambient light levels. This is ideal for natural light cycles.
• Рэжым сінхранізацыі: Set specific opening and closing times for the door. This mode provides precise control over your chickens' schedule. To program, press and hold the 'Open' or 'Close' button on the control panel for 3 seconds at the desired time. The door will then operate at that exact time daily.
• Пульт дыстанцыйнага кіравання: Use the included remote control to manually open or close the door from a distance.
• Кіраванне ўручную: The door can also be operated manually directly from the control panel on the solar unit.

Малюнак 5.1: Закончанаview of the four available operating modes.

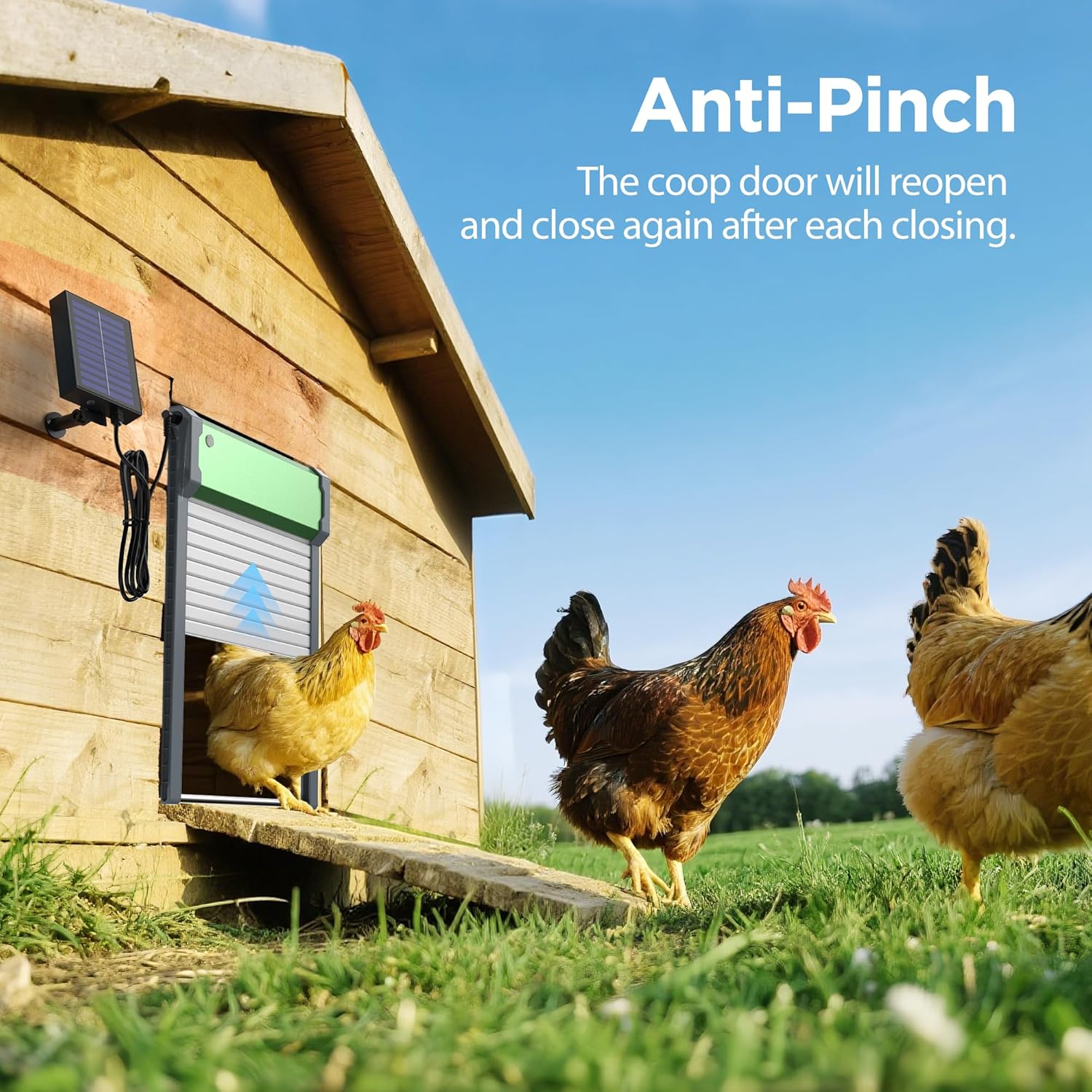

Anti-Pinch Function

The door is equipped with an intelligent anti-pinch function. If an obstruction (such as a chicken) is detected during the closing process, the door will automatically stop, reopen, and then attempt to close again after a few seconds. This ensures the safety of your poultry.

Figure 5.2: The anti-pinch safety feature in action.

Product Functionality Video

6. Тэхнічнае абслугоўванне

To ensure the longevity and optimal performance of your automatic chicken coop door, regular maintenance is recommended:

• змазка: Apply a suitable lubricant to the moving parts of the door mechanism periodically to ensure smooth operation and prevent sticking.
• Debris Clearing: Regularly inspect and clear any debris, dirt, or feathers that may accumulate around the door's tracks or sensor areas. Obstructions can hinder proper closing and opening.
• Ачыстка сонечных батарэй: Keep the surface of the solar panel clean from dust, dirt, or snow to ensure efficient sunlight absorption and battery charging.

7. Выпраўленне непаладак

If you encounter any issues with your FOFNON Automatic Chicken Coop Door, please refer to the following common troubleshooting tips:

• Door Not Opening/Closing:
  • Check the battery level on the solar unit. Ensure it is sufficiently charged.
  • Verify that the solar panel is receiving adequate direct sunlight.
  • Inspect the door tracks for any obstructions or debris. Clear them if found.
  • If using light sensing mode, ensure the sensor is not obstructed or covered.
  • If using timing mode, re-verify the programmed open/close times.
• Anti-Pinch Function Not Working:
  • Ensure the bottom bar of the door is clean and free from any build-up that might interfere with sensor detection.
  • Test the function by gently placing a small, soft object in the door's path during closing to confirm it retracts.
• Праблемы з дыстанцыйным кіраваннем:
  • Праверце батарэйку ў пульце дыстанцыйнага кіравання і пры неабходнасці заменіце яе.
  • Ensure you are within the effective range of the remote control.

Калі гэтыя дзеянні не дазволяць вырашыць праблемы, звярніцеся ў службу падтрымкі кліентаў.

8. Тэхнічныя характарыстыкі

Figure 8.1: The door's durability and weather resistance.

9. Гарантыя і падтрымка

For detailed warranty information and customer support, please refer to the warranty card included in your product packaging or visit the official FOFNON website. Our customer service team is available to assist with any questions or concerns regarding your Automatic Chicken Coop Door.

Кантактная інфармацыя: Please refer to the contact details provided in your product manual or on the manufacturer's official webсайт, каб знайсці найбольш актуальныя варыянты падтрымкі.
