Уводзіны
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your FOFNON S7-Pump Cat Water Fountain Pump. Please read this manual thoroughly before use and retain it for future reference.
Асаблівасці прадукту
- Ультраціхая праца: The pump operates at a noise level of ≤30dB, ensuring a peaceful environment for both you and your pet.
- Бяспечны матэрыял: Constructed from safe materials to provide clean and healthy water for your pet.
- Easy Disassembly and Cleaning: The separated design allows for easy disassembly and cleaning of the pump components. Regular cleaning every 2-4 weeks is recommended to extend product life.
- Простая ўстаноўка: Features a USB port for connection to a power adapter, compatible with FOFNON cat water dispensers.
- Убудаваны святлодыёдны святло: Provides visibility of the water level, especially in low-light conditions.
- Воданепранікальнасць IP68: Ensures durability and safety in water environments.
- Нізкае энергаспажыванне: Operates efficiently with only 1.5W power consumption.
Інструкцыі па тэхніцы бяспекі
ПАПЯРЭДЖАННЕ: For proper safety, only use 5V/1A USB power adapters. Overvoltage можа пашкодзіць помпа.
- Ensure the pump is fully submerged in water before operation.
- Do not run the pump dry, as this can cause damage.
- Адключыце электрычнасць перад чысткай або любым тэхнічным абслугоўваннем.
- Keep the power cord away from chewing pets.
- Regularly inspect the pump and power cord for any signs of damage. Discontinue use if damage is found.
Настройка
Follow these steps to set up your FOFNON Cat Water Fountain Pump:
- Распакуйце кампаненты: Акуратна дастаньце ўсе кампаненты з упакоўкі.
Image: The FOFNON S7-Pump Cat Water Fountain Pump with its USB cable.
- Prepare the Fountain: Ensure your cat water fountain (compatible models B0CL4WMX6Z & B0CLGPCNHN) is clean and ready for pump installation.
Image: A FOFNON cat water fountain, demonstrating its stainless steel construction and water level window.
- Усталюйце помпа: Place the S7-Pump into the designated pump compartment within your cat water fountain. Ensure the pump is securely seated.

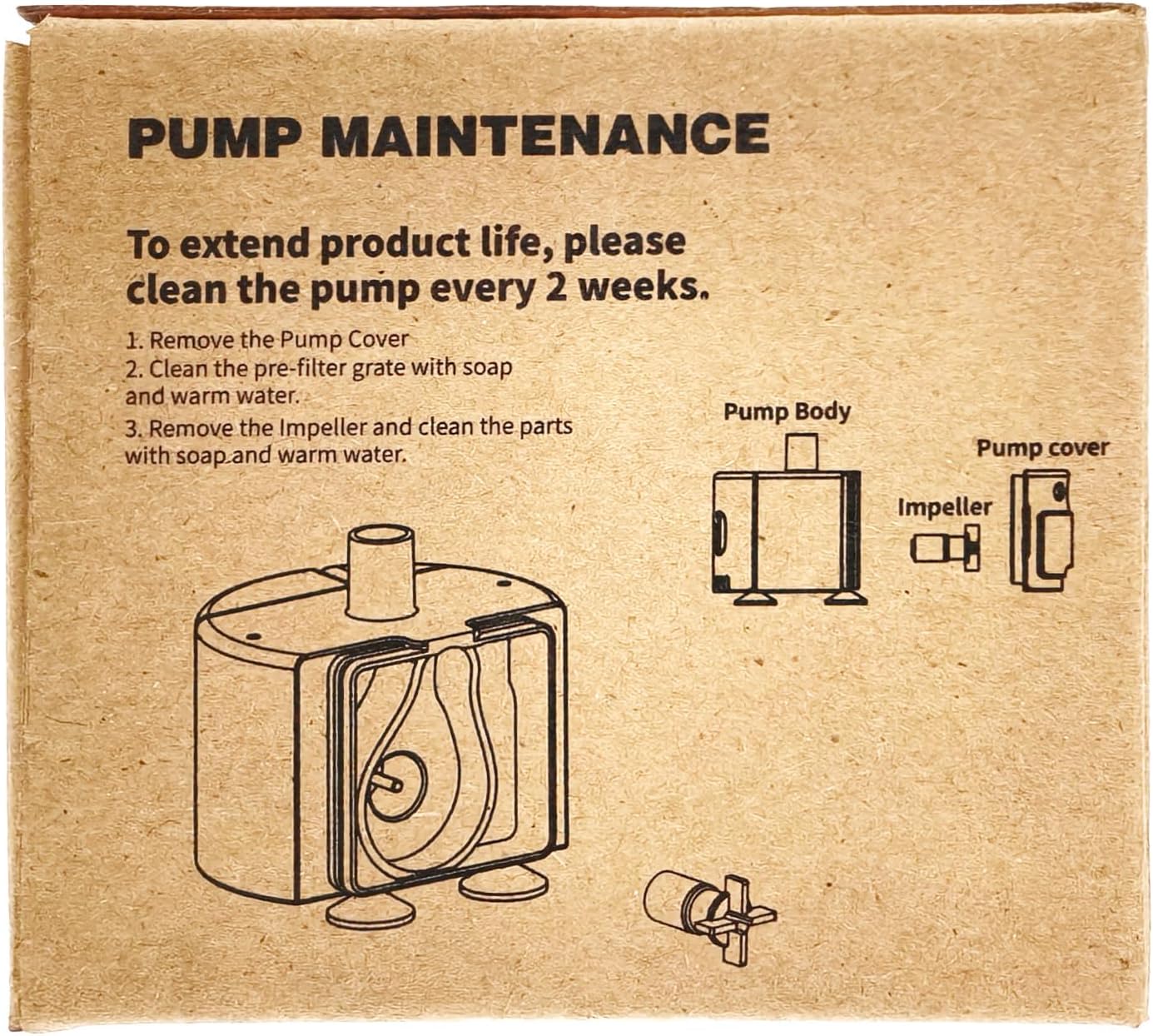

Image: Diagram showing the pump body, pump cover, and impeller, illustrating how the pump is assembled and maintained.
- Падключыце харчаванне: Connect the USB cable from the pump to a 5V/1A USB power adapter (not included).
Image: Packaging detail indicating "USB Plug 5V" for power connection.
- Заліць вадой: Fill the water fountain with fresh water up to the recommended maximum level. The water level window on the fountain will help you monitor this.
Інструкцыя па эксплуатацыі
Once the pump is installed and the fountain is filled with water, connect the power adapter to an electrical outlet. The pump will begin circulating water, providing fresh, filtered water for your pet.
- The ultra-quiet design ensures minimal noise during operation.
- The built-in LED light provides visibility of the water level, especially in low-light conditions.
Video: Demonstration of the LED light indicating water level from day to night, showcasing the pump's quiet operation and visual water level indicator.
Тэхнічнае абслугоўванне
Regular cleaning of the pump is crucial for its longevity and to ensure clean water for your pet. It is recommended to clean the pump every 2-4 weeks.
- Адключыць харчаванне: Always unplug the power adapter from the outlet before cleaning.
- Remove Pump Cover: Carefully remove the pump cover.
- Clean Pre-filter Grate: Clean the pre-filter grate with soap and warm water to remove any debris or hair.
- Remove and Clean Impeller: Remove the impeller and clean all parts with soap and warm water. Ensure no hair or debris is caught in the impeller or its housing.
- Зборка: Reassemble the pump components and place it back into the fountain.
Video: Step-by-step guide on how to clean the water pump, including removing the cover and impeller, and cleaning them to prevent clogging.
Ліквідацыю непаладак
| праблема | Магчымая прычына | Рашэнне |
|---|---|---|
| Pump not working or weak flow |
|
|
| Залішні шум ад помпы |
|
|
If the pump appears abnormal, please try to add water or clean any debris in the pump. If there is any quality problem, you can contact us for replacement.
Тэхнічныя характарыстыкі
- мадэль: S7-Pump
- Марка: ФОФНОН
- колер: Белы
- матэрыял: Stainless Steel (referring to compatible fountains, pump itself is likely plastic)
- Крыніца харчавання: Правадная электрычная (USB)
- Вага прадмета: 0.16 кілаграма (прыблізна 5.6 унцый)
- тtage: 5V (as per warning on packaging)
- Спажываная магутнасць: 1.5 Вт
- Рэйтынг воданепранікальнасці: IP68
- Памеры прадукту: 3.54 х 2.83 х 2.52 цалі
- Краіна паходжання: Кітай
- Compatible Fountains: B0CL4WMX6Z, B0CLGPCNHN
Гарантыя і падтрымка
This FOFNON S7-Pump comes with a Гарантыя 2 год.
For any quality problems or abnormal pump behavior, please contact the seller, MENGJIAN, for assistance or replacement. You can typically find seller contact information through your Amazon order details.
We are committed to solving your problems and ensuring your satisfaction.
