1. Уводзіны
This manual provides essential information for the safe and effective operation of your VEVOR VFD 2.2KW Variable Frequency Drive. Please read these instructions carefully before installation, operation, or maintenance to ensure proper use and prevent damage or injury. This device is designed for controlling the speed of spindle motors and other industrial applications requiring precise motor speed regulation.
2. Інфармацыя па бяспецы
Always observe the following safety precautions to prevent electrical shock, fire, or damage to the equipment:
- Ensure the power supply is disconnected before any wiring or maintenance.
- Толькі кваліфікаваны персанал павінен выконваць мантаж і падключэнне.
- Праверце правільны томtage and current ratings before connecting the VFD.
- Do not operate the VFD in wet or dusty environments.
- Забяспечце належнае зазямленне прылады.
- The VFD contains high voltage components even after power is disconnected. Allow sufficient time for capacitors to discharge before touching internal components.
The VFD is equipped with multiple protection features including overload, fuse, over-voltagе, пад-абtage, restart, stall, short-circuit, and over-heat protection to enhance safety during operation.
Image: Multiple Safeguards. This image illustrates the various protection mechanisms integrated into the VFD, including over-heat, fuse, and voltage protection, ensuring reliable and safe operation.
Image: Multiple Protection Types. This diagram details the comprehensive protection suite of the VFD, covering overload, overheat, voltage fluctuations, fuse, restart, short circuit, and missing phase protection.
3. Асаблівасці прадукту
- Праца з нізкім узроўнем шуму: Optimized PWM control technology and electromagnetic compatibility design reduce noise and electromagnetic interference.
- Шматразовая абарона: Уключае перагрузку, засцерагальнік, перанапружаннеtage (DC томtage >400V), under-voltage (DC томtage <200V), restart, stall, short-circuit, and over-heat protection.
- Разумны лічбавы дысплей: User-friendly keyboard design with a clear digital display for intuitive operation. The detachable design allows for remote control.
- Высокая прадукцыйнасць: Offers high moment of force, high accuracy, both synchronization and non-synchronization capabilities, and a wide speed regulating range.
- Independent Cooling Air Duct: Designed to effectively prevent dust, water, and mist from affecting internal components, featuring high air volume and an easy-to-clean fan. Includes a built-in radiator to reduce surrounding temperature.
- Premium Drive Board: Utilizes high-speed CPU, high-efficiency clock chip, CPLD hardware, analog input buffer device, and 6 optocoupler input isolation for reliable performance.

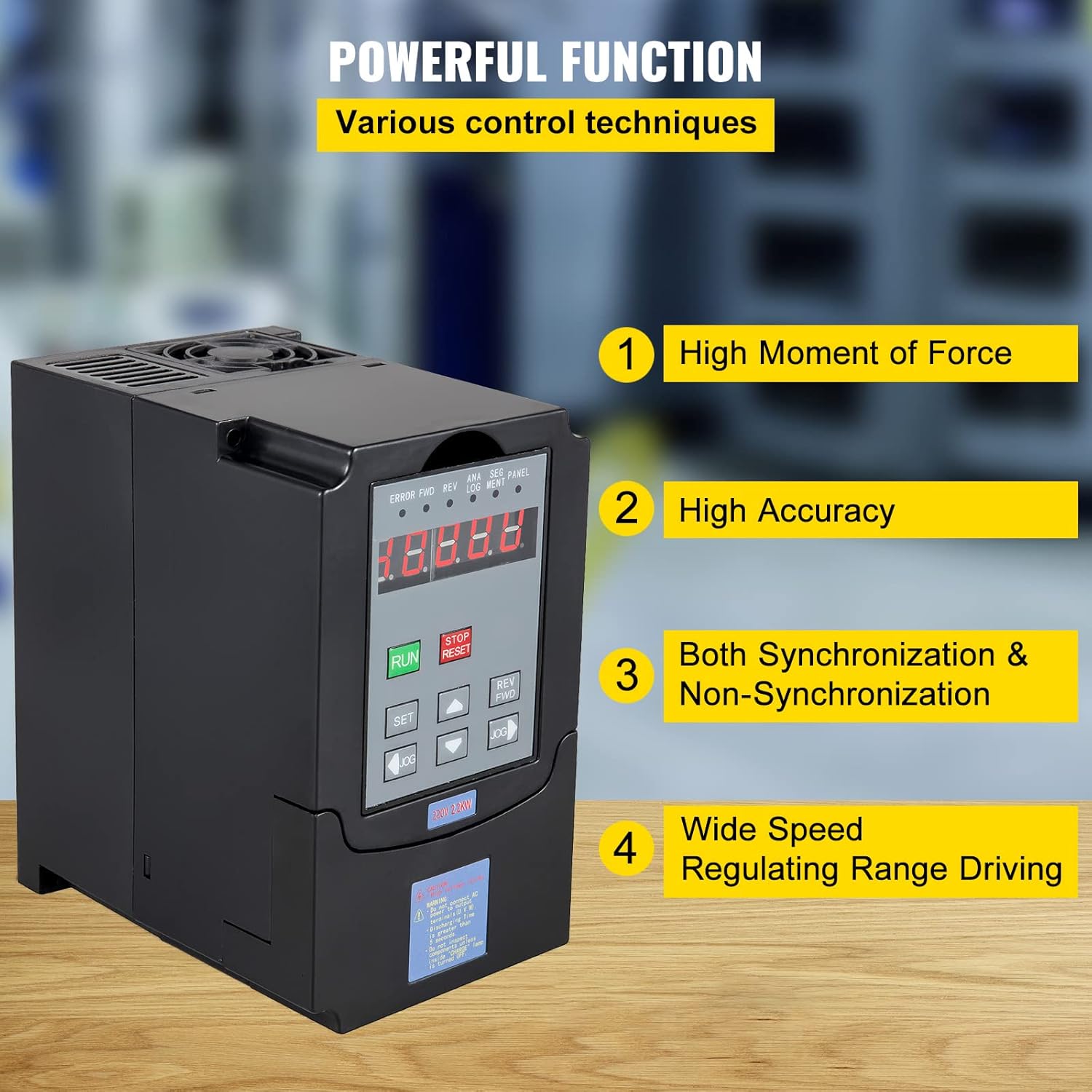

Image: Powerful Functions. This image highlights the key performance attributes of the VFD, including its high torque, precision, versatile synchronization modes, and broad speed control capabilities.
Image: Independent Cooling Air Duct. This visual demonstrates the VFD's cooling system, featuring an independent air duct, high-volume fan for easy cleaning, and a built-in radiator for effective heat dissipation.

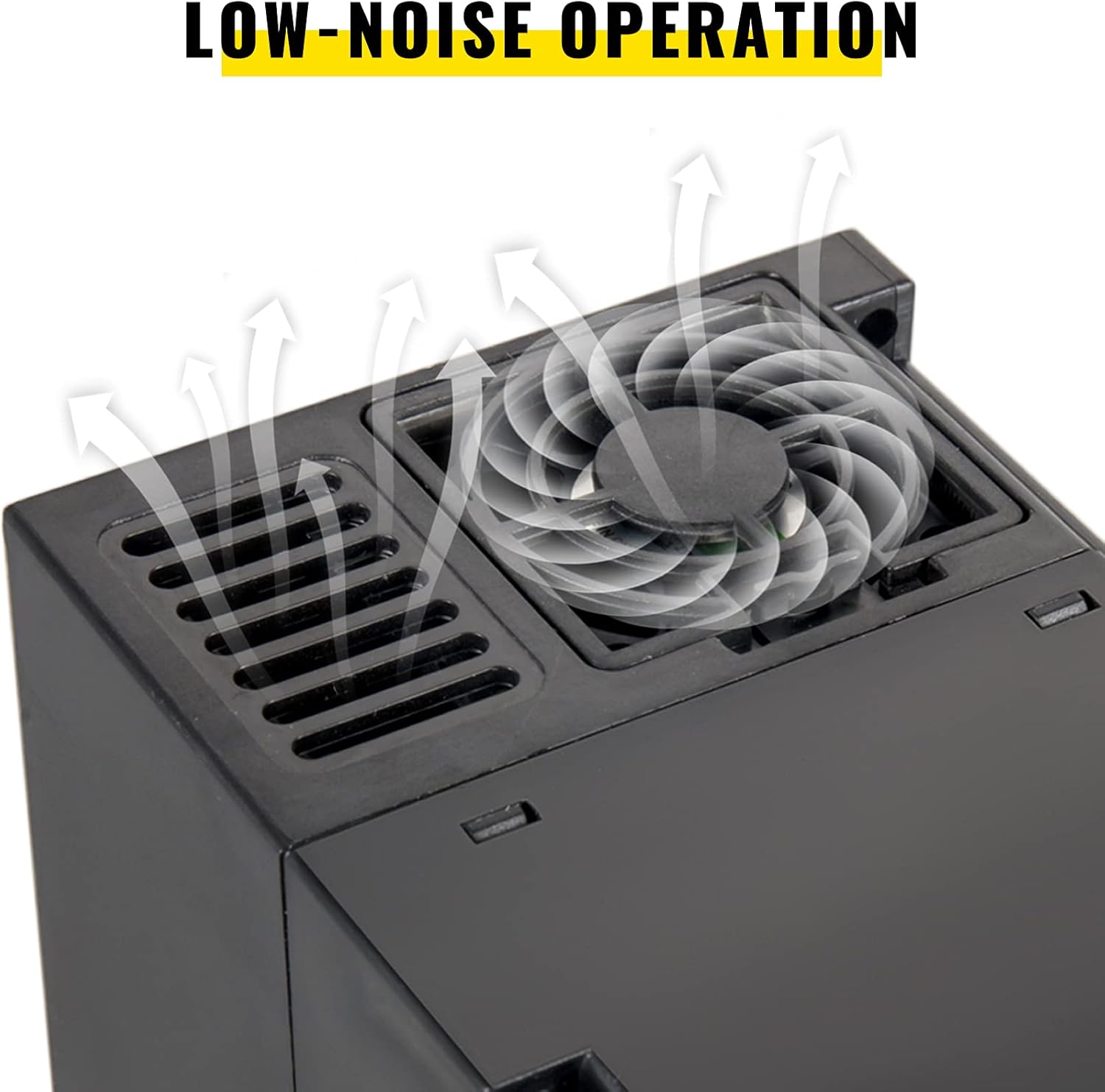

Image: Low-Noise Operation. A close-up view of the VFD's cooling fan, illustrating the design for quiet operation and efficient heat management.
Image: Premium Drive Board. This internal view showcases the advanced components of the VFD's drive board, including the high-speed CPU, clock chip, CPLD hardware, and optocoupler isolation for robust performance.
4. Тэхнічныя характарыстыкі прадукту

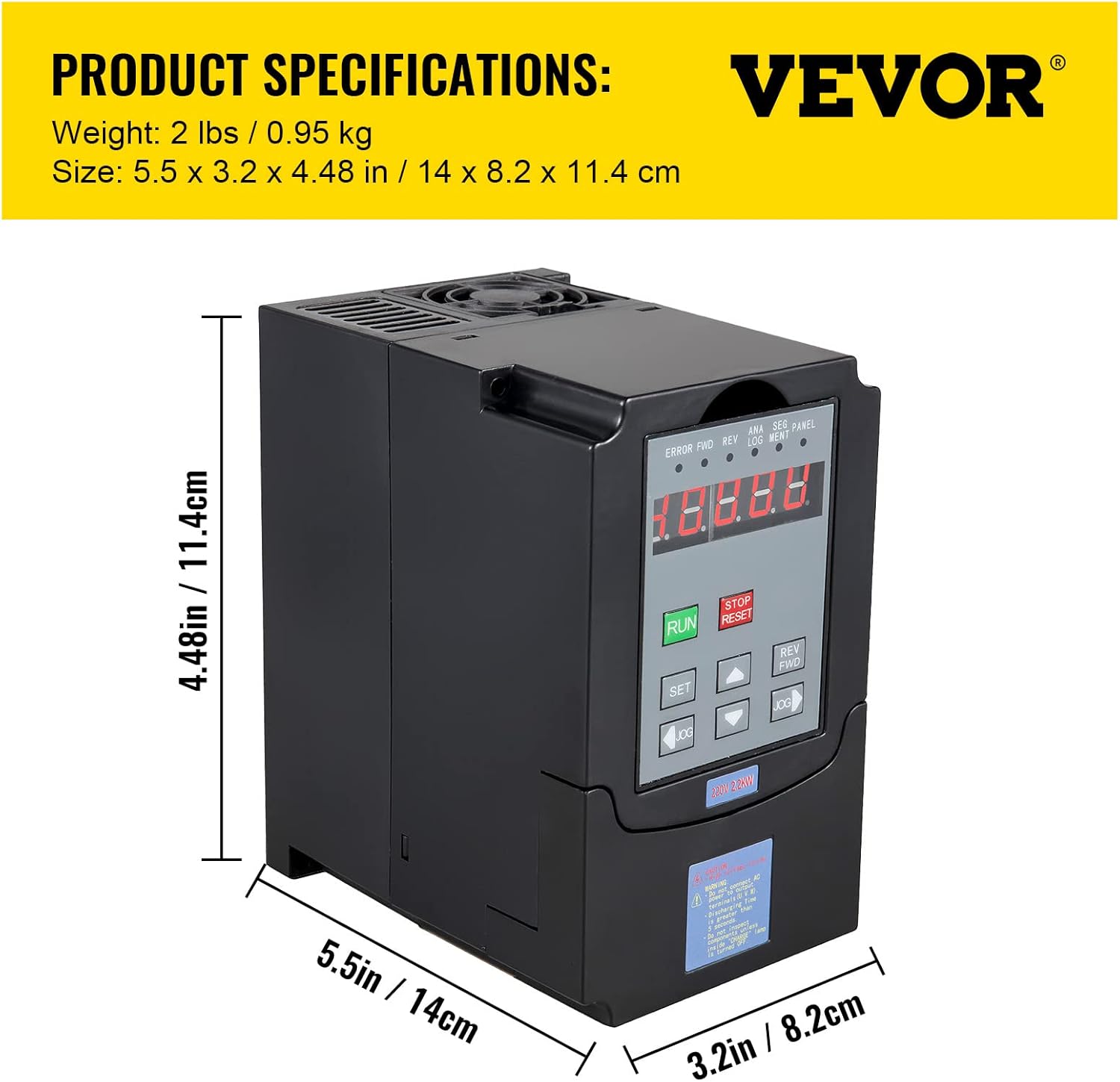

Image: Product Specifications. This image provides a visual representation of the VFD's physical dimensions and weight.
| Спецыфікацыя | Каштоўнасць |
|---|---|
| Вытворца | ВЕВОР |
| Нумар дэталі | vfd 2.2 220v |
| Вага прадмета | 2.3 фунта (1.04 кг) |
| Памеры прадукту | 7.5 х 7.1 х 5.1 цалі (19.05 х 18.03 х 12.95 см) |
| Нумар мадэлі тавару | CNC Motor Drive Controller |
| Памер | 2.2 кВт |
| Колер | Чорны |
| стыль | 220V 2.2kw 3HP |
| Крыніца харчавання | 220В |
| тtage | 220 вольт |
| Ватtage | 2.2 кВт |
| Колькасць у пакаванні | 1 |
| Уключаныя кампаненты | 1 x VFD 2.2KW |
5. Настройка і ўстаноўка
Proper installation is crucial for the VFD's performance and safety. Refer to the detailed wiring diagrams provided with your product packaging for specific connections. General steps include:
- Мантаж: Securely mount the VFD in a well-ventilated area, away from direct sunlight, excessive heat, moisture, and corrosive gases. Ensure adequate space for heat dissipation.
- Спажываная магутнасць: Connect the 220V power supply to the designated input terminals. This VFD supports both 1-phase and 3-phase input, with 3-phase output. Ensure the input phase configuration matches your power supply.
- Выхад рухавіка: Connect the spindle motor to the VFD's output terminals (U, V, W). Ensure correct phase sequence.
- Зазямленне: Connect the VFD to a reliable earth ground.
- Праводка кіравання: If using external control signals (e.g., potentiometer for speed control, external start/stop buttons), connect them to the appropriate control terminals as per the wiring diagram.
- Initial Parameter Settings: Before first use, configure essential parameters such as motor rated frequency, rated voltage, and maximum output frequency according to your motor's specifications and application requirements.
6. Інструкцыя па эксплуатацыі
The VFD features a user-friendly control panel for easy operation. The detachable panel allows for flexible placement.
Image: Separate Operation Panel. This image provides a detailed breakdown of the VFD's control panel, identifying each button and its primary function for intuitive operation.

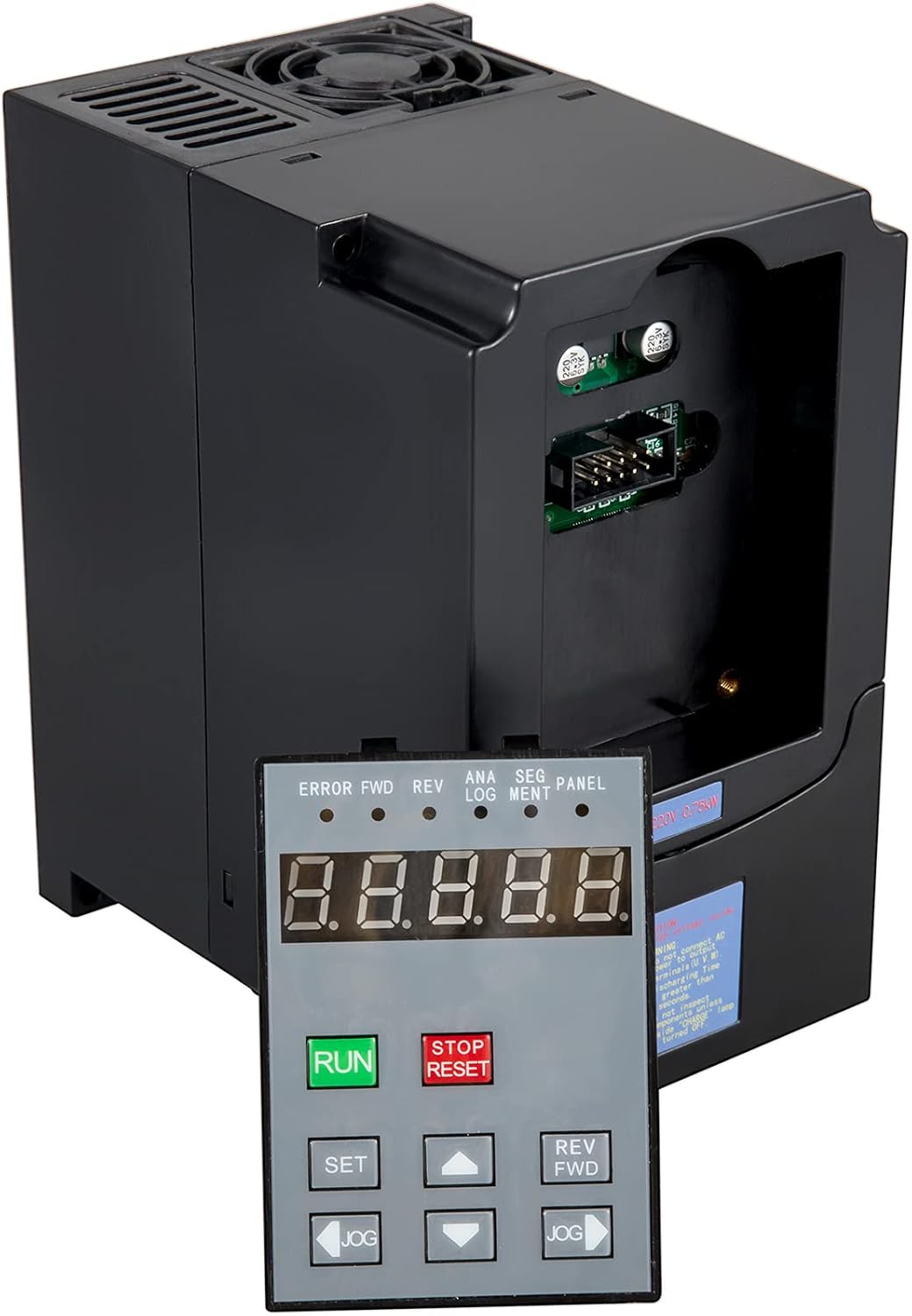

Image: VFD with Detached Control Panel. This image shows the VFD unit alongside its detachable control panel, highlighting the flexibility for remote operation.
Функцыі панэлі кіравання:
- RUN Key: Запускае працу рухавіка.
- Кнопка СТОП/СКІД: Stops motor operation or resets fault alarms.
- Клавіша SET: Уваходзіць у рэжым налады параметраў або пацвярджае змены параметраў.
- Up/Down Arrow Keys: Used to navigate through parameters or adjust values.
- REV/FWD Key: Змяняе кірунак кручэння рухавіка (назад/наперад).
- JOG Keys: Used for momentary forward or reverse operation, or for fine-tuning settings.
Асноўныя этапы аперацыі:
- Уключэнне: Apply power to the VFD. The digital display will illuminate.
- Set Frequency/Speed: Use the Up/Down arrow keys to adjust the desired output frequency (motor speed). Refer to the manual for specific parameter settings if external control is desired.
- Запуск рухавіка: Націсніце БЕГАЦЬ key to start the motor.
- Змяніць кірунак: Пры неабходнасці націсніце REV/FWD key to reverse the motor's direction.
- Спыніць рухавік: Націсніце СТОП/СКІД кнопку, каб спыніць рухавік.
7. Тэхнічнае абслугоўванне
Рэгулярнае тэхнічнае абслугоўванне забяспечвае даўгавечнасць і аптымальную прадукцыйнасць вашага частотна-рэгуляванага прывада.
- Уборка: Periodically clean the VFD's exterior and cooling fan to prevent dust accumulation, which can hinder heat dissipation. Ensure power is disconnected before cleaning.
- агляд: Рэгулярна правярайце злучэнні правадоў на надзейнасць і наяўнасць прыкмет зносу або пашкоджанняў.
- Асяроддзе: Maintain a clean, dry, and well-ventilated operating environment.
- Сістэма астуджэння: The independent cooling air duct and built-in radiator are designed for efficient heat management. Ensure air vents are not obstructed.
8. Выпраўленне непаладак
The VFD is designed with multiple protection features to indicate and prevent operational issues. If the VFD displays an error code or behaves unexpectedly, refer to the following general guidance:
- Абарона ад перагрузкі: If an overload fault occurs, check the motor load and ensure it does not exceed the VFD's capacity. Reduce the load or check for mechanical issues with the motor.
- Абарона ад перагрэву: If an over-heat fault occurs, check the ambient temperature, ensure proper ventilation, and clean any dust from the cooling fan and heatsink.
- Над-тtagе/Пад-выпtagе абарона: Verify the input power supply voltage is within the specified range (220V). Fluctuations can trigger these protections.
- Абарона ад кароткага замыкання: If a short-circuit fault occurs, immediately disconnect power and inspect motor wiring and output terminals for any short circuits.
- Абарона ад перазапуску: This feature prevents automatic restarts after a fault. Manual reset via the СТОП/СКІД button is typically required.
- Абарона засцерагальнікам: If the VFD does not power on, check the internal fuse. Replacement should only be done by qualified personnel with the correct fuse type.
For specific error codes and detailed troubleshooting steps, consult the comprehensive manual provided with your product or contact VEVOR customer support.
9. Гарантыя і падтрымка
The manufacturer's warranty description for this product is listed as "no". Please refer to your purchase documentation or retailer for any applicable return or service policies.
For technical assistance, questions regarding operation, or further support, please contact VEVOR customer service through their official channels. Ensure you have your product model number (CNC Motor Drive Controller) and any relevant purchase information available when seeking support.
