LifePlus Oil Filled Heater Model OH12 User Manual

1. Уводзіны

Thank you for choosing the LifePlus Oil Filled Heater, Model OH12. This portable radiant space heater is designed to provide quiet and consistent warmth for indoor spaces such as bedrooms, offices, and living areas. Its oil-filled design ensures gentle, lasting heat without the use of a fan, contributing to a quiet environment and preventing dry air. This manual provides essential information for the safe and efficient operation of your heater.

Image 1.1: The LifePlus Oil Filled Heater, Model OH12, showcasing its compact design and radiant heat output.

Image 1.2: The 700W Oil-Filled Radiator Heater providing warmth in a home setting.

2. Важная інфармацыя па бяспецы

Please read all safety warnings and instructions before using this heater to reduce the risk of fire, electric shock, or injury. Keep this manual for future reference.

• Размяшчэнне: Always place the heater on a firm, level surface. Ensure there is at least 3 feet (0.9 meters) of clearance from walls, furniture, curtains, and other combustible materials. Do not place the heater on soft surfaces like beds or thick carpets where openings may be blocked.
• крыніца харчавання: Connect the heater directly into a 120V AC, 60Hz wall outlet. Do not use extension cords, power strips, or surge protectors, as these can overheat and cause a fire risk.
• Абарона ад перагрэву: The heater is equipped with an internal overheat safety feature that automatically shuts off the unit if internal components reach an unsafe temperature. If this occurs, unplug the heater, allow it to cool, and check for any obstructions before restarting.
• Абарона ад перакульвання: For added safety, the heater includes a tip-over switch that automatically turns off the unit if it is accidentally knocked over. If the heater tips, stand it upright, and it should resume operation once stable.
• Дзеці і хатнія жывёлы: Keep the heater out of reach of children and pets. The surface of the heater can become hot during operation.
• Вільготнасць: Не выкарыстоўвайце абагравальнік у вільготных або damp locations, such as bathrooms or laundry areas, or near water sources.
• Вентыляцыя: Never block the air inlets or outlets. Ensure proper ventilation to prevent overheating.
• Аперацыя без нагляду: Always unplug the heater when not in use or when leaving the area for an extended period.

Image 2.1: Visual representation of the heater's built-in Overheat Protection and Tip-Over Protection features.

3. Кампаненты прадукту

Familiarize yourself with the main parts of your LifePlus Oil Filled Heater:

• Рэбры радыятара: The metal fins that contain the oil and radiate heat into the room.
• Панэль кіравання: Located on the side, housing the power switch and thermostat knob.
• Ручка тэрмастата: Выкарыстоўваецца для рэгулявання патрэбнай тэмпературы ў памяшканні.
• Выключальнік сілкавання: An illuminated switch to turn the heater ON or OFF.
• Убудаваная ручка: Для зручнасці пераноскі.
• Стабільная база: Забяспечвае ўстойлівасць прылады.

Image 3.1: The integrated handle designed for convenient carrying of the heater.

4. Настройка

Follow these steps to set up your heater for first use:

1. Распакуйце: Carefully remove the heater from its packaging. Retain packaging materials for storage if desired.
2. Агледзець: Check the heater for any signs of damage. Do not operate if damaged.
3. Размяшчэнне: Place the heater on a stable, level, heat-resistant surface. Ensure it is positioned upright and away from any obstacles or flammable materials. Maintain the recommended clearance of at least 3 feet (0.9 meters) from walls and objects.
4. Падключэнне сілкавання: Plug the heater directly into a grounded 120V AC, 60Hz electrical outlet. Ensure the outlet is in good condition and not overloaded.

Image 4.1: The heater positioned under a desk, illustrating suitable placement for personal heating.

Малюнак 4.2: Прыкладamples of appropriate indoor placements for the heater, including bedroom, study, living room, and kitchen.

5. Інструкцыя па эксплуатацыі

Operating your LifePlus Oil Filled Heater is straightforward:

1. Уключэнне: Plug the heater into a suitable electrical outlet. Flip the red power switch to the 'ON' position. The switch will illuminate, indicating the heater is receiving power.
2. Адрэгуляваць тэрмастат: Turn the thermostat knob clockwise from the 'OFF' position towards 'LOW' and then to your desired heat setting. To begin, turn the knob to the maximum setting ('HIGH') to quickly warm the room.
3. Усталюйце жаданую тэмпературу: Once the room reaches a comfortable temperature, slowly turn the thermostat knob counter-clockwise until you hear a click. This sets the heater to maintain the current room temperature. The heater will cycle on and off to maintain this setting.
4. Выключэнне: To turn off the heater, first turn the thermostat knob to the 'OFF' position, then flip the red power switch to 'OFF'. Unplug the heater from the wall outlet when not in use.

The oil-filled design provides a gentle and consistent heat, which may take longer to warm a room compared to fan-forced heaters. This method, however, results in quiet operation and a comfortable environment without dry air.

Image 5.1: Detail of the thermostat knob, used for adjusting the heat output and desired temperature.

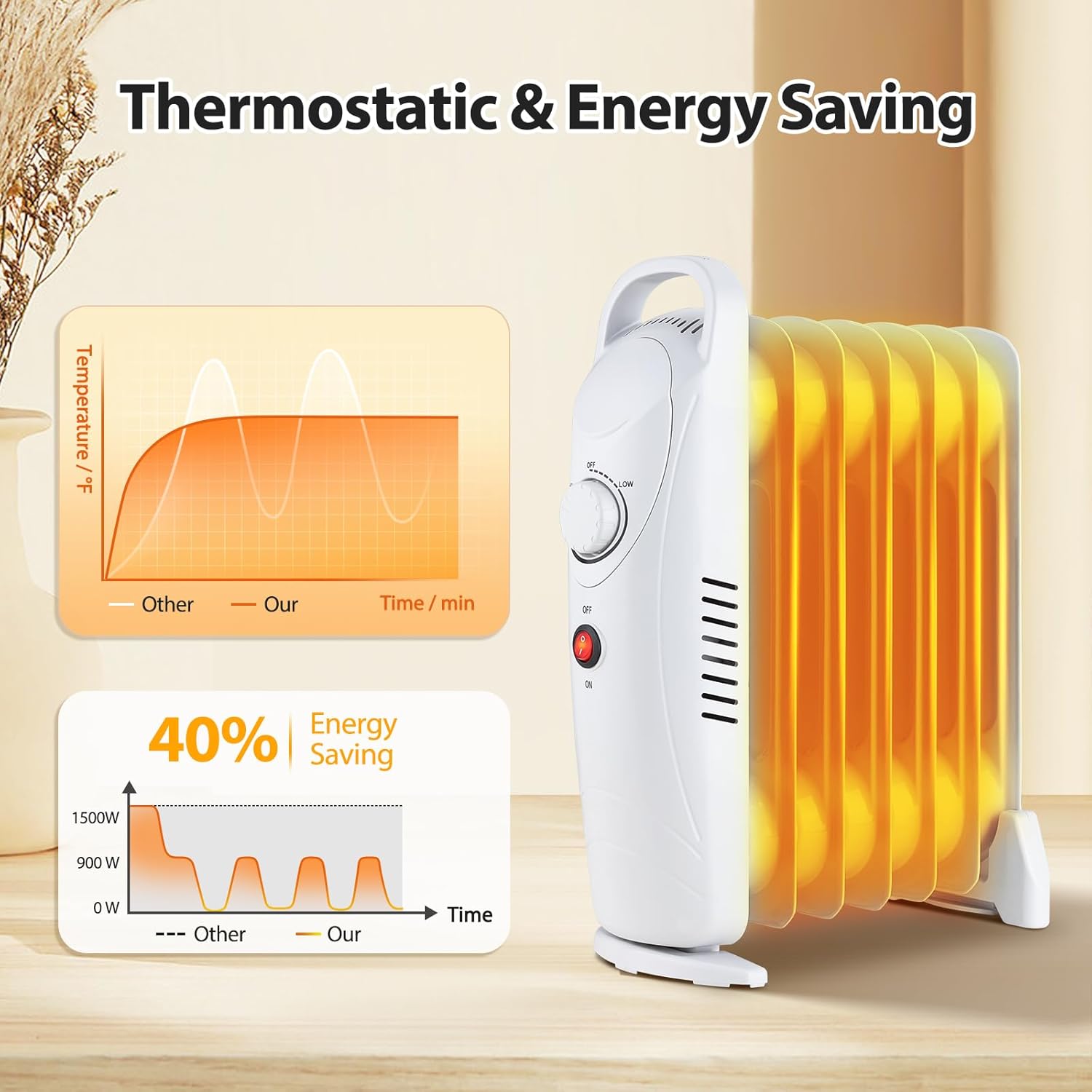

Image 5.2: Illustration of the heater's thermostatic control and energy-saving capabilities.

Image 5.3: The heater operating quietly, suitable for use in bedrooms without disturbing sleep.

6. Тэхнічнае абслугоўванне

Правільнае абслугоўванне гарантуе даўгавечнасць і бяспечную працу вашага абагравальніка.

• Уборка: Заўсёды адключайце абагравальнік ад сеткі і дайце яму цалкам астыць перад чысткай. Працірайце вонкавыя паверхні мяккай губкай.amp cloth or towel. Do not use abrasive cleaners or solvents. Ensure no water enters the internal components.
• Выдаленне пылу: Periodically use a vacuum cleaner with a brush attachment to remove dust from the air inlets and outlets.
• захоўванне: Калі абагравальнік не выкарыстоўваецца, захоўвайце яго ў прахалодным, сухім месцы. Па магчымасці выкарыстоўвайце арыгінальную ўпакоўку, каб абараніць яго ад пылу і пашкоджанняў.

7. Выпраўленне непаладак

Калі ў вас узніклі праблемы з абагравальнікам, звярніцеся да наступных распаўсюджаных праблем і іх рашэнняў:

• Абагравальнік не ўключаецца:
  • Ensure the power cord is securely plugged into a working 120V outlet.
  • Праверце, ці знаходзіцца выключальнік харчавання ў становішчы «ON».
  • Verify that the thermostat knob is turned to a setting above 'OFF'.
  • Праверце аўтаматычны выключальнік або блок засцерагальнікаў у доме.
  • If the heater was recently tipped over or overheated, the safety features may have activated. Stand the heater upright and allow it to cool for 10-15 minutes before attempting to restart.
• Абагравальнік не выпрацоўвае дастаткова цяпла:
  • Ensure the thermostat knob is set to a higher temperature.
  • Oil-filled heaters provide radiant heat, which warms objects and people directly, and gradually warms the air. It may take longer to feel the full effect compared to fan heaters.
  • The 700W power output is designed for supplemental heating in smaller rooms (up to approximately 120 sq ft). For larger or poorly insulated spaces, its heating capacity may be limited.
• Heater Cycles On and Off Frequently:
  • This is normal operation for the thermostat. It turns the heater on and off to maintain the set temperature.
  • If it cycles too frequently and the room is not warm, ensure the heater is not placed too close to a cold draft or an external heat source that might interfere with the thermostat's reading.
• Unusual Odor During First Use:
  • A slight odor may be present during the first few hours of operation as manufacturing residues burn off. This is typically harmless and should dissipate quickly. Ensure good ventilation during initial use.

8. Тэхнічныя характарыстыкі

Technical details for the LifePlus Oil Filled Heater Model OH12:

Image 8.1: Dimensions of the LifePlus Portable Space Heater.

9. Гарантыя і падтрымка

For any questions, concerns, or support needs regarding your LifePlus Oil Filled Heater, please contact the manufacturer directly. Refer to the product packaging or the LifePlus official webсайт для кантактнай інфармацыі.

Калі ласка, захавайце пацвярджэнне пакупкі для любых гарантыйных прэтэнзій.
