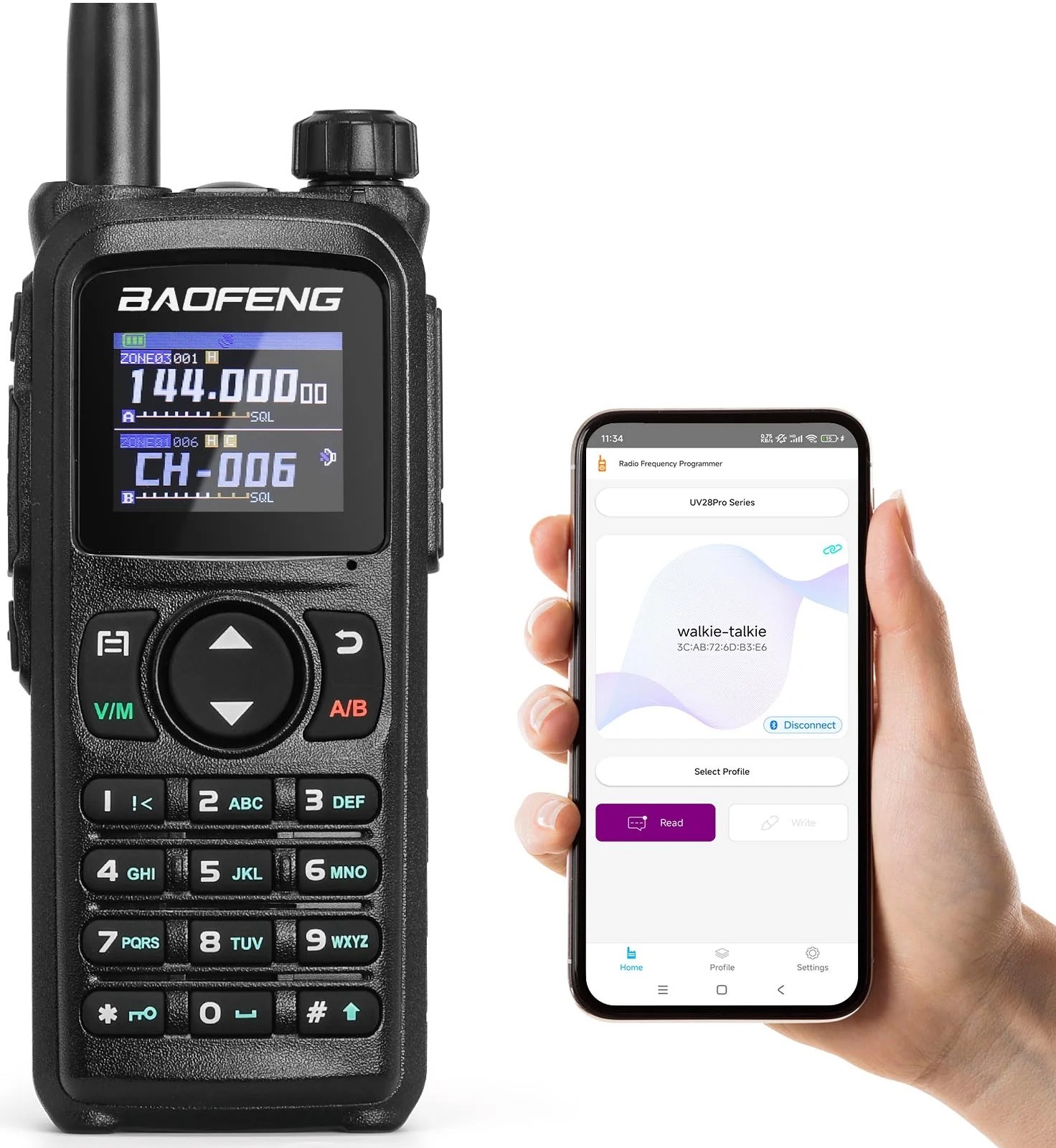

BAOFENG UV-28 Plus 10W GPS APP Programming Radio User Manual

Transmission Frequency: UHF 350-390MHz, 400-520MHz
Frequency Ranges:
- America version: 144-148 & 420-450MHz
- Canadian version: 144-148 & 430-450MHz
- European Union version: 144-146 & 430-440MHz

Product Usage Instructions

Regulations and Safety Warnings
- RF Exposure Compliance and Control:
- To protect against property loss, bodily injury, or death, observe the following safety instructions:
- Do not operate the product in locations with fuels, chemicals, or explosive materials.
- Avoid operating near blasting areas.
- Avoid proximity to medical or electronic equipment sensitive to RF signals.
- Avoid using while driving.
- Avoid operation in areas where wireless communication is prohibited.
Maintenance Instructions:
- Regularly clean accumulated dust on charging connector.
- Charge the battery within the recommended temperature range of 5~40 degrees.

Battery Information
- Charger Supplied:
  - Use the specified charger provided by Baofeng to prevent explosion or personal injury. Charge the battery if low battery warning is displayed.
- Use Caution with the Li-ion Battery:
  - Avoid shorting battery terminals, throwing into fire, or removing the casing.
- Using the Type-C Charger:
  - Ensure radio is turned OFF.
  - Plug Type-C cable into charging port on battery and connect to wall outlet.
  - An empty battery charges fully in 6 hours.
- LED Indicator:
  - Red LED flashing: Standby (charger empty)
  - Green LED steady: Charging complete
- Battery Maintenance:
  - Charge the battery for at least four to five hours beforeinitial use.
- Prolonging Battery Life:
  - If wet, remove battery, dry with towel, place in plastic bag with dry rice overnight to absorb moisture. Note that this method is effective for minor splashes only.

FAQs

Q: Can I use a different charger with the radio?
- A: It is recommended to use the specified charger provided by Baofeng to avoid any risks of explosion or personal injury.
Q: How long does it take to charge an empty battery?
- A: An empty battery will be fully charged in approximately 6 hours using the Type-C charger provided.

“`

View Fullscreen

GETTING STARTED

1.1 Regulations and Safety Warnings Content of the packaging Features and Functions 2. BATTERY INFORMATION Charging the Battery Pack Charger Supplied Use Caution with the Li-ion Battery Using the Type-C Charger Battery Maintenance 3. PREPARATION Installing / Removing the Battery Installing / Removing the Antenna Installing / Removing the Belt Clip 4. RADIO OVERVIEW 4.1 Status Indications 4.2 LCD icon summary Main keypad controls 5.BASIC OPERATIONS Power on the radio Adjusting the volume Main Band/Sub Band Switch VFO/Channel Switch Frequency (VFO) mode

Table of Contents
Channel (MR) mode and Channel selection Select a Bank Making a call Emergency Alert FM Radio (FM) Monitor Keypad lock Frequency reversal and talkaround TX Repeaters tone 5.15 One touch frequency Search 6. ADVANCED FEATURES Scanner Dual Watch Manual Programming (Channels Memory) 6.11 Repeaters Programming 6.4 Bluetooth write frequency 6.6 GPS function 7. MAIN MENU FUNCTIONS Basic use Using short-cuts 8. Bluetooth Write Frequency Appendix A. Trouble shooting guide Appendix B. – Technical Specifications Appendix C. – Shortcut Menu operations

1. GETTING STARTED
1.1 Regulations and Safety Warnings
EU Regulatory Conformance As certified by the qualified laboratory, the product is in compliance with the essential requirements and other relevant provisions of the Directive 2014/53/EU. All applicable EU regulations are regarded (2006/66/EC, 2011/65/EU, (EU)2015/863, 2012/19/EU). NOTE: It can be operating under 2000m. WARNINGEuropean Users should note that operation of this unit in Transmit mode requires the operator to have a valid Amateur Radio License from their respective Countries Amateur Radio Licensing Authority for the Frequencies and Transmitter Power levels that this Radio transmits on. Failure to comply may be unlawful and liable for prosecution. At this subject, refer to the “EU” specification guide 2014/53/EU. Please note that the above information is applicable to EU countries only.
Compliance with RF Exposure Standards The radio complies with the following RF energy exposure standards and guidelines: · United States Federal Communications Commission, Code of Federal Regulations; 47 CFR § 1.1307, 1.1310 and 2.1093 · American National Standards Institute (ANSI) / Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005; Canada RSS102 Issue 5 March 2015 · Institute of Electrical and Electronic Engineers (IEEE) C95.1:2005 Edition
RF Exposure Compliance and Control
Guidelines and Operating Instructions To control your exposure and ensure compliance with the occupational/ controlled environmental exposure limits, always adhere to the following procedures. Guidelines: · Do not remove the RF Exposure Label from the device. · User awareness instructions should accompany device when transferred to other users. · Do not use this device if the operational requirements described herein are not met.
Operating Instructions: · Transmit no more than the rated duty factor of 50% of the time. To transmit (talk), press the Push-to-Talk (PTT) key. To receive calls, release the [PTT] key.
Transmitting 50% of the time, or less, is important because the radio generates measurable RF energy only when transmitting (in terms of measuring for standards compliance). · Keep the radio unit at least 2.5cm away from the face. Keeping the radio at the proper distance is important as RF exposure decreases with distance from the antenna. The antenna should be kept away from the face and eyes. · When worn on the body, always place the radio in an approved holder, holster, case, or body harness or by use of the correct clip for this product. Use of non-approved accessories may result in exposure levels which exceed the FCC’s occupational/ controlled environmental RF exposure limits. · Use of non-approved antennas, batteries, and accessories causes the radio to exceed the FCC RF exposure guidelines. · Contact your local dealer for the product’s optional accessories.

3UHFDXWLRQVIRU3RUWDEOH7HUPLQDOV
Operating Prohibitions To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions: 1. Do not operate the product in a location containing fuels, chemicals, explosive atmospheres and other flammable or explosive materials. In such location,
only an approved Ex-protection model is allowed for use, but any attempt to assemble or disassemble it is strictly prohibited. 2. Do not operate the product near or in any blasting area. 3. Do not operate the product near any medical or electronic equipment that is vulnerable to RF signals. 4. Do not hold the product while driving. 5. Do not operate the product in any area where use of wireless communication equipment is completely prohibited.
Important Tips To help you make better use of the product, be sure to observe the following instructions: 1. Do not use any unauthorized or damaged accessory. 2. Keep the product at least 2.5 centimeters away from your body during transmission. 3. Do not keep the product receiving at high volume for a long time. 4. For vehicles with an air bag, do not place the product in the area over the air bag or in the air bag deployment area. 5. Keep the product and its accessories out of reach of children and pets. 6. Please operate the product within the specified temperature range. 7. Continuous transmission for a long time may lead to heat accumulation within the product. In this case, please keep it at a proper location for cooling. 8. Handle the product with care. 9. Do not disassemble, modify or repair the product and its accessories without authorization.
3UHFDXWLRQVIRU%DWWHULHV
Charging Prohibitions To protect you against any property loss, bodily injury or even death, be sure to observe the following safety instructions: 1. Do not charge or replace your battery in a location containing fuels, chemicals, explosive atmospheres and other flammable or explosive materials. 2. Do not charge your battery that is wet. Please dry it with a soft and clean cloth prior to charge. 3. Do not charge your battery suffering deformation, leakage and overheat. 4. Do not charge your battery with an unauthorized charger. 5. Do not charge your battery in a location where strong radiation is present. 6. Overcharge shall always be prohibited for it may shorten the life of your battery.
Maintenance Instructions To help your battery work normally or prolong its life, be sure to observe the following instructions: 1. Accumulated dust on charging connector may affect normal charging. Please use a clean and dry cloth to wipe it on a regular b asis. 2. It is recommended to charge the battery under 5~40. Violation of the said limit may cause battery life reduction or even battery leakage.

3. To charge a battery attached to the product, turn it off to ensure a full charge. 4. Do not remove the battery or unplug the power cord during charging to ensure a smooth charging process. 5. Do not dispose of the battery in fire. 6. Do not expose the battery to direct sunlight for a long time nor place it close to other heating sources. 7. Do not squeeze and penetrate the battery, nor remove its housing. Transportation Instructions 1. Damaged batteries must not be transported. 2. To avoid short circuit, separate the battery from metal pars or from each other if two or more batteries are transported in one packaging. 3. The radio must be switched off and secured against switch-on, if the battery is attached. The content of the shipment must be declared in the shipping documents and by a Battery Shipping Label on the packaging. Contact your hauler for the local regulations and further information.

1.2 Content of the packaging

This transceiver comes shipped with the following items in the box:

· 1 Radio body

· 1 Belt Clip

· 1 Lithium-Ion battery pack

· 1 Power Adapter

· 1 Instruction Manual

· 1 Antenna · 1 Wrist Belt

1.3 Features and Functions

· 1.77″ TFT large screen, full keyboard, fully open menu operation

· GPS positioning function, location sharing and requesting location information from others

· Bluetooth APP application, Reade or write radio data

· 10 zones storage, Up to 1000 named memory channels.

· High/Middle/Low power selectable.

· Scanner function: VFO scan range setting, three scan recovery methods, channel scan, CTC/DCS scan, scan channel addition and removal

· Built-in input method, allows this device to edit channel name

· NOAA Weather Radio Channel Reception in the United States and Canada(*North American countries and territories only)

· Frequency step, selectable between 2.5K | 5.0K | 6.25K | 10.0K | 12.5K | 20.0K | 25.0K | 50.0K

· Type-C direct charging and charging stand, more convenient battery life

· Dual-band handheld transceiver.

· VOX (voice activated transmit).

· High Capacity Lithium-Ion battery.

· Broadcast FM radio receiver 78-108 MHz

· Alarm function.

· Display illumination programmable via keypad.

· Function beep on the keyboard.

· Dual watch / Dual reception.

· One touch search frequency

· Two (2) pins for Kenwood accessory port

· Scanning receiver frequency range: FM 76-108 MHz; AM 108-136MHz, VHF 136-174MHz, 220-260MHz,

UHF350-390MHz, 400-520MHz Transmission Frequency

144-148 & 420-450MHz America version) 144-148 & 430-450MHz Canadian version) 144-146 & 430-440MHz European Union version)*

BATTERY INFORMATION

2.1 Charging the Battery Pack The Li-ion battery pack is not charged at the factory; please charge it before use. Charging the battery pack for the first time after purchase or extended storage (more than 2 months) may not bring the battery pack to its normal maximum operating capacity. Best operation will require fully charging/discharging the battery two or three times before the operating capacity will reach its best performance. The battery pack life may be depleted when its operating time decreases even though it has been fully and correctly charged. If this is the case, replace the battery pack.
2.2 Charger Supplied Please use the specified charger provided by Baofeng. Other models may cause explosion and personal injury. After installing the battery pack, and if the radio displays low battery with a red flashing lamp or voice prompt, please charge the battery.
2.3 Use Caution with the Li-ion Battery (1) Do not short the battery terminals or throw the battery into a fire. Never attempt to remove the casing from the battery pack, as Baofeng cannot be held responsible
for any accident caused by modifying the battery. (2) The ambient temperature should be between 5-40 &- &ZZ (3) Please turn off the radio before inserting it into the charger. It may otherwise interfere with correct charging. (4) To avoid interfering with the charging cycle, please do not cut off the power or remove the battery during charging until the green light is on. (5) Do not recharge the battery pack if it is fully charged. This may shorten the life of the battery pack or damage the battery pack. (6) Do not charge the battery or the radio if it is damp. Dry it before charging to avoid damage. NOTICE tZZZZZZ/ ZZZdZZZZZZZZ ZZ
2.4 Using the Type-C Charger The Type-C charger is a handy port that allows you to conveniently charge your Li-on battery pack. (1) Make sure your radio is turned OFF. (2) Plug the Type-C cable into the Type-C charging port on your battery. Connect the other end of the Type-C charger to wall power outlet. (3) An empty battery will be fully charged in 6 hours. (4) The battery indicator light illuminates to indicate that the battery is charging. LED Indicator

Red LED

Green LED

Status

Flashing

Steady

Standby (charger empty) Error (charger with radio)

Steady Off

Off Steady

Charging Charge complete.

WZZdZZZZ ZZZK&&

2.5 Battery Maintenance
The battery for your radio comes uncharged from the factory; please let it charge for at least four to five hours before you start using your radio.
· hZZZ · EZZ · ZZZZZZ · ZZZZZZZZZ

2.6 Prolonging the life of your battery

· Only charge batteries in normal room temperatures. · When charging a battery attached to the radio, turn the radio off for a faster charge. · Do not unplug the power to the charger or remove the battery and/or radio before it’s finished charging. · Never charge a wet battery. · Batteries wear out over time. If you notice a considerably shorter operating time with your radio, please consider purchasing a new battery. · Battery performance will be reduced in temperatures below freezing. When working in cold environments, keep a spare battery on you. Preferably inside your jacket or
in a similar location in order to keep the battery warm. · Dust can interfere with the contacts on the battery. If necessary wipe the contacts with a clean cloth to ensure proper contact with radio and charger.

If your battery has become wet, remove it from the radio, wipe it dry with a towel and put it in a plastic bag with a handful of dry rice. Tie the bag up and let it sit over

night. The rice will absorb any remaining moisture in the battery. This method is only effective against minor splashes (light rain for instance). A soaked radio may very well be beyond repair.

2.7 How to Store the Battery (1) If the battery needs to be stored, keep it in status of 80% discharged. (2) It should be kept in low temperature and dry environment. (3) Keep it away from hot places and direct sunlight. (4) To avoid severe capacity degradation of your battery while in long-term storage, please cycle the battery at least every six (6) months. NOTICE ZZZ EZZZ

EZZZZZ ZZZZZZZZZ

PREPARATION

3.1 Installing / Removing the Battery Installing the Battery Pack (1) Position the battery pack over the back of the radio. (2) Engage the battery pack into the radio until battery pack is fully seated into the radio housing. (3) Tighten the screws using a coin or at object to secure the battery pack to the radio. Do not overtighten. To Remove Battery Pack from Radio (1) Loosen the screws on the back of the battery pack. (2) Lift the bottom of the battery pack slightly to remove it from the radio housing. (3) Pull the battery pack out of the radio housing.
3.2 Installing / Removing the Antenna (1) Installing the Antenna: Screw the antenna into the connector on the top of the transceiver by holding the antenna at its base and turning it clockwise until secure. (2) Removing the Antenna: Turn the antenna counter-clockwise to remove it.
3.3 Installing / Removing the Belt Clip (1) Installing the Belt Clip: Place the belt clip above the corresponding holes on the back of the radio, and screw it into place clockwise with the two supplied screws. (2) Removing the Belt Clip: Unscrew counter-clockwise to remove the belt clip.
3.4 Installing Additional Speaker/Microphone (Optional) Pry open the rubber MIC-Headset jack cover and then insert the Speaker / Microphone plug into the double jack.

RADIO OVERVIEW

1. Antenna

2. SK1- FM broadcast / Emergency Alert key

3. PTT key

4. SK2- Press to customize function /Monitor key 5. -MENU key

6. V/M key

7. Numeric keypad

8. GPS Antenna

9. Power / Volume knob

10. Color LCD

11. Speaker/Mic Jacks

12. -EXIT Key

13. or navigation keys

14. A/B key

15. Speaker

16. LED Status Indicator

17. Battery tightening screw

18. Type-C charging port

19. Type-C charging indicator

“SK2” customization function

SK2 allows you to set shortcut functions through the CPS programming software or the radios menu.

· FM RADIO: Quickly turn on or off the FM radio function.

· SEARCH: Quickly turn on or off the one-touch frequency search function.

· SCAN: Quickly turn on or off the scan function. You can also turn on or off the scan function by hold down the # key.

· VOX: Quickly turn on or off the VOX function.

4.1 Status Indications The top LED will help you to identify the current radio status.
LED Indication Constant Green Constant Red Flashes Green

What it Indicates Receiving Signal Transmitting signal Monitor mode/Scanning Receiving

4.2 LCD icon summary

Icon

Description Battery level indicator Make sure you can hear the DTMF side tone from the radio speaker, set to DT-ST, ANI-ST, DT+ANI. Dual watch enabled VOX enabled Bluetooth frequency writing function activated GNSS function enabled Keypad lock enabled Indication of the current channel’s region. Working in storage mode

In the current working VFO mode. Allow manual frequency input A displays (upper section) and emission level indication

B displays (lower section) and emission level indication Squelch Open/ Close Indicator Transmit power level indicator, According to Power High

The current transmission power is medium power (used in normal environments). Transmit power level indicator, According to Power Low DCS enabled

CTCSS enabled Enables access of repeaters in VFO/Frequency Mode. TX will be shifted higher in frequency than RX Enables access of repeaters in VFO/Frequency Mode. TX will be shifted lower in frequency than RX

Reverse function enabled

Talkaround has been activated, off grid at the central turntable. The transmission frequency is equal to the receive frequency

The confidential calling feature is activated Narrowband enabled

4.3 Main keypad controls

· key: MENU key, It is used for activating the MENU, choose each MENU selection and confirm the parameter.

After activation the GPS position function, press and hold the key to quickly enter GPS mode.

·Ykey: Press it for more than 2 seconds, the channel and frequency will move upwards rapidly; in SCAN mode, press this control to move the scanning upwards.

·key: Keep it pressed it for more than 2 seconds, the channel and frequency will move downwards rapidly; in SCAN mode, press this control to move the scanning downwards.

· Key: EXIT key, press to exit the Menu and functions.

Press and hold key to activate the frequency sweep function. Realize fast group.

· Numeric keypad

With these keys you can input the information or your selections on the radio.

· Key

When there is a frequency difference between reception and transmission, press the

key can activate the frequency reversal and talkaround

functions.

The radios features a keypad lock that locks out all keys except for the three side keys.

To enable or disable the keypad lock, press and hold the

key for about two seconds.

· 0 key

Press and hold the [0 ] key to activate the NoAA weather forecast reception function

· key

When listening to broadcast FM a momentary press will start the scanning. Scanning in broadcast FM will stop as soon as an active station is fo und,

regardless of scanner resume method.

To enable the scanner, press and hold the

key for about two seconds.

BASIC OPERATIONS

5.1 Power on the radio · Turning the unit on To turn the unit on, simply rotate the Volume/Power knob clockwise until you hear a “click”. If your radio powers on correctly there should be an audible double beep after about one second and the display will show a message or flash the LCD depending on settings for about one second. Then it will display a frequency or channel. If the Voice prompt is enabled, the voice will announce “frequency mode” or “channel mode”.

· Turning the unit off Turn the Volume/Power knob counter-clock wise all the way until you hear a “click”. The unit is now off.

5.2 Adjusting the volume

To turn up the volume, turn the volume/power knob clock-wise. To turn the volume down, turn the Volume/Power knob counter-clock-wise. Be careful not to turn it too far, as you may inadvertently turn your radio off. By using the monitor function, enabled from the [VOX/ Monitor] key below the PTT, you can more easily adjust your volume by adjusting it to the un-squelched static.

5.3 Main Band/Sub Band Switch

In standby mode, press the [A/B] key to switch between the main frequency band or sub frequency bands. The highlighted frequency band is the main frequency band, and the dimmed frequency band is the sub frequency band.

5.4 VFO/Channel Switch

Press the [V/M] key to switch between VFO and channel display.

· In channel mode (MR), the channel number will be displayed.

· In frequency mode (VFO), the

will be displayed.

5.5 Frequency (VFO) mode In Frequency (VFO) mode you can navigate up and down the band by using the or keys. Each press will increment or decrement your frequency according to the frequency step you’ve set your transceiver to. You can also input frequencies directly on your numeric keypad with kilohertz accuracy. The following example assumes the use of a 12.5 kHz frequency step. Example. Entering the frequency 436.61250 MHz on display A (1) In standby mode, press the [V/M] key to switch to the frequency (VFO) mode. (2) Enter [4][3][6][6][1][2][5] [0] on the numeric keypad. WARNING! Just because you can program in a channel does not mean you’re automatically authorized to use that frequency. Transmitting on frequencies you’re not authorized to operate on is illegal, and in most jurisdictions a serious offence. However, it is legal in most jurisdictions to listen. Contact your local regulatory body for further information on what laws, rules and regulations apply to your area.

5.6 Channel (MR) mode and Channel selection

There are two modes of operation: Frequency (VFO) mode, and Channel or Memory (MR) mode. For everyday use, Channel (MR) mode is going to be a whole lot more practical than Frequency (VFO) mode. However, Frequency (VFO) mode is very handy for experimentation out in the field. Frequency (VFO) mode is also used for programming channels into memory. In Channel (MR) mode you can navigate up and down the channel by using the or keys or the encoder. Ultimately which mode you end up using will depend entirely on your use case. Press [V/M] key to switch the radio between VFO and Channel mode, select Channel mode.

· Operation 1: Press the or navigation key to select the channel. · Operation 2: Input the channel numbers by the keyboard. For example, if you want switch to channel 12, input [0][1][2] a total of 3 digits, and it will switch to channel 12. When the voice prompt function is enabled, the corresponding channel will be broadcast by voice.

5.7 Select a Bank

A bank is a group of channels with the same property. The radio supports up to 10 banks, with a maximum of 100 channels per bank. To select a bank, do one of the following: Press key go to Menu > Bank, press or navigation key to select a bank, and then press key to switch to the selected bank. The corresponding regional alias will be displayed at the bottom of the screen.

5.8 Making a call

NOTE: Press the A/B key to switch the main channel to the other channel if there are 2 channels shown on the display. In standby mode, press the [V/M] key to switch between frequency (VFO) mode and channel (MR) mode. · Channel mode call: After selecting a channel, hold down the [PTT] key to initiate a call to the current channel. Speak into the microphone with normal tone.
Making a call, the red LED is on. · Frequency mode call: Press [V/M] key to switch to the frequency mode, input the working frequency within the allowable frequency range, and press and
hold the [PTT] key to transmit on the current frequency. Speak into the microphone with normal tone. Making a call, the red LED is on. · Receive a call: When you release the [PTT] key, you can answer it without any action. When receiving a call, the green LED is on. NOTE: To ensure the best reception volume, keep the distance between the microphone and the mouth at the time of transmission from 2.5 cm to 5 cm.

5.9 Emergency Alert

The Emergency Alert feature can be used to signal members in your group for help. To activate the emergency alert function, press and hold the [SK1] key for 3 seconds. The radio will send out a loud siren sound and the flashlight will flash. Press the SK1 (FM radios/Emergency) key to exit the emergency alert function. WARNING: The Emergency Alert feature should only be used in the even of an actual emergency.

5.10 FM Radio (FM)

The frequency ranges to listen to the radio is 65-108MHz. When listening to broadcast FM, press key switches between 65-75 MHz and 76-108 MHz

band.

(1) In frequency or channel mode, Press [SK1] key to turn on the radio.

(2) Select the desired radio frequency with the or keys or input the frequency. Or

· Press

to automatically search a radio station.

(3) Press [SK1] key to exit FM radio.

Note: while you are listening to the radio, the frequency or channel of A / B receiving signal will automatically switch to the frequency or channel

mode for normal transmitting and receiving.

When the signal disappears the radio will automatically switch again to FM radio mode.

5.11 Monitor

In standby, press and hold the [SK2] key to enter Monitor. When receiving matched carrier but the signaling or the signal is too weak, this function allows monitor the weak signal. Stop pressing the [SK2] key to turn off the speakers and return to standby mode. » If no signal, it will emit noise when press the [SK2] Key.

5.12 Keypad lock

The radio features a keypad lock that locks out all keys except for the three side keys.

To enable or disable the keypad lock, press and hold

the key for about two seconds.

You can also enable so that the radio automatically locks the keypad after ten seconds from the menu.

5.13 Frequency reversal and talkaround

When there is a frequency difference between the receiving frequency and the transmitting frequency, the radios operates in relay mode.

A short momentary press of the key enables the reverse function

If you for some reason want to listen to the repeater’s input frequency instead, press

key momentarily and you’ll reverse your transmit and receive

frequencies. The channel attribute bar will display

Press the

key again to switch the radio to talkaround mode, and the receiving frequency is equal to the transmitting frequency. The channel attribute bar

will display .

5.14 TX Repeaters tone

Press [PTT] + [SK2] key to send 1750Hz repeaters tone. This function is useful for communications through repeaters. If you have the keypad lock enabled on your radio, you can still send a 1750Hz tone the regular way without having to unlock your radio.

5.15 One touch frequency Search

(1) Through the CPS program software or the radio menu >> Radio Setting >> Press the [SK2] key to

define the [SK2] side key as a Search function.

(2) The radio will act as a receiver. Briefly press the preset” Search “key, and the screen will display

“SEARCH SEEK…”

(3) If the transmitter continues to transmit and the unit receives an effective frequency (the strongest and

stable signal), the received frequency will be displayed. If there is a CTCSS or DCS, the CTCSS or DCS

value is displayed, and if there is no CTCSS or DCS, NONE is displayed

(4) You can press the key to save the Search frequency and CTCSS or DCS to the channel.

Note: During frequency Search, press the # key on the radio to switch between UHF or VHF bands.

ADVANCED FEATURES

6.1 Scanner

The radios features a built in scanner for the VHF and UHF bands. When in Frequency (VFO) mode it will scan in steps according to your set frequency step.

In Channel (MR) mode it will scan your channels.

To enable the scanner, press and hold the

key for about two seconds. You can change the scanning direction with the or keys. Press and hold the

key to exit scanning mode.

6.1.1 Frequency Ranger

In frequency mode, the frequency sweep range can be precisely set. Input the start value and end value of the sweep frequency through the keyboard. EX: Enter 144146, in frequency mode, scan in the range of 144.000-146.000MHZ. Enter 430440, in frequency mode, scan in the range of 430.000-440.000MHZ. Note: for VFO frequency Ranger, see Menu>SCAN>Freq Ranger.

6.1.2 Scan modes

The scanner is configurable to one of three ways of operation: Time, carrier or search, each of which is explained in further details in their respective section

below.

Time operation

In Time Operation (TO) mode, the scanner stops when it detects a signal, and after a factory preset time out, it resumes scanning.

Carrier operation

In Carrier Operation (CO) mode, the scanner stops when it detects a signal, and after a factory preset time with no signal it resumes scanning.

Search operation

In Search Operation (SE) mode, the scanner stops when it detects a signal.

To resume scanning you must press and hold the

key again.

Note: for Scan mode, see Menu>SCAN>Scan Mode.

6.1.3 Scan Sub-Code

To search for a CTCSS code, do the following: (1) In VFO mode, enter a known frequency, such as 144.525. (2) Press key to enter menu>>Scan>>3 Scan Sub-Code. (3) Press or to select CTCSS; (4) Press the key to enter the CTCSS code, and scan the CTCSS code in sequence. When a valid CTCSS code is scanned, it stays on the CTCSS code
and the speaker is turned on. (5) Press the key to store the scanned CTCSS code and exit the scan to return to the previous menu. In standby mode, the icon will be displayed on
the top line of the screen. Press and hold the PTT key to make a callback. To search for a DCS code, do the following:

(1) In VFO mode, enter a known frequency, such as 144.525. (1) Press key to enter menu>>Scan>>3 Scan Sub-Code. (2) Press or to select DCS; (3) Press the key to enter the DCS code scanning, and scan the DCS code in turn. When a valid DCS code is scanned, it stays on the DCS code and the
speaker is turned on. (4) Press the key to store the scanned DCS code and exit the scan to return to the previous menu. In standby mode, the icon will be displayed on the
top line of the screen. Press and hold the PTT key to make a callback.
6.1.4 Sub-Code scan storage In MR mode or VFO mode, the scanned CTCSS/DCS code can be stored as only TX CTCSS/DCS code, RX CTCSS/DCS code only, TX and RX CTCSS/DCS code to replace the CTCSS/DCS code setting of the current channel or frequency mode of the radio. To save the settings of CTCSS/DCS code scan, the operation is as follows: (1) Press key to enter menu >> SCAN >> 4 Scan Memory. (2) Press the key to enter the Scan Memory setting, and press the or key to select:
· ALL: The scanned CTCSS/DCS code will be stored as the received and transmitted CTCSS/DCS code of the current channel or frequency mode (at the same time as the received and transmitted Sub-Code). · DECODER: The scanned CTCSS/DCS code will be stored as the receiver CTCSS/DCS code of the current channel or frequency mode (only replace its receiver RX CTC/DCS). · ENCODER: The scanned CTCSS/DCS code will be stored as the transmitted CTCSS/DCS code of the current channel or frequency mode (only replace its transmitted TX CTC/DCS). (3) Press the key to save the settings and return to the previous menu; Note: Only when a valid CTCSS/DCS code is scanned and stopped, press the key to store the CTCSS/DCS code and replace the corresponding CTCSS/DCS code of the current channel or frequency.
6.2 Dual Watch In certain situations, the ability to monitor two channels at once can be a valuable asset. This can be achieved in one of two ways. You can either have one receiver in your radio and flip-flop between two frequencies at a fixed interval (known as Dual Watch), or you can equip a radio with two receivers (known as Dual Receive or Dual VFO). The former method is cheaper to implement and far more common than the latter. The radio features Dual Watch functionality (single receiver) with the ability to lock the transmit frequency to one of the two channels it monitors. Enabling or disabling Dual Watch mode (1) Press the key to enter the main menu. (2) Enter [4] on the numeric keypad to get to Radio Settings. (3) Press the key to confirm, enter 16 on the numeric keypad to get to 16 Dual Watch. (4) Press the key to select. (5) Use the or keys to OFF or ON. (6) Press the key to confirm. (7) Press to return to the previous menu.

The dual watch function is turned on, and the icon is displayed on the top line of the screen. ·Repeat the above operation, select “OFF”, the dual watch function is disabled, and the icon on the top line of the screen disappears.

6.3 Manual Programming (Channels Memory)

Memory channels are an easy way to store commonly used frequencies so that they can easily be retrieved at a later date.

The radio has 10 zones, with a maximum of 100 channels stored in each zone. Each channel can store: Receive and transmit frequencies, transmit power, group signaling information, bandwidth, ANI/ PTT-ID settings and a six character alphanumeric identifier or channel name 1 .

Frequency Mode vs. Channel Mode

In standby mode, press V/M key to switch between frequency (VFO) mode and channel (MR) mode.

These two modes have different functions and are often confused.

Frequency Mode (VFO): Used for a temporary frequency assignment, such as a test frequency or quick field programming if permitted.

Channel Mode (MR): Used for selecting preprogrammed channels.

Ex 1. Programming a Channel Repeater Offset with CTCSS Tone

EXAMPLE New memory in Channel 10:

RX = 432.55000 MHz

TX = 437.55000 MHz (This is a (+ 5) Offset)

TX CTCSS tone 123.0

(1) Press the key to switch between menus.

(2) Press V/M key to set the radio to VFO mode, and the VFO icon is displayed.

(3) [6] [1][3] [1] [0]

Deletes Prior Data in channel (Ex. 10)

(4) [6] [4] 123.0

Selects desired RX encode tone (Ex 123 CTCSS)

(5) [6] [6] 123.0

Selects desired TX encode tone (Ex 123 CTCSS)

(6) [6] [1][0] [0] [0] [5] [0] [0]

Enter the OFFSET frequency (Ex. 5.00MHz)

(7) [6] [1][1] [+]

Select the offset direction (Ex. plus offset

(8) Enter RX frequency (Ex. 43255000)

Enter RX frequency (Ex. 43255000)

(9) [6] [1][2] [1][0]

Enter the same channel (Ex 10)

–>>

Channel has been added

(10) Press V/M key to return to the MR mode and the channel number will reappear.

Ex 2. Programming a Simplex Channel with CTCSS tone

EXAMPLE New memory in Channel 10:

RX = 432.6500 MHz

TX CTCSS tone 123.0

(1) Press the key to switch between menus.

(2) Press V/M key to set the radio to VFO mode, and the VFO icon is displayed.

(3) [6] [1] [3] [1] [0]

Deletes Prior Data in channel (Ex. 10)

(4) [6] [4] 123.0

Selects desired RX encode tone (Ex 123 CTCSS)

(5) [6] [6] 123.0

Selects desired TX encode tone (Ex 123 CTCSS)

(6) Enter RX frequency (Ex. 43265000)

Enter RX frequency (Ex. 43265000)

(7) [6] [1][2] [1][0]

Enter the same channel (Ex 10)

–>>

Channel has been added

(8) Press V/M key to return to the MR mode and the channel number will reappear.

6.4 Repeaters Programming

The following instructions assume that you know what transmit and receive frequencies your repeater employs, and that you’re authorized to use it. (1) Press V/M key, the transceiver is set to VFO mode, and the VFO icon will be displayed on the right. (2) Use the numeric keypad to enter the repeater’s output (your receive) frequency. (3) Press [6] [1][0] to get the offset frequency. (4) Use the numeric keypad to enter the specified frequency offset. (5) Press to confirm and save. (6) Press [6] [1][1] to get the offset direction. (7) Use the or keys to select plus (positive) or minus (negative) offset. (8) Press to confirm and save. (9) Optional:
a) Save to memory, see the section called “Manual programming” for details. b) Set up CTCSS; see the section called “CTCSS” for details. (10) Press to exit the menu. If everything went well, you should be able to make a test call through the repeater. NOTE: If you’re experiencing problems making a connection to the repeater, check your settings and/or go through the procedure again. Certain Amateur Radio repeaters (especially in Europe) use a 1750Hz tone burst to open up the repeater. To see how this is do ne with the radios, see the section called “1750Hz Tone-burst”. If you’re still unable to make a connection, contact the person in charge of the radio system with your employer or your local amateur radio club, as the case may be.

6.5 Bluetooth write frequency

You can read and write frequency through Bluetooth. Before performing Bluetooth read and write frequency, you need to install an APP program. The operation of the radio is as follows: 1. Press + [3] to enter Bluetooth. 2. Press the or keys to select “ON”;

The first line of the screen will display icons.

6.6 GPS function Optional features that require hardware support.

The position system is a typical DTMF calling application. For the method of setting call codes, call names, and local IDs, please refer to “Signaling Calls”. It is necessary to ensure that the radios that receive and send GPS location information operate on the same frequency or channel, and are set to the main frequency band. In GPS mode, you can only view location information and cannot make normal calls. Voice intercom must exit GPS mode in order to proceed. You can set the system time, GPS on/off, time zone, and GPS mode through the position system menu. Press and hold key to view, share, and request location information. ·GPS on/off settings Set path: + 5 + + 1: Press the / key to select whether to turn GPS on/off. *After turning on the position system, the screen displays the icon
·Time zone settings: Set path: + 5 + + 2: Press the / key to select the correct time zone. ·GPS mode settings This machine is equipped with a multi-mode GPS module, mainly including GPS from the United States and Beidou from China. Set path: + 5 + + 3: Press the / key to select GPS mode (BDS, GPS, or GPS+BDS).
Use of GPS In standby mode, press and hold [A/B] key to enter GPS mode and display “My Place” as an information list. Press key to switch My Place in the information list mode or electronic compass mode. Press the / key to switch the information of the selected member. The current member sequence will be displayed at the top of the interface.
Find My Place 1. Press and hold [A/B] key to enter GPS mode. 2. Use the /key to switch to “My Place”. 3. At this point, the GPS is in receive mode and displays “Searching…” The GPS character on the right is red, indicating that the positioning has not been successful. Note: If “Searching…” is displayed for a long time, it is recommended that you search for satellites in an open location. 4. Display “Searching Successful” to indicate that the radios position has been successfully obtained, and display the current time, longitude, latitude, and altitude, Where N is north latitude, E is east longitude, and H is height. The GPS character on the right is green. 5. Press the key to switch between the GPS position information interface and the GPS distance direction interface.
Share My Place information (send to others) 1. After the GPS position of the radio is successful, press the key to switch to the location information interface. 2. Press the / key to select the pre programmed member sequence (01-20), and display the member sequence and name on the first line. Select the member sequence labeled as “native”. 3. Press the [PTT] key to share the current location information of the device with group members.
Requesting someone else’s place

1. After the GPS position of the radios is successful, press the key to switch to the My Place information interface. 2. Press the / key to select the pre programmed member sequence (01-20), and display the sequence and call name on the first line. Select member sequences that are not marked as “native”. 3. Press the [PTT] key to initiate a position request command to the target member. -Disable transmission during waiting for reception. -If the other party receives your request, they will reply with your location information. -The red center point represents your position, the flashing red dot within the circle represents the position of the other side, and the bottom left corner is the reference distance between two radios.

MAIN MENU FUNCTIONS

The menu function allows you to perform operations such as selecting BANKS, SCAN, Bluetooth, GNSS, Radio Settings, Program Channels, Recording and Radio Information.
7.1 Basic use Use menus with arrow keys (1) Press the key to enter the main menu. (2) Use the or keys to navigate between menu items. (3) After finding the desired next menu item, press the key again to select the menu item. (4) Use the or keys to navigate between the next menu items. (5) After finding the desired next menu item, press the key again to select the menu item. (6) Use the or keys to select the desired parameter. (7) When you have selected the parameter to be set for a given menu item; (8) To confirm your selection, press and it will save your setting and bring you back to the main menu. (9) To cancel your changes, press and it will reset that menu item and bring you out of the menu entirely. (10) To exit out of the menu at any time, press the PTT key.
7.2 Using short-cuts As you may have noticed if you looked at Appendix C, Menu definitions, every menu item has a numerical value associated with it. These numbers can be used for direct access of any given menu item. Using the menu with short-cuts (1) Press the key to enter the menu. (2) Use the numerical keypad to enter the number of the menu item. (3) To enter the menu item, press the key. (4) For entering the desired parameter you have two options:
a) Use the arrow keys as we did in the previous section; or b) Use the numerical keypad to enter the numerical short-cut code.

(5) And just as in the previous section; a) To confirm your selection, press and it will save your setting and bring you back to the main menu. b) To cancel your changes, press and it will reset that menu item and bring you out of the menu entirely.
(6) To exit out of the menu at any time, press the key. (7) All further examples and procedures in this manual will use the numerical menu short-cuts. · +1: Quickly enter zones selection, with up to 10 zones stored, each zone store 100 channels; · +2: Quickly enter the scaner settings, you will be able to set the VFO scan range, scan recovery method, ctcss/DCS scan; · +3: Quickly enter Bluetooth frequency write, you will be able to set the Bluetooth frequency write switch; · +4: Quickly enter the radio settings (overall radio settings); · +5: Quickly enter the GPS system, and you will be able to set the system time, position on/off, time zone, and position mode. · +6: Quickly enter channel configuration (current channel alias, frequency, power, bandwidth, display mode, channel memory and channel delete); · +7: Quickly query radio information (Radio ID, Firmware version, Hardware version);

Bluetooth Write Frequency

You can read and write frequency through Bluetooth. Before Bluetooth read/write frequency, you need to download and install BAOFENG radio APP. intercom operation is as follows: 1. Press + [3] to enter Bluetooth frequency writing. 2. Press + or to select “On”;
The icon will be displayed on the first line of the screen. Download BAOFENG radios APP You can read and write frequency to the terminal through BAOFENG radios APP. Use your Android phone to download and install B AOFENG radios APP. After the APP is opened, allow the Bluetooth of the cell phone and open the positioning function, select the brand Baofeng in the APP, select the model of radios UV-28 PLUS Series, connect the radios, click radios, prompt the connection success and return to the homepage, then you can read and write the frequency. Read Frequency: After completing the frequency reading, click the program to enter the program details. In the program details interface you can program channel information, frequency mode, optional functions. Save Profile: The programmed scheme allows you to save it as a new profile and name the new profile. If you choose to replace the program, tap to replace the program and save it. Write Frequency: Tap Home, select Program, tap Write Frequency to enter Write Frequency, the radio will restart automatically after finishing Write Frequency.

Appendix A. Trouble shooting guide

Phenomena You cannot turn on the radio.
During receiving, the voice is weak or intermittent.
You cannot communicate with other group members. You hear unknown voices or noise.
You are unable to hear anyone because of too much noise and hiss.
The radio keeps transmitting.

Analysis The battery may be installed improperly. The battery power may run out. The battery may suffer from poor contact caused by dirty or damaged battery contacts. The battery voltage maybe low. The volume level may be low. The antenna maybe loose or maybe installed incorrectly.
The speaker maybe blocked. The frequency or signaling type maybe inconsistent with that of other members. You may be too far away from other members. You may be interrupted by radios using the same frequency. The radio in analog mode maybe set with no signaling.
You may be too far away from other members. You may be in an unfavorable position. For example, your communication may be blocked by high buildings or blocked in an underground area. It may be the result of external disturbance (such as electromagnetic interference). VOX may be turned on or the headset is not installed in place

Solution Remove and reattach the battery. Recharge or replace the battery. Clean the battery contacts or replace the battery.
Recharge or replace the battery. Increase the volume. Turnoff the radio, and then remove and reattach the antenna. Clean the surface of the speaker. Verify that your TX/RX frequency and signaling type are correct. Move towards other members. Change the frequency, or adjust the squelch level. Request your dealer to set signaling for the current channel to avoid interference Move towards other members. Move to an open and flat area, restart the radio, and try again.
Stay away from equipment that may cause interference.
Turn off the VOX function. Check that the headphones are in place.

NOTE: If the above solutions cannot fix your problems, or you may have some other queries, please contact your dealer for more technical support.

Appendix B. – Technical Specifications

GENERAL

Channel Capacity

1000/10 Bank

Channel Spacing

25.0 KHz/12.5 KHz

Input Voltage

7.4 VDC

Battery Life: 5% TX, 5% RX, 90% Standby

Li-on: 15 hours @ 5 watts

Operating temperature

-Z

Antenna Impedance

Radio Dimensions

157mm X 67mm X 43mm (not including antenna)

Radio Weight

360 g (with Li-ON battery)

TRANSMITTER

144 to 148 MHz, 420 to 450 MHz (America version)

Frequency Range (TX)

144 to 148 MHz, 430 to 450MHz Canadian version)

144 to 146 MHz, 430 to 440MHz European Union version)*

Modulation

16K0F3E/11K0F3E

Spurious Emission

-16 dBm<1GHz, -16 dBm>1GHz

Frequency Stability

±2.5 ppm

Audio Distortion

FM Hum & Noise

40 dB

RECEIVER

Frequency Range

FM76-108MHz; AM108-136MHz; VHF: 136-174 MHz; 220-260MHz; UHF:350-390MHz; 400- 520 MHz;

Sensitivity: 12 dB SINAD

-120 dBm

Adjacent Channel Selectivity

-60 dBm

Intermodulation and Rejection

-70 dBm

Rated Audio Power Output

0.75 Watts @ 16

Rated Audio Distortion

NOTE: All specifications may be modified without prior notice or liability. Thank you.

Appendix C. – Shortcut Menu operations

Menu
1 BANK
2 SCAN
3 Bluetooth

Radio Setting

Name

BANK 1

Freq Ranger

Scan Mode

Scan SubCode

Scan Memory

Step

Squelch

Power Save

VOX Switch

VOX Level

Setting
Channel1-Channel100 NNNNnnn Time Carrier Search CTCSS DCS ALL DECODER ENCODER OFF ON 2.5-100K
OFF,LEVEL1-LEVEL5
OFF
ON OFF ON
LEVEL1-LEVEL9

Description
A Bank is a group of channels grouped together. The radio has 10 Banks. A Bank can have the maximum of 100 channels. Input VFO range lower and upper frequency Time Operation – scanning will resume after a fixed time has passed Carrier Operation -scanning will resume after the signal disappears Search Operation -scanning will not resume Search within CTCSS Tone (Rang 67-254.1, A total of 50 groups) Search within DCS Code (Rang 023N-754I, A total of 210 groups) RX_TX are saved (default is all, encoding and decoding are the same) Save only in Transmitter CTCSS/DCS Save only in Receiver CTCSS/DCS
Turn off Bluetooth frequency write function
Enable Bluetooth frequency write function Selects the amount of frequency change in VFO/Frequency mode when scanning or pressing the or keys.
Squelch silences the receiver when there is no signal. Setting the squelch to 0 will open up the squelch entirely.
Turn off radio sleep. The battery consumption is large, and the standby time may be shortened Turn on radio sleep. Turning on is more power efficient, but you might miss the first few syllables before the RX turns on. Turn off the radio VOX. Turn on the radio VOX. When enabled it is not necessary to push the [PTT] button on the transceiver. Adjust the gain level to an appropriate sensitivity to allow smooth transmission.

VOX Delay

0.5……2.0s

TOT

TOA

Voice

10 Language

11 ROGER

OFF 15;30;45…180 OFF 1……10 OFF ON Chinese English OFF
ON

OFF 12 Beep
ON

13 BackLight

ALWAYS ON 5……20

Power on Display

PICTURE VOLTAGE

OFF

15 Dual Watch

16 AutoLock
17 Alarm Mode 18 Alarm Tone 19 ANI-Edit

OFF
ON
On Site Send Sound Send Code OFF ON 100

When the VOX is enabled, set up the VOX delay to help to extend the transmission time to avoid stopping a transmission too early. 0.5s-2s, Step 0.1 second. a total of 16 times offered.
Allow continuous launch, launch time is not limited
Maximum allowed time for transmission while holding down the PTT key.
Disable TOA function Activate TOA function. Range 0 10 seconds, Step 1 second. Disable voice prompts Activate voice prompts Display menus and voice prompts in Chinese language Display menus and voice prompts in English language Disable ROGER function. Release PTT key without ROGER audio. Activate the ROGER function. Sends an end-of-transmission tone to indicate to other stations that the transmission has ended. Disable key confirmation tone.
Activation key to confirm tone. Allows audible confirmation of a key press The backlight is always on. Set the backlight off time in no-operation delay time. 5-20, step value is 5. Show preset picture when radio is on Display battery voltage when radio is on Disable dual table, dual receive. Monitor [A] and [B] at the same time. The display with the most recent activity ([A] or [B]) becomes the selected display. Disable automatic keypad lock. Allow manual keypad lock (press and hold the
key to lock/unlock the keyboard) When ON, the keypad will be locked if not used in 8 seconds. Pressing the
key for 2 seconds will unlock the keypad. Sounds alarm through your radio speaker only Transmits a cycling tone over-the-air Transmits ‘119’ (911 in reverse) followed by the ANI code over-the-air The radio speaker blocks the alarm sound. The radio speaker sounds an alarm View the ANI ID, and if necessary, will allow to change the ANI ID

20 DTMF-ST

21 PTT-ID 22 PTT-DLY 23 ALERT

24 TAIL 25 Press SK2

26 Reset

5 GPS

Program Channel

GPS On/Off

Time Zone

GPS Mode

CH.NAME

OFF DT-ST ANI-ST DT+ANI OFF BOT EOT BOTH 100-3000ms
1000Hz
1450Hz 1750Hz 2100Hz OFF ON FM Radio Scan Search VOX
VFO
ALL OFF
ON
-12 to 0 to + 12 GPS BDS GPS+BDS
Channel 1

No DTMF Side Tones are heard Side Tones are heard only from manually keyed DTMF codes Side Tones are heard only from automatically keyed DTMF codes All DTMF Side Tones are heard No ID is sent. The selected S-CODE is sent at the beginning The selected S-CODE is sent at the ending The selected S-CODE is sent at the beginning and ending Signal code sending delay. PTT-ID Delay (milliseconds) The following configurations will transmit accordingly: PTT + SK2= Transmits 1000Hz Tone Burst PTT + SK2= Transmits 1450Hz Tone Burst PTT + SK2= Transmits 1750Hz Tone Burst PTT + SK2= Transmits 2100Hz Tone Burst Disable Squelch Tail Elimination. Enable Squelch tail elimination. to prevent any squelch tails from being heard. FM radio on/off Scan on/off Search on/off VOX on/off Reset the radio’s VFO menu to factory defaults (no reset for bank, scan settings) Resets the radio to factory defaults, with some exceptions. Turn off the position system, long press the MENU key is ineffective Turn on the position system, press and hold the MENU key to enter GPS mode Set the time zone of the region
View channel name, allows to rename the current channel. Press the key to switch the input method, allowing the input of letters, numbers and symbols.

RX Frequency

TX Frequency

Trans Power

Bandwidth

RX CTCSS

RX DCS

TX CTCSS

TX DCS

10 Encryption

11 Signaling

12 CH-MDF

13 SP-Mute 14 SCAN ADD

High Middle Low Wide Narrow
OFF;67-254.1
OFF;023N-754I
OFF;67-254
OFF;023N-754I OFF
ON
1-20
NAME FREQ CH QT
QT+DTMF OFF

View the current channel Receiver frequency, allow to change the current frequency. Input the RX frequency by keypad, click the Menu key to save
View the current channel Transmitter frequency, allow to change the current frequency. Input the TX frequency by keypad, click the Menu key to save
Selects between HIGH transmitter power when in VFO/Frequency mode.
Selects between Middle transmitter power when in VFO/Frequency mode.
Selects between LOW transmitter power when in VFO/Frequency mode. Wideband (25 kHz bandwidth) narrowband (12.5 kHz bandwidth) Mutes the speaker of the transceiver in the absence of a specific and continuous sub-audible signal. If the station you are listening to does not transmit this specific and continuous signal, you will not hear anything. Mutes the speaker of the transceiver in the absence of a specific low-level digital signal. If the station you are listening to does not transmit this specific signal, you will not hear anything. Transmits a specific and continuous sub audible signal to unlock the squelch of a distant receiver (usually a repeater). Transmits a specific low-level digital signal to unlock the squelch of a distant receiver (usually a repeater). Disable encrypted mode, your conversations are not private. Activating encryption mode ensures the privacy of your conversations. To use the Encryption function, the other part of the radio must also have Encryption activated and must be tuned on the same DCS code. Selects 1 of 20 DTMF codes. The DTMF codes are programmed with software and are up to 3 digits each. MR/Channel mode is displayed in NAME format. Note: NAME allows CPS program or edit in the channel nameMunu 1. MR/Channel mode is displayed in frequency format. MR/Channel mode is displayed in CH format. when radios is set in this mode, the monitor feature is activated only when the radio receives the correct CTCSS/DCS. with this option, the monitor is activated when the radio receives the correct CTCSS/DCS and the correct DTMF code. Forbid the current channel to join the scan group.

15 Busy Lockout *13 OffSet *14 Direction 16 CH_Memory

ON OFF
ON
000 None Plus Minus CH001-CH100

17 CH_Delete

CH001-CH100

7 Radio Info Radio IDFirmwareHardware

Add the current channel to the scan group. The [PTT] button on the channel is always allowed. Disables the [PTT] button on a channel that is already in use. The transceiver will sound a beep tone and will not transmit if the [PTT] button is pressed when a channel is already in use. Specifies the difference between the TX and RX frequencies TX = RX (simplex). Disable access to repeaters in VFO/Frequency mode Plus frequency shift direction. TX will be shifted higher in frequency than RX Minus frequency shift direction. TX will be shifted lower in frequency than RX This menu is used to either create new or modify existing channels (1 through 100) so that they can be accessed from MR/Channel Mode. This menu is used to delete the programmed information from the specified channel (1 through 100) so that it can either be programmed again or be left empty. Displays radio ID, firmware version, hardware version. to check the radio information.

EU Declaration of Conformity

Baofeng and Pofung hereby declares that the radio equipment type listed in Technical Specifications is in compliance with Directive 2014/53/EU. The full text of the EU Declaration of Conformity is available at the following link: http://www.pofung.cn/download.asp?EnBigClassName=EU%20DOC. Via your local Baofeng helpdesk, your dealer from where you purchased this radio or send an email to wangjianhui@baofengradio.com.

Documents / Resources

BAOFENG UV-28 Plus 10W GPS APP Programming Radio [pdf] User Manual
UV-28 Plus, UV-28 Plus 10W GPS APP Programming Radio, UV-28 Plus, 10W GPS APP Programming Radio, GPS APP Programming Radio, Programming Radio

References

User Manual

BAOFENG UV-28 Plus 10W GPS APP Programming Radio

Specifications
