BAFANG DP C230 Torque Sensor Mid Drive System
IMPORTANT NOTICE
- If the error information from the display cannot be corrected according to the instructions, please contact your retailer.
- The product is designed to be waterproof. It is highly recommended to avoid submerging the display under water.
- Do not clean the display with a steam jet, high-pressure cleaner or water hose.
- Please use this product with care.
- Do not use thinners or other solvents to clean the display. Such substances can damage the surfaces.
- Warranty/guarantee is not included due to wear and normal use and aging.

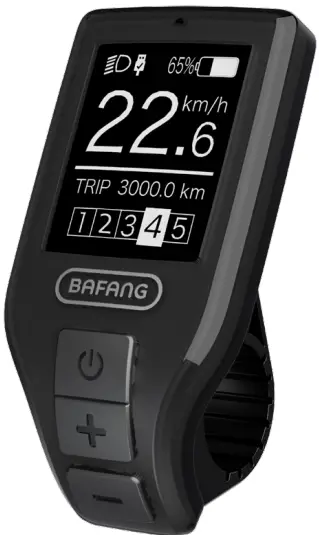

INTRODUCTION OF DISPLAY
- Model: DP C230.CAN BUS
- The housing material is ABS and acrylic:
- The label marking is as follows:
Note: Please keep the QR code label attache to the display cable. The information from the Label is used for a later possible software update.
|
DPC230CK10202.0 PD051305 |
|
DPC230CK10202.0
PRODUCT DESCRIPTION
Specifications
- Operating temperature: -20℃~45℃
- Storage temperature: -20℃~50℃
- Waterproof: IP65
- Bearing humidity: 30%-70% RH
Functional Overview
- Speed display (including top speed and average speed, switching between km and miles).
- Battery capacity indicator.
- Automatic sensors explanation of the lighting system.
- Brightness setting for backlight.
- Indication of performance support.
- Motor input power indicator.
- Time display for total journeys.
- Kilometer stand (including single-trip distance, total distance and remaining distance).
- Walk assistance.
- Setting the support levels.
- Energy consumption indicator CALORIES (Note: If the display has this function).
- Display for the remaining distance. (Depends on your riding style)
- USB charging function.
DISPLAY
- The display shows
this symbol, if the light is on. USB charging indicator displays the icon ,
if an external USB device is connected to the display. - Speed display in real time.
- Trip: Daily kilometers (TRIP) – Total kilometers (ODO) – Top speed (MAX) – Average speed (AVG) – Range (RANGE) – Output power (POWER) – Energy Consumption (CALORIES) – Travel time (TIME).
- Support level/ Walking assistance
- Display of battery capacity in real time.
- Unit switching between km and miles.
- Service: Please see the service section
KEY DEFINITION
NORMAL OPERATION
Switching the System ON/OFF
Press and hold
(>2S) on the display to turn on the system. Press and hold (>2S) again to turn off the system. If the “automatic shutdown time” is set to 5 minutes it can be set with the “Auto Off” function See “Auto Off“, the display will automatically be turned off within the desired time when it is not in operation. If the password function is enabled, you must enter the correct password to to use the system.
Selection of Support Levels
When the display is turned on, press the
or
(<0.5S) button to switch to the support level, the lowest level is 0, the highest level is 5. When the system is switched on, the support level starts in level 1. There is no support at level 0.
Headlights / backlighting
Hold the (>2S) button to activate the headlight and taillights.
Hold the (>2S) button again to turn off the headlight. The brightness of the backlight can be set in the display settings “Brightness”. If the display /Pedelec is switched on in a dark environment, the display backlight/headlight will automatically be switched on. If the display backlight/headlight has been manually switched off, the automatic sensor function is deactivated. You can only turn on the light manually. After switching on the system again.
Walk Assistance
The Walk assistance can only be activated with a standing pedelec.
Activation: Press the button until this symbol appears. Next hold down the button whilst the symbol is displayed. Now the Walk assistance will activate. The symbol will flashes and the pedelec moves approx. 6 km/h. After releasing the button, the motor stops automatically and switches back to level 0.
Selection Mode
Briefly press the (0.5s) button to see the different trip modes. Trip: daily kilometers (TRIP) – total kilometers (ODO) – Maximum speed (MAX) – Average speed (AVG) – Range (RANGE) – Energy consumption (CALORIES(only with torque sensor fitted)) – Input power (POWER) – Travel time (TIME).
Display of battery capacity
The indicator displays the capacity in real time, when battery is fully charged, it shows 100%, if it is less than 5%, then the outline of indicator will flash, that means the battery needs to be charged immediately.
USB charging function
USB charging indicator displays the icon and start to charge, if an external USB device is connected to the display. (max. Voltage is 5v, max. Current is 500 mA)
SERVICE
The display shows “Service” as soon as a certain number of kilometers or battery charges has been reached. With a mileage of more than 5000 km (or 100 charge cycles), the “Service” function is displayed on the display. Every 5000 km the display “SERVICE” is displayed every time. This function can be set in the display settings.
SETTINGS
After the display is turned on, press the and button (>2S) synchronously, to access the “SETTINGS” menu. By pressing the or button (<0.5S) , you can select: Setting, Information or EXIT. Then press the button (<0.5S) to confirm your selected option.
Or select “EXIT” and press the button (<0.5S) to return to the main menu, or select “BACK” and the button (<0.5S) to return to the Settings interface.
If no button is pressed within 20 seconds, the display will automatically return to the main screen and no data will be saved.
You can synchronously press the and button (>2S) at any time, to return to the main screen.
By pressing the BACK button in the display or information menu you can get to Settings Selection Menu.
“Setting”
Press the or button (<0.5S) to select “Setting”, and then briefly press the button (<0.5S) to access the following selections.
“TRIP Reset” Reset mileage
Press the or button (<0.5S) to highlight “TRIP Reset” in the Setting menu, and then press (<0.5S) to select. Then with the or button choose between “YES” or “NO”. Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the “Setting” interface.
“Unit” Selections in km/Miles
Press the or button (<0.5S) to highlight “Unit” in the Setting menu, and then press the button (<0.5S) to select. Then with the or button choose between “Metric” (kilometer) or “Imperial” (Miles). Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the “Setting” interface.
“Sensitivity” Automatic Headlight sensitivity
Press the or (<0.5S) button to highlight “Sensitivity” in the Setting menu, and then press (<0.5S) to select. Then with the or button choose between “0” / ” 1″ / ” 2″/ “3” / “4”/ “5”. Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the “Setting” interface.
“Brightness” Display brightness
Press the or button (<0.5S) to highlight “Brightness” in the Setting menu. Then press (<0.5S) to select. Then with the or button choose between “100%” / “75%” / “50%” /” 30%”/”10%” . Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the “Setting” interface
“Auto Off” Set Automatic system switch off time
Press the or button (<0.5S) to highlight “Auto Off” in the Setting menu, and then press (<0.5S) to select. Then with the or button choose between “OFF”,”9″/”8″/”7″/”6″/”5″/”4″/”3″ /”2″/”1″, (The numbers are measured in minutes). Once you have chosen your desired selection,press the button (<0.5S) to save and exit to the “Setting” interface.
“Vibration” Selection vibration function
Press the or button (<0.5S) to highlight “Vibration” in the Setting menu, and then press (<0.5S) to select. Then with the or button choose between “ON” and “OFF”. Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the “Setting” interface.
“Service” Switching the notification on and off
Press the or button (<0.5S) to highlight “Service” in the Setting menu, and then press (<0.5S) to select. Then with the or button choose between “ON” and “OFF”. Once you have chosen your desired selection, press the button (<0.5S) to save and exit to the “Setting” interface.
“Information”
Once the system is turned on, Press the and button (>2S) synchronously, to access the “SETTINGS” menu. Press or button (<0.5S) to select “Information”, and then press the button (<0.5S) to confirm your selection.
Wheel Size and Speed Limit
The “Wheel Size” and “Speed Limit” cannot be changed, this information is here to be viewed only
Battery Information
Press the or button (<0.5S) to highlight “Battery Info.” in the Information menu, and then press (<0.5S) to select. Press the or button (<0.5S) to view the battery info. Once you have viewed your desired information, press the button (<0.5S) to exit to the “Information” interface.
NOTE: If no data is detected, “–” is displayed
|
Content |
Explanation |
| b01 | Current temperature in degrees (°C) |
| b04 | Total Voltage (V) |
| b06 | Discharge Current (A) |
| b07 | Remaining Capacity (mAh) |
| b08 | Full charged Capacity (mAh) |
| b09 | Default Loader Status (%) |
| b10 | Instant charge (%) |
| b11 | Charging cycles (number) |
| b12 | Maximum time in which no charge was made (Hr) |
| b13 | Last Uncharged Time (Hr) |
| d00 | Total Cell Number (individual) |
| d01 – d10 | Cell Voltage 1 to 10 (m/V) |
| HW | Hardware Version |
| SW | Software Version |
Controller Information
Press the or button (<0.5S) to highlight “Ctrl Info”, and then press the button (<0.5S) to confirm. Once you have viewed your desired information press the button(<0.5S) to exit to the “Information” interface
Display Information
Press the or button (<0.5S) to highlight “Display Info”, and then press the (<0.5S) button to confirm. Once you have viewed your desired information press the button (<0.5S) to exit to the “Information” interface
Torque Information
Press the or button (<0.5S) to highlight “Torque Info”, and then press the (<0.5S) button to confirm. Once you have viewed your desired information press the button (<0.5S) to exit to the “Information” interface.
Error Code
Press the or (<0.5S) button and select “Error Code”, and then press the button (<0.5S) to confirm. It shows error information for the last ten errors of the pedelec. Error code “00”means that there is no error. Once you have viewed your desired information press the button (<0.5S) to exit to the “Information” interface.
ERROR CODE DEFINITION
The display can show the errors of a pedelec. If an error is detected, the error code appears on the display and one of the following error codes will be displayed.
Note: Please read the description of the error code carefully. If you see the error code, restart the system first. If the problem is not resolved, please contact your dealer.
| Error | Declaration | Troubleshooting |
| 04 | The throttle has fault. |
|
| 05 | The throttle is not back in its correct position. | Check the throttle can adjust back into its correct position, if the situation does not improve, please change to a new throttle.(only with this function) |
| 07 | Overvoltage protection |
|
| 08 | Error with the hall sensor signal inside the motor | Please contact your retailer. |
| 09 | Error with the Engine phase’s | Please contact your retailer. |
| 10 | The temperature inside the engine has reached its maximum protection value |
|
| 11 | The temperature sensor inside the motor has an error | Please contact your retailer. |
| 12 | Error with the current sensor in the controller | Please contact your retailer.. |
| 13 | Error with the temperature sensor inside of the battery | Please contact your retailer. |
| 14 | The protection temperature inside the controller has reached its maximum protection value |
|
| 15 | Error with the temperature sensor inside the controller | Please contact your retailer. |
| 21 | Speed sensor Error |
|
| 25 | Torque signal Error |
|
| 26 | Speed signal of the torque sensor has an error |
|
| 27 | Overcurrent from controller | Please contact your retailer |
| 30 | Communication problem |
|
| 33 | Brake signal has an error (If brake sensors are fitted) |
|
| 35 | Detection circuit for 15V has an error | Please contact your retailer. |
| 36 | Detection circuit on the keypad has an error | Please contact your retailer. |
| 37 | WDT circuit is faulty | Please contact your retailer. |
| 41 | Total voltage from the battery is too high | Please contact your retailer. |
| 42 | Total voltage from the battery is too low | Please contact your retailer. |
| 43 | Total power from the battery cells is too high | Please contact your retailer. |
| 44 | Voltage of the single cell is too high | Please contact your retailer. |
| 45 | Temperature from the battery is too high | Please contact your retailer. |
| 45 | The temperature of the battery is too low | Please contact your retailer. |
| 47 | SOC of the battery is too high | Please contact your retailer. |
| 48 | SOC of the battery is too low | Please contact your retailer. |
| 61 | Switching detection defect | Please contact your retailer. (only with this function) |
| 62 | Electronic derailleur cannot release | Please contact your retailer. (only with this function) |
| 71 | Electronic lock is jammed | Please contact your retailer. (only with this function) |
| 81 | Bluetooth module has an error | Please contact your retailer. (only with this function) |
