UNIVERSAL REMOTE LEVEL CONTROL

PRECISE AND TACTILE REMOTE LEVEL CONTROL
ADD VOLUME CONTROL TO ANY LINE-LEVEL SIGNAL
REMOTE CAN BE FLUSH-MOUNTED FOR CUSTOM INSTALLATIONS

Add volume control to any system

The ACR-U is a universal remote volume control that can be inserted into any line-level signal path. The ACR-U can be surface or custom-mounted to add subwoofer level control, zone level control, total system volume control, and more to your audio system. Installation is simple and no power is required.

Quick Start:

*Optional 20 foot (6 meters) Cat5e cable available for separate purchase. Any Cat5e cable may be used up to 300 feet in length.

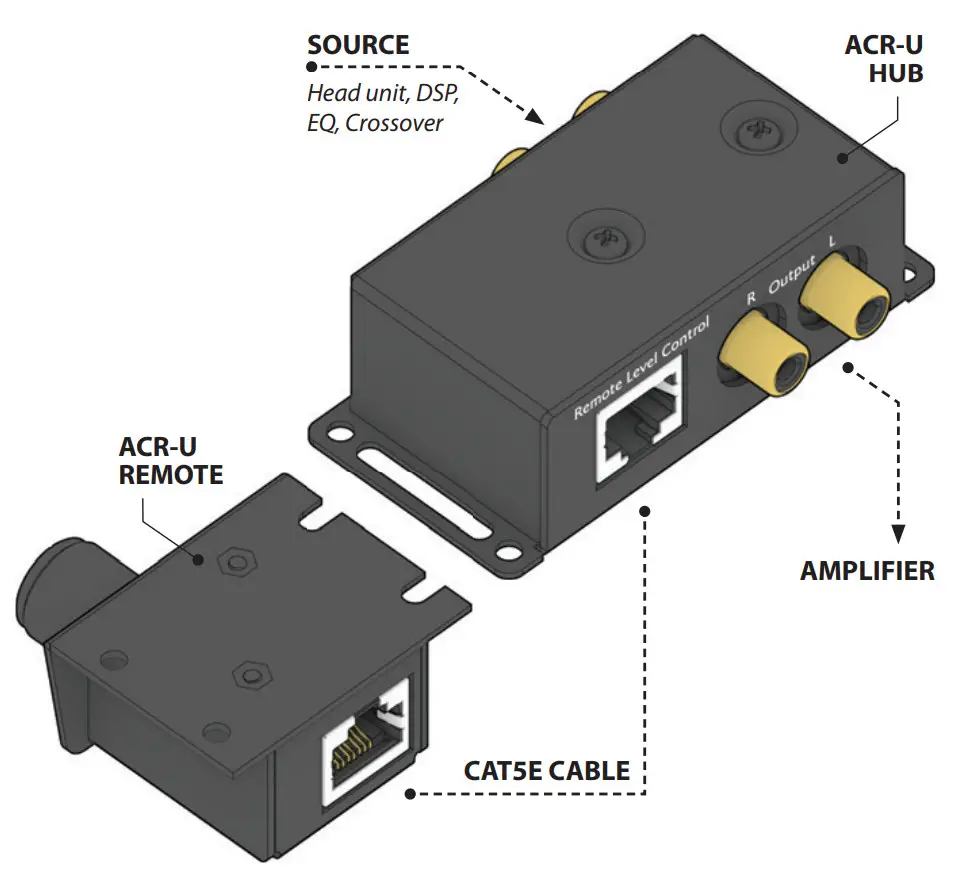

1. Install the ACR-U Hub between a line level source (head unit, DSP, EQ, Crossover) and your amplifi er
2. Connect the output of your line-level source to the input of the ACR-U Hub
3. Connect the output of the ACR-U Hub to your amplifi er
4. Connect the ACR-U Remote to the ACR-U Hub using the included 20 inches (0.5 meters) Cat5e cable*
5. The ACR-U Remote and Hub can be mounted using the integrated mounts. The ACR-U Remote can be disassembled for custom fl ush-mount  installations

What’s Included?
ACR-U Remote, ACR-U Hub, Cat5e Cable (0.5 meters)

Specifications

Audio Channels . . . . . . . . . . . . . . . . . 2 (RCA)
Insertion Loss . . . . . . . . . . . . . . . . . . 0.017 dB
Attenuation Range . . . . . . . . . . . . . . . -97 dB
Juggling Potential. . . . . . . add 1 bean bag
Warranty . . . . . . . . . . . . . . . . . . . . . . . . 5 Years

22410 70th Ave West, Mountlake Terrace, WA 98043 USA
Phone: 425-775-8461
www.audiocontrol.com

©2021 AudioControl. All rights reserved. P/N 912-073-0
