AECOJOY 16x16 Lean to Gazebo Metal Shed Combo Instruction Manual

Product Overview

The AECOJOY 16x16 Lean to Gazebo Metal Shed Combo is a versatile outdoor structure designed to provide both sheltered space and secure storage. It features a 10'x16' hardtop gazebo section suitable for outdoor dining, entertaining, or vehicle shelter, combined with a fully enclosed 6'x16' metal shed for storing tools and equipment. This unit offers a total of 249 square feet of covered space.

Constructed from rust-resistant metal with a hardtop sloped roof, the design effectively channels rain and snow away, preventing pooling and leaks. The structure is built to withstand various weather conditions, including harsh sun, heavy rain, and snow, without warping or corroding.

Its freestanding design allows for flexible placement in your yard, whether against a fence, in a corner, or as a standalone unit.

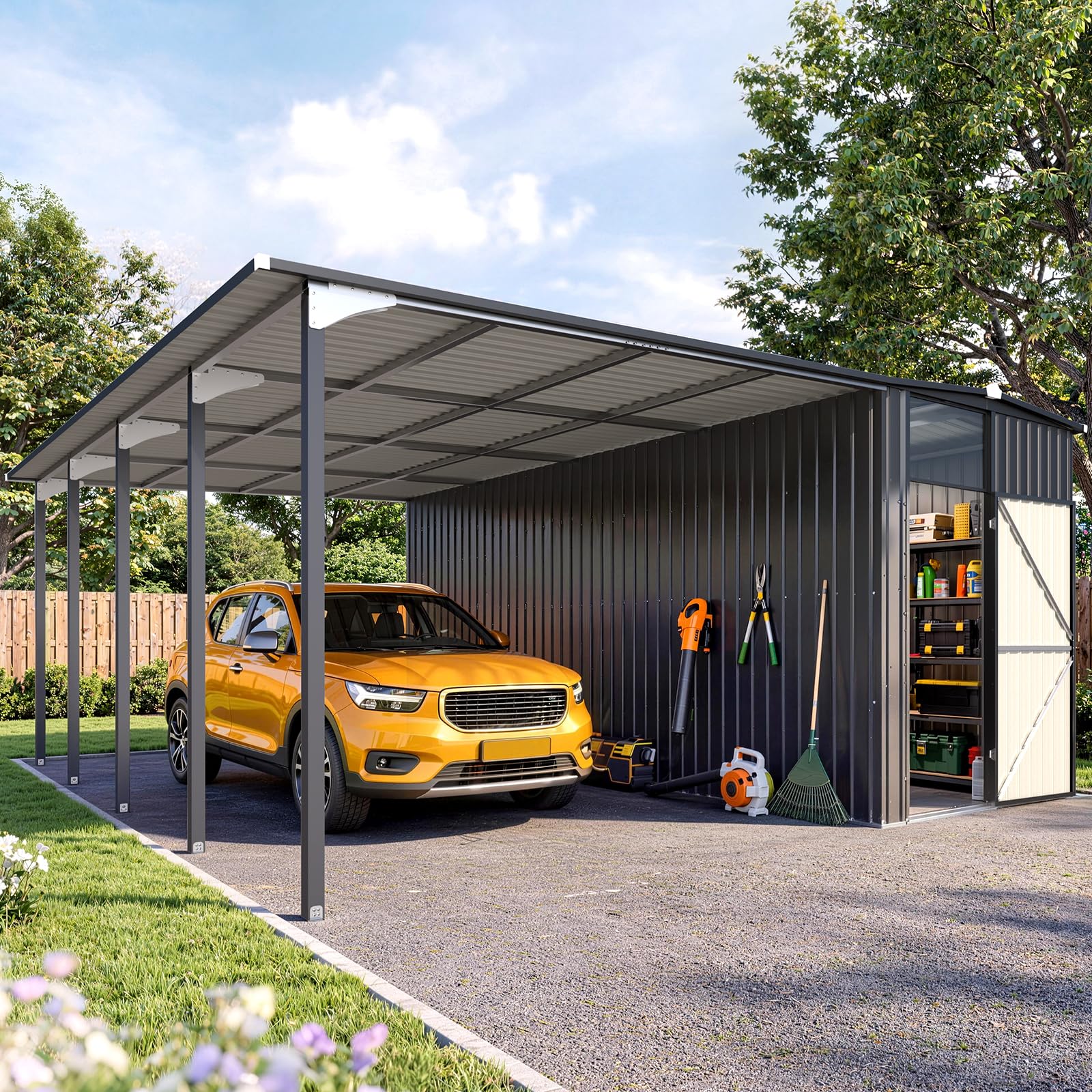

Image: Overall view of the AECOJOY 16x16 Lean to Gazebo Metal Shed Combo.

Setup and Assembly

Assembly of the AECOJOY Lean to Gazebo Metal Shed Combo is designed to be straightforward. It features pre-drilled, clearly labeled panels and includes all necessary hardware. No additional drilling is required for assembly.

Before You Begin:

• Read the Manual: Carefully read and understand all instructions before beginning assembly. Familiarize yourself with all components and steps.
• Prepare the Site: Ensure the chosen assembly site is level and clear of obstructions. Consider proper drainage.
• Gather Tools: While no drilling is required, standard assembly tools such as wrenches, screwdrivers, and a ladder may be needed.
• Team Assembly: Assembly is significantly easier and safer with at least two people.

Assembly Steps Overview:

1. Unbox and Organize: Carefully unbox all components and organize them according to the parts list provided in the detailed manual. Verify all parts are present and undamaged.
2. Frame Construction: Assemble the main frame structure following the step-by-step diagrams. Ensure all connections are secure but do not fully tighten all fasteners until the structure is complete and aligned.
3. Panel Installation: Attach the roof and wall panels. The pre-drilled holes ensure proper alignment.
4. Door and Finishing: Install the shed door and any remaining trim pieces.
5. Final Tightening and Anchoring: Once the entire structure is assembled and aligned, fully tighten all fasteners. Securely anchor the structure to the ground using appropriate methods for your specific site conditions to prevent movement in high winds.

Image: Simplified assembly process: Unbox, No-drill installation, Done.

For detailed, step-by-step instructions and diagrams, refer to the comprehensive manual included with your product packaging.

Operating Instructions

This combo unit offers dual functionality:

Gazebo/Carport Section (10'x16'):

• Shelter: Use this area for outdoor dining, entertaining guests, or as a shaded relaxation space.
• Vehicle Protection: The gazebo can serve as a carport, providing shelter for a car, truck, or SUV from sun, rain, and snow.
• Weather Resistance: The hardtop roof provides protection against UV rays in summer and channels away snow and rain in winter.

Metal Shed Section (6'x16'):

• Secure Storage: The fully enclosed shed is designed for secure storage of tools, gardening equipment, bicycles, ladders, and seasonal gear.
• Protection: The enclosed design seals out moisture and wind, keeping your belongings dry and protected year-round.
• Lockable Doors: Utilize the lockable doors to ensure the security of your stored items. (Lock not included).

Image: The 2-in-1 functionality, showcasing the storage shed and carport/gazebo.

Maintenance

Regular maintenance will help prolong the life and appearance of your AECOJOY Gazebo Metal Shed Combo.

• Periodic Cleaning: Clean the metal surfaces with a mild soap and water solution. Rinse thoroughly with clean water and dry to prevent water spots. Avoid abrasive cleaners or scrubbers that could damage the finish.
• Roof Inspection: Periodically inspect the hardtop roof for any accumulation of leaves, debris, or excessive snow. Clear these to maintain proper drainage and prevent undue stress on the structure.
• Fastener Check: Annually, or after severe weather, check all bolts, screws, and connections to ensure they remain tight. Re-tighten any loose fasteners.
• Anchoring System: Verify that the anchoring system remains secure, especially after strong winds or ground shifts. Re-secure anchors if necessary.
• Rust Prevention: Although constructed from rust-resistant metal, inspect for any scratches or chips in the paint that could expose bare metal. Touch up with appropriate outdoor metal paint to prevent rust.

Image: The product's resilience in various weather conditions, including winter snow and summer sun.

Troubleshooting

This section addresses common issues you might encounter.

Assembly Difficulties:

• Unclear Instructions: If the provided assembly instructions are difficult to follow due to small print or unclear diagrams, refer to the online resources or contact customer support for clarification. It is crucial to understand each step before proceeding.
• Missing/Damaged Parts: If any parts are missing or arrived damaged, do not proceed with assembly. Contact AECOJOY customer support immediately for replacement parts.
• Misalignment: Ensure all components are correctly oriented before tightening fasteners. Loosen connections, realign parts, and then re-tighten. Do not force parts together.

Structural Stability:

• Roof Panels Detaching: Ensure all roof panels are securely fastened according to the instructions. If panels detach, inspect the fasteners and re-secure them. Consider additional anchoring if the structure is exposed to very high winds.
• Wobbling/Instability: Verify that the structure is assembled on a level surface. Check all frame connections and ground anchors for tightness. Ensure the structure is properly anchored to the ground.

Water Leakage:

• Roof Leaks: Inspect roof panel seams and connections for any gaps or loose fasteners. Ensure the roof is properly sloped and clear of debris that could impede water runoff.

If you encounter issues not covered here or require further assistance, please contact AECOJOY customer support.

Specifications

Image: Product dimensions and footprint.

Warranty Information

This AECOJOY product is covered by a 1-Year Manufacturer Warranty. This warranty covers defects in materials and workmanship under normal use and service. Please retain your proof of purchase for warranty claims.

For specific details regarding warranty coverage, limitations, and how to make a claim, refer to the warranty documentation included with your product or contact AECOJOY customer support.

Customer Support

Should you require assistance with assembly, have questions about product operation, or need to report missing or damaged parts, AECOJOY's support team is available to help.

Please have your model number (16622DG) and proof of purchase ready when contacting support.

Contact Information:

• Refer to the contact details provided in your product packaging or on the official AECOJOY website.
• Support is available by phone for remote assistance before and after your purchase.
