Introduction
Thank you for choosing the SUNSHINE VALLEY 6-Piece Patio Sectional Set. This modular outdoor furniture set is designed to provide comfort and versatility for your patio, deck, or garden space. This manual provides essential information for the safe assembly, operation, maintenance, and care of your new patio set. Please read these instructions thoroughly before assembly and retain them for future reference.
Safety Information
- Ensure all components are securely fastened before use. Regularly check and tighten any loose bolts or screws.
- Do not exceed the weight capacity of 350 lbs per sofa chair and side table.
- Keep children and pets away from the assembly area. Small parts can be a choking hazard.
- Place the furniture on a flat, stable surface to prevent tipping.
- Avoid placing hot items directly on the woodgrain table surface without protection.
- In adverse weather conditions (strong winds, heavy rain, snow), consider covering or storing the furniture indoors to prolong its lifespan.
Package Contents
Verify that all parts are present before beginning assembly. If any parts are missing or damaged, please contact customer support.
- 4 x Sofa Chairs
- 2 x Side Tables
- Assembly Hardware (bolts, washers, Allen wrench)
- Instruction Manual
Setup and Assembly
The SUNSHINE VALLEY patio set features a modular design, allowing for flexible arrangements. Assembly is straightforward and requires minimal tools.
Step 1: Unpack Components
Carefully remove all items from the packaging. Lay out all parts on a soft, clean surface to prevent scratches.
Step 2: Assemble Sofa Chairs
- Attach the backrest to the seat frame. The detachable backrest design uses plastic clips at the plug-in points to protect the crossbar and stabilize the backrest. Ensure the backrest slides fully into the designated slots.
- Secure any remaining frame components using the provided hardware. Do not fully tighten bolts until all parts are aligned.
- Once all parts are in place, gradually tighten all bolts with the Allen wrench.
- Place the cushions onto the sofa chairs. The cushions are 5.9 inches thick and designed for comfort.
Figure 1: Detachable Backrest Assembly. This image illustrates how the backrest connects to the seat frame, highlighting the patented backrest structure and plastic clips for stability.
Step 3: Assemble Side Tables
- Attach the legs to the tabletop frame using the provided hardware.
- Ensure all connections are secure and tighten all bolts.
Step 4: Arrange Your Modular Set
The modular design allows you to combine the sofa chairs and side tables according to your preferences or needs. Experiment with different layouts to create your ideal outdoor seating arrangement.
Figure 2: Modular Design Options. This image displays different ways to arrange the sofa chairs and side tables, demonstrating the flexibility of the modular design.
Operating Instructions
This patio sectional set is designed for outdoor relaxation and entertainment. Its modular nature allows for easy reconfiguration to suit various occasions, from intimate gatherings to larger social events.
- Cushion Use: The cushions are made with 28-density high-rebound elastic foam for comfort. While the fabric is all-weather resistant, it is recommended to store cushions indoors during prolonged periods of rain or when not in use to maintain their quality and extend their lifespan.
- Table Use: The woodgrain pattern table provides a smooth surface. Use coasters for beverages and placemats for food to protect the surface from spills and heat.
- Adjustable Foot Pads: The furniture is equipped with adjustable foot pads to ensure stability on uneven surfaces. Adjust each foot pad as needed to level the furniture.
Maintenance
Proper care and maintenance will ensure the longevity and appearance of your SUNSHINE VALLEY patio set.
Frame Care
The frame features a dual rust-proof coating (powder coating and exclusive electro-coating) for enhanced durability.
- Wipe the frame with a soft cloth and mild soap and water solution. Rinse thoroughly and dry completely to prevent water spots.
- Avoid using harsh chemicals or abrasive cleaners, as these can damage the protective coating.
- Periodically check all bolts and connections and tighten them as necessary.
Figure 3: Dual Rust-Proof Frame. This diagram compares the dual coating process (powder coating and electrophoretic double-layer protection) used on the SUNSHINE VALLEY frame versus a standard powder-coated frame, highlighting enhanced rust resistance.
Cushion and Fabric Care
The cushions are made with all-weather resistant fabric that is wear-resistant, quick-drying, fade-resistant, and easy to clean.
- For general cleaning, brush off loose dirt. Spot clean with a mild soap and water solution. Rinse thoroughly and allow to air dry.
- For tougher stains, a fabric cleaner designed for outdoor use may be applied, following the product instructions.
- To increase the service life, use a furniture cover or store the items indoors during rainy and snowy weather.
Figure 4: All-Weather Resistant Fabric. This image shows a close-up of the cushion fabric, emphasizing its durable, quick-drying, fade-resistant, and easy-to-clean properties.
Woodgrain Tabletop Care
The tabletop features a woodgrain pattern that is weather-resistant, rust-resistant, fade-resistant, and durable.
- Wipe clean with a damp cloth. For stubborn marks, use a mild soap solution.
- Avoid prolonged exposure to direct sunlight or extreme temperatures without protection to prevent potential fading or warping over time.

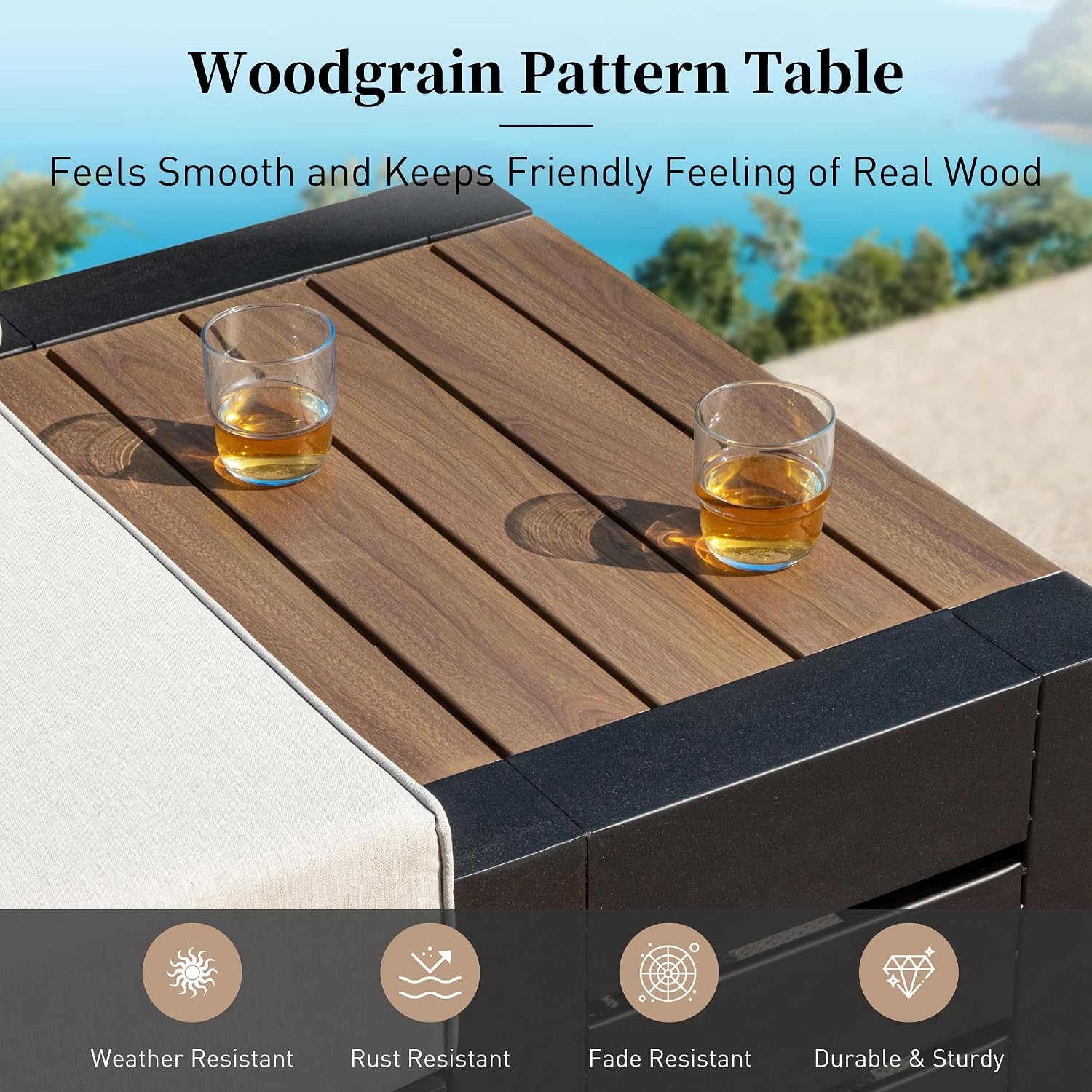

Figure 5: Woodgrain Pattern Table. This image highlights the smooth, woodgrain pattern tabletop, showcasing its weather, rust, and fade-resistant qualities.
Troubleshooting
- Issue: Furniture feels wobbly.
Solution: Check all bolts and connections to ensure they are securely tightened. Adjust the foot pads on each piece to level the furniture on uneven surfaces. - Issue: Cushions appear flattened.
Solution: The cushions are made with high-rebound foam. Allow them to air out and fluff up. Regular rotation and occasional patting can help maintain their shape. - Issue: Stains on fabric.
Solution: Refer to the "Cushion and Fabric Care" section for cleaning instructions. Act quickly on spills to prevent permanent staining. - Issue: Minor scratches on frame.
Solution: Small scratches can often be touched up with outdoor-grade metal paint that matches the frame color.
Specifications
| Feature | Detail |
|---|---|
| Brand | SUNSHINE VALLEY |
| Model Number | CP007-3-3-SV |
| Set Name | 6-Piece Patio Sectional Set |
| Number of Items | 6 (4 Sofa Chairs, 2 Side Tables) |
| Color | Beige |
| Material Type | Rattan (implied for aesthetic, frame is steel) |
| Frame Material | High-quality Steel with Dual Rust-Proof Coating |
| Cushion Thickness | 5.9 inches |
| Sofa Chair Weight Capacity | 350 lbs |
| Side Table Weight Capacity | 350 lbs |
| Item Weight (Total) | 20 pounds (Note: This seems to be for a single component, not the full set. Please refer to packaging for total weight.) |
| Item Dimensions (Example: Single Sofa Chair) | 27.6" (Width) x 27.6" (Depth) x 32.7" (Height) |
| Item Dimensions (Example: Side Table) | 27.6" (Width) x 17.04" (Depth) x 14.4" (Height) |
Figure 6: Product Dimensions and Capacities. This image provides detailed measurements for the sofa chairs and side tables, including their individual weight capacities.
Warranty Information
SUNSHINE VALLEY products are manufactured to high-quality standards. This product comes with a limited manufacturer's warranty against defects in materials and workmanship. Please refer to your purchase documentation or contact customer support for specific warranty terms and conditions.
Customer Support
For any questions, assistance with assembly, missing parts, or warranty claims, please contact SUNSHINE VALLEY customer support through the retailer where the product was purchased or visit the official SUNSHINE VALLEY store page:
