1. Introduction
Thank you for choosing the AIRMSEN Large Slim Countertop Dishwasher. This manual provides essential information for the proper installation, operation, and maintenance of your appliance. Please read it thoroughly before use and keep it for future reference.
2. Important Safety Instructions
To reduce the risk of fire, electric shock, or injury, follow these basic precautions:
- Read all instructions before using the dishwasher.
- Use the dishwasher only for its intended function.
- Do not operate the dishwasher if it has a damaged power cord or plug, or if it is not working properly.
- Keep children away from detergent and rinse aid.
- Do not allow children to play in or on the dishwasher.
- Always disconnect the dishwasher from the power supply before cleaning or performing maintenance.
- Do not tamper with controls.
- Ensure the dishwasher is properly grounded.
- Do not store or use flammable materials near the dishwasher.
- Use only detergents and rinse aids recommended for automatic dishwashers.
- Do not wash plastic items unless they are marked "dishwasher safe."
- Load sharp items so they are not likely to damage the door seal or interior.
- Do not touch the heating element during or immediately after use.
- Exercise caution when opening the door during or after a wash cycle, as hot steam may escape.
3. What's in the Box
Upon unpacking, ensure all components are present:
- Dishwasher Unit
- Top Cutlery Tray
- Lower Basket
- Fruit Basket
- Refill Pitcher
- Drain Hose
- Inlet Hose
- Suction Cup
- Hose Collar
- User Manual
4. Product Overview
The AIRMSEN Countertop Dishwasher features a slim design with a large capacity, suitable for various kitchen setups. It includes a built-in water tank and multiple wash programs.
4.1 Key Features
- Slim Design & Large Capacity: At only 14.2 inches deep, it fits perfectly on narrow counters. The interior capacity is increased by 25%, allowing for longer items (up to 18.5 inches L). The 2-tier rack design holds up to 5 place settings, and plates up to 11.8 inches (by removing the upper rack).
- 7 Wash Programs + 2 Extra Options: Includes Normal, Delicate, Heavy, Express (28 min), Baby Care, Fruit (9 min), and Self-Clean programs. Extra options are Air Refresh and Delay Start (2–12 hours).
- Deep-Cleaning: Equipped with 3 high-pressure spray arms for full 360° coverage. Features a 167°F high-temperature wash.
- Built-In Water Tank & Softener: Features a 1.4-gallon water tank, eliminating the need for plumbing. An integrated softener allows for the addition of dishwasher salt.
- Heated Drying & Fresh-Air Ventilation: Offers 60 minutes of hot air drying and a 72-hour intermittent ventilation (Air Refresh option) to keep dishes dry and fresh.
4.2 Control Panel
The dishwasher features an HD LED Touchscreen for easy program selection.
The control panel includes buttons for Power, various wash programs (Normal, Delicate, Heavy, Express, Baby Care, Fruit, Self-Clean), Air Refresh, Delay Start, and Start/Pause. The LED display shows the remaining time and selected options.
5. Setup and Installation
The AIRMSEN dishwasher offers flexible installation options: using the built-in water tank or connecting to a faucet.
5.1 Placement
- Place the dishwasher on a stable, level surface.
- Ensure at least 23.5 inches of cabinet height for convenient water tank refilling if placing under a cabinet.
- Maintain adequate clearance around the unit for ventilation and door opening.
- The slim design (14.2 inches deep) allows it to fit on narrow counters.

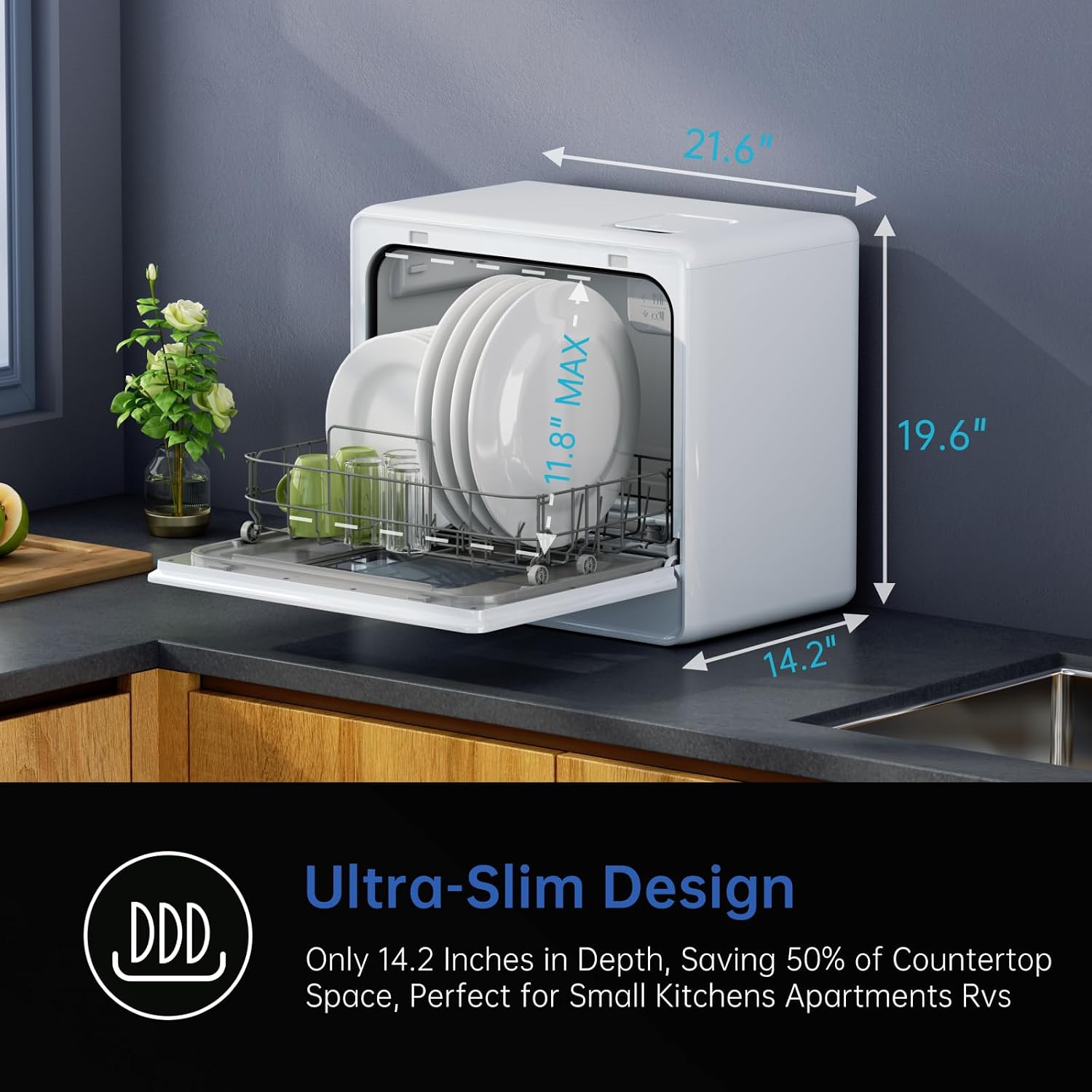

The dishwasher's compact dimensions are 14.17"D x 21.57"W x 19.5"H.
5.2 Water Connection
You can operate the dishwasher using its internal water tank or by connecting it to a water faucet.
This image demonstrates the two water input methods: manual filling of the top-mounted water tank and direct connection to a faucet using the provided inlet hose.
5.2.1 Tank Mode (No Plumbing Required)
- Open the water tank lid on top of the dishwasher.
- Use the provided refill pitcher to pour water into the tank.
- Stop adding water once the 'water level full' alarm goes off. The dishwasher uses approximately 1.4 gallons of water per cycle.
5.2.2 Faucet Mode (Direct Connection)
- Connect the inlet hose (included) to a compatible faucet.
- Ensure all connections are secure to prevent leaks.
- The dishwasher will draw water directly from the faucet.
5.3 Drain Hose Connection
- Connect the drain hose to the dishwasher's drain outlet.
- Route the drain hose to a sink or a suitable drain point. Use the suction cup and hose collar to secure the hose.
- Ensure the drain hose is not kinked or obstructed.
6. Operating Instructions
6.1 Loading the Dishwasher
Proper loading ensures optimal cleaning performance.
The double-layer rack system allows for flexible loading of various dish sizes. The lower basket accommodates larger items like plates up to 11.8 inches, while the top cutlery tray is for smaller utensils and cups.
- Scrape off large food particles from dishes before loading.
- Place larger items in the lower basket.
- Arrange glasses, cups, and smaller bowls in the upper rack or designated areas.
- Ensure dishes do not block the spray arms.
- Use the top cutlery tray for forks, spoons, and knives.
6.2 Adding Detergent and Rinse Aid
- Add appropriate dishwasher detergent to the dispenser. Refer to detergent packaging for dosage.
- If using, fill the rinse aid dispenser to improve drying and prevent spots.
- For hard water areas, consider adding dishwasher salt to the integrated softener to reduce spotting and improve cleaning.
6.3 Selecting a Wash Program
The dishwasher offers 7 wash programs and 2 extra options:
This image details the available wash cycles and their characteristics, such as duration and temperature, to help users select the most suitable program for their dishes.
| Program | Description | Duration | Temperature |
|---|---|---|---|
| Normal | For normally soiled dishes. | 58 mins | 154°F |
| Delicate | For fine glassware and crystal. | 88 mins | 135°F |
| Heavy | For heavily soiled dishes. | 78 mins | 167°F |
| Express | Quick wash for urgent use. | 28 mins | 144°F |
| Baby Care | For baby bottles and accessories. | (Duration varies) | High Temp |
| Fruit | Washes fruits with tap water. | 9 mins | Cold |
| Self-Clean | For cleaning the dishwasher interior. | (Duration varies) | High Temp |
6.4 Extra Options
- Air Refresh: Adds an extra hour of heated drying and initiates 72-hour intermittent ventilation to keep dishes dry and fresh.
- Delay Start: Allows you to delay the start of a wash cycle by 2 to 12 hours. Press and hold for 5 seconds to activate.
7. Maintenance and Cleaning
Regular maintenance ensures the longevity and optimal performance of your dishwasher.
7.1 Cleaning the Filters
- The filter system prevents larger food particles from reaching the pump. Clean the filters regularly to avoid blockages and ensure efficient cleaning.
- Twist and remove the filter assembly from the bottom of the dishwasher.
- Rinse the filters under running water to remove any trapped food particles. Use a brush if necessary.
- Reassemble and securely place the filters back into position.
7.2 Cleaning the Spray Arms
- Periodically check the spray arm nozzles for blockages.
- If any nozzles are clogged, remove the spray arm and clear the holes with a thin wire or toothpick.
- Ensure the spray arms can rotate freely after reinstallation.
The three spray arms are crucial for thorough cleaning. Keep their nozzles clear for optimal performance.
7.3 Water Softener (Salt Reservoir)
- If your water supply is hard, the integrated water softener helps prevent limescale buildup and improves wash results.
- Locate the salt reservoir (usually at the bottom of the wash tub).
- Fill the reservoir with dishwasher salt as needed. Refer to the indicator light or your local water hardness for frequency.
7.4 Exterior and Interior Cleaning
- Wipe the exterior with a damp cloth. Do not use abrasive cleaners.
- Run the "Self-Clean" program periodically to clean the interior of the dishwasher.
- The 72-hour intermittent ventilation feature helps keep the interior dry and fresh, preventing odors.
8. Troubleshooting
Before contacting customer service, refer to this section for common issues and solutions.
| Problem | Possible Cause | Solution |
|---|---|---|
| Dishwasher does not start | Power cord not plugged in; Door not closed properly; Fuse blown/circuit breaker tripped. | Ensure power cord is securely plugged in; Close the door firmly; Check household fuse/circuit breaker. |
| Water not filling | Water supply turned off; Inlet hose kinked; Water tank empty (if using tank mode). | Turn on water supply; Straighten inlet hose; Refill water tank until alarm stops. |
| Dishes not clean | Improper loading; Clogged spray arms; Insufficient detergent; Incorrect wash program. | Reload dishes correctly; Clean spray arm nozzles; Add more detergent; Select a more intensive program. |
| White spots on dishes | Hard water; Insufficient rinse aid; No dishwasher salt. | Add rinse aid; Fill water softener with dishwasher salt. |
| Dishwasher leaking | Loose hose connections; Damaged door seal; Overfilling water tank. | Check and tighten all hose connections; Inspect and clean door seal; Do not overfill water tank. |
9. Specifications
| Feature | Detail |
|---|---|
| Brand | AIRMSEN |
| Model Name | ZMW-DUHA01 |
| Installation Type | Countertop |
| Product Dimensions (D x W x H) | 14.17"D x 21.57"W x 19.5"H |
| Water Capacity | 1.4 gallons (Built-in Water Tank) |
| Color | White |
| Controls Type | Touch (HD LED Touchscreen) |
| Material | Borosilicate glass, Metal, Polypropylene (PP) |
| Noise Level | 56 dB |
| Voltage | 120 volts |
| Energy Consumption | 950 watts |
| Water Consumption | 1.3 gph |
| Number of Wash Programs | 7 (Normal, Delicate, Heavy, Express, Baby Care, Fruit, Self-Clean) |
| Special Features | 2-12H Delay Start, 2-Level Rack, 3-Spray Arms, Built-in Water Tank 1.4Gal, Slim (14.2" deep), Heated Drying & 72H Air Refresh, Built-in Water Softener |
| Item Weight | 38.6 pounds |
| Inlet Hose Length | 63 inches |
| Outlet Hose Length | 63 inches |
10. Warranty and Support
The AIRMSEN Large Slim Countertop Dishwasher (Model ZMW-DUHA01) comes with a 2-year warranty from the date of purchase.
For technical support, warranty claims, or any questions regarding your product, please contact AIRMSEN customer service. Refer to the contact information provided in your purchase documentation or visit the official AIRMSEN website.
Please have your model number (ZMW-DUHA01) and proof of purchase ready when contacting support.
