1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your COSWHEEL R6000 Electric Dirt Bike. Please read this manual thoroughly before operating the bike to ensure proper usage and to prevent damage or injury. Keep this manual for future reference.
2. Safety Information
Operating an electric dirt bike requires caution and adherence to safety guidelines. Failure to follow these instructions may result in serious injury or property damage.
- Always wear a helmet and appropriate protective gear, including gloves, eye protection, and sturdy footwear.
- Familiarize yourself with local laws and regulations regarding electric bike operation.
- Perform a pre-ride inspection before each use, checking brakes, tires, battery level, and all fasteners.
- Do not operate the bike under the influence of alcohol or drugs.
- Maintain a safe speed and distance from other vehicles and obstacles.
- Avoid riding in adverse weather conditions, such as heavy rain, snow, or ice.
- Be aware of your surroundings and potential hazards, especially when riding off-road.
- Ensure the battery is securely latched and charged in a well-ventilated area.
- Do not modify the bike's electrical system or motor.
3. Setup and Assembly
Your COSWHEEL R6000 Electric Dirt Bike requires some assembly before its first use. Please follow these steps carefully.
3.1 Unboxing and Initial Inspection
Carefully remove all components from the packaging. Inspect for any signs of damage during transit. Ensure all parts listed in the packing list are present.
3.2 Front Wheel Installation
Attach the front wheel to the fork. Ensure the brake rotor aligns correctly with the caliper. Insert the quick-release lever and secure it firmly.
Video: COSWHEEL R6000 Installation Guide. This video demonstrates the assembly process, including front wheel installation and other initial setup steps.
3.3 Handlebar and Seat Adjustment
Install the handlebars and adjust them to a comfortable riding position. Secure all bolts. Adjust the seat height to allow for proper leg extension while pedaling and comfortable footing when stopped.
3.4 Battery Installation and Charging
Insert the 60V 30Ah battery into its compartment and ensure it clicks securely into place. Connect the charger to the bike's charging port and then to a power outlet. Charge the battery fully before the first ride (approximately 8-10 hours).
Image: The 60V 30Ah removable battery, showing its capacity and full-protection BMS. It offers up to 75 miles range and requires 8-10 hours for a full charge.
4. Operating Instructions
Understand the controls and features of your R6000 for optimal performance and safety.
4.1 Power On/Off
Press and hold the power button on the display to turn the bike on or off. The display will show battery level, speed, and other riding data.
4.2 Throttle Operation
The R6000 features a throttle assist system. Gently twist the throttle to engage the motor. The bike has a powerful 7000W peak motor, providing rapid acceleration. Always apply throttle smoothly to maintain control.
Image: Illustration of the 7000W peak motor and drivetrain components, highlighting its 180Nm torque and 55 MPH max speed capability. It can handle slopes up to 40 degrees.
4.3 Speed Modes
The bike offers 3 speed modes. Use the control panel to switch between modes according to your riding environment and desired speed. Higher speed modes provide more power and higher top speeds.
4.4 Gear Shifting
The R6000 is equipped with 7-speed professional gears. Shift gears using the shifter on the handlebar to optimize pedaling efficiency and motor assistance, especially on varied terrain.
4.5 Braking System
The bike features dual hydraulic disc brakes for reliable stopping power. Apply both front and rear brakes simultaneously and smoothly to slow down or stop. Avoid sudden, hard braking, especially at high speeds or on loose surfaces.
Image: A rider on the COSWHEEL R6000 demonstrating the use of dual hydraulic brakes. These brakes provide quick response and precise control for enhanced safety.
4.6 Suspension System
The dual suspension system (front inverted hydraulic shock and rear nitrogen damping) absorbs impacts from rough terrain. This system is designed to provide a smoother ride and improved control over varied surfaces.
Image: Diagram illustrating the full suspension system of the COSWHEEL R6000, featuring nitrogen damping and inverted hydraulic shocks for impact absorption and control.
4.7 Off-Road Riding
The 17-inch off-road tires provide strong grip and stability on various terrains including dirt, gravel, and sand. When riding off-road, adjust your speed and riding style to match the conditions. Always be mindful of obstacles and uneven surfaces.
Image: Close-up of the 17-inch off-road tires of the COSWHEEL R6000, showing their durable construction, deep grooves, and knobby tread designed for strong grip on challenging terrain.
4.8 Lighting System
The bike is equipped with bright headlights and taillights for visibility during day and night riding. Ensure lights are functioning correctly before riding in low-light conditions.

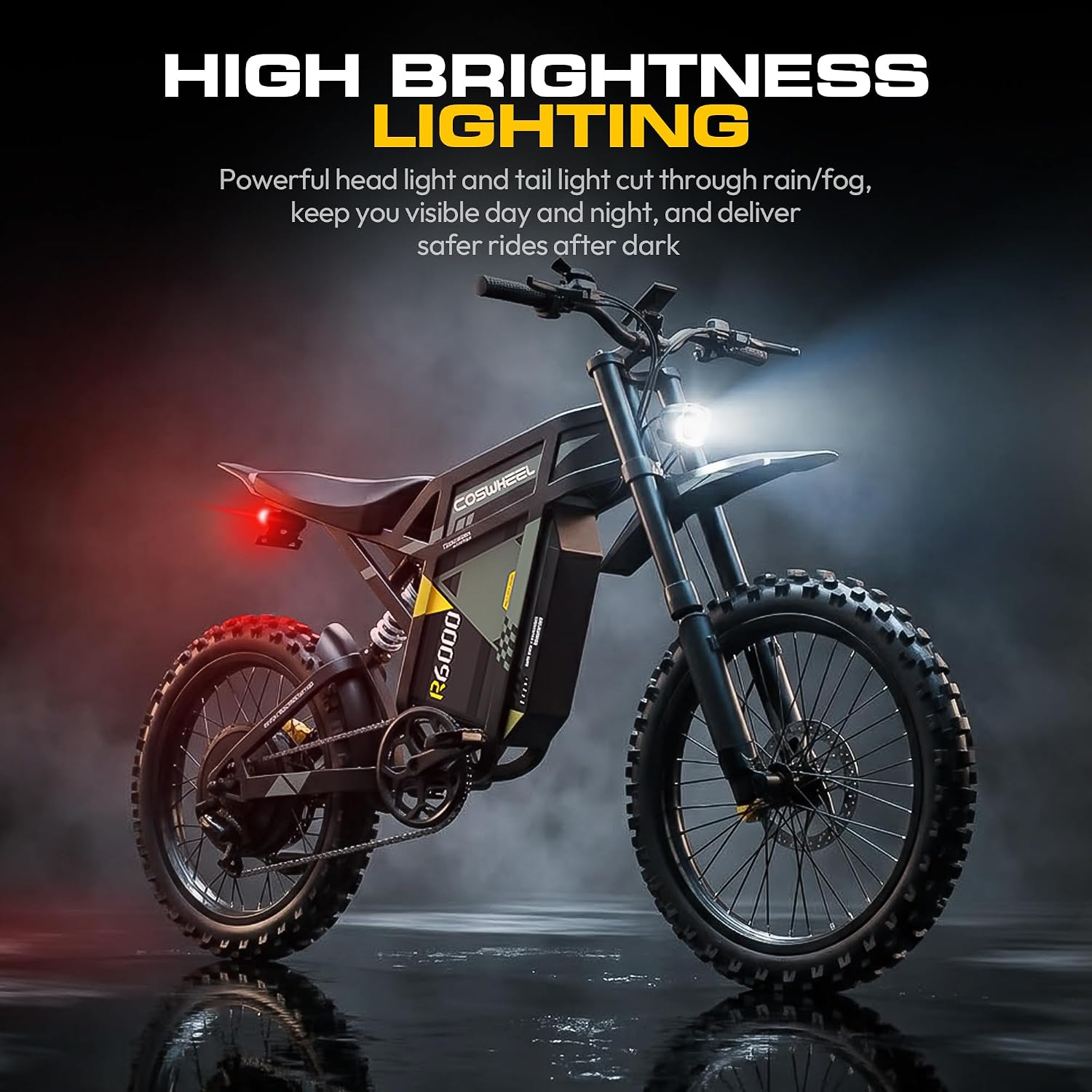

Image: The COSWHEEL R6000 Electric Dirt Bike with its powerful headlight and taillight illuminated, designed to enhance visibility in various conditions.
5. Maintenance
Regular maintenance ensures the longevity and safe operation of your COSWHEEL R6000.
5.1 Battery Care
- Charge the battery regularly, even if not in use, to maintain its health.
- Avoid completely draining the battery.
- Store the battery in a cool, dry place away from direct sunlight and extreme temperatures.
- Use only the provided charger.
5.2 Tire Maintenance
- Check tire pressure before each ride and inflate to the recommended PSI.
- Inspect tires for wear, cuts, or punctures. Replace worn tires promptly.
5.3 Brake System Check
- Regularly check brake levers for proper tension and responsiveness.
- Inspect brake pads for wear and replace them when necessary.
- Ensure brake rotors are clean and free from oil or grease.
5.4 General Inspection
- Periodically check all bolts and fasteners for tightness.
- Keep the bike clean, especially after riding in muddy or dusty conditions.
- Lubricate the chain regularly.
6. Troubleshooting
This section addresses common issues you might encounter with your COSWHEEL R6000.
| Problem | Possible Cause | Solution |
|---|---|---|
| Bike does not power on. | Battery not charged or not properly installed. | Ensure battery is fully charged and securely seated in its compartment. Check power button connection. |
| Motor not engaging or weak power. | Low battery, loose motor connection, or throttle issue. | Charge battery. Check all electrical connections. Inspect throttle for damage. |
| Brakes feel spongy or ineffective. | Air in hydraulic lines, worn pads, or misaligned caliper. | Inspect brake pads and rotors. If hydraulic, bleeding may be required by a professional. Adjust caliper alignment. |
| Unusual noises during operation. | Loose components, chain issues, or suspension squeak. | Check all fasteners. Lubricate chain. Inspect suspension components for wear or misalignment. |
If you encounter issues not listed here or if solutions do not resolve the problem, please contact customer support.
7. Specifications
Key technical specifications for the COSWHEEL R6000 Electric Dirt Bike:
- Bike Type: Electric Dirt Bike, Electric Motorcycle
- Motor: 7000W Peak Brushless Motor
- Top Speed: Up to 55 MPH (Speed can be limited)
- Battery: 60V 30Ah 1800WH Lithium Battery
- Max Range: Up to 80 Miles (depending on riding conditions)
- Charge Time: 8-10 Hours
- Tires: 17-inch Off-Road Tires
- Suspension: Dual Suspension (Front Inverted Hydraulic Shock, Rear Nitrogen Damping)
- Brakes: Dual Hydraulic Disc Brakes
- Gears: 7-Speed Professional Gears
- Frame Material: High Carbon Steel
- Recommended Rider Height: 5'0" - 6'4"
- Max Load Capacity: 330 lbs
- Bike Weight: 124 lbs
- Included Components: Ebike, Tool Kit, Fenders, Charger, User Manual
Image: A diagram showing the key dimensions and specifications of the COSWHEEL R6000 Electric Dirt Bike, including length, height, handlebar width, saddle length, seat height, ground clearance, recommended height, max load capacity, and bike weight.
8. Warranty and Support
8.1 Warranty Information
The COSWHEEL R6000 Electric Dirt Bike comes with a 1-year vehicle warranty. This warranty covers manufacturing defects and issues arising from normal use. Please refer to the warranty card included with your product for full terms and conditions.
8.2 Customer Support
For technical assistance, troubleshooting, or warranty claims, please contact COSWHEEL customer support:
- Email: amzservice@coswheel.com
- Customer support aims to respond within 8 hours every day.
- Lifetime technical support is provided.
Image: A visual representation of COSWHEEL customer service, including contact email, response time, and warranty information.
