LUMISOL Space-Saving Murphy Bed Full Size with Open Shelves Instruction Manual

Safety Information

WARNING: Failure to follow these safety instructions could result in serious injury or property damage.

• Always ensure the bed is securely anchored to a wall stud. Do not attempt to use the bed without proper wall anchoring.
• Keep children and pets away from the bed during assembly and operation.
• Do not place heavy objects on the bed frame or shelves that exceed the recommended weight capacity.
• Ensure all fasteners are tightened securely before use. Periodically check and re-tighten fasteners.
• Use only the mattress size specified for this bed. An incorrect mattress size can affect operation and safety.
• Do not attempt to modify the bed's design or components.
• Always use two hands when opening or closing the bed to maintain control.

Setup and Assembly

This Murphy bed is designed for hassle-free setup. It is recommended that two adults assemble this product. Ensure you have adequate space and all parts are present before beginning.

Required Tools (Not Included):

• Phillips Head Screwdriver
• Hammer
• Measuring Tape
• Stud Finder (for wall anchoring)
• Drill with appropriate drill bits

Parts List:

Refer to the included hardware package and assembly diagrams for a complete list of parts and fasteners. Verify all components are present and undamaged before proceeding.

Assembly Steps:

1. Unpack and Identify: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Identify each part using the provided diagrams.
2. Assemble Cabinet Frame: Follow the step-by-step instructions in your separate assembly guide to construct the main cabinet frame and the integrated bookcase. Ensure all cam locks and screws are securely fastened.
3. Attach Bed Mechanism: Install the folding bed mechanism into the cabinet frame according to the instructions. Pay close attention to the orientation of the spring or piston system.
4. Install Bed Frame: Attach the bed frame to the folding mechanism. Ensure it moves smoothly and locks into place when both open and closed.
5. Wall Anchoring: This is a critical safety step. Locate wall studs using a stud finder. Securely anchor the top of the Murphy bed cabinet to at least two wall studs using the provided anti-tip hardware. Do not skip this step.
6. Install Desk/Shelf Panel: Attach the multi-functional panel that serves as a desk or additional shelf, ensuring it operates smoothly.
7. Final Checks: Double-check all connections and fasteners. Ensure the bed opens and closes without obstruction.

Image: Overall dimensions of the LUMISOL Space-Saving Murphy Bed, showing height, width, and depth in both closed and open configurations. This image helps in planning the installation space.

Operating Instructions

Opening the Bed:

1. Clear Area: Ensure the area in front of the Murphy bed is clear of any obstructions.
2. Unlock (if applicable): If your model has a locking mechanism, disengage it.
3. Pull Down: Grasp the handle firmly with both hands. Gently pull the bed frame downwards towards you. The spring or piston mechanism will assist in the lowering process.
4. Extend Support Legs: As the bed lowers, extend the support legs to their fully locked position on the floor. Ensure they are stable before releasing the bed.
5. Position Mattress: Place your mattress onto the bed frame.

Image: The LUMISOL Murphy Bed fully open, ready for use. This illustrates the bed's appearance when extended from the cabinet.

Closing the Bed:

1. Remove Mattress/Bedding: Remove the mattress and any bedding from the bed frame.
2. Retract Support Legs: Fold or retract the support legs.
3. Lift Bed Frame: Grasp the handle with both hands and gently lift the bed frame upwards. The mechanism will assist in raising the bed back into the cabinet.
4. Secure: Push the bed frame fully into the cabinet until it is flush and securely latched (if applicable).

Using the Integrated Desk/Shelves:

The integrated panel functions as both a desk and a storage shelf. When the bed is closed, the panel can be lowered to create a desk surface or kept upright to serve as a shelf.

• Desk Function: To use as a desk, ensure the bed is fully closed. Gently lower the panel until it is horizontal and stable.
• Shelf Function: When the bed is closed, the panel can remain upright, providing additional shelving space.
• Bookcase: The side bookcase offers permanent open storage for books, decor, or other items.

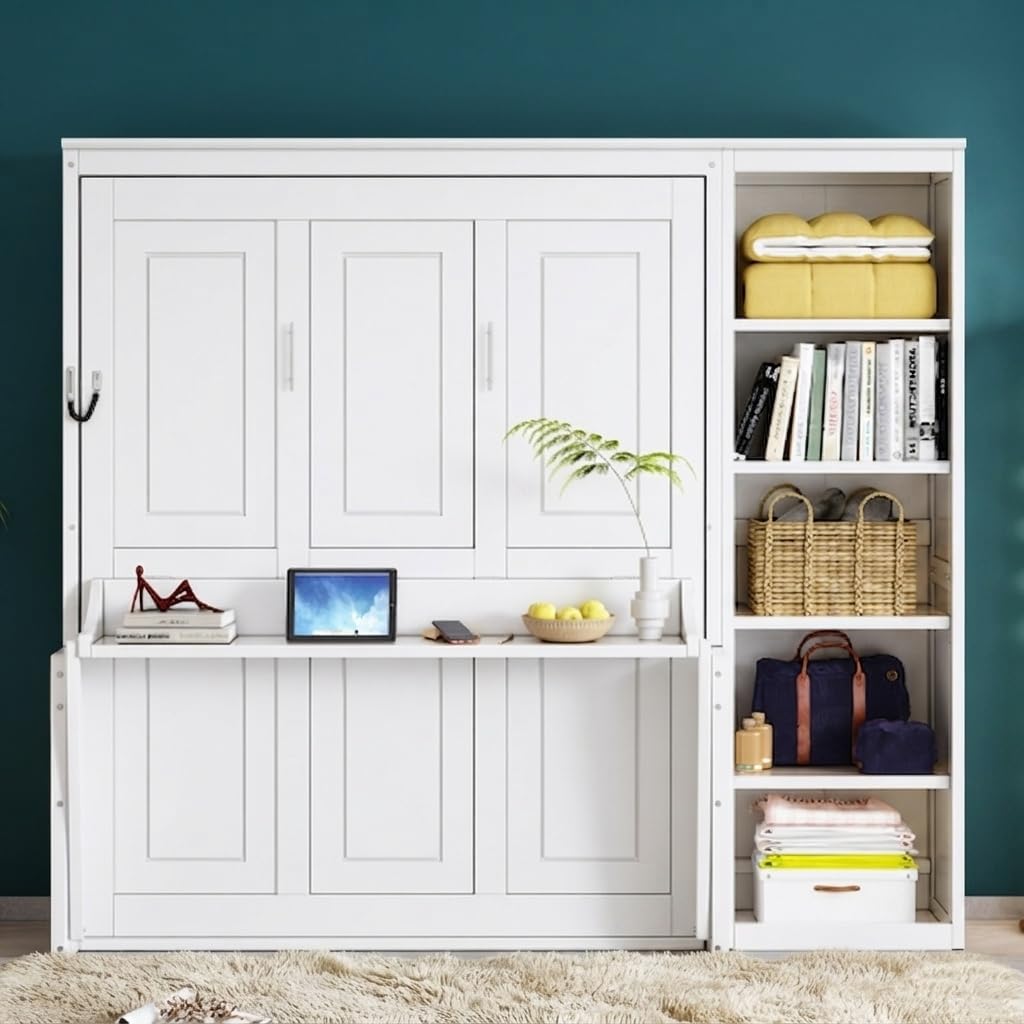

Image: The LUMISOL Murphy Bed in its closed position, showcasing the integrated desk panel. This demonstrates how the bed transforms into a functional workspace.

Image: The LUMISOL Murphy Bed in its closed position, highlighting the open storage shelves on the side. This view emphasizes the additional storage capabilities of the unit.

Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically inspect all screws, bolts, and connections. Re-tighten any loose hardware to ensure stability and safety.
• Mechanism Lubrication: If the folding mechanism becomes stiff or noisy, apply a small amount of silicone-based lubricant to moving parts. Do not use oil-based lubricants.
• Wall Anchors: Regularly check the wall anchors for security. Ensure the bed remains firmly attached to the wall.

Troubleshooting

Specifications

• Model: zxvsdgvsd
• Size: Full (1 bookcase)
• Material: Pine Wood, MDF
• Overall Product Dimensions (Closed): 86"L x 82"W x 13.6"H
• Overall Product Dimensions (Open): 86"L x 79.8"W x 82"H
• Weight Capacity: 600 LBS
• Color: White
• Special Features: Integrated Desk, Open Storage Shelves
• Manufacturer: LUMISOL
• Country of Origin: Vietnam

Warranty and Support

LUMISOL products are manufactured with quality and care. For specific warranty information regarding your Murphy bed, please refer to the warranty card included with your purchase or contact LUMISOL customer support directly.

If you encounter any issues during assembly or operation, or if you require replacement parts, please contact our customer support team. Have your model number (zxvsdgvsd) and purchase date ready when contacting support.

Customer Support: Please visit the official LUMISOL website or refer to your purchase documentation for contact details.
