Introduction
This manual provides essential instructions for the installation, operation, maintenance, and troubleshooting of your new Generic Carburetor, designed specifically for the Powerhorse 2300i Inverter Generator. Please read this manual thoroughly before attempting any installation or maintenance to ensure safe and correct usage.
Safety Information
Always prioritize safety when working with fuel systems and internal combustion engines. Failure to follow these safety guidelines may result in serious injury or property damage.
- Disconnect Power: Before beginning any work, ensure the generator is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting.
- Fuel Handling: Work in a well-ventilated area. Fuel is highly flammable. Avoid open flames, sparks, or smoking near fuel. Use appropriate containers for draining fuel.
- Eye Protection: Always wear safety glasses to protect your eyes from fuel splashes or debris.
- Gloves: Wear appropriate gloves to protect your hands from fuel and other chemicals.
- Ventilation: Ensure adequate ventilation when working with fuel or engine components.
- Proper Tools: Use the correct tools for each task to prevent damage to components or injury.
Product Overview
This carburetor is a direct replacement part engineered to match the factory specifications of the Powerhorse 2300i Inverter Generator. It is manufactured from high-quality materials to ensure a precise fit and consistent performance.

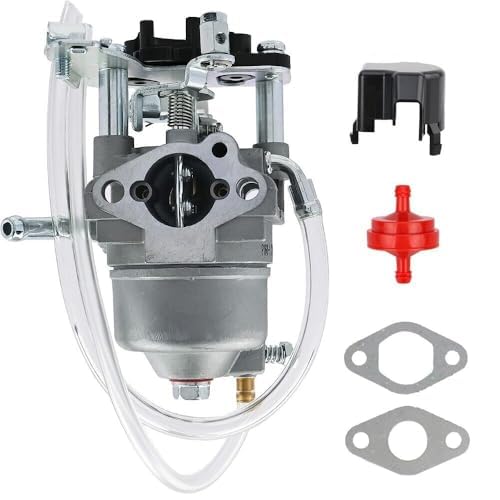

Image 1: Front view of the Generic Carburetor, showing the main body, fuel lines, and linkage.
Key features include:
- Direct replacement, designed to match original equipment specifications.
- Constructed from high-quality materials for durability and reliable performance.
- Engineered for user-friendly installation, requiring no specialized tools.
Image 2: Side view of the Generic Carburetor, highlighting the fuel inlet and adjustment screws.
Setup and Installation
This carburetor is designed for straightforward replacement. Follow these general steps for installation. Refer to your Powerhorse 2300i Inverter Generator's specific service manual for detailed instructions on removing the original carburetor.
- Preparation: Ensure the generator is off, cool, and the fuel valve is closed. Disconnect the spark plug wire. Place absorbent rags under the carburetor area to catch any spilled fuel.
- Drain Fuel: If necessary, drain the fuel tank or ensure the fuel line is clamped to prevent fuel flow.
- Remove Air Filter Assembly: Carefully remove the air filter housing and air filter element to gain access to the carburetor.
- Disconnect Linkages and Hoses: Note the position of all fuel lines, vacuum hoses, and throttle/choke linkages connected to the old carburetor. Take photos if needed for reference. Disconnect them carefully.
- Remove Old Carburetor: Unbolt the old carburetor from the engine intake manifold. Be mindful of any gaskets between the carburetor and the engine.
- Install New Carburetor: Ensure new gaskets are in place (if provided or required). Mount the new Generic Carburetor onto the engine intake manifold, securing it with the appropriate bolts. Do not overtighten.
- Reconnect Components: Reattach all fuel lines, vacuum hoses, and throttle/choke linkages to their correct positions on the new carburetor. Double-check all connections for security.
- Reinstall Air Filter Assembly: Reinstall the air filter element and housing.
- Final Checks: Open the fuel valve. Inspect for any fuel leaks. Reconnect the spark plug wire.
Image 3: Rear view of the Generic Carburetor, showing mounting points and additional hose connections.
Operating Instructions (Post-Installation)
After successful installation, follow these steps to operate your generator:
- Fuel Supply: Ensure the generator has fresh, clean fuel and the fuel valve is in the "ON" position.
- Choke: Depending on engine temperature, set the choke lever to the appropriate position (usually "START" or "CHOKE" for cold starts).
- Start Generator: Follow your generator's specific starting procedure (e.g., pull start cord or press electric start button).
- Warm-up: Once the engine starts, gradually move the choke lever to the "RUN" position as the engine warms up and runs smoothly.
- Monitor Performance: Listen for smooth engine operation. If the engine runs rough or stalls, refer to the Troubleshooting section.
Maintenance
Regular maintenance of your carburetor and fuel system is crucial for optimal generator performance and longevity.
- Fuel Quality: Always use fresh, clean, unleaded gasoline. Stale or contaminated fuel is a primary cause of carburetor issues. Consider using a fuel stabilizer if the generator will be stored for extended periods.
- Fuel Filter: Regularly inspect and replace the fuel filter according to your generator's maintenance schedule. A clogged fuel filter can restrict fuel flow to the carburetor.
- Carburetor Cleaning: If the generator experiences fuel-related issues (e.g., rough idling, stalling), the carburetor may need cleaning. This typically involves disassembling the carburetor, cleaning jets and passages with carburetor cleaner, and replacing gaskets. This task may require specialized knowledge; consult a qualified technician if unsure.
- Storage: Before long-term storage, run the generator until the fuel tank is empty, or drain the fuel from the tank and carburetor bowl to prevent fuel degradation and gumming.
Troubleshooting
If you encounter issues after installing the new carburetor, consider the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine won't start | No fuel, clogged fuel line/filter, incorrect choke setting, spark plug issue. | Check fuel level and fuel valve. Inspect fuel lines and filter. Adjust choke. Check spark plug. |
| Engine runs rough or stalls | Dirty carburetor jets, stale fuel, air leak in intake, incorrect idle adjustment. | Clean carburetor. Use fresh fuel. Check for air leaks around carburetor gaskets. Adjust idle screw if accessible and necessary. |
| Fuel leak from carburetor | Loose connections, damaged gasket, stuck float needle. | Tighten fuel line connections. Replace damaged gaskets. Inspect and clean float needle and seat. |
| Lack of power | Partially clogged fuel system, air filter restriction. | Inspect and clean fuel filter and carburetor. Check air filter for clogs. |
Specifications
The following specifications apply to the Generic Carburetor for Powerhorse 2300i Inverter Generator:
- Brand: Generic
- Model Compatibility: Powerhorse 2300i Inverter Generator
- Exterior Finish: Aluminum
- Unit Count: 1 Count
- ASIN: B0H6M24YC3
Warranty and Support
For warranty information, please refer to the original purchase documentation or contact the seller directly. This product is typically covered by a standard return policy, allowing for refunds or replacements within 30 days of purchase, as per seller terms.
For technical support or further assistance, please contact the retailer or manufacturer from whom you purchased this carburetor.
