Introduction
This manual provides essential information for the safe and effective use of your SPORTNOW Foldable Power Rack. Please read all instructions carefully before assembly and operation. Keep this manual for future reference.
Image: The SPORTNOW Foldable Power Rack set up as a complete home gym, demonstrating its full functionality.
Setup and Assembly
The SPORTNOW Foldable Power Rack requires assembly and wall mounting. Ensure you have all components listed in the packing list before beginning. Professional installation is recommended for wall mounting to ensure safety and stability.
Components Included:
- Power Cage
- Pull-Up Bar
- Barbell Supports (J-hooks)
- Side Supports
- Dual Pulley System components
Wall Mounting:
This power rack is designed for wall mounting. Ensure the wall structure is capable of supporting the rack's weight (56 kg) plus the maximum load capacity (700 kg) and user weight. Use appropriate hardware for your wall type (concrete, wood studs, etc.).
Image: The foldable design of the power rack, illustrating the top locking knob and the reduced depth of 35 cm when folded against the wall.
Image: The power rack in its folded position, highlighting its space-saving design with a depth of only 35 cm.
Operating Instructions
The SPORTNOW Power Rack offers a versatile training experience. Always ensure all pins and adjustments are securely locked before starting any exercise.
Adjustable Bar Supports:
The dual barbell supports can be adjusted to 14 different height levels, ranging from 25 cm to 165 cm. To adjust, pull out the pin, slide the support to the desired height, and re-insert the pin securely. Ensure both supports are at the same height for barbell exercises.
Image: The dual barbell supports shown on the power rack, illustrating their adjustable height range from 25 cm to 165 cm.
Image: A hand adjusting one of the J-hooks on the power rack, demonstrating the 14 adjustable height levels for customized workouts.
Dual Pulley System:
The independent dual pulley system allows for a wide range of upper body and functional exercises. Each side has a load capacity of up to 50 kg. Attach desired cable attachments (not included) to the carabiners. Ensure weight plates are securely loaded onto the pegs.
Image: A detailed view of the dual pulley system, showing independent pulleys, multi-position grips, and a 50 kg capacity per side.
Multi-functional Training:
This power rack supports various exercises including pull-ups, squats, presses, lat pulldowns, rows, and cable flyes. Always use proper form and warm up before exercising.
Image: A collage showing a user performing squats, pull-ups, and cable flyes, demonstrating the multi-functional training capabilities of the rack.
Image: A user performing cable flyes using the dual pulley system of the power rack.
Image: A user engaged in cable exercises, emphasizing the full-body workout potential of the integrated system.
Integrated Storage:
The rack features 4 pegs for weight plate storage, helping to keep your workout area organized.
Image: The integrated storage pegs on the power rack, shown with weight plates loaded, demonstrating organized storage.
Maintenance
Regular maintenance ensures the longevity and safe operation of your power rack.
- Cleaning: Wipe down the frame with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
- Inspection: Periodically check all bolts, nuts, and connections to ensure they are tight. Re-tighten as necessary.
- Pulley System: Inspect cables and pulleys for any signs of wear, fraying, or damage. Lubricate moving parts of the pulley system as needed with a silicone-based lubricant.
- Stability: Ensure the leveling feet are properly adjusted to maintain stability on uneven surfaces.
Troubleshooting
If you encounter any issues with your power rack, refer to the following common solutions:
- Instability: Check all wall mounting points and ensure they are secure. Verify that all frame bolts are tightened. Adjust the leveling feet to ensure the rack sits evenly on the floor.
- Sticking Pulleys/Cables: Inspect cables for obstructions or damage. Apply a suitable lubricant to the pulley wheels and cable path. Ensure weight plates are loaded evenly and not causing friction.
- Difficulty Adjusting Supports: Ensure the adjustment pins are fully retracted before attempting to move supports. Check for any debris or obstruction in the adjustment holes.
For issues not covered here, please contact customer support.
Specifications

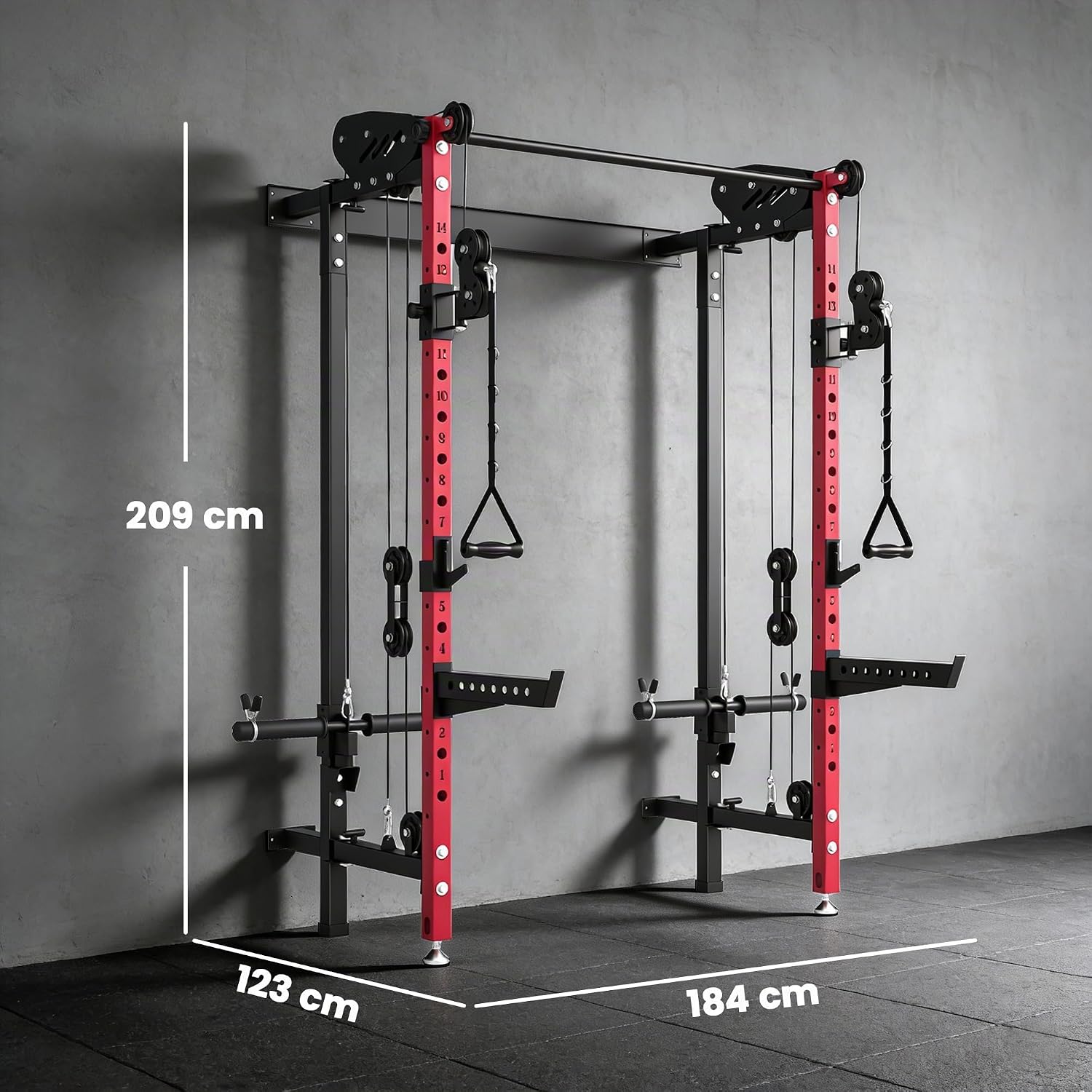

Image: Key dimensions of the power rack, showing a height of 209 cm, depth of 123 cm, and width of 184 cm.
Image: A barbell loaded with weights on the power rack, illustrating its robust 700 kg (1543 lbs) capacity, made from industrial-grade Q195 steel.
| Feature | Detail |
|---|---|
| Model Number | A91-475V01RD |
| Overall Dimensions (D x W x H) | 123 cm x 184 cm x 209 cm |
| Folded Depth | 35 cm |
| Product Weight | 56 kg |
| Material | Q195 Alloy Steel with powder coating |
| Max Load Capacity (Rack) | 700 kg |
| Max Load Capacity (Each Pulley) | 50 kg |
| Bar Support Adjustment Levels | 14 levels (25 cm - 165 cm) |
| Color | Red and Black |
| Included Items | Power Cage, Pull-Up Bar, Barbell Supports, Side Supports |
Warranty Information
This product comes with a 3-year warranty from the date of purchase. The warranty covers manufacturing defects and material faults under normal use. It does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Please retain your proof of purchase for warranty claims.
Customer Support
For any questions, assistance with assembly, or warranty claims, please contact SPORTNOW customer service.
- Manufacturer: SPANISH AOSOM
- Online Store: Visit the official SPORTNOW Store on Amazon for more products and support.
