SHAD TR08 TERRA Crash Bar Bag 8L Instruction Manual

Introduction

Thank you for choosing the SHAD TR08 TERRA Crash Bar Bag. This 8-liter bag is designed for adventure, offering excellent waterproof performance and robust construction. It is specifically engineered for mounting on motorcycle crash bars, providing secure and accessible storage for your journeys.

Please read this manual thoroughly before installation and use to ensure proper function and longevity of your product.

Safety Information and Cautions

• Waterproof Rating (IPX4): The TR08 bag is rated IPX4, meaning it is protected against splashing water from any direction. It is not designed for submersion in water. Do not immerse the bag, as this may compromise its waterproof integrity.
• Heat Buildup: Due to the waterproof material, heat can easily build up inside the bag when exposed to direct sunlight for extended periods. Avoid leaving the bag in direct sunlight for long durations, especially with heat-sensitive items inside.
• Secure Mounting: Always ensure the bag is securely fastened to the crash bar using the double locking system to prevent movement or detachment during riding.
• Load Capacity: Do not exceed the maximum load capacity of 2.6 kg (approximately 5.7 lbs) to maintain stability and prevent damage to the bag or motorcycle.
• Visibility: While the bag includes reflective elements for improved night visibility, always use appropriate lighting and safety gear when riding in low-light conditions.

Product Features

The SHAD TR08 TERRA Crash Bar Bag is engineered with several key features to enhance your adventure riding experience:

• High Durability and Weather Resistance: Constructed from 0.15mm double-coated polyester material combined with Hypalon. This material boasts 1500 hours of UV resistance, effectively preventing degradation from sun exposure.
• Double Locking System: Features a two-stage security system. One lock secures the bag firmly to the crash bar, and another restricts internal access, enhancing security for your belongings.
• Adjustable Volume: Equipped with three compression straps, allowing you to adjust the bag's size according to the volume of your cargo, ensuring a compact and stable load.
• Strap Retainers: Each strap end is fitted with a retainer to prevent flapping during riding, ensuring a tidy and secure setup.
• High Visibility: Strategically placed reflective elements (reflective material) improve visibility during night riding, contributing to enhanced safety.
• Carrying Handle: Includes a convenient carrying handle for easy transport when off the motorcycle.

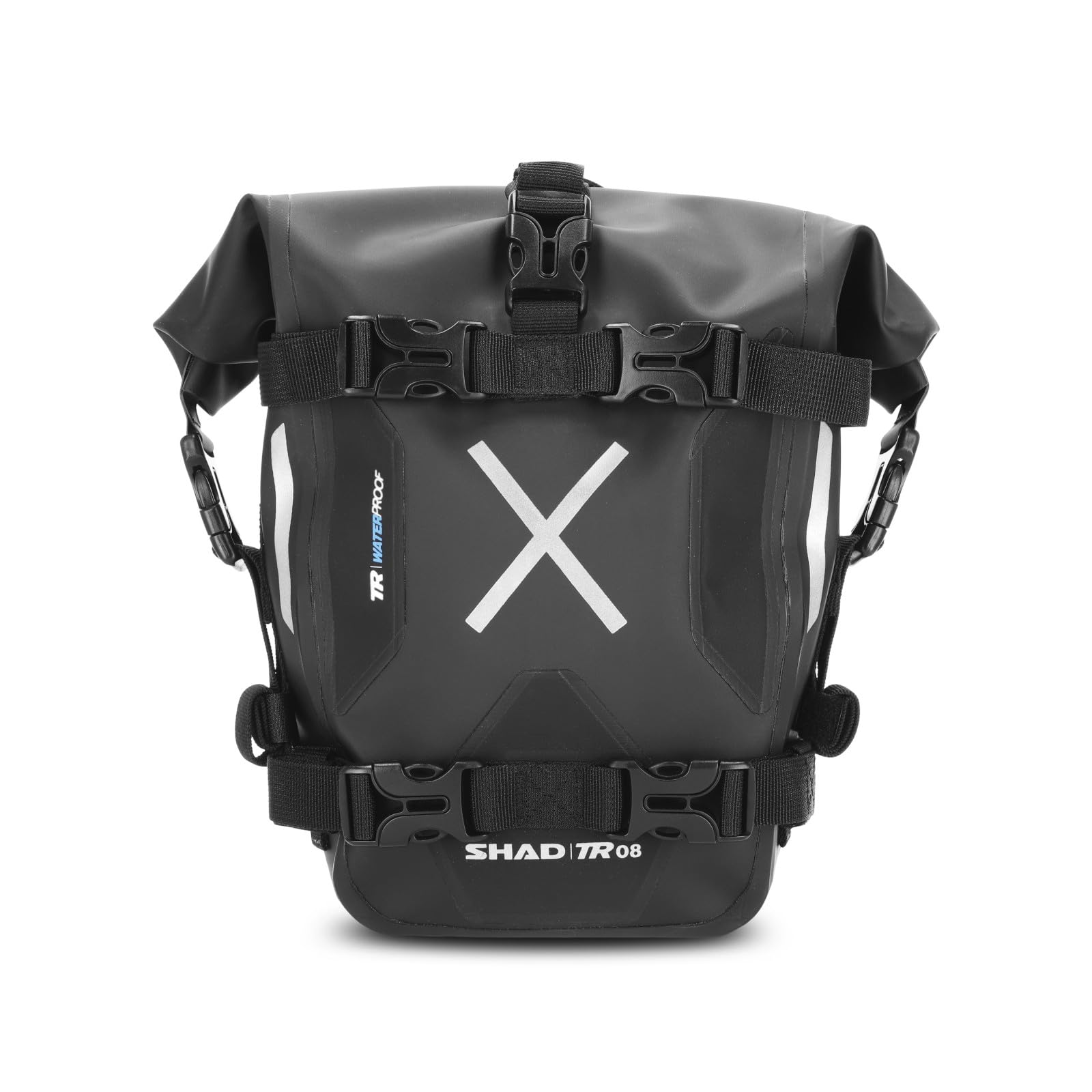

Image: Front view of the SHAD TR08 TERRA Crash Bar Bag, highlighting its robust design.

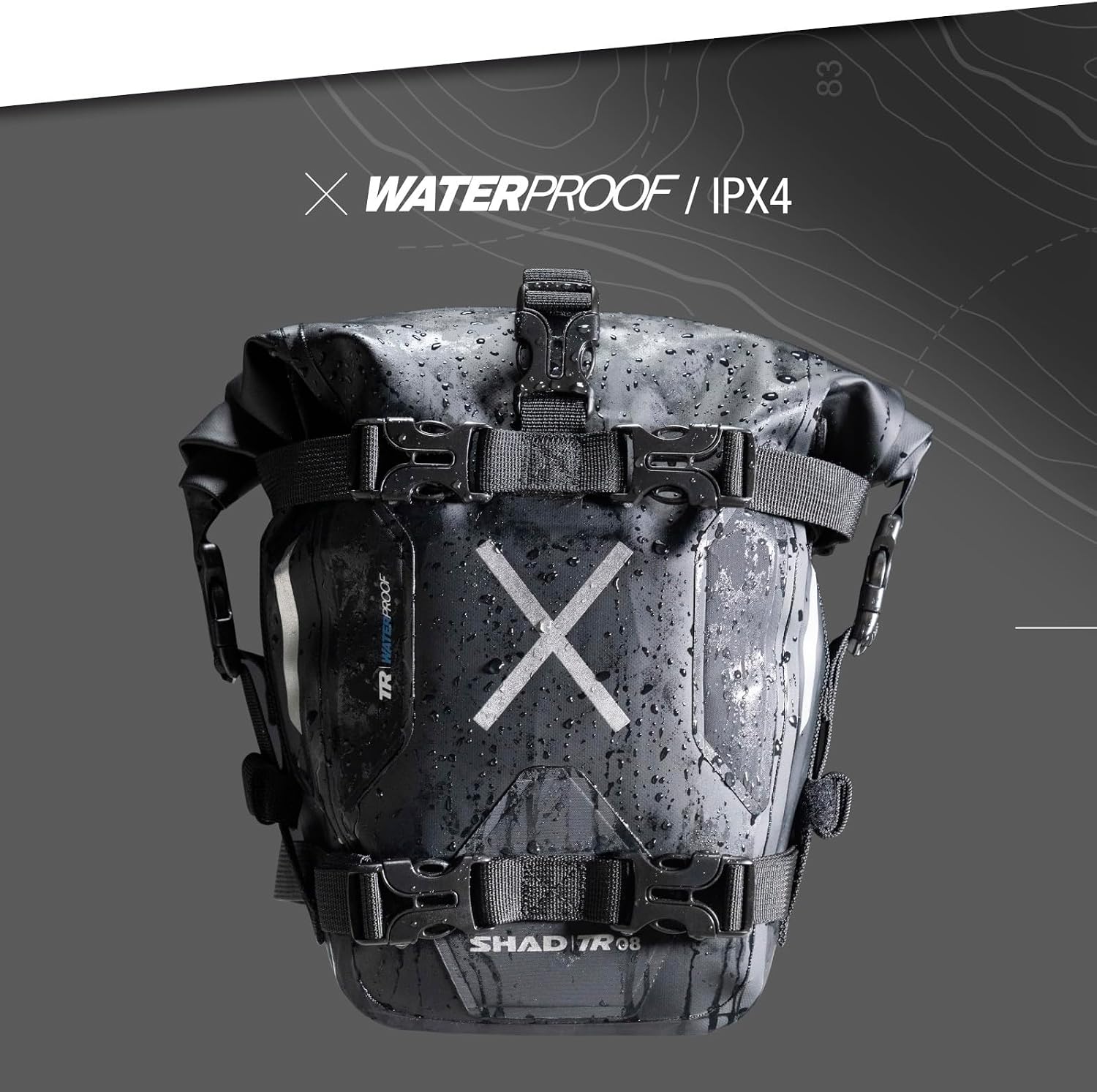

Image: The SHAD TR08 bag covered in water droplets, demonstrating its IPX4 waterproof capability.

Image: The SHAD TR08 bag securely mounted on a motorcycle, navigating through water.

Image: A motorcycle equipped with the SHAD TR08 bag, ready for off-road adventure.

Setup and Installation

The TR08 bag is designed for easy and secure attachment to motorcycle crash bars.

1. Positioning: Identify a suitable location on your motorcycle's crash bar where the bag will not interfere with steering, suspension, or rider movement.
2. Attachment: Use the integrated straps and buckles to secure the bag to the crash bar. Ensure the straps are tightened evenly to prevent shifting.
3. Double Locking System: Engage the external lock mechanism that fastens the bag to the crash bar. This provides an additional layer of security against accidental detachment.
4. Internal Security: Utilize the internal lock to secure the main compartment, restricting access to your belongings.
5. Final Check: Before riding, gently pull and push the bag in various directions to confirm it is firmly attached and does not move excessively.

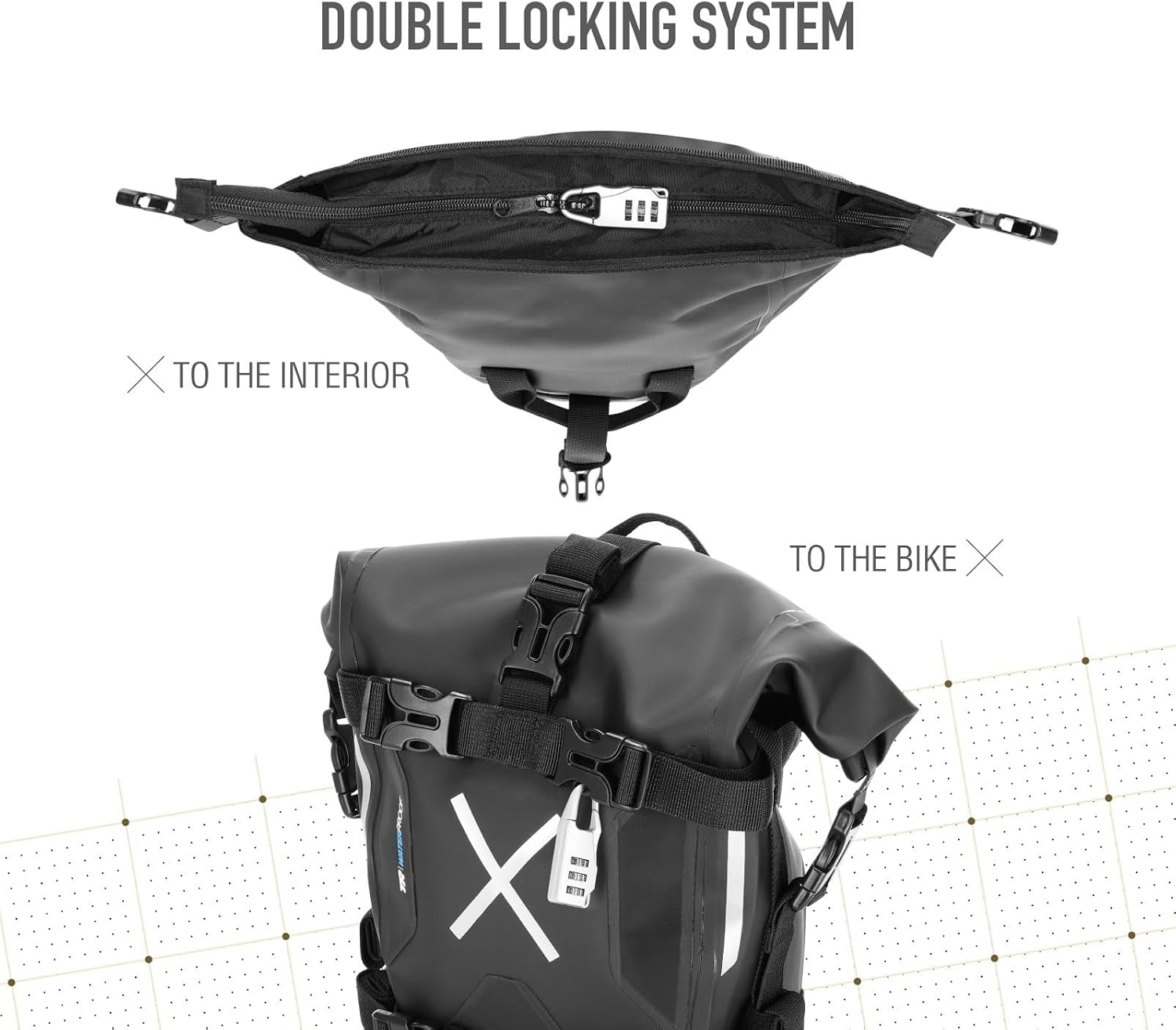

Image: Illustration of the double locking system, showing how the bag secures to the bike and how internal access is restricted.

Operating Instructions

• Packing the Bag: Place items inside the main compartment. Ensure heavy items are placed towards the bottom and center for better balance.
• Closing the Bag: Roll down the top opening several times to create a waterproof seal, then secure the top buckles.
• Adjusting Volume: Use the three compression straps located on the bag to adjust its size. Tighten the straps to compress the contents and reduce bulk, or loosen them to accommodate more items. Ensure straps are snug to prevent contents from shifting.
• Strap Management: Utilize the strap retainers at the ends of the compression straps to prevent any loose ends from flapping during your ride.
• Carrying: When removed from the motorcycle, use the integrated carrying handle for convenient transport.

Image: The SHAD TR08 bag demonstrating the use of compression straps to adjust its volume.

Image: The SHAD TR08 bag highlighting its reflective elements for improved visibility in low light conditions.

Care and Maintenance

• Cleaning: Clean the bag with a damp cloth and mild soap. Do not use harsh chemicals or abrasive cleaners, as these can damage the waterproof coating and material.
• Drying: Allow the bag to air dry completely before storing. Do not use direct heat sources like hair dryers, as this can damage the material.
• Storage: Store the bag in a cool, dry place away from direct sunlight when not in use. Prolonged exposure to sunlight can degrade the material over time, despite its UV resistance.
• Inspection: Regularly inspect the straps, buckles, and material for any signs of wear, tear, or damage. Address any issues promptly to maintain the bag's integrity and safety.

Troubleshooting

Specifications

Warranty and Support

Warranty Period: This product comes with a 1-year warranty from the date of purchase.

Warranty Claims: For any inquiries regarding product defects or warranty claims, please contact your retailer or SHAD customer support. To expedite the process, please have the following information ready:

• Your original purchase receipt or delivery note.
• The product lot number (PO#). This number is sewn inside the bag.

Exclusions: The warranty does not cover damage caused by improper installation, misuse, accidents, modifications, or normal wear and tear.

For further assistance, please visit the official SHAD website or contact your local distributor.
