Kingdura 10' x 13' Cantilever Patio Umbrella Instruction Manual

Introduction

Thank you for choosing the Kingdura 10' x 13' Cantilever Patio Umbrella. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor umbrella. Please read these instructions carefully before use and retain them for future reference.

Image: The Kingdura 10' x 13' Cantilever Patio Umbrella providing shade over a patio dining set.

Safety Information

• Secure the Base: This umbrella is equipped with a cross base. A weighted base (not included) is required to ensure stability. Do not use the umbrella without adequate weighting.
• Weather Conditions: Always close the umbrella in windy conditions, heavy rain, or snow to prevent damage to the umbrella and potential injury.
• Clearance: Ensure sufficient clearance around the umbrella when opening, closing, tilting, or rotating to avoid obstructions or collisions.
• Children and Pets: Keep children and pets away from the umbrella during operation to prevent accidents.
• Fire Hazard: Do not place the umbrella near open flames or heat sources.
• Inspection: Regularly inspect all components for wear, damage, or loose parts. Do not use if damaged.

Parts List

Before assembly, please ensure all parts are present and undamaged. The main components include:

• Cantilever Umbrella Canopy (10' x 13' Rectangular)
• Aluminum Pole
• 8 Heavy-Duty Ribs
• Reinforced Cross Base (Note: Weighted base is not included and must be purchased separately)
• Crank Handle Mechanism
• Foot Pedal for Rotation
• Tilt Adjustment Grip

Setup and Assembly

Follow these steps to assemble your Kingdura Cantilever Patio Umbrella. It is recommended to have two people for assembly.

1. Prepare the Base: Place the reinforced cross base on a flat, stable surface where you intend to use the umbrella. Securely attach a weighted base (e.g., sandbags, water-filled base, or patio blocks) to the cross base. A weighted base is crucial for stability and is not included with the umbrella.
2. Attach the Pole: Insert the main aluminum pole into the designated slot on the cross base. Ensure it is firmly seated and secured according to the hardware provided.
3. Mount the Canopy Arm: Attach the cantilever arm, which holds the canopy, to the main pole. Follow the specific instructions in your packaging for securing this connection.
4. Open the Umbrella: Use the crank handle to slowly open the umbrella canopy. Ensure all ribs extend smoothly and the canopy fabric is taut.

Image: Close-up view of the stable cross base design, highlighting the foundation for the umbrella.

Operating Instructions

Your Kingdura Cantilever Patio Umbrella offers versatile shading options.

Opening and Closing the Umbrella

To open the umbrella, turn the crank handle clockwise until the canopy is fully extended. To close, turn the crank handle counter-clockwise until the canopy is completely folded.

360-Degree Rotation

To rotate the umbrella, step on the integrated foot pedal located at the base. While holding the pedal down, gently guide the canopy to your desired position. Release the foot pedal to lock the umbrella in place.

Image: Illustration demonstrating the 360-degree pedal rotation feature, allowing the umbrella to track the sun.

4-Position Tilt Adjustment

To adjust the tilt angle, use the slide-and-lock grip mechanism on the cantilever arm. Press the grip to unlock, adjust the canopy to one of the four available tilt positions, and release the grip to lock it. This allows you to block harsh sunlight at different times of the day.

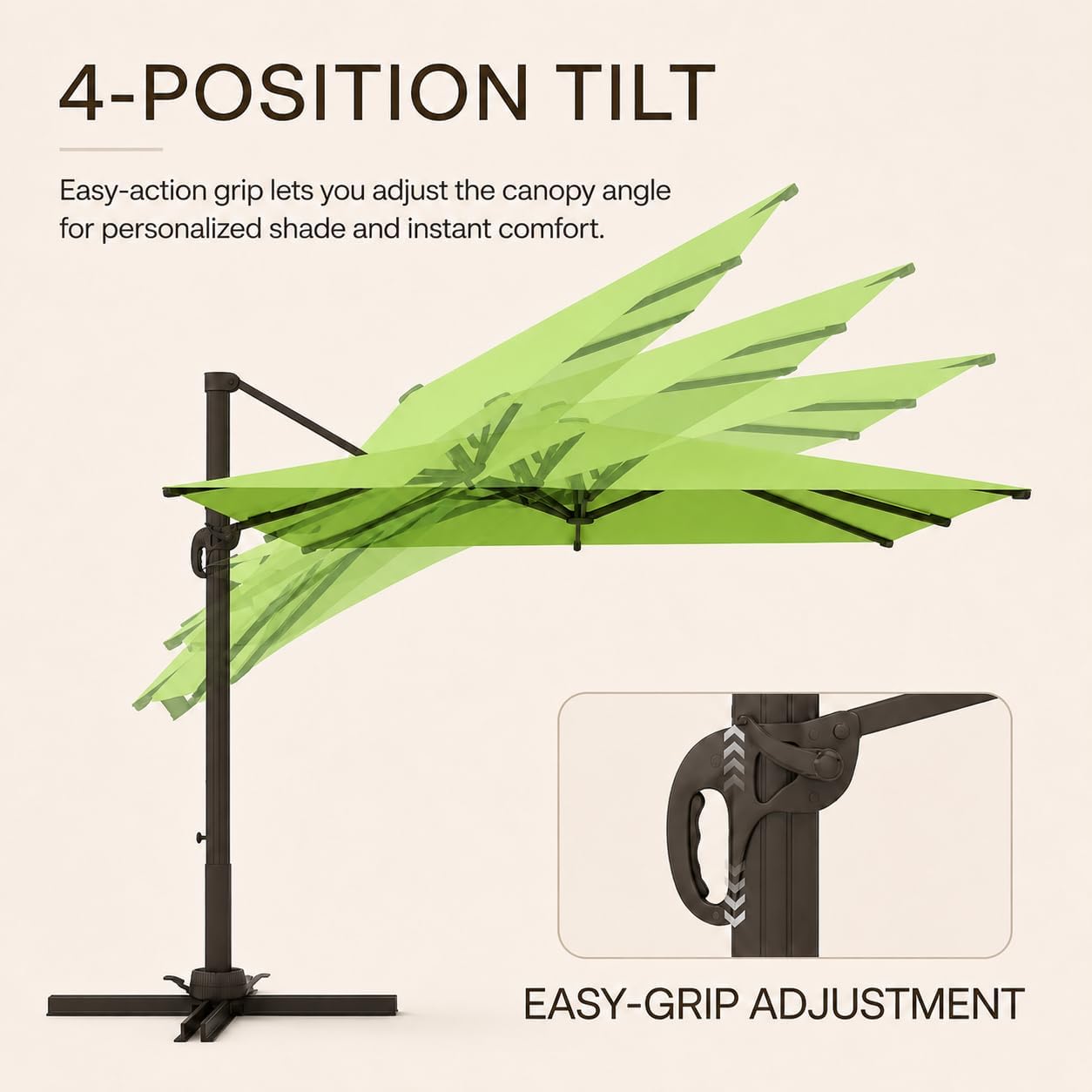

Image: Illustration detailing the 4-position tilt mechanism, enabling personalized shade adjustment.

Maintenance

Proper maintenance will extend the life of your Kingdura Cantilever Patio Umbrella.

• Canopy Cleaning: The canopy is made from high-density 236 GSM outdoor-grade polyester fabric, which is water-repellent and fade-resistant. Clean the canopy regularly with mild soap and water. Rinse thoroughly and allow to air dry completely before closing or storing. Do not use harsh chemicals or abrasive cleaners.
• Frame Care: The aluminum pole and ribs are powder-coated for durability. Wipe the frame with a damp cloth to remove dirt and debris. Inspect for any scratches or chips in the coating and touch up if necessary to prevent rust.
• Storage: When not in use for extended periods or during off-season, close the umbrella and secure it with a cover (not included). Store in a dry, protected area to prevent damage from extreme weather.
• Hardware: Periodically check all bolts and screws to ensure they are tight. Lubricate moving parts (crank mechanism, tilt mechanism) as needed with a silicone-based lubricant.

Image: Detail of the UV protection canopy fabric, showing its water-repellent texture and UV resistance.

Image: Close-up view of the durable metal frame and ribs, illustrating the sturdy construction for maintenance checks.

Troubleshooting

Specifications

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or contact Kingdura customer service. Please have your model number (S06-004-010) and purchase date available when contacting support.

Customer Service: [Insert Manufacturer Contact Information Here, e.g., website, email, phone number]
