Garwarm Modern LED Ceiling Light Track Lighting Instruction Manual

1. Product Overview

The Garwarm Modern LED Ceiling Light Track Lighting is a versatile 56-inch fixture designed for various indoor spaces. It features a sleek black aluminum body with 8 bronze eyeball-style LED heads, offering both aesthetic appeal and functional illumination. This low-profile design is suitable for rooms with lower ceilings and complements modern, industrial, minimalist, or hotel-style interiors.

Key features include 360° adjustable track heads for flexible lighting direction, 45W LED power delivering 3600 lumens of bright, even illumination, and a high CRI R80 for accurate color rendering. The light offers adjustable color temperatures (3000K warm light, 4500K natural light, 6500K white light) and 0-100% dimmability, controllable via an included remote or a mobile application. Additional functions include a timer and night light mode. This fixture is designed to effectively illuminate spaces ranging from 110 to 215 square feet and can be installed as either a ceiling light or a wall-mounted accent light.

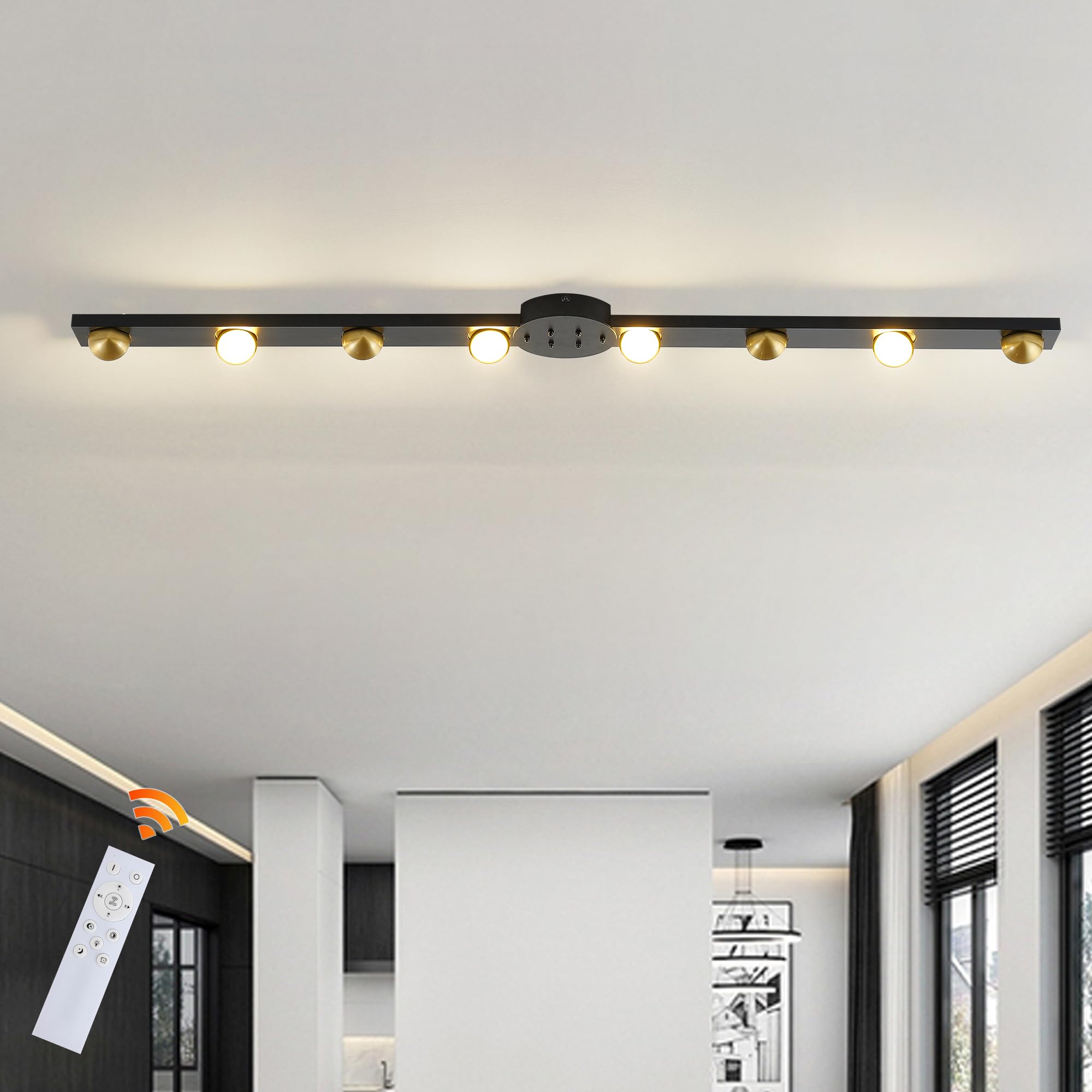

Image 1.1: Garwarm Modern LED Ceiling Light installed in a living room, showcasing its sleek design and illumination.

2. Safety Information

• Always turn off the main power supply at the circuit breaker before installation, maintenance, or bulb replacement.
• Installation should be performed by a qualified electrician or a person with adequate knowledge of electrical systems.
• Ensure all wiring connections are secure and comply with local electrical codes.
• Do not connect this fixture to a wall dimmer switch. This dimmable LED ceiling light is designed for use with a standard on/off wall switch only, as dimming and color temperature adjustments are controlled via the remote or mobile app.
• Do not exceed the specified voltage (110 volts).
• Keep the product away from water and moisture. This fixture is for indoor use only.
• Handle the light fixture components with care to avoid damage.

3. What's in the Box

Verify that all components are present before beginning installation:

• Light body accessories (main fixture with 8 LED heads)
• Remote Control
• Instruction Manual
• Mounting Hardware Kit (screws, wire nuts, temporary hanger)

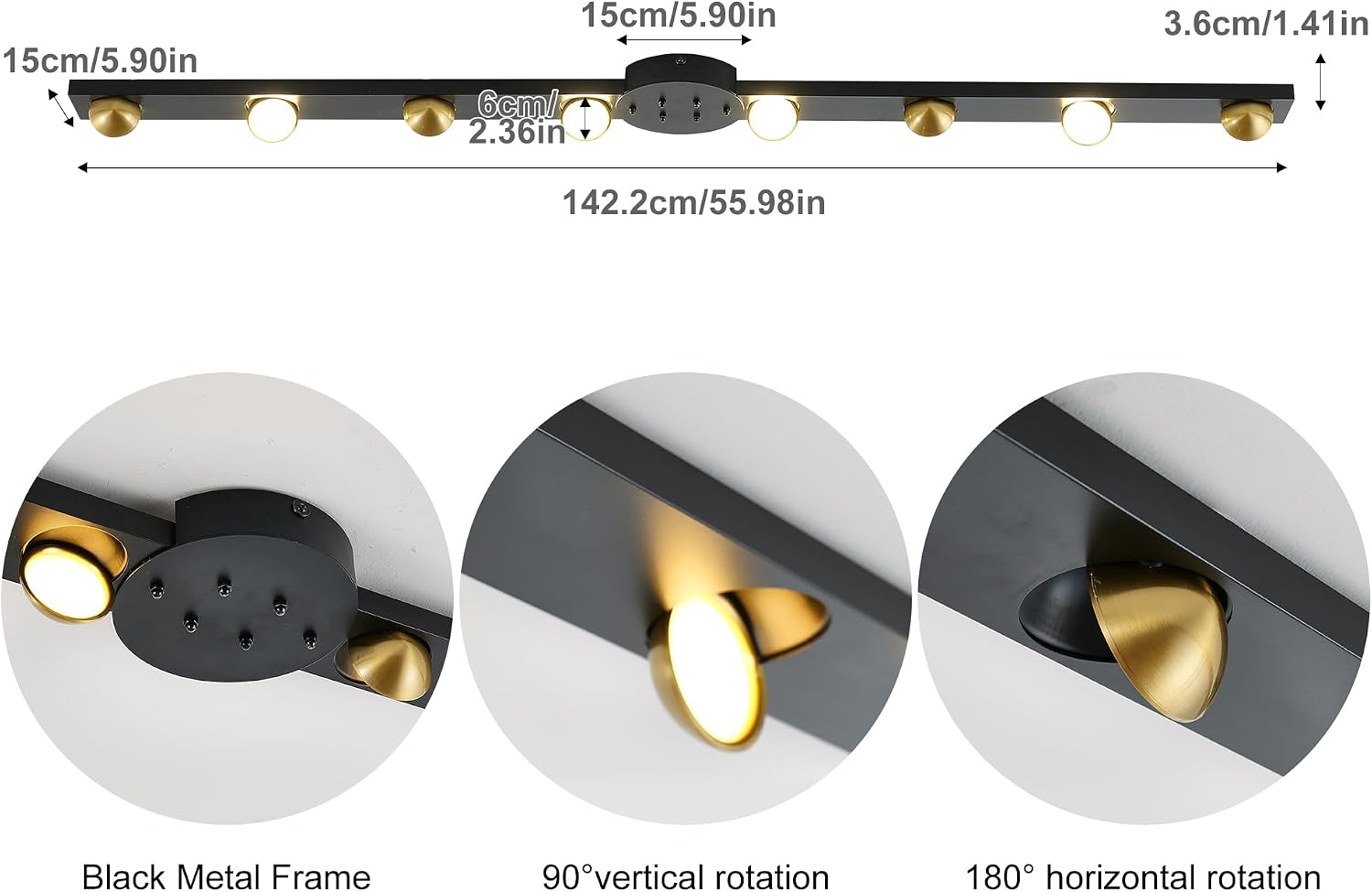

Image 3.1: Product dimensions and components overview.

4. Setup and Installation

4.1 Pre-Installation Checks

• Ensure power is OFF at the circuit breaker.
• Unpack all components and verify against the 'What's in the Box' list.
• Read through the entire instruction manual before starting.

4.2 Mounting the Fixture

1. Attach the mounting bracket to the junction box in your ceiling or wall using the provided screws. A temporary hanger can assist a single installer.
2. Connect the electrical wires (live, neutral, ground) from the fixture to your household wiring according to standard electrical practices. Secure connections with wire nuts.
3. Carefully lift the fixture and align it with the mounting bracket. Secure the fixture to the bracket using the provided bolts. Important Note: The bolts have two ends; the shorter end typically goes into the ring, and the longer end into the base. Using a magnetic screwdriver can greatly assist in threading the screws in tight spaces.
4. Ensure the fixture is securely fastened to prevent sagging.

4.3 Initial Power On

• Once installation is complete, restore power at the circuit breaker.
• Turn on the light using your standard wall switch.

Image 4.1: The fixture is compatible with a standard on/off switch and remote control, but not a wall dimmer.

5. Operating Instructions

5.1 Remote Control Functions

The included remote control allows for full customization of your lighting experience:

• On/Off: Power the light on or off.
• Brightness Adjustment: Increase or decrease light intensity (0-100% dimmable).
• Color Temperature Adjustment: Cycle through 3000K (warm white), 4500K (natural white), and 6500K (cool white).
• Timer: Set a timer for automatic shut-off.
• Night Light Mode: Activates a low-brightness, warm light setting.
• Natural Light Mode: Provides a balanced, comfortable light setting.

Image 5.1: Remote control functions and a visual representation of the light in a kitchen setting.

Image 5.2: Visual demonstration of 3 color changeable temperatures (3000K, 4500K, 6500K) and 0-100% dimmability.

5.2 Mobile App Control

To use the mobile app for control, ensure Bluetooth is enabled on your smartphone. Follow the instructions in the app to pair it with your light fixture. The app provides similar control over brightness, color temperature, and other functions as the remote.

5.3 Adjusting Track Heads

Each eyeball-shaped light source can be rotated 90° vertically and 180° horizontally. This allows you to direct light precisely where needed, whether for general room illumination, accent lighting for artwork, or task lighting over counters and tables.

Image 5.3: Close-up view of the rotatable track heads, demonstrating 90° vertical and 180° horizontal adjustment.

5.4 Memory Function

• Settings adjusted via the remote control are saved directly.
• For settings to be remembered when using a wall switch, ensure you wait 15 seconds after making adjustments before turning off the power, and 30 seconds before restarting.

6. Maintenance

• Cleaning: Ensure the power is off before cleaning. Wipe the fixture with a soft, dry cloth. Do not use abrasive cleaners or solvents, as they may damage the finish.
• LED Lifespan: The integrated LED light source has a long lifespan of up to 50,000 hours and is not user-replaceable.
• Inspection: Periodically check for any loose connections or signs of wear. If any issues are found, consult a qualified electrician.

7. Troubleshooting

• Light does not turn on:
  • Check if the power supply at the circuit breaker is on.
  • Ensure the wall switch is in the 'on' position.
  • Verify all wiring connections are secure.
  • Confirm the remote control has working batteries and is pointed at the fixture.
• Light flickers or is dim:
  • Ensure the fixture is not connected to a wall dimmer switch. This fixture requires a standard on/off switch.
  • Adjust brightness using the remote control.
• Remote control not working:
  • Replace batteries in the remote control.
  • Ensure there are no obstructions between the remote and the light fixture.
• App control not connecting:
  • Ensure Bluetooth is enabled on your phone.
  • Restart the app and attempt to pair again.
• Individual light heads not working after adjustment:
  • Carefully check the connection points of the individual light heads. If an issue persists, contact customer support.
• Fixture arms appear to sag:
  • Ensure the fixture is securely mounted to the ceiling or wall bracket. Over-tightening or improper installation of the mounting bolts can contribute to this. Re-check the bolt lengths and ensure they are correctly seated.

8. Specifications

Image 8.1: Key product specifications.

9. Warranty and Support

This Garwarm product comes with a 2-year manufacturer's warranty, covering defects in materials and workmanship under normal use. Additionally, a 30-day return policy is available for your convenience.

For technical support, warranty claims, or any questions regarding your product, please contact Garwarm customer service through the retailer's platform or visit the official Garwarm website for contact information.

Please retain your proof of purchase for warranty service.
