Tami Tami T600 Queen Adjustable Bed Frame User Manual

Introduction

This manual provides instructions for the safe and proper assembly, operation, and maintenance of your Tami Tami T600 Queen Adjustable Bed Frame. Please read all instructions carefully before use and retain this manual for future reference.

Safety Information

Ensure all components are securely fastened before use.
Keep children and pets away from moving parts during operation.
Do not operate the bed frame if any parts are damaged or missing.
Avoid placing liquids directly on the bed frame's electronic components.
The bed frame is designed for indoor use only.
Maximum weight capacity: 750 lbs (including mattress).

Package Contents

Verify that all items are present before beginning assembly:

Adjustable Bed Frame (pre-assembled sections)
Wireless Remote Control
Adjustable Legs (multiple height options)
Storage Pockets
Mattress Retainer Bar
Power Cord
User Manual (this document)

Setup

The Tami Tami T600 adjustable bed frame features a pre-assembled design for easier setup. Follow these steps for installation:

Unpack Components: Carefully remove all parts from the packaging. Place the bed frame sections on a clean, flat surface.

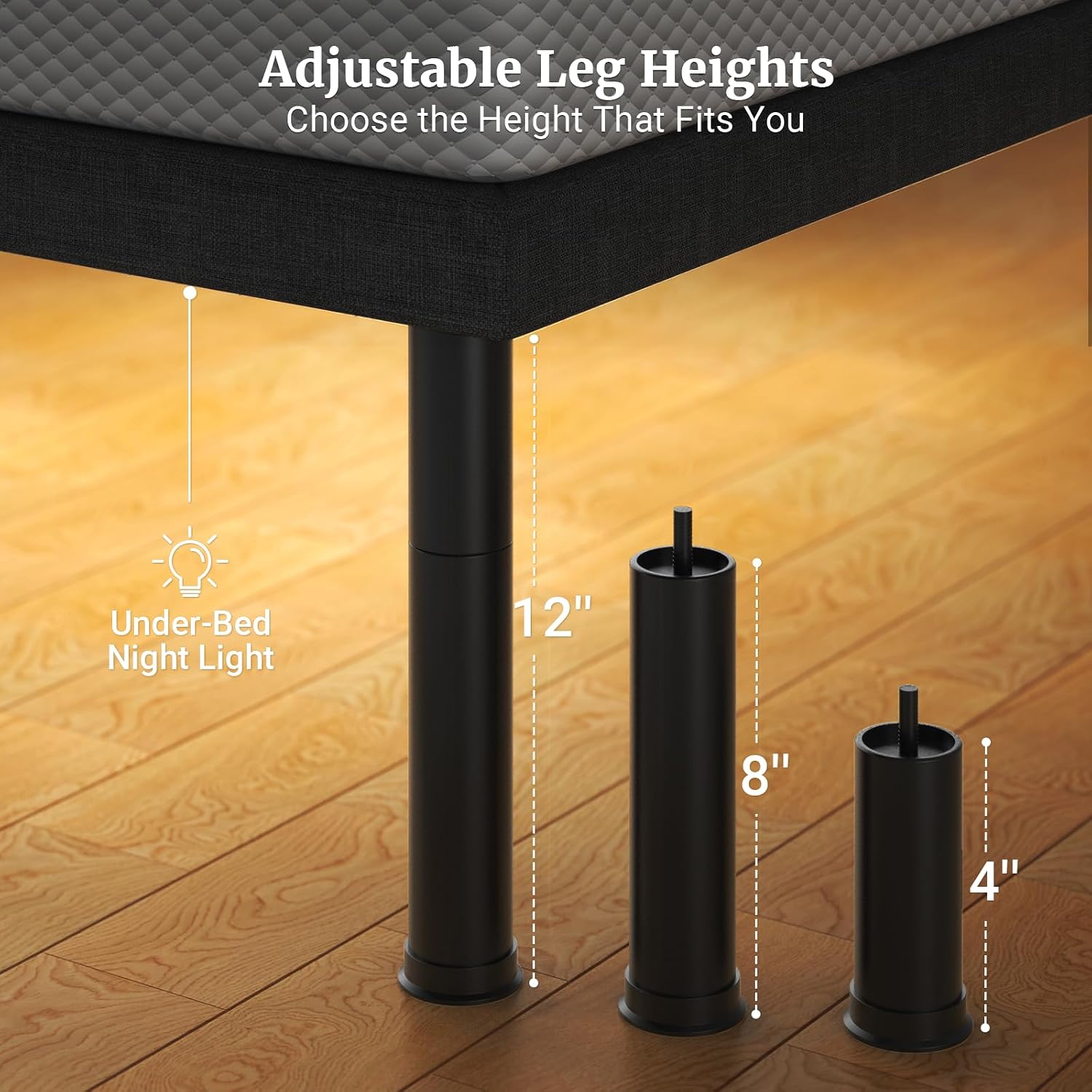

Attach Legs: Screw the adjustable legs into the designated receivers on the underside of the bed frame. Choose your desired height (4", 8", or 12"). Ensure all legs are tightened securely.
Install Retainer Bar: Insert the mattress retainer bar into the slots at the foot of the bed frame. This prevents the mattress from sliding.
Connect Power: Plug the power cord into the control box located under the bed frame, then plug the other end into a grounded electrical outlet.
Place Mattress: Carefully place your mattress onto the bed frame.
Test Functions: Use the wireless remote control to test all functions (head/foot incline, massage, presets) to ensure proper operation.

Collage image showing 3-step quick installation, whisper-quiet lift motor, 20,000+ lift cycles, and heavy-duty frame supporting 750 lbs for the Tami Tami T600 adjustable bed. — This image provides an overview of the bed frame's construction and ease of assembly. It highlights the 3-step quick installation process, the quiet operation of the lift motor, its durability with over 20,000 lift cycles, and the heavy-duty frame capable of supporting up to 750 lbs.

Diagram of Tami Tami T600 adjustable bed frame components and assembly steps. — This diagram illustrates the main components of the adjustable bed frame and provides a visual guide for the assembly process.

Operating Instructions

The Tami Tami T600 adjustable bed frame is operated using the included wireless remote control.

Adjusting Head and Foot Incline

Use the dedicated buttons on the remote to raise or lower the head and foot sections independently. The head section can be adjusted up to 65 degrees, and the foot section up to 45 degrees.

Diagram showing head incline up to 65 degrees and foot incline up to 45 degrees on the Tami Tami T600 adjustable bed frame. — This image illustrates the adjustable head and foot positions of the bed frame. The head section can be raised up to 65 degrees, and the foot section up to 45 degrees, allowing for personalized comfort and pressure relief.

Preset Positions

The remote control includes one-touch buttons for various preset positions:

Zero Gravity: Elevates the head and feet to a position that helps distribute body pressure evenly, providing a sensation of weightlessness.
TV/Reading: Adjusts the head section for comfortable viewing or reading.
Memory Position: Allows you to save and recall a custom preferred position. Consult your remote's specific instructions for saving a memory position.
One-Touch Flat: Returns the bed frame to a completely flat position.

Woman in zero gravity position on the Tami Tami T600 adjustable bed, with icons for various preset positions. — This image demonstrates the Zero Gravity position, designed to reduce pressure and promote deeper relaxation. Icons below show other available presets: Watch TV, Anti-Snore, Zero Gravity, and Read.

Massage Functions

The bed frame features dual-zone massage for the head and foot sections. Use the remote to activate and customize the massage:

Massage Modes: Choose from 3 distinct massage modes (Pulse, Steady, Wave).
Intensity Levels: Select from 3 intensity levels to suit your preference.

Woman relaxing on the Tami Tami T600 adjustable bed with visual representation of massage waves. — This image highlights the dual-zone massage feature. It shows a user experiencing the massage function, with text indicating Pulse Mode, Steady Mode, and Wave Mode for personalized relaxation.

Under-Bed Nightlight

Activate the soft under-bed nightlight using the dedicated button on the remote control. This provides subtle illumination for nighttime movement without disturbing others.

USB Ports and Side Pockets

The bed frame includes dual USB ports on each side for charging electronic devices. Side pockets are also provided for convenient storage of the remote control, phones, or other small items.

Woman charging phone using the dual USB ports and storing remote in side pocket of the Tami Tami T600 adjustable bed. — This image illustrates the convenience features of the bed frame, including dual-side USB ports for charging devices and side pockets for storing the remote control or other small essentials.

Maintenance

Cleaning: Wipe the bed frame with a dry cloth to remove dust and debris. Do not use liquid cleaners directly on electronic components.
Inspections: Periodically check all bolts and connections to ensure they remain tight.
Motor Care: The lift motor is designed for long-term use and operates quietly. No specific user maintenance is required for the motor.

Troubleshooting

Problem	Possible Cause	Solution
Bed frame does not operate.	Power cord unplugged; remote control batteries low or dead; remote not paired.	Ensure power cord is securely plugged into outlet and bed frame. Replace remote batteries. Refer to remote pairing instructions (if applicable, usually in a separate remote manual).
Motor makes unusual noise.	Obstruction under bed; loose connection.	Check for any objects obstructing the moving parts. Verify all leg and frame connections are tight. If noise persists, contact customer support.
Massage function not working.	Massage feature not activated; power issue.	Ensure massage button on remote is pressed. Check power connection.
USB ports not charging.	Bed frame not powered; device cable faulty.	Confirm bed frame is powered on. Try a different USB cable or device.

Specifications

Model Number	AMZ-TM3-ABT600Q-V0
Brand	Tami Tami
Size	Queen
Color	Black
Material Type	Metal
Item Dimensions (L x W x H)	79.5 x 59 x 14.6 inches (height is adjustable)
Item Weight	116 pounds
Head Incline Angle	Up to 65°
Foot Incline Angle	Up to 45°
Leg Height Options	4", 8", 12"
Motor Noise Level	Under 45 dB
Lift Cycles Tested	20,000+
Included Components	Adjustable bed frame, Wireless Remote, Adjustable Leg, Storage pocket, Retainer bar
Product Care Instructions	Wipe with Dry Cloth

Diagram of Tami Tami T600 adjustable bed frame with callouts for features like anti-slip fabric, USB ports, leg height options, storage pockets, under-bed nightlight, mattress retainer bar, and individual head/foot adjustment. — This diagram highlights key features and components of the Tami Tami T600 adjustable bed frame, including its design elements and functional aspects.

Woman in zero gravity position on the Tami Tami T600 adjustable bed, illustrating pressure distribution. — This image demonstrates the Zero Gravity position, designed to distribute body pressure for a lighter, more relaxed feel.

Warranty and Support

The Tami Tami T600 Adjustable Bed Frame is backed by a 5-year warranty. For warranty claims, technical assistance, or any questions regarding your product, please contact Tami Tami customer support. Support is available to respond within 24 hours.

Please refer to your purchase documentation for specific contact details or visit the official Tami Tami website.

Tami Tami AMZ-TM3-ABT600Q-V0
