PURPLE LEAF Outdoor Solarium 10' x 13' Enclosed Gazebo Instruction Manual

Product Overview

The PURPLE LEAF Outdoor Solarium is designed to provide a versatile outdoor living space. This 10' x 13' enclosed gazebo features a durable aluminum frame, a galvanized steel double roof, and a dual-layer system of mesh screens and tinted PC panels for year-round comfort and protection.

Key features include:

• Outdoor Living Space: Suitable for various setups like sofas, dining sets, or hot tubs.
• Dual-layer Mesh Screen & Tinted PC Panel System: Offers airflow, visibility, wind protection, and privacy.
• Galvanized Steel Double Roof: Enhances airflow, reduces heat, and provides sun/rain protection.
• Dual Magnetic Sliding Doors: Ensures easy access and secure closure.
• Grey Aluminum Frame: Provides a modern aesthetic with durable, low-maintenance performance.
• Integrated Panel Storage Rack: For organized storage of removed panels.

Image: The PURPLE LEAF Outdoor Solarium 10' x 13' Enclosed Gazebo, showcasing its overall design and enclosed structure.

Setup Instructions

Careful assembly is crucial for the stability and longevity of your gazebo. It is recommended that at least two adults perform the assembly. Ensure all parts are present and undamaged before beginning.

1. Unpacking and Part Identification

1. Carefully unpack all components from the packaging.
2. Refer to the included parts list to identify and verify all pieces. Lay them out in an organized manner.
3. Inspect all parts for any damage. Contact customer support immediately if any parts are missing or damaged.

Image: Interior view of the gazebo, showing ample space for furniture arrangement.

2. Frame Assembly

1. Assemble the main aluminum frame according to the detailed diagrams in your separate assembly guide. Ensure all connections are secure.
2. Use the provided hardware and tools. Do not overtighten screws until the entire frame is loosely assembled.

Image: Close-up of the powder-coated, all-weather, rust-resistant, solid, and stable aluminum frame.

3. Roof Installation

1. Attach the galvanized steel double roof panels. Follow the sequence specified in the assembly guide to ensure proper alignment and weather sealing.
2. Ensure the roof is securely fastened to the frame to withstand wind and rain.

Image: The galvanized steel double roof, illustrating its UV resistant, heat resistant, and air ventilation properties.

4. Panel and Door Installation

1. Install the dual-layer mesh screens and tinted PC panels into their designated slots.
2. Mount the dual magnetic sliding doors, ensuring they slide smoothly and close securely.

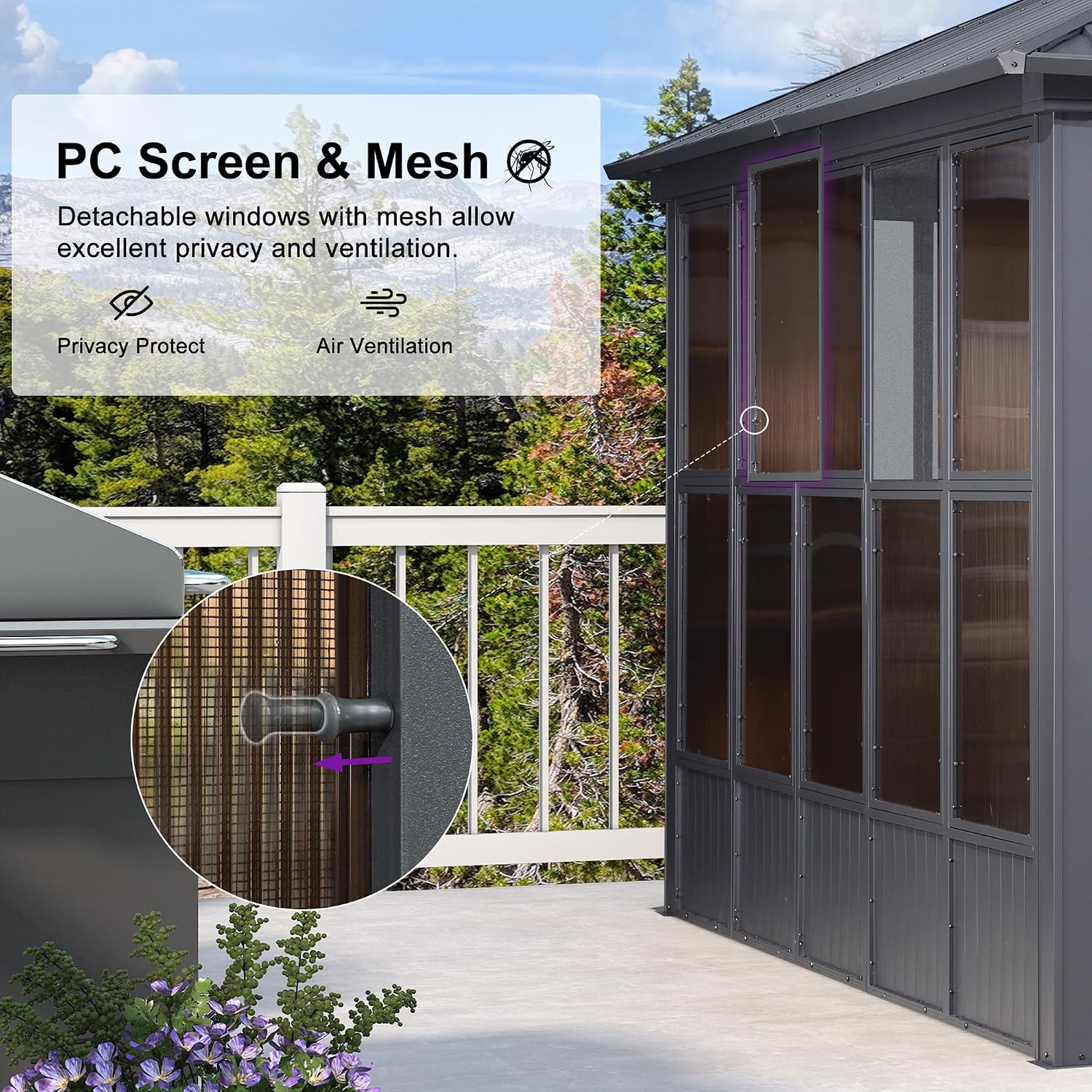

Image: Detachable PC screen and mesh system, providing privacy and ventilation.

5. Final Checks

1. Once all components are in place, tighten all screws and bolts.
2. Ensure the gazebo is level and stable. Anchor it to the ground if necessary, using appropriate anchoring hardware (not always included).

Operating Instructions

1. Using the Sliding Doors

The gazebo features dual magnetic sliding doors for easy entry and exit. To open, gently slide the door along its track. To close, slide it back until the magnetic strips engage, ensuring a secure closure.

Image: Close-up of the magnetic double sliding doors, highlighting the double-layered rails and door handle.

2. Adjusting PC Panels and Mesh Screens

The dual-layer system allows for flexible use:

• Mesh Screens: These are fixed and provide continuous airflow while keeping insects out.
• Tinted PC Panels: These panels can be installed or removed to provide wind protection, privacy, and shade. When not in use, store them in the integrated panel storage rack.

Image: The integrated storage rack designed to neatly hold removed PC panels.

3. Utilizing Hanging Hooks

The gazebo roof includes integrated hanging hooks. These can be used to hang lightweight items such as decorative lights, small fans, or plants. Ensure that any items hung do not exceed the weight capacity specified in your assembly guide.

Image: Interior view of the gazebo roof showing hanging hooks for lights, fans, or decorative items.

Maintenance Instructions

Regular maintenance will help preserve the appearance and functionality of your PURPLE LEAF gazebo.

1. Cleaning the Frame and Roof

• Clean the aluminum frame and galvanized steel roof with a mild soap solution and water.
• Rinse thoroughly with clean water and dry with a soft cloth to prevent water spots.
• Avoid using abrasive cleaners, bleach, or harsh chemicals, as these can damage the finish.

2. Cleaning PC Panels and Mesh Screens

• Wipe PC panels with a soft, damp cloth. For stubborn dirt, use a mild soap solution.
• Gently brush or vacuum mesh screens to remove dust and debris. For deeper cleaning, use a mild soap solution and rinse carefully.
• Ensure panels are dry before storing them in the integrated storage rack.

3. Seasonal Care

• In areas with heavy snow, it is recommended to remove accumulated snow from the roof to prevent structural damage.
• Periodically check all bolts and screws and tighten them as needed to maintain structural integrity.

Troubleshooting Guide

This section addresses common issues you might encounter with your gazebo.

Issue: Gazebo feels unstable or wobbly.

• Solution: Check all frame connections and ensure all bolts and screws are securely tightened. Verify that the gazebo is placed on a level surface. If on soft ground, consider using additional anchoring methods.

Issue: Sliding doors are stiff or do not close properly.

• Solution: Inspect the door tracks for debris or obstructions. Clean the tracks thoroughly. Ensure the doors are properly aligned on their rails. A silicone-based lubricant can be applied sparingly to the tracks if needed.

Issue: Water leakage from the roof during rain.

• Solution: Check the roof panels for proper overlap and sealing. Ensure all roof screws are tightened. Verify that the roof drainage system (if applicable) is clear of debris.

Issue: PC panels are difficult to install or remove.

• Solution: Ensure the panels are oriented correctly. Check the channels for any obstructions or warping. Apply gentle, even pressure when inserting or removing panels.

Product Specifications

Warranty Information

PURPLE LEAF products are manufactured to high-quality standards. For specific warranty details regarding your Outdoor Solarium, please refer to the warranty card included with your purchase or visit the official PURPLE LEAF website. Keep your proof of purchase for any warranty claims.

Customer Support

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please contact PURPLE LEAF customer support. Contact information can typically be found on the packaging, in the assembly guide, or on the official PURPLE LEAF website.

For online support, visit: PURPLE LEAF Store on Amazon
