Introduction

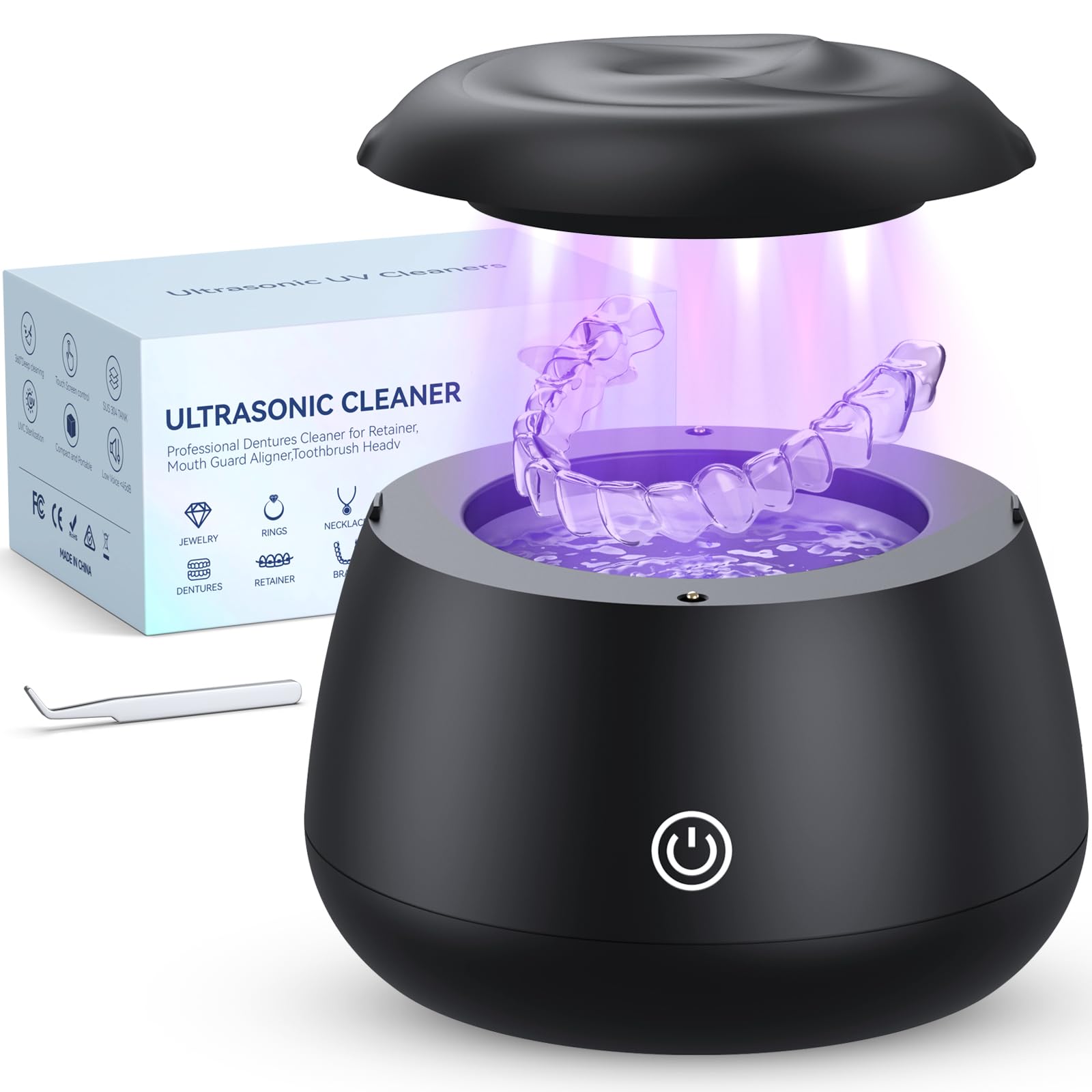

This manual provides detailed instructions for the safe and effective use of your COBEEK Ultrasonic Retainer Cleaner Machine. This device utilizes 52kHz ultrasonic technology and UV-C light for deep cleaning of dental appliances and other small items. Please read this manual thoroughly before operation and retain it for future reference.
Important Safety Information
- Do not submerge the unit under water or allow water to enter the housing.
- Always add water to the cleaning tank before turning on the power.
- Ultrasonic technology can increase water temperature during operation. Use cold water to begin.
- Do not fill the tank beyond the maximum water level indicator.
- Always read labels, warnings, and directions before using or consuming any cleaning products in conjunction with this device.
Product Features
- 52kHz High-Efficiency Ultrasonic Cleaning: Generates microscopic bubbles for thorough stain and odor removal from various items.
- 4 Powerful UV-C Lights: Provides 360° deep cleaning, effectively removing odors and inhibiting grime growth.
- Three Cleaning Modes: Offers specialized modes for normal, deep, and freshening cleaning cycles.
- Low Noise Operation: Operates at approximately 40dB for a quiet cleaning experience.
- Anti-slip Design: Equipped with non-slip rubber feet for stability during operation.
- 250ml Capacity: Sufficient volume for cleaning dentures, retainers, braces, jewelry, and other small items.
- Durable Construction: Made with an ABS plastic exterior and SUS304 stainless steel interior.
- Compact and Portable: Designed for easy placement on bathroom counters or for travel.
Setup
Follow these steps to set up your ultrasonic cleaner for first use:
- Place the unit on a stable, flat surface.
- Open the lid and fill the water tank with cold water. Do not exceed the maximum fill line. For enhanced cleaning, a small amount of cleaning solution or mouthwash can be added.
- Carefully place the items to be cleaned into the water tank. Ensure items are fully submerged but not overcrowded.
- Close the lid securely.
- Connect the power adapter to the unit and then plug it into a suitable electrical outlet.
Operating Instructions
The COBEEK Ultrasonic Retainer Cleaner features a single power button that also functions as a mode selector. The button illuminates with different colors to indicate the selected mode.
- After setup, press the power button once to turn on the device and select the first cleaning mode.
- Press the button repeatedly to cycle through the available cleaning modes:
- Mode 1 (Blue Light): Quick Clean - 300 seconds (5 minutes) of Ultrasonic + UV-C cleaning. Ideal for daily cleaning routines.
- Mode 2 (Red Light): Deep Clean - 600 seconds (10 minutes) of Ultrasonic + UV-C cleaning. Recommended for thorough cleaning of heavily soiled items.
- Mode 3 (Green Light): Freshening - 600 seconds (10 minutes) of UV-C only cleaning. Suitable for sanitizing and freshening items without ultrasonic action.
- The device will automatically shut off once the selected cleaning cycle is complete.
- To manually stop a cycle, press and hold the power button for a few seconds until the device turns off.
- After cleaning, unplug the device, open the lid, and carefully remove your items. Rinse them under clean water if necessary.
Maintenance
Proper maintenance ensures the longevity and optimal performance of your cleaner.
- After Each Use: Unplug the device. Empty the water from the tank. Wipe the inside of the stainless steel tank dry with a soft cloth to prevent water spots or mineral buildup.
- Exterior Cleaning: Wipe the exterior of the unit with a soft, damp cloth. Do not use abrasive cleaners or immerse the unit in water.
- Storage: Store the cleaner in a cool, dry place when not in use.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on. | Power cord not properly connected. No power from outlet. | Ensure the power cord is securely plugged into both the unit and a working electrical outlet. Test the outlet with another device. |
| Cleaning effectiveness is low. | Insufficient water. Items overcrowded. Incorrect cleaning mode selected. | Ensure water level is adequate. Avoid overcrowding items; clean in batches if necessary. Select a longer or more intensive cleaning mode (e.g., Deep Clean). Consider adding a suitable cleaning solution. |
| Unit makes unusual noise. | Unit not on a flat surface. Tank empty during operation. | Place the unit on a stable, flat surface. Ensure the tank contains water before starting a cycle. If noise persists, discontinue use and contact customer support. |
| UV-C light not visible. | Lid not closed properly. UV-C lights are designed to be contained. | Ensure the lid is fully closed. The UV-C lights operate internally and may not be brightly visible from the outside for safety. If you suspect a malfunction, contact support. |
Specifications
- Model: XG-SCX-BK01
- Ultrasonic Frequency: 52kHz
- Ultrasonic Power: 28W
- Tank Capacity: 250ml
- Tank Material: SUS304 Stainless Steel
- Exterior Material: ABS Plastic
- Noise Level: <45dB
- Dimensions: Approximately 19.2 x 13.4 x 10.1 cm
- Weight: Approximately 580g
- Country of Origin: China
Warranty and Support
COBEEK provides the following support for your product:
- Warranty: 2 Years Warranty
- Customer Support: 24 Hours Customer Support
- Technical Support: Lifetime Technical Support
For any inquiries or assistance, please contact COBEEK customer service through the retailer's platform or the contact information provided with your purchase.
