PURPLE LEAF 8' x 10' Lean-to Gazebo Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, operation, and maintenance of your PURPLE LEAF 8' x 10' Lean-to Gazebo. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

Key Features:

• Space-Saving Attached Design: Connects directly to your house, ideal for smaller patios.
• Durable Metal Roof: Provides protection from sun and rain for outdoor activities.
• Sloped Roof with Integrated Drainage: Channels rainwater away to prevent pooling.
• Ground Anchoring: Ensures stability in windy conditions.
• Connectable Units: 8' x 8' and 8' x 10' units can be linked for larger setups (connector kits sold separately).
• Easy Assembly: Includes clear instructions and all necessary hardware. Electric tools are recommended for efficiency.

Setup and Assembly

Before starting assembly, ensure you have all parts listed in the packaging. Clear a sufficient area for construction and have the recommended tools ready. Two or more people are recommended for safe and efficient assembly.

Tools Recommended:

• Electric drill/driver
• Ladder
• Measuring tape
• Level
• Safety gloves and eyewear

Assembly Steps:

1. Unpack and Identify Parts: Carefully unpack all components and verify against the parts list provided in your package. Separate hardware by type.
2. Prepare the Installation Area: Ensure the wall where the gazebo will be attached is structurally sound and the ground is level.
3. Assemble the Frame: Follow the step-by-step diagrams in your included instruction booklet to assemble the main aluminum frame. Pay close attention to the orientation of beams and posts.
4. Attach to Wall: Securely attach the lean-to side of the gazebo frame to your house wall using appropriate fasteners for your wall type. Ensure a watertight seal if necessary.
5. Install Roof Panels: Carefully install the galvanized steel roof panels. Ensure all panels are correctly aligned and secured to maintain the leak-proof design and proper water drainage.
6. Ground Anchoring: Once the frame is assembled and positioned, use the provided ground anchors to secure each post to the ground. This is crucial for stability, especially in windy conditions.

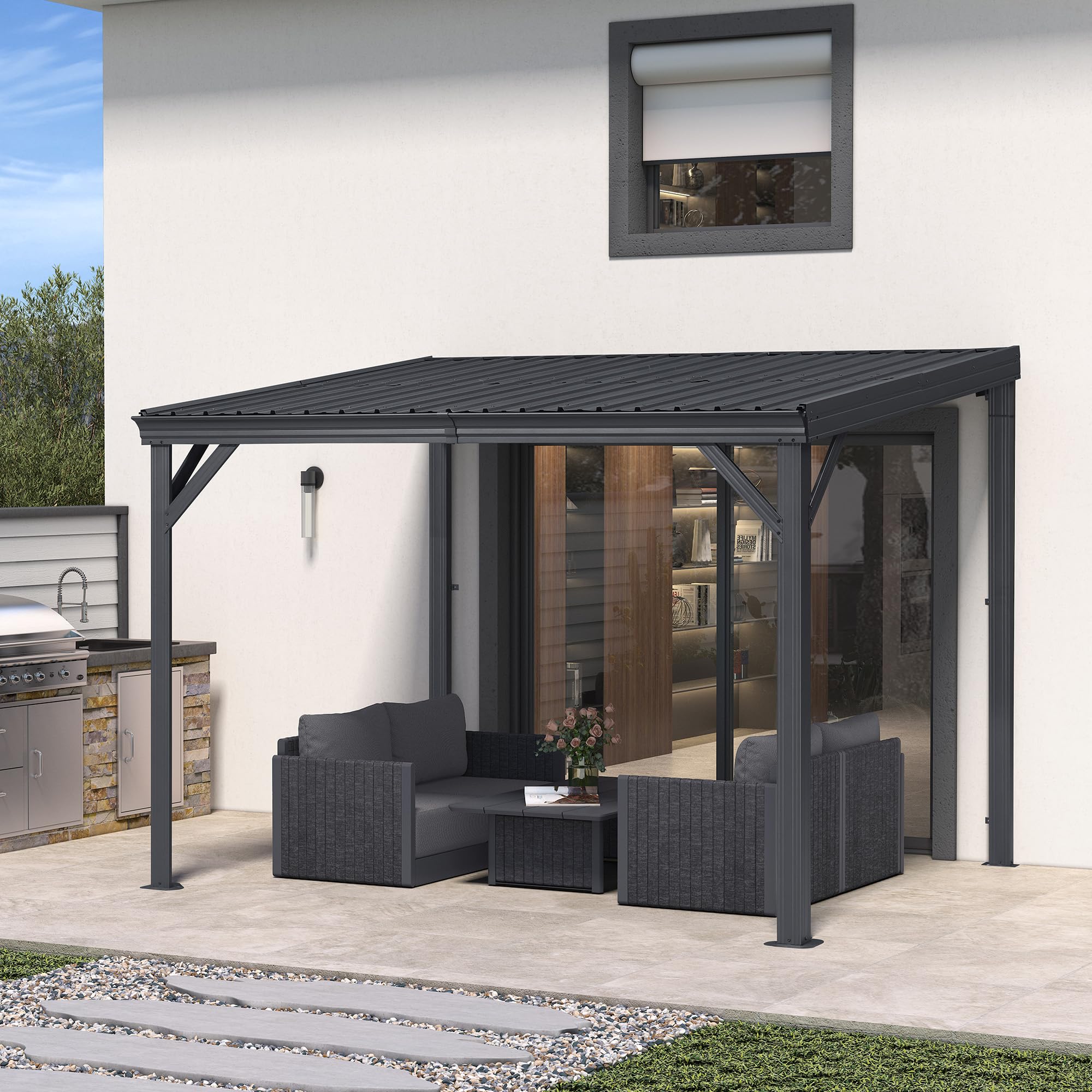

Image: The PURPLE LEAF 8' x 10' Lean-to Gazebo fully assembled and attached to a residential building, showcasing its design and integration with the outdoor space.

Image: A close-up view of a gazebo post base with two bolts securing it to the ground, illustrating the importance of ground anchoring for stability.

Image: A technical diagram illustrating the dimensions of the 8' x 10' wall-mounted gazebo, including length, width, and height measurements for planning installation.

Operation and Use

Your PURPLE LEAF Lean-to Gazebo is designed for year-round outdoor living, providing a shaded and sheltered area for various activities.

General Use:

• The gazebo provides shade and protection from light rain, making it suitable for dining, grilling, or relaxation.
• The sloped roof and integrated drainage system are designed to manage rainwater effectively, preventing pooling.
• The structure is built to withstand heavy snow loads (up to 7 inches depth) and wind resistance up to Level 7. However, in extreme weather conditions, it is advisable to take precautions.

Connecting Multiple Units:

If you have purchased connector kits, 8' x 8' and 8' x 10' units can be joined side-by-side to create a larger covered area. Refer to the separate instructions provided with the connector kit for detailed assembly.

Image: A view from inside a house looking out onto a patio covered by the PURPLE LEAF gazebo, furnished with outdoor seating, demonstrating its use as an extended living space.

Image: The gazebo providing shelter for a barbecue grill and a small outdoor dining set, highlighting its versatility for various outdoor activities.

Image: A split image demonstrating the gazebo's resilience, with one side showing it enduring wind (Level 7 rating) and the other side showing it supporting a maximum snow depth of 7 inches.

Maintenance

Regular maintenance will extend the life and appearance of your gazebo.

Cleaning:

• Clean the metal roof and frame periodically with mild soap and water. Rinse thoroughly with clean water.
• Avoid using abrasive cleaners, scrub brushes, or bleach, as these can damage the finish.
• Regularly clear leaves, debris, and snow from the roof to ensure proper drainage and prevent excessive load.

Structural Inspection:

• Periodically check all bolts and fasteners to ensure they are tight. Re-tighten as needed.
• Inspect the ground anchors for any signs of loosening or damage, especially after strong winds.
• Check the roof panels for any signs of damage or misalignment that could affect water resistance.

Image: A composite image detailing the gazebo's water management system, showing the sloped roof for runoff, the gutter collecting water along the front edge, and a downspout directing water to ground level.

Image: A close-up view of the gazebo's galvanized steel and powder-coated roof, highlighting its durable construction designed for lasting shelter and weather resistance.

Troubleshooting

Specifications

Warranty Information

For specific warranty details regarding your PURPLE LEAF Lean-to Gazebo, please refer to the warranty card included with your product packaging or visit the official PURPLE LEAF website. Keep your proof of purchase for any warranty claims.

Customer Support

If you have any questions about assembly, missing parts, or product operation, please contact PURPLE LEAF customer support. Contact information can typically be found on the product packaging, the official brand website, or through your retailer.

For online resources, you may visit the PURPLE LEAF Store on Amazon.
