PASYOU Adjustable Squat Power Rack SR30Pro User Manual

1. Safety Information

Before using the PASYOU Adjustable Squat Power Rack, please read and understand all safety instructions. Failure to follow these instructions may result in serious injury or property damage.

• Consult a Physician: Always consult with a healthcare professional before starting any new exercise program.
• Proper Assembly: Ensure all components are correctly assembled and all bolts are securely tightened before use. Refer to the assembly instructions carefully.
• Weight Capacity: Do not exceed the maximum weight capacities. The rack supports up to 2400 lbs total capacity, with 1800 lbs on the lower position and 600 lbs on the J-hooks.
• Stable Surface: Place the squat rack on a flat, stable, and non-slip surface. Ensure adequate clearance around the equipment for safe movement.
• Inspect Before Use: Before each workout, inspect the rack for any signs of wear, damage, or loose components. Do not use if any part is damaged.
• Spotter Recommended: For heavy lifts, especially squats and bench presses, always use a spotter.
• Children and Pets: Keep children and pets away from the equipment during use.
• Proper Technique: Use proper lifting techniques to prevent injury. If you are unsure, seek guidance from a qualified fitness instructor.

2. Package Contents

Verify that all parts are present and undamaged before beginning assembly. If any parts are missing or damaged, contact customer support.

• Main Frame Components (Uprights, Base Supports)
• J-Hooks (2 units)
• Safety Spotter Arms (2 units)
• Dumbbell Storage Pegs (2 units)
• Push-up Handles (integrated or attachable)
• Assembly Hardware (bolts, washers, nuts)
• Tools for Assembly (wrenches)
• User Manual

3. Assembly Instructions

Assembly typically requires two people. Follow the steps below carefully. A ratcheting socket wrench (not included) may expedite the process.

1. Unpack and Identify Parts: Lay out all components and hardware. Compare them with the parts list to ensure everything is present.
2. Attach Base Supports: Secure the main uprights to the base support frames using the provided bolts and washers. Do not fully tighten bolts until all major components are in place.
3. Install Crossbars: Connect the uprights with any horizontal crossbars as indicated in the diagram.
4. Attach J-Hooks and Safety Spotter Arms: Insert the J-hooks and safety spotter arms into the desired height positions on the uprights. Ensure they are securely locked in place.
5. Install Dumbbell Storage Pegs: Attach the dumbbell storage pegs to the designated locations on the frame.
6. Final Tightening: Once all components are loosely assembled, go back and securely tighten all bolts. Ensure the rack is stable and level.

4. Operating Instructions

4.1 Adjusting Height and Width

The PASYOU Squat Power Rack features adjustable height settings for the J-hooks and safety spotter arms, and adjustable width for the main frame to accommodate various exercises and user heights.

• Height Adjustment: To adjust the height of the J-hooks or safety spotter arms, pull out the locking pin, slide the component to the desired numbered hole on the upright, and re-insert the pin securely. Ensure both sides are adjusted to the same height.
• Width Adjustment: The main frame can be adjusted in width. Loosen the securing bolts on the connecting bars, slide the uprights to the desired width, and re-tighten the bolts firmly.

4.2 Exercise Applications

This multi-functional rack supports a variety of strength training exercises:

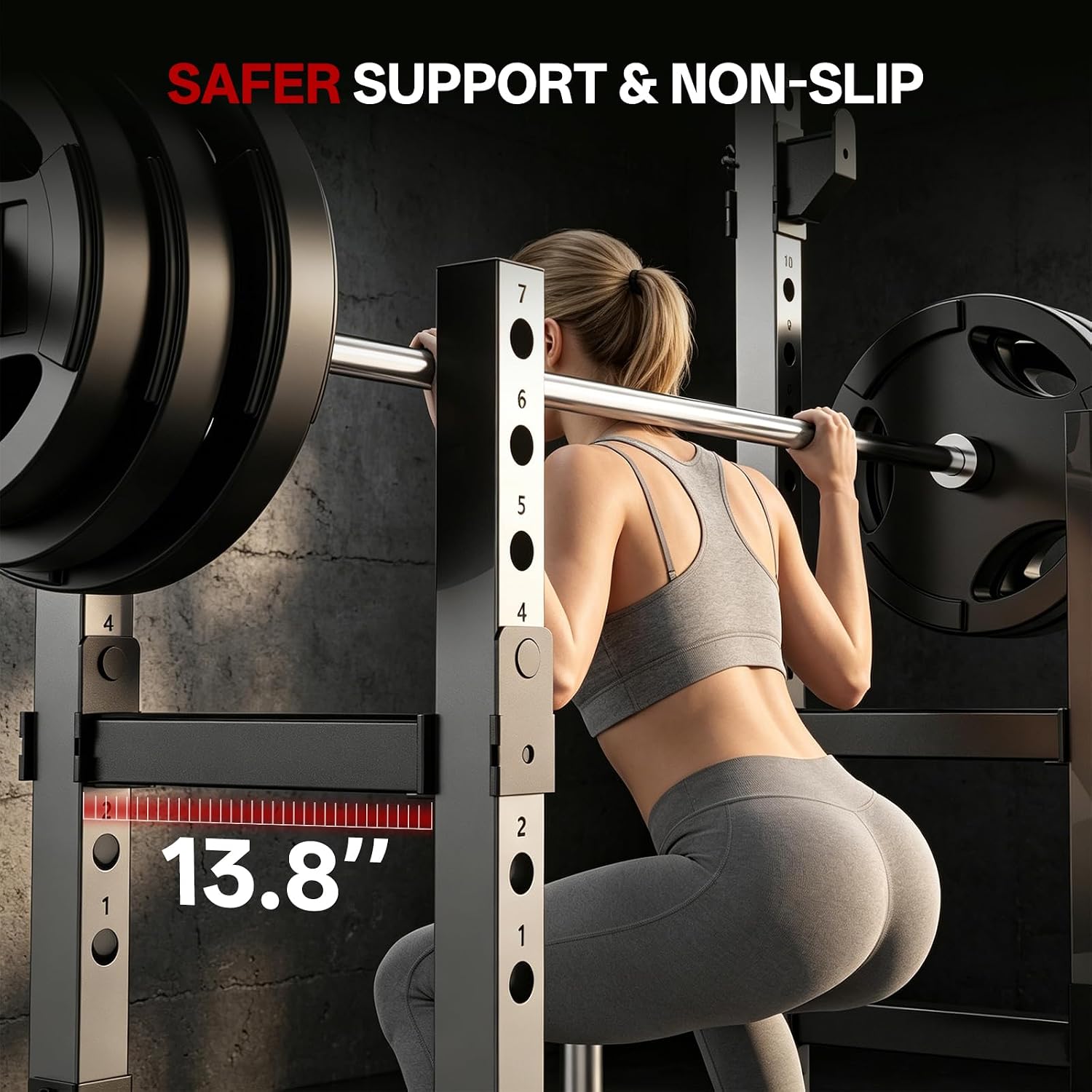

• Squats: Position the J-hooks at shoulder height. Load the barbell and perform squats with the safety spotter arms set just below your lowest squat point.
• Bench Press: Use with a weight bench. Position the J-hooks at a height that allows you to unrack and re-rack the barbell comfortably. Set safety spotter arms to protect against failed lifts.
• Dips: Utilize the built-in push-up handles or specific dip attachments if available.
• Push-ups: The integrated push-up handles provide an elevated grip for various push-up variations.
• Dumbbell Storage: Use the side pegs to store standard 2-inch weight plates, keeping your workout area organized.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your squat rack.

• Clean Regularly: Wipe down the frame with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners.
• Check Bolts and Connections: Periodically inspect all bolts, nuts, and connections. Tighten any loose hardware to maintain stability.
• Inspect for Wear: Check J-hooks, safety spotter arms, and foot pads for signs of wear or damage. Replace worn parts immediately.
• Lubrication: If adjustment mechanisms become stiff, apply a small amount of silicone-based lubricant to the moving parts.

6. Troubleshooting

If you encounter issues with your squat rack, refer to the following common solutions:

• Rack Feels Unstable:
  • Ensure all assembly bolts are fully tightened.
  • Verify the rack is placed on a level surface. Adjust foot pads if necessary.
• Difficulty Adjusting Height:
  • Check for any obstructions in the adjustment holes.
  • Ensure the locking pin is fully disengaged before attempting to slide components.
  • Apply a small amount of lubricant to the sliding surfaces if they are stiff.
• Squeaking Noises:
  • Tighten all bolts. Loose connections can cause noise.
  • Inspect contact points between metal parts and apply lubricant if needed.

If problems persist, contact PASYOU customer support for assistance.

7. Specifications

8. Warranty and Support

PASYOU is committed to providing quality products and customer satisfaction.

• Warranty: All PASYOU products come with a 12-month quality protection warranty.
• Customer Support: If you have any questions, require assistance with setup, product use, or need free replacements for any issues, please contact our team through Amazon with your order details. We aim to provide prompt assistance.
