Faber FAO FryMax 14D BK 14L Air Fryer Oven User Manual

1. Introduction

Thank you for choosing the Faber FAO FryMax 14D BK 14-liter Air Fryer Oven. This versatile appliance is designed for baking, roasting, frying, and more, offering a spacious 14-liter capacity suitable for family cooking. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new air fryer oven. Please read all instructions carefully before first use and retain this manual for future reference.

Image 1.1: The Faber FAO FryMax 14D BK 14L Air Fryer Oven, showcasing its generous capacity and sleek design.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons. Read all instructions before using this appliance.

• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance body in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure adequate ventilation around the appliance during operation.

3. Product Components and Accessories

The Faber FAO FryMax 14D BK Air Fryer Oven comes with several accessories to enhance your cooking experience. Familiarize yourself with each component:

• Main Unit: The air fryer oven body with digital control panel and viewing window.
• Baking Tray: For baking, roasting, or collecting drips.
• Air Fry Basket: For air frying foods like fries, chicken wings, etc.
• Crumb Tray: Catches crumbs and food debris at the bottom of the oven for easy cleaning.
• Tray Handle: For safely inserting and removing hot trays and baskets.
• Wire Rack: For general baking or supporting other accessories.

Image 3.1: View of the included cooking accessories: baking tray, air fry basket, crumb tray, tray handle, and wire rack.

4. Setup and First Use

Follow these steps to prepare your air fryer oven for its first use:

1. Unpack: Carefully remove all packaging materials, stickers, and labels from the appliance and its accessories.
2. Clean: Wash all removable parts (baking tray, air fry basket, crumb tray, wire rack, tray handle) in warm, soapy water. Wipe the interior and exterior of the main unit with a damp cloth. Dry all parts thoroughly.
3. Placement: Place the air fryer oven on a stable, level, heat-resistant surface, ensuring at least 10-15 cm of clear space on all sides and above for proper ventilation. Do not place it near flammable materials.
4. Power Connection: Plug the power cord into a grounded electrical outlet.
5. Initial Burn-in (Optional but Recommended): To eliminate any manufacturing odors, operate the empty oven at 200°C for approximately 15-20 minutes. A slight odor or smoke may be present; this is normal. Ensure the area is well-ventilated.

5. Operating Instructions

The Faber FAO FryMax 14D BK features intuitive digital controls and a rotary knob for precise adjustments.

5.1 Control Panel Overview

Image 5.1: The digital touch control panel and rotary knob for setting time, temperature, and selecting presets.

The control panel includes a digital display for time and temperature, touch buttons for various functions, and a rotary knob for fine-tuning settings.

5.2 Basic Operation

1. Power On/Off: Press the power button (U) to turn the appliance on or off.
2. Setting Temperature: Use the temperature control button and the rotary knob to set the desired temperature between 38°C and 220°C.
3. Setting Time: Use the timer control button and the rotary knob to set the cooking time from 0 to 180 minutes.
4. Start/Pause: Press the Start/Pause button to begin or temporarily stop the cooking cycle.

5.3 Using Preset Functions

The oven features 12 preset functions for common dishes. To use a preset:

1. Turn on the oven.
2. Press the 'Preset' button to cycle through the available options.
3. Once the desired preset is selected, the oven will automatically set the optimal time and temperature.
4. Press the Start/Pause button to begin cooking.

Image 5.2: The 12 preset menu icons on the digital control panel, including options for Fish, Bread, Chicken, Wings, Steak, Fries, Cake, Seafood, Pizza, Toast, Defrost, and Keep Warm.

5.4 Convection Function and Heating Elements

The oven utilizes 5 stainless steel heating elements (3 upper, 2 lower) and a powerful convection fan for uniform cooking. The fan circulates hot air, ensuring faster cooking and even browning.

Image 5.3: Illustration of the 5 stainless steel heating elements and the convection fan for balanced heat distribution.

5.5 Rack Positions

The oven offers three rack positions for greater cooking flexibility, allowing you to adjust based on food size and desired browning.

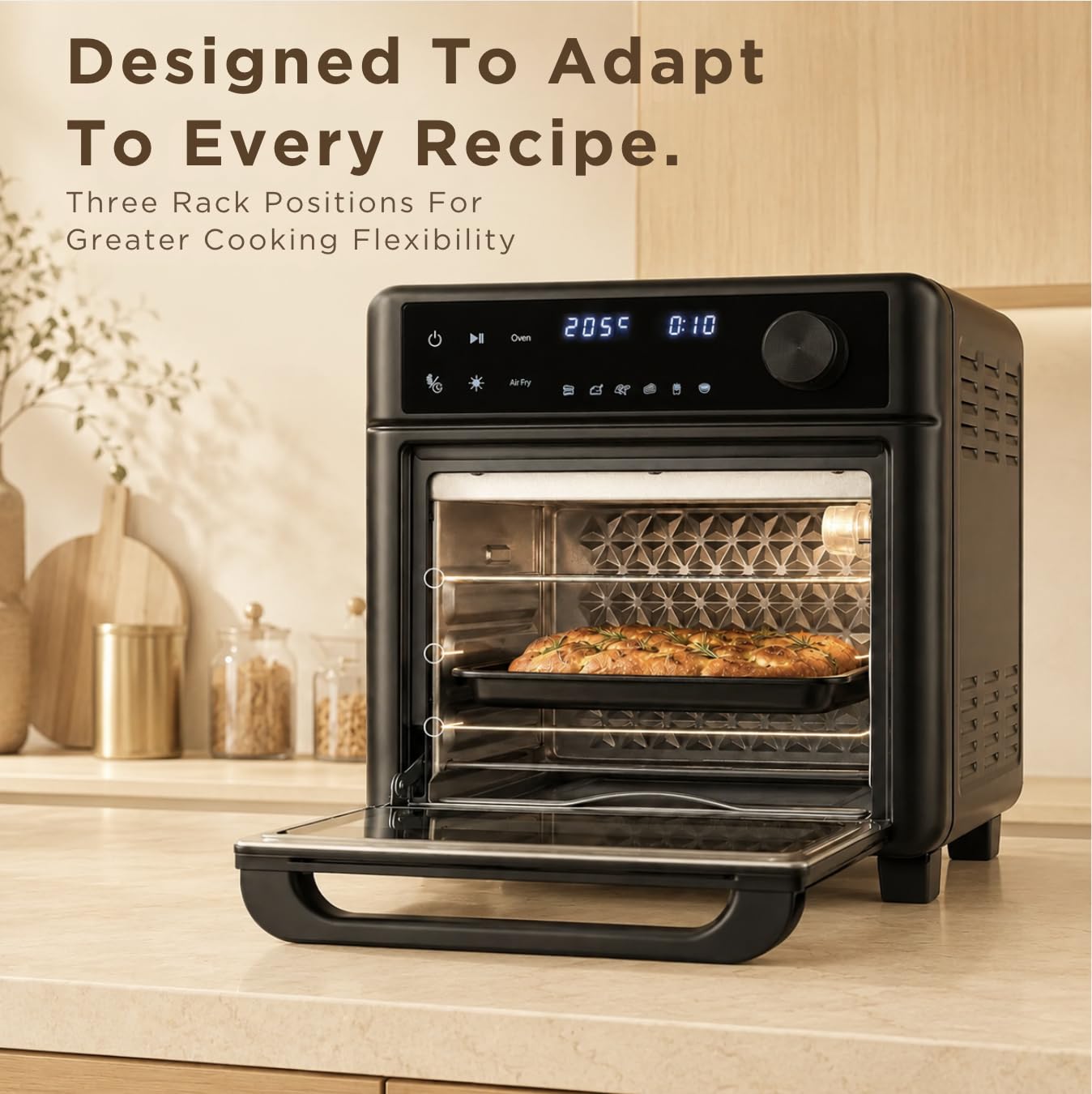

Image 5.4: The interior of the oven demonstrating the three available rack positions for versatile cooking.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your appliance.

1. Unplug and Cool: Always unplug the air fryer oven from the power outlet and allow it to cool completely before cleaning.
2. Removable Parts: The baking tray, air fry basket, crumb tray, wire rack, and tray handle are dishwasher safe. Alternatively, wash them in warm, soapy water using a non-abrasive sponge. Rinse thoroughly and dry.
3. Interior: Wipe the interior walls with a damp cloth and mild detergent. For stubborn food residue, use a non-abrasive cleaner. Avoid using metal scouring pads or harsh chemicals.
4. Exterior: Wipe the exterior with a damp cloth. Do not immerse the main unit in water or any other liquid.
5. Crumb Tray: Empty and clean the crumb tray regularly to prevent grease buildup and potential fire hazards.

Image 6.1: Dishwasher-safe accessories, including the baking tray and air fry basket, for easy cleaning.

7. Troubleshooting

If you encounter issues with your air fryer oven, refer to the following table for common problems and solutions.

8. Specifications

9. Warranty and Support

Faber products are manufactured to high-quality standards. For warranty information, please refer to the warranty card included with your product or contact Faber customer service.

Customer Support:

For any queries, service requests, or technical assistance, please contact:

• Manufacturer: Franke Faber India PVT LTD
• Contact Number: 1800-209-3486
• Address: 1086/1/2, SANASWADI, TAL - SHIRUR, PUNE - 412208, MAHARASHTRA, INDIA
