Einhomn 1980A1

Einhomn Twin Low Loft Bed with 8 Drawers and Bookshelf Instruction Manual

Model: 1980A1

1. Important Safety Information

Please read and understand all instructions before assembling and using this product. Failure to follow these instructions may result in serious injury. Keep this manual for future reference.

  • Adult Supervision: Always ensure children are supervised when using the loft bed, especially the top bunk and ladder.
  • Weight Capacity: The top bunk is designed to support a maximum weight of 330 lbs. Do not exceed this limit.
  • Mattress Thickness: Use a twin mattress with a recommended thickness of 4-6 inches on the top bunk to ensure the safety guardrail is effective.
  • Guardrails: The bed features a 13-inch high full-length guardrail. Ensure it is always securely in place.
  • Anti-Tip Wall Anchors: For maximum stability and safety, always install the included anti-tip wall anchors to secure the bed firmly to the wall.
  • Ladder Safety: The ladder features wide, anti-slip steps and rounded edges for safe climbing. Ensure children use the ladder properly.
  • Regular Checks: Periodically check all bolts, screws, and connections to ensure they are tight and secure. Retighten as necessary.
  • No Jumping: Do not allow jumping on the bed.
  • Ventilation: Ensure adequate ventilation in the under-bed play area.
Image showing a child and adult on the loft bed, highlighting safety features like the full-length guardrail, anti-tip wall anchors, and child-safe rounded edges.
Figure 1: Safety features of the Einhomn Low Loft Bed, including guardrails and anti-tip anchors.
Close-up image of an anti-tip bracket securely fastened to a wall, demonstrating maximum stability for the bed.
Figure 2: Detail of the anti-tip mechanism for enhanced stability.
Close-up image of a bed leg with a protective floor pad, illustrating non-slip and quiet design features.
Figure 3: Protective floor pads for non-slip and quiet operation.

2. Product Overview

The Einhomn Twin Low Loft Bed is designed to maximize space in children's bedrooms, offering a sleeping area, integrated storage, and a play space. It features a sturdy metal frame, 8 fabric storage drawers, a built-in bookshelf, and an under-bed area that can be used as a cozy hideaway with a play curtain.

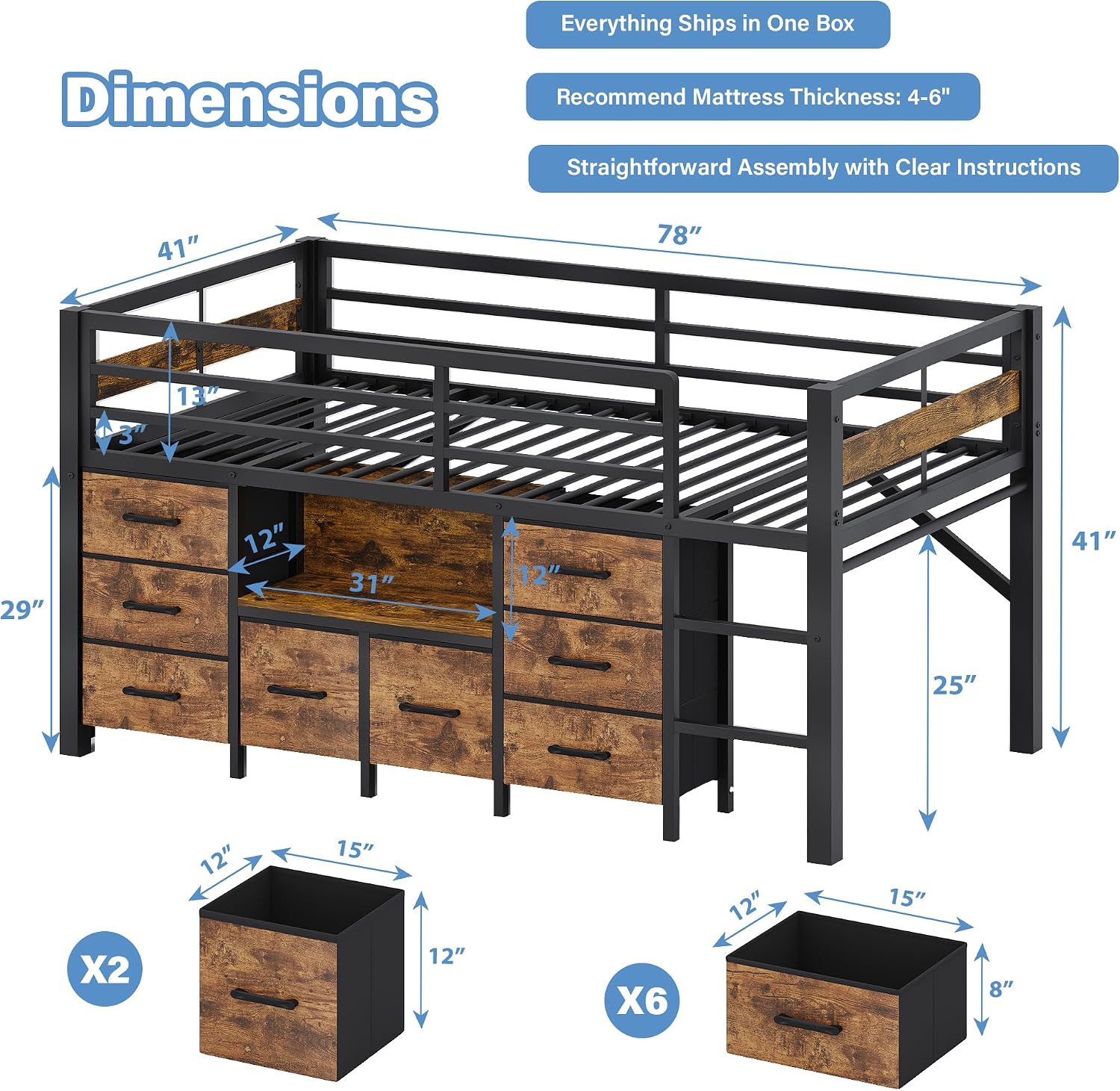

Detailed diagram showing the dimensions of the Einhomn Twin Low Loft Bed, including length, width, height, and specific measurements for the drawers and bookshelf.
Figure 4: Product dimensions and recommended mattress thickness (4-6 inches).
Image showcasing the integrated bookshelf and eight storage drawers of the loft bed, filled with books, toys, and clothes.
Figure 5: Integrated bookshelf and storage drawers for organization.
Image depicting two children playing in the under-bed area, which is covered by a privacy curtain, creating a secret base or cozy nook.
Figure 6: The under-bed play area with privacy curtain.
Image showing a built-in hanging rod for clothes and a clear view window in the play curtain, allowing for parental supervision.
Figure 7: Built-in hanging rod and clear view window feature.

Video 1: An overview of the Einhomn Low Loft Bed, showcasing its features and design.

3. Setup and Assembly

The Einhomn Twin Low Loft Bed is designed for straightforward assembly. All necessary tools and labeled parts are included in one carton. Assembly typically requires two adults and can be completed in under an hour by following the detailed instructions provided in the video below.

Assembly Steps:

  1. Unpack all components and verify against the parts list (not provided in this manual, refer to included paper manual).
  2. Follow the step-by-step video guide for connecting the frame pieces.
  3. Attach the metal slats to form the bed base, ensuring quiet-lock buckles are secure.
  4. Assemble and install the storage drawers and bookshelf unit.
  5. Securely attach the safety guardrails and the ladder.
  6. Install the anti-tip wall anchors as instructed in the safety section.
  7. Place the play curtain around the under-bed area.

Video 2: Detailed assembly guide for the Einhomn Low Loft Bed.

Image showing the full-length guardrail on the top bunk and a close-up of the reinforced metal slat structure for a stable foundation.
Figure 8: Reinforced structure with quiet-lock buckles for a stable foundation.
Image highlighting the wide, anti-slip steps of the ladder for safe and easy climbing.
Figure 9: Safe and easy climb ladder design.

4. Operating Instructions

This low loft bed offers multiple functionalities for sleeping, storage, and play.

Using the Top Bunk:

  • Ensure a twin mattress of 4-6 inches thickness is used.
  • Always use the ladder to access the top bunk. Do not climb on the frame.
  • The full-length guardrail provides safety during sleep and play.

Utilizing Storage and Bookshelf:

  • The 8 fabric bins slide smoothly in and out, providing ample space for clothes, toys, and other items.
  • The central bookshelf is ideal for books, lamps, and small decorative items.
  • The side hanging organizer can be used for pajamas or daily outfits.

Under-Bed Play Area:

  • The space beneath the bed, enclosed by the play curtain, creates a cozy hideaway for reading, quiet time, or imaginative play.
  • The clear view window in the curtain allows for easy parental supervision.
Image displaying the ultimate storage combination of the bed, with eight drawers and a central shelf filled with various items.
Figure 10: The ultimate storage combination with drawers and a central shelf.
Image showing a child peeking out of the window nook in the play curtain, highlighting the playful design.
Figure 11: Kids playful window nook for interaction and supervision.

5. Maintenance

Proper maintenance will extend the life and ensure the safety of your Einhomn Low Loft Bed.

  • Cleaning the Frame: Wipe the metal and wood surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that could damage the finish.
  • Cleaning Fabric Bins: The fabric bins can be spot cleaned with a mild detergent and water. Allow to air dry completely before returning to the bed.
  • Hardware Check: Periodically (e.g., monthly) inspect all bolts, screws, and connections. Tighten any loose hardware to maintain structural integrity and prevent squeaking.
  • Rust Prevention: The steel frame is rust-resistant. However, avoid prolonged exposure to moisture to prevent any potential rust formation.
  • Mattress Care: Follow the manufacturer's guidelines for mattress care. Rotate and flip the mattress regularly if recommended.

6. Troubleshooting

If you encounter any issues with your loft bed, refer to the following common troubleshooting tips:

  • Squeaking Noises: If the bed makes squeaking noises, it is usually due to loose connections. Re-tighten all bolts and screws on the frame and slats. The bed is designed with rubber cushion strips to minimize noise, so ensure these are properly seated.
  • Instability/Wobbling: Ensure all frame components are correctly assembled and all bolts are fully tightened. Verify that the anti-tip wall anchors are securely installed and engaged with the wall.
  • Drawers Not Sliding Smoothly: Check for any obstructions in the drawer tracks. Ensure the fabric bins are not overfilled or misshapen.
  • Missing Parts: If you find any parts missing during assembly, please contact Einhomn customer support immediately.

7. Specifications

FeatureDetail
SizeTwin Low Loft
ColorRustic Brown
MaterialMetal & MDF Board
Assembled Dimensions (L x W x H)78" x 41" x 41"
Weight Capacity (Top Bunk)330 lbs
Number of Drawers8
Recommended Mattress Thickness4-6 inches
Box Spring RequiredNo
Included ComponentsBed frame, 8 drawers, bookshelf, guardrails, installation manual
Model Number1980A1
Image showing the Einhomn Low Loft Bed with a detailed specifications box overlay, listing size, color, material, dimensions, weight capacity, and other features.
Figure 12: Visual representation of product specifications.

8. Warranty and Support

For any questions regarding assembly, missing parts, or product issues, please contact Einhomn customer support. Refer to the original packaging or purchase documentation for specific warranty details and contact information.
