1. Introduction
Thank you for choosing the Hapali A11 Electric Scooter. This manual provides essential information for the safe operation, assembly, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride to ensure proper use and to maximize your riding experience.
2. Safety Information
Your safety is paramount. Always adhere to local traffic laws and regulations. This scooter is designed for adults and has a maximum load capacity of 120 kg. Exceeding this limit may compromise performance and safety.
- Always wear a helmet and appropriate protective gear (knee pads, elbow pads) when riding.
- Perform a pre-ride check: ensure brakes are functional, tires are properly inflated, and all quick-release mechanisms are secure.
- Avoid riding in heavy rain, on slippery surfaces, or in extreme weather conditions. The scooter has IPX5 water resistance, protecting against partial water jets, but is not designed for immersion.
- Maintain a safe distance from other vehicles and pedestrians.
- Do not perform stunts or ride recklessly.
- The Hapali A11 Electric Scooter is UL2272 certified, ensuring compliance with electrical safety standards.
3. Package Contents
Upon unpacking, please verify that all items are present and in good condition:
- Hapali A11 Electric Scooter
- Power Adapter/Charger
- User Manual
- Assembly Tools (if required)
4. Setup and Assembly
Your Hapali A11 Electric Scooter arrives approximately 90% assembled. Follow these steps to complete the setup:
- Unfold the Scooter: Carefully lift the stem and secure the folding mechanism until it locks into place.
- Attach the Handlebar: Insert the handlebar into the stem and tighten the screws using the provided tools. Ensure it is firmly secured and does not wobble.
- Initial Charge: Before your first ride, fully charge the scooter's battery. Connect the charger to the charging port and plug it into a power outlet. The charging indicator will show when charging is complete (typically 5-8 hours).
- Tire Pressure Check: Ensure both 11-inch pneumatic tires are inflated to the recommended pressure.
Image: The Hapali A11 Electric Scooter shown folded and unfolded, with key dimensions for storage and use. It highlights the quick-fold mechanism for easy portability.
5. Operating Instructions
Familiarize yourself with the controls and riding modes before operating the scooter.
5.1 Controls Overview
Image: Close-up view of the Hapali A11 handlebar, indicating the location of the headlight switch, turn signal switch, horn, power button, and speed adjustment buttons.
- Power Button: Press and hold to turn the scooter on/off.
- Accelerator: Use the throttle to control speed.
- Brake Levers: Located on both sides of the handlebar, activate the dual disc brakes for stopping.
- Headlight Switch: Controls the 3-mode LED headlight (strong, weak, flashing).
- Turn Signal Switch: Activates the amber side LEDs and rear turn signals.
- Electric Horn: Press to alert pedestrians or other riders.
5.2 Riding Modes
The Hapali A11 offers multiple speed modes to suit different riding conditions:
- Eco Mode: Up to 20 km/h, maximizes battery range (up to 50 km). Ideal for longer commutes and energy efficiency.
- Sport Mode: Up to 50 km/h, provides maximum power and speed. Suitable for experienced riders on open roads.
Image: A rider on the Hapali A11 Electric Scooter demonstrating different speed modes (Eco, Driving, Sport) and their corresponding ranges. The image also shows the scooter's dimensions.
5.3 Lighting System
The scooter features a comprehensive 360° lighting system for visibility day and night.
- Bright LED Headlight: Illuminates the path ahead with strong, weak, and flashing modes.
- Amber Turn Signals and Side LEDs: Enhance side visibility and indicate turns.
- Potent Brake Light: Activates brightly when braking to alert following traffic.
Image: The Hapali A11 Electric Scooter at night, showcasing its bright LED headlight, amber side lights, and rear brake light for 360-degree visibility.
5.4 USB Charging Port
A smart USB port is integrated into the handlebar, allowing you to charge your mobile phone while riding. Note that charging devices during use may slightly reduce the scooter's overall range.
Image: A close-up of the Hapali A11 handlebar showing the integrated USB charging port with a phone connected, illustrating its intelligent design.
6. Charging
The Hapali A11 is equipped with a 48V 15Ah long-duration battery, providing a maximum range of up to 50 km in Eco mode. A full recharge typically takes 5 to 8 hours.
- Always use the original charger provided with your scooter.
- Ensure the charging port is clean and dry before connecting the charger.
- Do not leave the scooter charging unattended for extended periods.
- For optimal battery life, avoid completely draining the battery before recharging.
Image: Detailed view of the Hapali A11's 48V 15Ah battery pack, highlighting its long duration, 6-8 hour recharge time, and 50 km maximum range.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
- Cleaning: Wipe the scooter with a damp cloth. Do not use high-pressure water jets or immerse the scooter in water.
- Tires: Regularly check the pressure of the 11-inch pneumatic all-terrain tires. Proper inflation improves ride quality and range.
- Brakes: Inspect the dual disc brakes for wear and tear. Ensure they respond effectively. Adjust if necessary.
- Suspension: The dual suspension system requires minimal maintenance, but ensure no visible damage or excessive play.
- Storage: Store the scooter in a cool, dry place away from direct sunlight and extreme temperatures. If storing for extended periods, charge the battery to about 50-70% and recharge every 30-60 days.

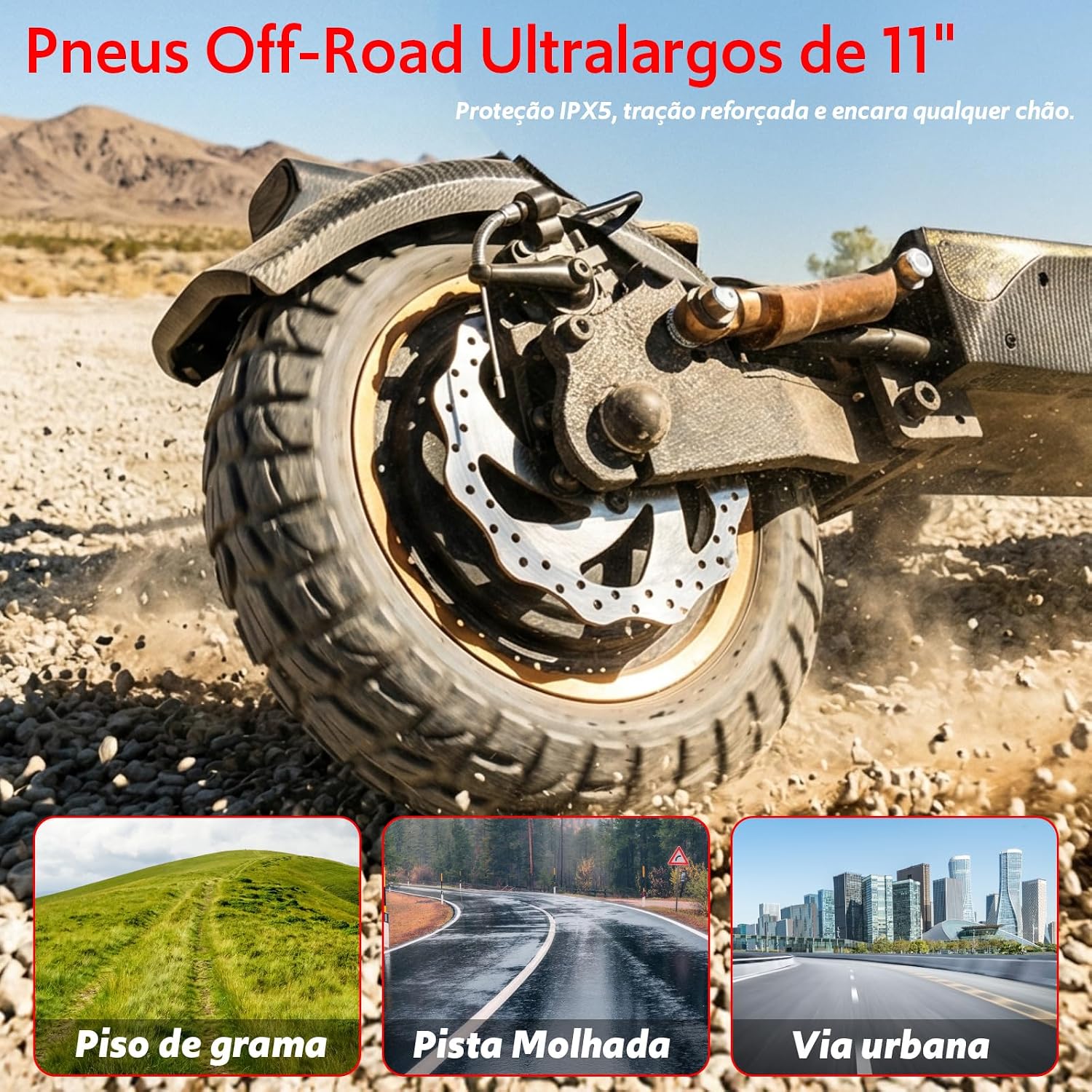

Image: Close-up of the Hapali A11's 11-inch off-road tires, demonstrating their robust tread suitable for various terrains like grass, wet tracks, and urban roads.
8. Troubleshooting
If you encounter issues with your Hapali A11 Electric Scooter, refer to the following common solutions:
- Scooter does not power on: Ensure the battery is charged. Check all cable connections.
- Reduced range or power: Verify tire pressure. Ensure the battery is fully charged. Riding in Sport mode or on inclines will consume more power.
- Brakes not responding: Check brake lever tension and disc brake pads for wear. Adjust or replace as needed.
- Unusual noises: Inspect for loose components or foreign objects caught in the wheels or motor area.
For persistent issues or problems not listed here, please contact Hapali customer support.
9. Specifications
| Brand | Hapali |
| Model Name | A11 |
| Motor Power (Peak) | 1200W Brushless |
| Max Torque | 25 Nm |
| Max Speed | 50 km/h |
| Max Range | 50 km (Eco Mode) |
| Battery | 48V 15Ah |
| Charging Time | 5-8 Hours |
| Max Load Capacity | 120 kg |
| Scooter Weight | 23 kg |
| Wheel Size | 28 cm (11 inches) |
| Tire Type | Pneumatic All-Terrain |
| Suspension | Dual Suspension |
| Brake System | Dual Disc Brakes, Electronic Brakes |
| Foldable | Yes |
| Max Incline | 30° |
| Water Resistance | IPX5 |
| Certifications | UL2272, RoHS, GCC |
| UPC | 717944821126 |
Image: A composite image showing various components of the Hapali A11 Electric Scooter, including front and rear disc brakes, side lights/turn signals, 1200W motor, 11-inch off-road tires, 48V 15Ah battery, and dual shock absorbers.
10. Warranty and Support
The Hapali A11 Electric Scooter comes with a 90-day limited warranty from the date of purchase. This warranty covers manufacturing defects under normal use conditions.
- For warranty claims, please retain your proof of purchase.
- The warranty does not cover damage caused by misuse, accidents, unauthorized modifications, or normal wear and tear.
Customer Support
Hapali offers 24/7 customer support to assist you with any questions or issues regarding your scooter. Please refer to the contact information provided on the product packaging or the official Hapali website for assistance.
