VASAGLE Wall Mounted Cabinet UBBK320WB01S Instruction Manual

Introduction

This manual provides detailed instructions for the assembly, installation, operation, and maintenance of your VASAGLE Wall Mounted Cabinet, Model UBBK320WB01S. This cabinet features two doors and adjustable shelves, offering versatile storage for various items. Please read all instructions carefully before beginning assembly and installation.

Image: The VASAGLE Wall Mounted Cabinet (UBBK320WB01S) with its two doors open, revealing two adjustable shelves inside. The cabinet is white with simple, clean lines.

Safety Information

• Mounting hardware for drywall is included. For other wall types (e.g., concrete, brick), use appropriate hardware. Consult a professional if you are unsure about the correct hardware or installation method for your wall type.
• Ensure the cabinet is securely mounted to a sturdy wall to prevent tipping or falling.
• Do not exceed the maximum static load capacity of 102 lb (46 kg).
• Keep small parts and packaging materials away from children during assembly.

Package Contents

Verify that all components listed below are present before beginning assembly:

• 1 x Wall Cabinet (disassembled)
• 1 x Accessory Kit (includes screws, dowels, knobs, etc.)
• 1 x Anti-Tip Kit
• 1 x Instructions Manual

Specifications

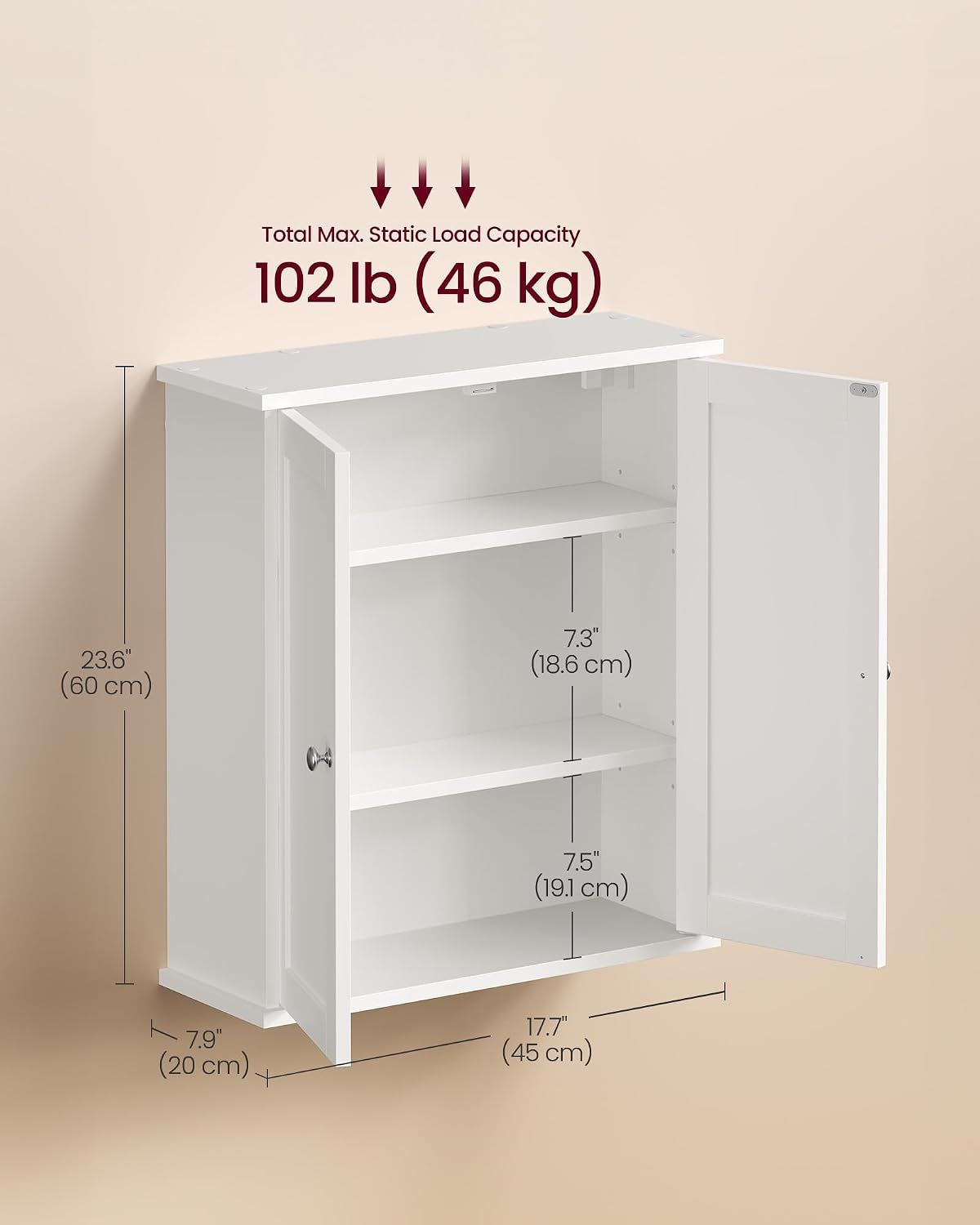

Image: A diagram illustrating the precise dimensions of the cabinet, including depth (7.9 inches), width (17.7 inches), and height (23.6 inches), along with internal shelf spacing.

Setup: Assembly and Installation

1. Assembly

1. Unpack and Identify Parts: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Refer to the included parts list and diagrams to identify each piece. All parts are typically numbered for easy identification.
2. Assemble the Frame: Follow the step-by-step instructions provided in the accessory kit to connect the side panels, top, and bottom panels using the designated screws and dowels. Ensure all connections are snug and secure.
3. Install Shelves: Insert the shelf support pins into the desired holes on the side panels. The shelves are adjustable and offer 3 height settings. Place the shelves onto the support pins.


Image: A close-up illustration demonstrating how to install the shelves using screws and wooden dowels for a secure fit.

4. Attach Doors: Secure the hinges to the cabinet frame and then attach the doors. Adjust the hinges as needed to ensure the doors align properly and close smoothly.
5. Install Door Knobs and Magnetic Catches: Attach the provided door knobs. Install the magnetic catches inside the cabinet to ensure the doors remain closed.


Image: A detailed view of the magnetic catch mechanism installed on the interior of the cabinet, ensuring doors stay closed.

2. Wall Mounting

6. Choose Location: Select a suitable wall location, ensuring it is free from electrical wires or plumbing. Consider the cabinet's dimensions and desired height.
7. Mark Drilling Points: Hold the assembled cabinet against the wall at the desired height and use a pencil to mark the drilling points for the mounting hardware. Use a level to ensure the marks are straight.
8. Drill Holes: Drill pilot holes at the marked points. Use an appropriate drill bit size for the included wall anchors (for drywall) or for your specific wall type.
9. Insert Anchors: Insert the wall anchors into the drilled holes.
10. Mount Cabinet: Align the cabinet with the anchors and secure it to the wall using the provided screws. Tighten all screws firmly but do not overtighten.
11. Install Anti-Tip Kit: For added safety, install the anti-tip kit according to the instructions. This typically involves securing a strap or bracket from the cabinet to the wall.

Image: The VASAGLE Wall Mounted Cabinet securely installed on a bathroom wall above a toilet, demonstrating a typical installation scenario.

Operating the Cabinet

Adjusting Shelves

The cabinet features two adjustable shelves, each with three height options to accommodate items of varying sizes.

1. Empty the Shelf: Remove all items from the shelf you wish to adjust.
2. Remove Shelf: Carefully lift the shelf and pull it out from the cabinet.
3. Relocate Support Pins: Remove the metal support pins from their current holes. Insert them into the new desired height holes on both side panels, ensuring they are level.
4. Reinsert Shelf: Place the shelf back onto the newly positioned support pins. Ensure it sits securely and evenly.

Image: An illustration demonstrating the adjustable and removable shelves, highlighting the three height options available to fit various items.

Opening and Closing Doors

Gently pull the knobs to open the doors. The magnetic catches will release. To close, push the doors until the magnetic catches engage, holding them securely shut.

Maintenance

• Cleaning: Wipe the cabinet surfaces with a soft, damp cloth. Avoid using harsh chemicals, abrasive cleaners, or excessive moisture, as these can damage the finish.
• Hardware Check: Periodically check all screws and connections to ensure they remain tight. Retighten if necessary to maintain stability.
• Avoid Overloading: Do not place items heavier than the specified maximum load capacity on the shelves or inside the cabinet.

Troubleshooting

Cabinet is Wobbly After Assembly

• Check Connections: Ensure all screws and dowels are fully tightened. Loose connections can cause instability.
• Verify Level Surface: If the wobble occurs before wall mounting, ensure the floor or surface you are assembling on is level.
• Wall Mounting: Proper wall mounting is crucial for stability. Ensure the cabinet is securely fastened to the wall studs or appropriate anchors.

Doors Do Not Close Properly

• Hinge Adjustment: Adjust the hinges on the doors to ensure proper alignment. Most hinges allow for minor adjustments to position the doors correctly.
• Magnetic Catch Alignment: Check if the magnetic catches are properly aligned with the metal plates on the doors. Adjust their position if necessary.
• Obstructions: Ensure no items inside the cabinet are preventing the doors from closing fully.

Warranty and Support

For warranty information or technical support, please refer to the documentation included with your purchase or visit the official VASAGLE website. Keep your purchase receipt and model number (UBBK320WB01S) handy when contacting support.
