Haier JAA-HS226A Room Air Conditioner User Manual

1. Introduction

Thank you for purchasing the Haier JAA-HS226A Room Air Conditioner. This manual provides essential information for the safe and efficient operation, installation, and maintenance of your new air conditioning unit. Please read this manual thoroughly before using the appliance and keep it for future reference.

The Haier JAA-HS226A is a compact, wall-mounted air conditioner designed for rooms up to 6 tatami mats (approximately 2.2kW cooling capacity). Key features include heat exchanger heating sterilization to remove mold, a hydrophilic heat exchanger for dirt removal, automatic swing function for precise airflow control, gentle 2-way dehumidification (soft cool/mild cool), and a monitoring function to maintain comfortable temperatures.

2. Safety Information

WARNING: To reduce the risk of fire, electric shock, or injury, observe the following safety precautions.

• Ensure the unit is installed by a qualified professional in accordance with local electrical and building codes.
• Do not operate the unit with wet hands or when standing on a wet surface.
• Do not insert fingers or objects into the air inlet/outlet.
• Keep flammable materials away from the unit.
• Always disconnect power before cleaning or performing maintenance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

3. Package Contents

Before installation, please verify that all components are present:

• Indoor Unit
• Outdoor Unit
• Remote Control with Batteries
• Installation Plate
• Drain Hose
• Connecting Pipe Set
• User Manual (this document)
• Warranty Card

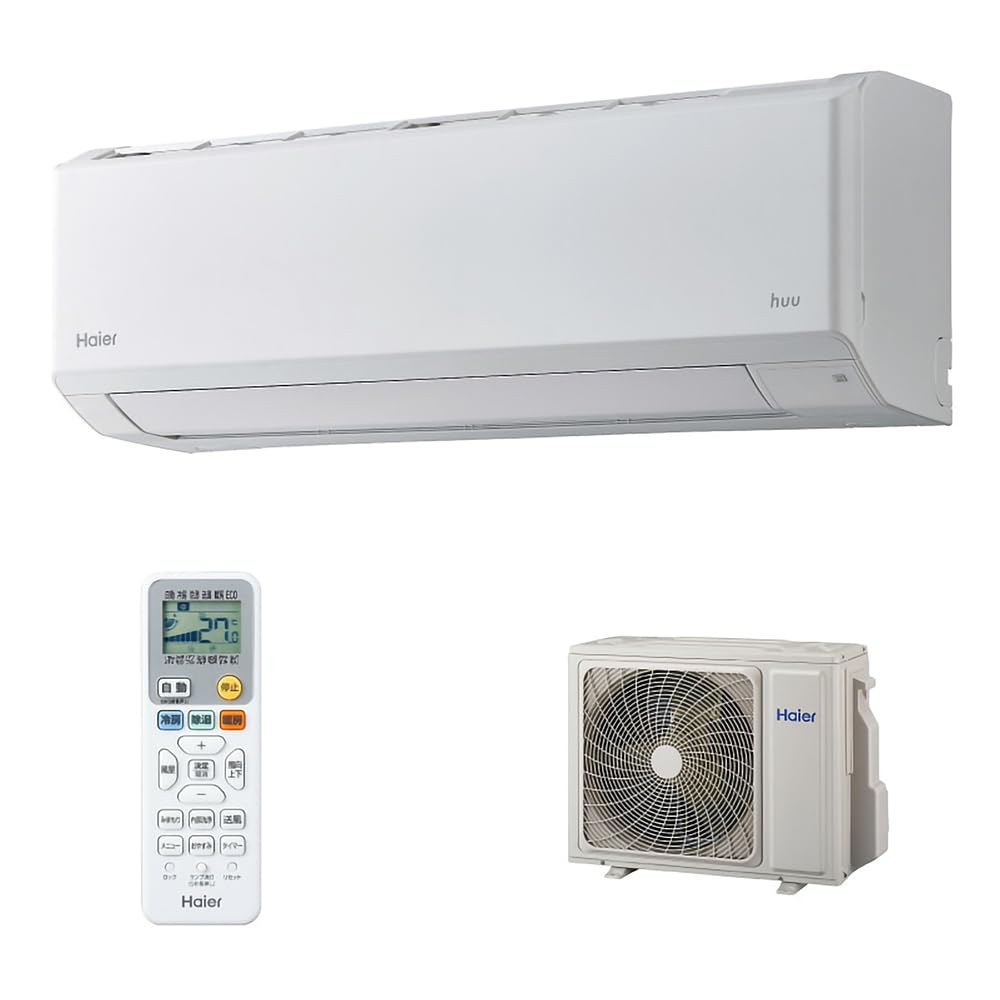

Image 1: Overview of the Haier JAA-HS226A Room Air Conditioner, showing both the indoor and outdoor units.

4. Setup and Installation

IMPORTANT: Installation must be performed by a qualified and certified technician. Improper installation can lead to electric shock, fire, water leakage, and other hazards.

4.1 Choosing an Installation Location

• Select a location that can support the weight of the indoor and outdoor units.
• Ensure adequate space around the indoor unit for proper airflow and maintenance.
• Avoid direct sunlight or heat sources.
• The outdoor unit should be placed in a well-ventilated area, away from obstacles.

4.2 Indoor Unit Installation

1. Mount the installation plate securely on the wall.
2. Drill a hole for the piping and drain hose.
3. Connect the refrigerant pipes and drain hose to the indoor unit.
4. Secure the indoor unit to the installation plate.

4.3 Outdoor Unit Installation

1. Place the outdoor unit on a stable, level surface.
2. Connect the refrigerant pipes and electrical wiring between the indoor and outdoor units.
3. Perform vacuuming and gas leakage checks.

4.4 Electrical Connection

• Ensure the power supply matches the unit's specifications (100V).
• Connect the power cable to a dedicated circuit with appropriate circuit breaker protection.
• Verify all electrical connections are secure and properly insulated.

5. Operating Instructions

Your Haier JAA-HS226A air conditioner is controlled via the included remote control.

5.1 Remote Control Functions

Insert two AAA batteries into the remote control. Point the remote control towards the indoor unit when operating.

• POWER Button: Turns the unit ON or OFF.
• MODE Button: Cycles through operating modes: Auto, Cool, Dry (Dehumidify), Heat, Fan.
• TEMP +/- Buttons: Adjusts the desired temperature.
• FAN Button: Selects fan speed (Auto, Low, Medium, High).
• SWING Button: Activates/deactivates automatic vertical airflow swing. Use to adjust horizontal airflow manually.
• DRY (Dehumidify) Mode: Engages the 2-way dehumidification function for gentle moisture removal.
• MONITOR Function: Activates the monitoring function to maintain optimal room conditions.

5.2 Operating Modes

• Cool Mode: For cooling the room. Set desired temperature between 16°C and 30°C.
• Heat Mode: For heating the room. Set desired temperature between 16°C and 30°C.
• Dry Mode: Reduces humidity in the room.
• Fan Mode: Circulates air without cooling or heating.
• Auto Mode: The unit automatically selects the operating mode based on the room temperature.

6. Maintenance and Care

WARNING: Always turn off the power supply to the unit before performing any cleaning or maintenance.

6.1 Air Filter Cleaning

1. Open the front panel of the indoor unit.
2. Remove the air filters.
3. Clean the filters with a vacuum cleaner or wash them with lukewarm water.
4. Allow filters to dry completely before reinstalling.
5. Clean filters every two weeks or more frequently depending on usage.

6.2 Indoor Unit Exterior Cleaning

• Wipe the unit's exterior with a soft, dry cloth.
• For stubborn dirt, use a damp cloth with a mild detergent, then wipe dry.
• Do not use harsh chemicals, abrasive cleaners, or solvents.

6.3 Heat Exchanger Cleaning (Self-Cleaning Function)

The Haier JAA-HS226A features a heat exchanger heating sterilization and hydrophilic coating. These functions automatically help to keep the heat exchanger clean. For optimal performance, ensure these functions are enabled as per the operating instructions.

7. Troubleshooting

Before contacting service, please check the following common issues and solutions:

If the problem persists after trying these solutions, please contact a qualified service technician.

8. Specifications

9. Warranty and Support

9.1 Warranty Information

This Haier JAA-HS226A air conditioner comes with a manufacturer's initial warranty. Please refer to the included warranty card for specific terms, conditions, and duration of coverage. Keep your purchase receipt as proof of purchase for warranty claims.

9.2 Customer Support

For technical assistance, troubleshooting beyond this manual, or warranty service, please contact Haier customer support. Contact details can typically be found on the warranty card or the official Haier website.

Please note: Do not attempt to repair the unit yourself. Unauthorized repairs will void the warranty and may cause further damage or injury.
