DATOUBOSS JC6016 Integrated Home Energy Storage System User Manual

1. Introduction

The DATOUBOSS JC6016 is an integrated home energy storage system designed for efficiency and reliability. It combines a 48V 6000W hybrid off-grid inverter with a 51.2V 314Ah LiFePO4 battery, offering a total capacity of 16.07 kWh. This all-in-one unit simplifies installation by eliminating the need for separate inverter and battery purchases and complex wiring. It features pre-installed wheels for easy mobility and is ideal for solar, off-grid, and general power station applications.

Figure 1: DATOUBOSS JC6016 Integrated Home Energy Storage System

Figure 2: System Overview Diagram

2. Safety Instructions

Please read and understand all safety instructions before installing or operating this product. Keep this manual for future reference.

• Wear appropriate safety equipment and use insulated tools during installation and maintenance.
• Installation must be performed by qualified professionals in compliance with all local and national electrical regulations.
• Ensure the system is properly grounded.
• Install the battery in a location suitable for electronic devices, ensuring adequate ventilation and clearance for heat dissipation and wiring.
• Maintain a safe ambient temperature for stable operation (0°C to 55°C).
• Avoid hazardous/flammable chemicals or corrosive vapors near the unit.
• Do not store or install this product near radiators, heat collectors, stoves, or in containers where it could be exposed to prolonged overheating.
• Do not immerse the product in liquids.
• Ensure all fasteners are correctly tightened.
• Do not incinerate, crush, or puncture the battery.
• In case of electrical odors or overheating, immediately disconnect the circuit breaker and contact emergency services.
• Keep away from damaged batteries and any electrolyte leaks or flammable gas. In case of inhalation, evacuate the area and consult a doctor.
• In case of battery contact with eyes or skin, rinse the affected area with running water for 15 minutes and consult a doctor.
• In case of fire, do not use water! Use only dry powder extinguishers. If possible, move the battery to a safe location before it ignites.

Figure 3: Safety Warnings and Instructions

3. Product Components and Features

The DATOUBOSS JC6016 system is equipped with several key components and features for optimal performance and user interaction:

• Integrated Design: Combines a 6000W hybrid inverter and a 16.07 kWh LiFePO4 battery in one unit.
• High-Efficiency MPPT: Built-in solar charge controller with a maximum PV input of 9000W and 99.9% tracking efficiency.
• Pure Sine Wave Output: Provides stable power compatible with various household appliances.
• Smart Touchscreen LCD: High-definition display for real-time data monitoring and easy operation.
• WIFI Module: Includes a communication dongle for data monitoring via a mobile app.
• Intelligent COM/BMS Interfaces: For system communication and battery management.
• Durable LiFePO4 Battery: Offers 8000+ charge-discharge cycles with a 5-year warranty.
• Mobility: Equipped with 360° swivel casters for easy movement.

Figure 4: Front and Back Panels with Indicators and Ports

Figure 5: WIFI Communication Dongle Connection

Figure 6: Detailed View of COM and BMS Ports

Figure 7: Key Features including LCD, Casters, and Internal Battery Cells

4. Setup and Installation

Proper setup and installation are crucial for the safe and efficient operation of your DATOUBOSS JC6016 system. Always ensure power is off before beginning any installation procedures.

4.1 Unpacking and Inspection

• Carefully unpack the equipment and inspect for any signs of damage during transit.
• Ensure the packaging is intact.
• Verify that the package contains the integrated home energy storage system and this user manual.

4.2 Location and Environment

• Do not install the product in harsh environments.
• For optimal operation, the ambient temperature should be between 0°C and 55°C.
• Avoid areas with hazardous/flammable chemicals or corrosive vapors.
• Keep the unit away from direct heat sources such as radiators, heat collectors, or stoves.
• Ensure adequate clearance around the unit for proper heat dissipation and ease of wiring.
• Install the unit at eye level if possible, to ensure the LCD display is always readable.
• The unit comes with pre-installed wheels for easy movement; no additional wheels are required.

4.3 Required Tools

• Phillips screwdriver
• Torque wrench
• Appropriately sized rivet pliers

4.4 Electrical Connections

• Connect the battery using appropriate cables and terminals.
• Ensure all cables match the battery pack's safety current requirements.
• Verify that terminals comply with battery pack installation dimensions and safety terminal requirements.
• Ensure proper grounding of the system.

Figure 8: General Installation Guidelines

5. Operating Instructions

The DATOUBOSS JC6016 features a user-friendly touchscreen LCD for easy operation and monitoring.

5.1 Basic Functions

• Battery On/Off: Press the "Battery Switch Button". The operation indicator and power indicator will light up. Press again to turn off.
• Inverter On/Off: Press the "Inverter Switch Button". The inverter display will light up.
• PV ON/OFF: Turn on the PV switch and ensure power is on and the PV cable is connected. Turning on the PV switch initiates PV charging. Turning off the PV switch stops PV input.
• AC IN ON/OFF: Turn on the AC input switch and ensure power is on. The product initiates AC charging. Turning off the AC switch stops AC input.
• AC OUT ON/OFF: Turn on the AC output switch. If the AC output port is connected to an external load device, the product will begin powering the external device. Turning off the AC switch stops AC output.

Figure 9: Basic Operating Functions

5.2 Touchscreen Operation

The color touchscreen allows for intuitive control and monitoring of the system. You can navigate through multiple pages to view real-time data such as photovoltaic input, grid connection status, battery State of Charge (SOC), and load power. The energy flow is visually represented with changing colors (green to red) based on power load.

Figure 10: Touchscreen LCD Interface for Monitoring

5.3 Power Modes and Efficiency

The system supports various power modes to maximize energy utilization and reduce electricity costs:

• Solar Priority: Prioritizes solar power for loads and battery charging.
• Grid Complementarity: Uses grid power when solar is insufficient.
• Battery Backup (SBU): Provides uninterrupted power during outages, with a fast switching time of 20ms (generator mode) / 10ms (UPS mode).

5.4 WIFI Monitoring

The included WIFI communication dongle allows for remote data monitoring via a mobile application. Insert the dongle into the intelligent COM interface to enable data exchange between the battery system and the cloud platform.

Figure 11: Mobile App Setup for Remote Monitoring

5.5 Home Emergency Backup

The system functions as a reliable home emergency backup power supply, ensuring automatic power switchover during outages and continuous power supply during critical periods.

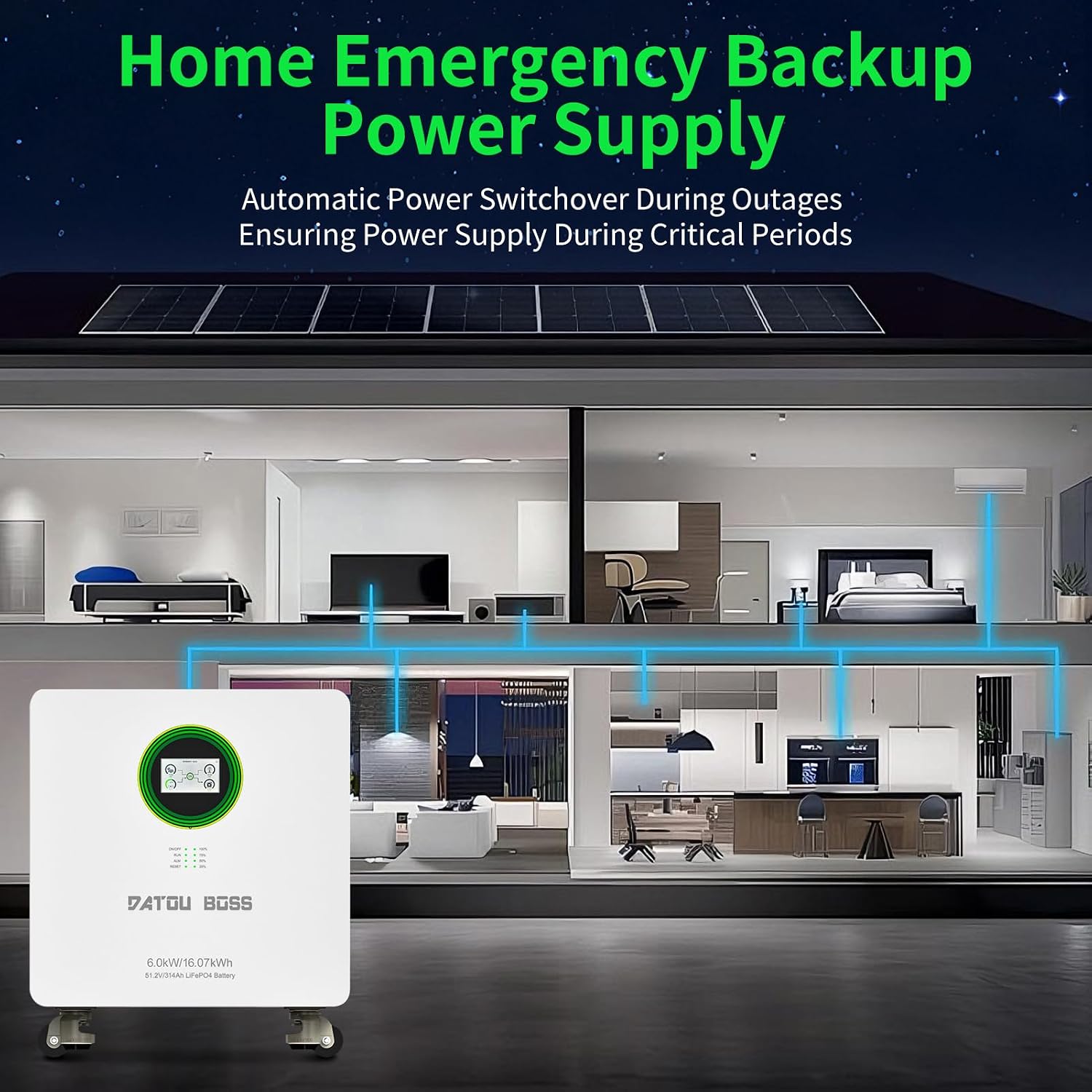

Figure 12: Home Emergency Backup Power Supply Application

6. Maintenance

Regular maintenance ensures the longevity and optimal performance of your DATOUBOSS JC6016 system.

• Cleaning: Use a dry cloth to clean the exterior of the unit. Do not use spray detergents, liquids, aerosols, or any type of solvent, as these can damage the finish or internal components.
• Connection Checks: Periodically inspect all electrical connections to ensure they are secure and free from corrosion.
• Ventilation: Ensure that the ventilation openings are clear of dust and debris to maintain proper airflow and prevent overheating.
• Environmental Conditions: Regularly check that the operating environment remains within the recommended temperature range (0°C to 55°C) and free from excessive humidity or corrosive substances.

7. Troubleshooting

The DATOUBOSS JC6016 is equipped with an integrated audible alarm function and clear error/warning codes displayed on the LCD touchscreen to simplify troubleshooting.

• No Power: Check all power connections, circuit breakers, and the main power switch. Ensure the battery is charged.
• Charging Issues: Verify PV input connections and AC input connections. Check the MPPT controller status on the LCD.
• Inverter Output Problems: Check AC output connections and ensure no overload condition exists. The system has robust overload protection.
• Error Codes: Refer to the specific error codes displayed on the LCD screen. Consult the detailed troubleshooting section in the full electronic manual (available upon request) for specific solutions.
• Overheating: Ensure adequate ventilation around the unit. Clear any obstructions from the heat dissipation holes.

If you encounter persistent issues or error codes not covered here, please contact our customer support team for assistance.

8. Specifications

Detailed technical specifications for the DATOUBOSS JC6016 Integrated Home Energy Storage System:

Figure 13: Detailed Product Specifications

9. Warranty and Support

DATOUBOSS is committed to product quality and customer satisfaction.

• Warranty: This all-in-one device comes with a 5-year warranty.
• Customer Support: We offer professional 24-hour after-sales service. For any product-related questions or assistance, please do not hesitate to contact our support team. They are available to patiently answer your questions.
• Multilingual Manuals: A printed English manual is included in the product package. For electronic manuals in other languages, please contact us via Amazon's backend, and we will provide them as soon as possible.
