Innioasis Y2 64GB MP3 Player with Bluetooth Instruction Manual

1. Introduction

This manual provides detailed instructions for the setup, operation, maintenance, and troubleshooting of your Innioasis Y2 64GB MP3 Player. Please read this manual thoroughly to ensure proper use and to maximize your device's performance.

2. Product Overview

The Innioasis Y2 is a dedicated music player designed for high-fidelity audio playback. It features a classic click wheel interface, Bluetooth connectivity, and expandable storage. The device supports various audio formats, including lossless DSD DAC FLAC, and offers a long battery life for extended listening.

Image: Front and side view of the Innioasis Y2 MP3 Player, highlighting the classic click wheel, dedicated volume and power buttons, and the microSD card slot for storage expansion.

Key Features:

• Classic Click Wheel Design: Intuitive navigation and control.
• High-Resolution Audio: Supports DSD decoding and FLAC for superior sound quality.
• Bluetooth Connectivity: For wireless audio streaming to headphones or speakers.
• Expandable Storage: 64GB internal storage, expandable up to 2TB via microSD card.
• Long Battery Life: Up to 25 hours of music playback with wired earphones.
• M3U Playlist Support: Easy import and export of playlists.
• Customizable Themes: Personalize the user interface.

3. Setup

3.1 Charging the Device

Before first use, fully charge your Innioasis Y2 MP3 Player. Connect the device to a power source (e.g., computer USB port or USB wall adapter) using the provided USB-C cable. The battery indicator on the screen will show charging status.

3.2 Inserting a MicroSD Card

The device comes with 64GB of internal storage and supports microSD cards up to 2TB for additional storage. To insert a microSD card:

1. Locate the microSD card slot on the side of the device.
2. Gently push the microSD card into the slot until it clicks into place. Ensure it is fully seated to prevent it from popping out.
3. To remove, push the card in again until it springs out.

Image: The Innioasis Y2 MP3 Player demonstrating its expandable storage capability up to 2TB with a microSD card.

3.3 Transferring Music and Files

To transfer files from your computer to the MP3 player:

1. Connect the MP3 player to your computer using the provided USB-C cable.
2. The device should appear as a removable disk drive on your computer. If it does not, try using the original cable or a different USB port.
3. Drag and drop your desired music, video, e-book, or photo files into the appropriate folders on the device's internal storage or microSD card.
4. Once transfer is complete, safely eject the device from your computer before disconnecting the cable.

4. Operating Instructions

4.1 Power On/Off

• Power On: Press and hold the dedicated power button on the side of the device until the screen illuminates.
• Power Off: Press and hold the power button until a power-off option appears on the screen, then confirm. A short press will turn the screen on/off.

4.2 Basic Navigation (Click Wheel)

The Innioasis Y2 utilizes a classic click wheel for navigation:

• Rotate: Spin the outer ring of the click wheel to scroll through menus or adjust volume.
• Center Button: Press the center button to select an item or play/pause music.
• Menu Button: Typically located above the click wheel, used to go back to the previous menu or home screen.
• Skip/Fast Forward/Rewind Buttons: Located around the click wheel for track control.

4.3 Music Playback

The device supports a wide range of audio formats including MP3, AAC, FLAC, APE, WAV, WMA, OGG, M4A, DFF, AMR, MID, M4R, and MP2. Navigate to the 'Music' section to browse your library by artist, album, genre, or all songs. Select a track to begin playback.

Image: The Innioasis Y2 MP3 Player supports HiFi Lossless DAC Music, compatible with multiple audio formats.

4.4 Bluetooth Pairing

To connect your Innioasis Y2 to Bluetooth headphones or speakers:

1. Go to the 'Bluetooth' menu on your MP3 player.
2. Ensure your Bluetooth audio device is in pairing mode.
3. Select 'Search for devices' on the MP3 player.
4. Choose your device from the list and confirm pairing.

Image: The Innioasis Y2 MP3 Player offers wide and stable Bluetooth connectivity for various audio devices.

4.5 Playlist Management

The device supports M3U playlist import and export, allowing you to easily transfer and manage your curated music collections.

• Import M3U Playlist: Navigate to the playlist settings and select 'Import M3U Playlist'. Follow the on-screen prompts to select your M3U file.
• Export M3U Playlist: You can also export existing playlists for backup or transfer to other devices.
• Create Custom Playlists: Use the 'Music Category Management' feature to create and organize custom playlists directly on the device.

Image: The Innioasis Y2 MP3 Player supports M3U playlist import and export for easy music management.

Image: The Innioasis Y2 MP3 Player offers powerful music category management for creating custom playlists and fast song search.

4.6 Theme Customization

Personalize your device's interface by selecting from various pre-installed themes. Navigate to the 'Themes' section in the settings to switch styles and match your preferences.

Image: Select your preferred MP3 player themes to freely switch styles and match personal taste.

4.7 Video Playback, E-book, and Photo Viewing

The Innioasis Y2 supports video playback (MP4, MKV, MOV, AVI, FLV, WMV), e-book reading, and photo viewing. While these features are available, the 2.4-inch screen size may limit the viewing experience for videos and detailed images. Video playback typically offers up to 4 hours on a full charge.

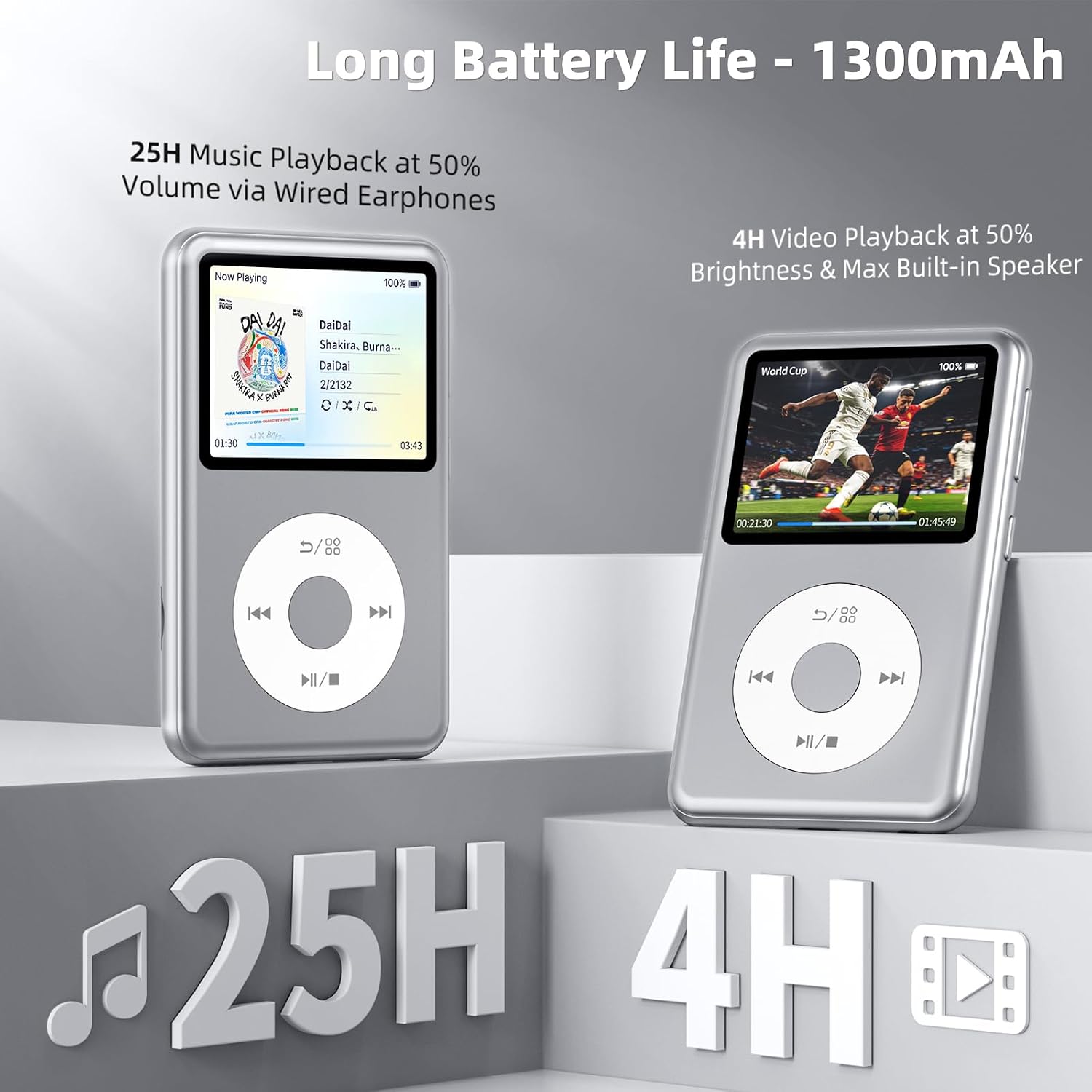

Image: The Innioasis Y2 MP3 Player offers long battery life, providing up to 25 hours of music playback and 4 hours of video playback.

5. Maintenance

• Cleaning: Use a soft, dry cloth to clean the device. Avoid using liquid cleaners or abrasive materials.
• Storage: Store the device in a cool, dry place away from direct sunlight and extreme temperatures.
• Software Updates: Periodically check the manufacturer's website for firmware updates to ensure optimal performance and access to new features.

6. Troubleshooting

Common Issues and Solutions:

• Device not recognized by computer:

  Ensure you are using the original USB-C cable. Try connecting to a different USB port on your computer. Restart both the device and the computer.

• MicroSD card not detected or keeps popping out:

  Ensure the microSD card is inserted correctly and fully seated until it clicks. If issues persist, try a different microSD card to rule out card malfunction.

• Screen goes black or device freezes:

  Press and hold the power button for about 10-15 seconds to force a restart. If the issue is frequent, ensure the device's firmware is up to date.
• Bluetooth connection issues (disconnects, low volume):

  Ensure the MP3 player and Bluetooth audio device are within range and fully charged. Try unpairing and re-pairing the devices. Adjust volume settings on both the player and the connected device.

• Audio output too loud/low via wired headphones:

  Adjust the volume using the dedicated volume buttons or the click wheel. Check equalizer settings if enabled.

7. Specifications

8. Warranty Information

The Innioasis Y2 MP3 Player comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the official Innioasis website or contact customer support.

9. Support

For further assistance, technical support, or inquiries regarding your Innioasis Y2 MP3 Player, please visit the official Innioasis website or contact their customer service department. Contact information can typically be found on the product packaging or the manufacturer's website.
