LOOKRUN G11 Folding Electric Bicycle User Manual

1. Safety Information

Read this manual thoroughly before operating the LOOKRUN G11 electric bicycle. Failure to follow instructions and safety warnings may result in serious injury or damage to the product.

• Always wear a helmet and appropriate safety gear when riding.
• Ensure all components are securely fastened before each ride.
• Do not ride under the influence of alcohol or drugs.
• Observe all local traffic laws and regulations.
• Avoid riding in heavy rain or extreme weather conditions, despite the IP65 rating.
• Regularly check tire pressure, brakes, and battery charge.

2. Package Contents

Verify that all items are present in the package:

• LOOKRUN G11 Folding Electric Bicycle
• 48V 15Ah Lithium Battery (may be pre-installed)
• Battery Charger
• User Manual (this document)
• Fenders
• Pump

3. Setup and Initial Assembly

3.1 Unfolding the Bicycle

The G11 features a 3-step quick folding design for portability.

1. Place the folded bicycle on a flat, stable surface.
2. Release the main frame folding buckle. Carefully unfold the main frame until it locks into place. Ensure the safety latch is engaged.
3. Unfold the handlebar stem and secure the quick-release lever. Adjust handlebar height if necessary.
4. Adjust the seat post to your desired height and secure the quick-release lever.
5. Ensure pedals are in the riding position (if foldable, unfold them).

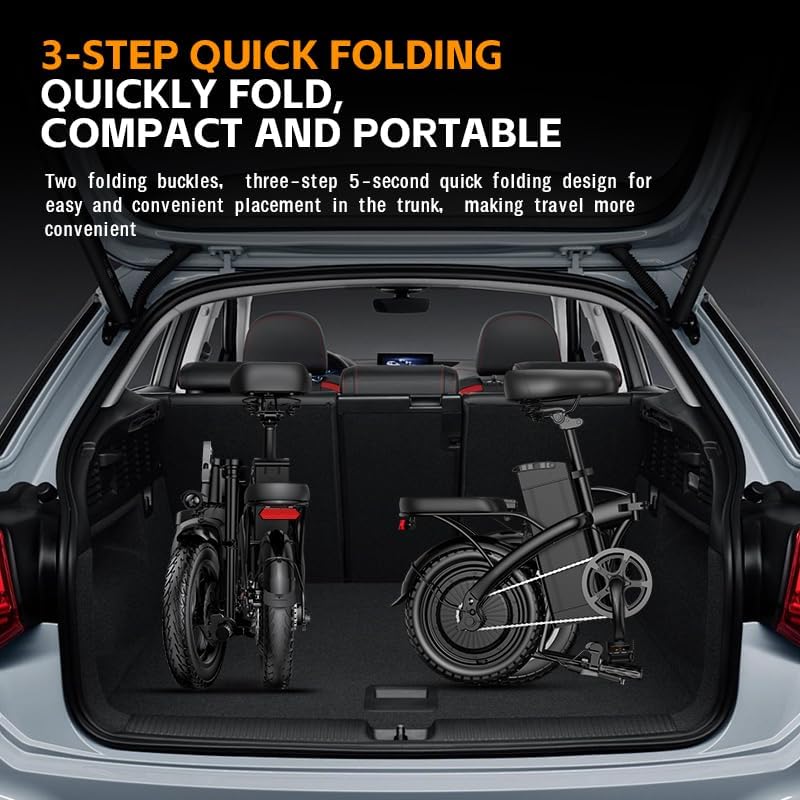

Image: The LOOKRUN G11 electric bicycle folded and stored in a car trunk, demonstrating its compact and portable design.

3.2 Battery Installation and Initial Charge

The 48V 15Ah lithium battery may be pre-installed. If not, slide it into its compartment until it clicks securely. Fully charge the battery before the first use.

• Connect the charger to the bicycle's charging port.
• Plug the charger into a standard wall outlet.
• The charger indicator light will show charging status (typically red for charging, green for fully charged).
• Charging time may vary, but typically takes several hours for a full charge.

Image: A detailed view of the automotive-grade battery cells, highlighting their design for long endurance and extended mileage.

Image: An illustration of the BMS (Battery Management System) intelligent management chip, designed to enhance performance and optimize the riding experience.

4. Operating Instructions

4.1 Powering On/Off

Locate the power button on the handlebar display. Press and hold to turn the bicycle on or off.

4.2 Smart LCD Display

The intelligent LCD display provides real-time information and allows for setting parameters.

• Power Level: Indicates remaining battery charge.
• Speed: Current riding speed.
• Mileage: Trip distance or total odometer.
• Error Codes: Displays error messages if a problem is detected.
• Fixed Speed Setting: Allows setting a constant speed for flat terrain.

Image: The smart LCD meter on the handlebar, clearly showing the remaining battery level and other crucial riding information at a glance.

4.3 Riding Modes

The G11 typically offers multiple riding modes:

• Pedal Assist Mode: The motor provides assistance as you pedal. Adjust the assist level using the controls on the display.
• Full Electric Mode (if available): Use the throttle (if equipped) for motor power without pedaling. Check local regulations regarding throttle use.
• Manual Mode: Ride as a traditional bicycle without motor assistance.

4.4 Braking System

The G11 is equipped with mechanical disc brakes on both front and rear wheels for effective stopping power.

• Apply both brakes simultaneously for balanced and controlled stopping.
• Avoid sudden, hard braking, especially at high speeds or on slippery surfaces.
• Regularly check brake pads and cables for wear and proper function.

Image: A close-up view of the dual disc brakes on the front wheel, illustrating their design for efficient, sensitive, and safe braking.

5. Maintenance

5.1 General Care

• Keep the bicycle clean. Use a damp cloth to wipe down the frame and components. Avoid high-pressure washing directly on electrical parts.
• Store the bicycle in a dry, cool place, away from direct sunlight and extreme temperatures.
• Regularly check all bolts and fasteners for tightness.

5.2 Tire Maintenance

The G11 features 14 x 2.1-inch aluminum alloy tires designed for various terrains.

• Maintain recommended tire pressure (check sidewall for PSI/Bar).
• Inspect tires regularly for wear, cuts, or punctures.
• The included pump can be used for inflation.

Image: A cross-section view of the large size vacuum explosion-proof tire, highlighting its 10mm thick rubber and 4mm thickened anti-puncture layer for durability and grip.

5.3 Battery Care

• Charge the battery regularly, even if not in use, to maintain its health. Avoid letting it fully discharge for extended periods.
• Do not expose the battery to extreme heat or cold.
• Use only the original charger provided with the bicycle.

6. Troubleshooting

If you encounter issues, refer to the following common problems and solutions:

For issues not listed here, please contact LOOKRUN customer support.

7. Specifications

Key technical specifications for the LOOKRUN G11 Electric Bicycle:

8. Warranty and Support

For warranty information, please refer to the documentation included with your purchase or contact the retailer. LOOKRUN provides customer support for technical assistance and inquiries.

Please retain your proof of purchase for warranty claims.
