PURPLE LEAF Bioclimatic Attached Pergola

1. Introduction

Thank you for choosing the PURPLE LEAF Bioclimatic Attached Pergola. This manual provides essential information for the safe assembly, operation, and maintenance of your new outdoor structure. Please read these instructions carefully before beginning assembly and retain them for future reference.

This pergola is designed to enhance your outdoor living space, offering adjustable shade, natural ventilation, and protection from rain with its innovative inclined roof and drainage system. Its robust aluminum construction ensures durability and resistance to various weather conditions.

Image 1.1: The PURPLE LEAF Bioclimatic Attached Pergola providing a comfortable outdoor living area.

2. Safety Information

• Read all instructions: Ensure you understand all assembly and operating instructions before use.
• Two-person assembly: Assembly requires at least two adults for safety and ease of installation.
• Secure installation: The pergola must be securely anchored to a stable, level surface to prevent tipping or movement, especially in windy conditions.
• Check for damage: Inspect all components for damage before assembly. Do not assemble if any parts are damaged. Contact customer support for replacements.
• Clearance: Maintain adequate clearance around the pergola from walls, fences, and other structures.
• Weather conditions: While designed for durability, extreme weather conditions (e.g., heavy snow loads, severe storms) may require additional precautions or temporary disassembly.

3. Setup and Assembly

The assembly process is designed to be straightforward, though it requires careful attention to detail and the assistance of another person. All parts are clearly labeled to facilitate the process.

3.1 Site Preparation

• Choose a flat, level surface for installation to ensure maximum stability.
• Ensure the chosen location allows for proper drainage and does not obstruct any existing structures or pathways.

3.2 Component Identification

Unpack all boxes and identify each component using the provided parts list (not included in this digital manual, refer to your physical packaging). Lay out components in an organized manner to simplify the assembly process.

3.3 Assembly Steps

Follow the step-by-step instructions provided in your physical assembly guide. Pay close attention to the orientation of beams, posts, and louvers. The large aluminum columns (11.5 x 11.5 cm) provide enhanced load capacity, wind resistance, and stability.

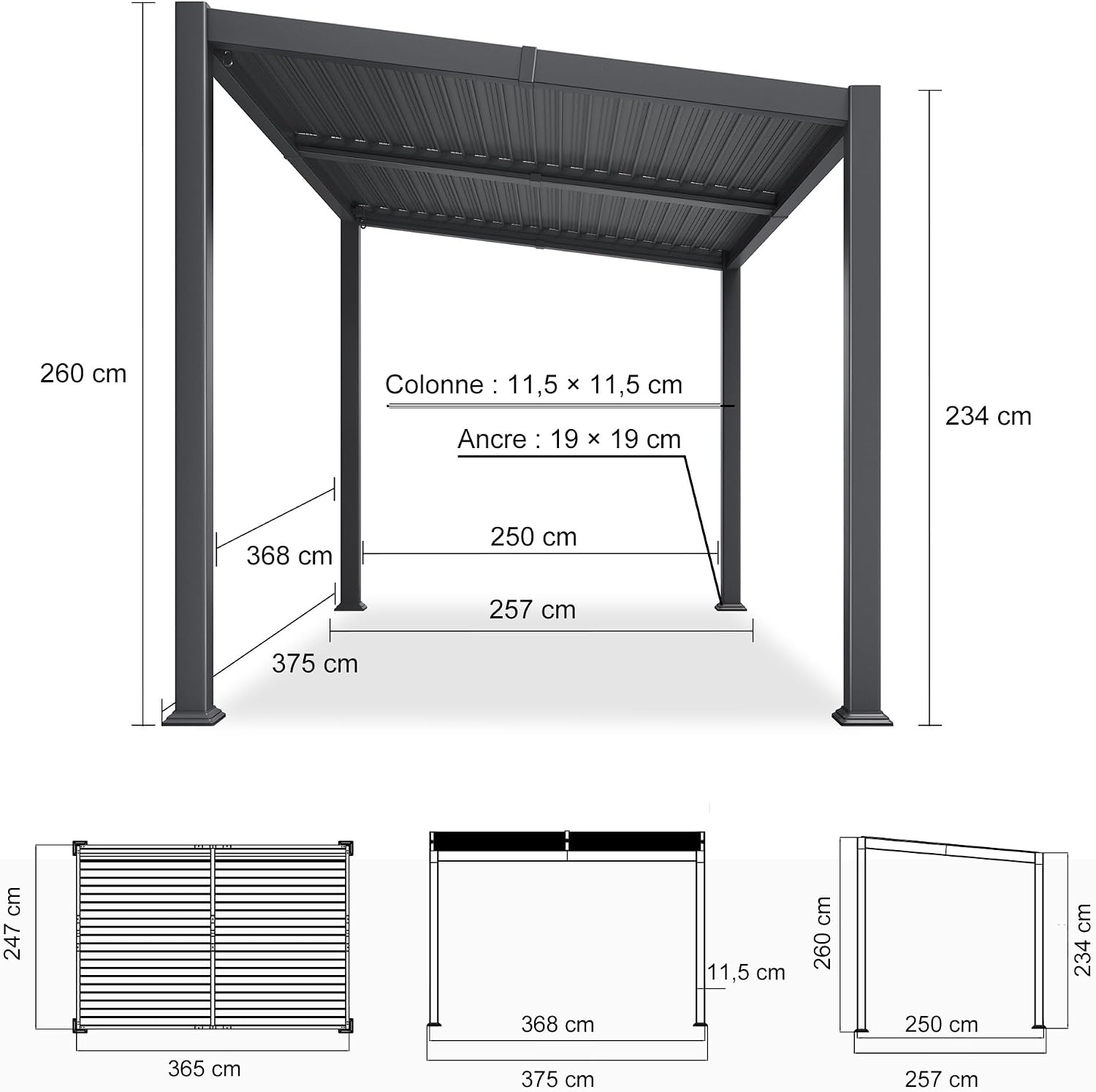

Image 3.1: Technical dimensions of the pergola, including column and anchor sizes.

Image 3.2: Comparison of PURPLE LEAF's robust aluminum columns with standard columns.

4. Operating Instructions

4.1 Adjustable Louvers

The pergola features two rows of independently adjustable louvers. Use the provided crank handle to rotate the louvers from 0° to 85°. This allows for personalized control over shade, light, and natural ventilation.

• 0° (Closed): Provides full sun protection and watertight sealing during rain.
• 85° (Open): Maximizes natural light and airflow, ideal for sunny days or when you desire more light.

Image 4.1: Operating the adjustable louvers with the crank handle.

4.2 Inclined Roof and Drainage System

The inclined roof design ensures rapid rainwater drainage, preventing stagnation and reducing pressure on the structure. Rainwater is discreetly collected via integrated gutters within the roof and channeled through the posts, ensuring a dry and comfortable space underneath.

Image 4.2: How the inclined roof and integrated drainage system work.

4.3 Natural Light and Ventilation

The inclined roof optimizes natural light, providing a deeper and softer illumination compared to flat-roof pergolas. The design also promotes continuous airflow, allowing hot air to rise and fresh air to circulate from below, maintaining optimal coolness.

Image 4.3: Optimized natural light under the inclined roof pergola.

Image 4.4: Natural ventilation and optimal freshness provided by the inclined roof.

5. Maintenance

Your PURPLE LEAF Bioclimatic Pergola is constructed from high-performance aluminum with a thermolacquered finish, ensuring minimal maintenance and long-lasting beauty.

• Cleaning: Regularly clean the aluminum frame and louvers with mild soap and water. Avoid abrasive cleaners or harsh chemicals that could damage the finish.
• Drainage System: Periodically check the integrated gutters and posts for any debris (leaves, dirt) that might obstruct water flow. Clear any blockages to ensure efficient drainage.
• Corrosion Resistance: The aluminum construction is resistant to UV, weathering, and corrosion, requiring no special treatments.
• Easy Maintenance Roof: The inclined roof design allows leaves and debris to slide off naturally, further reducing maintenance effort.

Image 5.1: Details of the 100% aluminum construction and its benefits.

6. Troubleshooting

• Water Stagnation: If water collects on the louvers, ensure they are fully closed (0°) during rain. Check the drainage channels for blockages and clear any debris.
• Louver Movement Issues: If louvers are difficult to adjust, check for any obstructions in the mechanism or debris accumulated between the blades. Apply a silicone-based lubricant if necessary.
• Structural Instability: Ensure all bolts and fasteners are tightened according to the assembly instructions. Verify that the pergola is installed on a level surface and securely anchored.
• Noise during wind: Check that all louvers are either fully open or fully closed and secured. Loose components can cause rattling.

7. Specifications

8. Warranty and Support

Your PURPLE LEAF Bioclimatic Pergola comes with legal guarantees and a 30-day return policy. For any questions, assistance with assembly, or to report missing/damaged parts, please contact PURPLE LEAF specialized customer support. They are available to provide prompt assistance.

For further information or to visit the official store, please refer to the contact details provided with your purchase or visit the PURPLE LEAF brand store online.
