iScooter DX5 Electric Scooter Instruction Manual

Introduction

Thank you for choosing the iScooter DX5 Electric Scooter. This manual provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your scooter. Please read it thoroughly before your first ride to ensure optimal performance and safety.

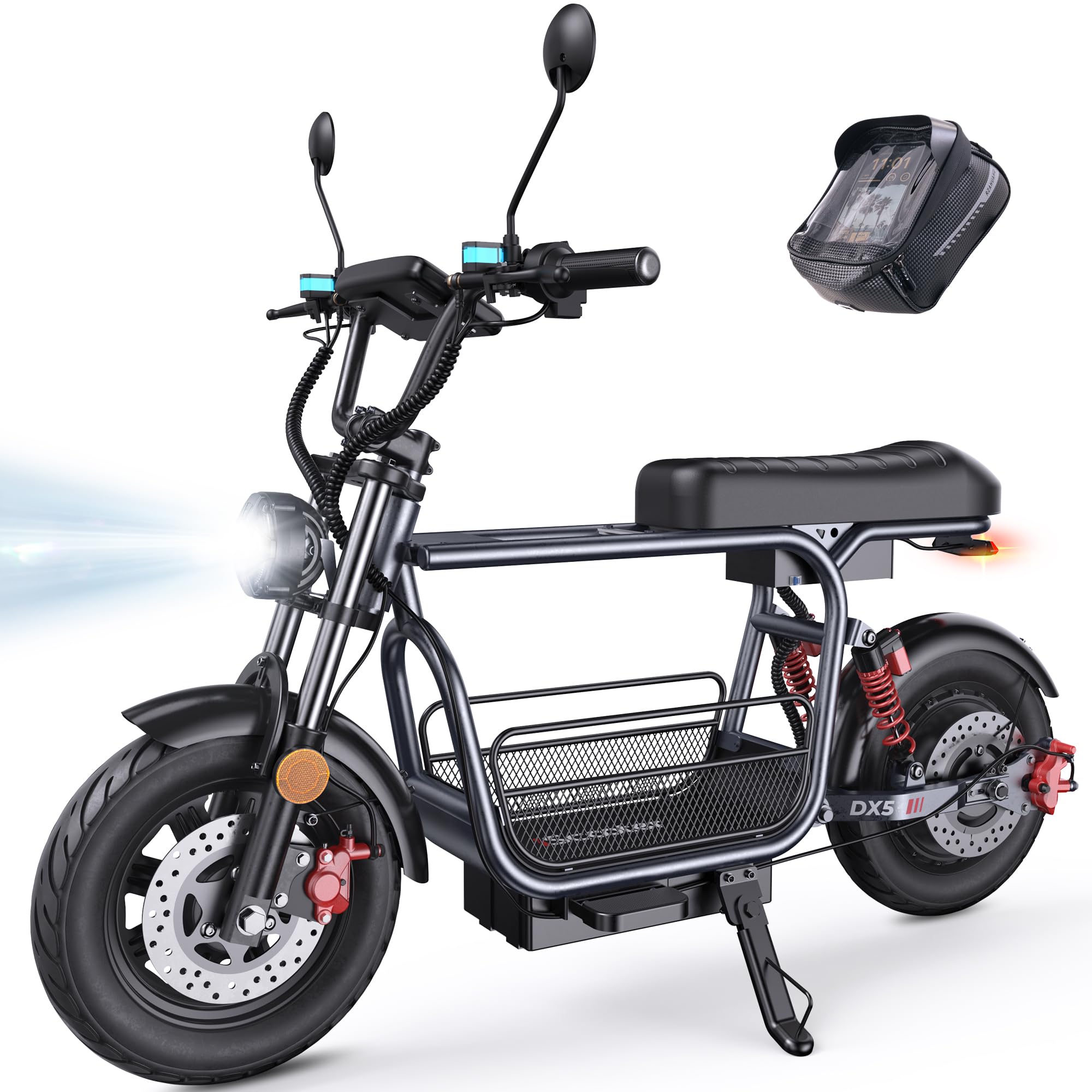

Figure 1: iScooter DX5 Electric Scooter with key features highlighted.

Safety Information

Always prioritize safety when operating your electric scooter. Failure to follow safety guidelines can result in serious injury or damage to the product.

• Always wear a helmet and appropriate safety gear.
• Do not ride in wet conditions or on slippery surfaces.
• Adhere to local traffic laws and regulations.
• Perform a pre-ride inspection before each use, checking brakes, tires, and all connections.
• Do not allow children under the age of 16 to operate the scooter.
• Maintain a safe distance from other vehicles and pedestrians.

Setup and Assembly

Your iScooter DX5 comes partially assembled. Follow these steps to complete the setup.

1. Unboxing and Component Identification

Carefully remove all components from the packaging. Verify that all parts are present according to the packing list.

Figure 2: All components of the iScooter DX5 Electric Scooter laid out for assembly.

2. Assembly Video Guide

For a detailed visual guide on assembling your iScooter DX5, please watch the official installation video below.

3. Key Assembly Steps

Refer to the video for detailed instructions. Key steps include:

• Handlebar Installation: Secure the handlebars to the stem using the provided tools.
• Mirror Attachment: Install the rearview mirrors on both sides of the handlebars.
• Headlight Mounting: Attach the front LED headlight to the designated position.
• Front Wheel Assembly: Carefully install the front wheel, ensuring the brake rotor aligns correctly with the caliper.
• Fender Installation: Secure the front and rear fenders.
• Footrest and Seat: Attach the footrests and ensure the seat is securely fastened.
• Storage Accessories: Install the removable storage basket and scooter bag as desired.

Figure 3: Detachable front basket for convenient storage.

Figure 4: Scooter bag for carrying small essentials.

Operating Instructions

1. Powering On/Off and NFC Unlocking

To power on your scooter, ensure the battery disconnect switch is in the 'ON' position. The DX5 features NFC unlocking for convenience and security. Simply tap your NFC card to the designated area on the display to unlock and activate the scooter.

2. Speed Modes

The iScooter DX5 offers four adjustable speed modes to suit various riding conditions:

• Gear 1: 15 MPH (Easy start, energy-saving mode)
• Gear 2: 21 MPH (Urban commuting, steady speed)
• Gear 3: 28 MPH (Balanced power, faster ride)
• Gear 4: 35 MPH (Turbo sprint, full power)

Figure 5: Four speed modes for versatile riding.

3. Smart Display and Controls

Monitor your ride with the full-color 9-inch LCD screen, which displays speed, battery level, and system alerts. The handlebars feature intuitive controls:

• Turn Signal Button: Quick toggle for safe left/right turns.
• Headlight Switch: Control front light with a single press.
• Horn Button: Instant alert to pedestrians or traffic.
• 'S' Gear Button: Easily shift between 4 speed modes.
• NFC Unlock: Tap to unlock for fast, secure, keyless operation.

Figure 6: Handlebar controls and LCD display.

4. Braking System

The scooter is equipped with dual hydraulic disc brakes for reliable stopping power. The system also includes a power cut-off when braking for added safety.

Figure 7: Dual hydraulic disc brakes for instant control.

5. Lighting System

For enhanced visibility and safety, especially during night rides, the DX5 features:

• Bright LED headlights.
• Integrated turn signals.
• Brake lights on the taillight.

Figure 8: Advanced lighting system for safe rides.

6. Anti-Theft Alarm

The DX5 includes a built-in anti-theft alarm system for added security. Refer to the display for system alerts.

Maintenance

Regular maintenance ensures the longevity and safe operation of your iScooter DX5.

1. Charging the Battery

The scooter features a high-capacity 48V 15.6Ah (748.8Wh) lithium battery. Charge time is approximately 6-8 hours. Always use the provided charger.

Figure 9: Battery specifications and charging information.

2. Tire Care

The DX5 is equipped with durable 15" x 3.0" vacuum pneumatic e-motorcycle tires. Regularly check tire pressure and inspect for wear or damage.

Figure 10: Rugged 15-inch tires for grip and stability.

3. Suspension System

The advanced dual suspension system (front hydraulic and rear air spring) provides a comfortable ride. Periodically inspect the suspension components for proper function.

Figure 11: Advanced dual suspension system.

4. General Cleaning

Clean your scooter regularly with a damp cloth. Avoid using high-pressure water jets directly on electrical components.

Troubleshooting

If you encounter any issues with your iScooter DX5, please refer to the following basic troubleshooting steps:

• Scooter not powering on: Check the battery disconnect switch is in the 'ON' position. Ensure the battery is charged.
• Loss of power during ride: Check battery level. Ensure all electrical connections are secure.
• Brakes not responding: Inspect brake levers and calipers for any obstructions or damage.
• Unusual noises: Stop riding immediately and inspect the scooter for loose parts or damage.

For more complex issues, please contact customer support.

Specifications

Below are the key specifications for the iScooter DX5 Electric Scooter:

Figure 12: iScooter DX5 dimensions.

Warranty

iScooter offers a limited warranty. We provide a 360-day or 180-day warranty on different parts. Please refer to your purchase documentation for specific warranty terms and conditions.

Customer Support

For any inquiries, technical assistance, or warranty claims, please contact iScooter customer support:

• Call Center: +1 (855) 696-2888
• Live Chat/Email: support@iscooterglobal.com

Figure 13: iScooter Customer Support.
