GAOMON Full Size Wood Bed Frame with LED Light and Rattan Headboard Instruction Manual

Important Safety Information

Please read and understand all instructions before beginning assembly. Keep this manual for future reference.

• Ensure all parts are present and undamaged before assembly. Contact customer support for missing or damaged parts.
Assemble the bed frame on a soft, clean surface (e.g., carpet) to prevent scratches.
• Do not overtighten screws during assembly, as this may damage the material. Tighten all fasteners securely once assembly is complete.
• Regularly check all bolts and screws to ensure they remain tight.
• Do not stand or jump on the bed frame.
• Keep small parts away from children during assembly to prevent choking hazards.
• Maximum weight capacity: 1000 lbs. Do not exceed this limit.

Package Contents

Verify that all components listed below are included in your package. If any parts are missing or damaged, please contact GAOMON customer support.

• Headboard (with rattan panels and integrated LED strip)
• Side Rails
• Footboard
• Center Support Beam
• Wooden Slats
• Support Legs (for frame and center beam)
• Hardware Pack (screws, bolts, Allen wrench)
• LED Strip Light Controller and Power Adapter
• Installation Manual

Figure 1: Exploded view of bed frame components.

Setup and Assembly Instructions

Follow these steps carefully for proper assembly. It is recommended to have two people for assembly.

1. Unpack and Identify Parts: Lay out all components on a clean, soft surface. Refer to the parts list to ensure everything is present.
2. Assemble the Headboard: Attach the headboard legs to the rattan headboard panel using the provided hardware. Ensure the LED strip is correctly positioned.
3. Attach Side Rails: Connect the side rails to the headboard and footboard using the designated bolts. Do not fully tighten yet.
4. Install Center Support: Secure the center support beam to the headboard and footboard, and attach its support legs.
5. Place Wooden Slats: Lay the wooden slats across the side rails and secure them according to the instructions. The slats are designed to be noise-free and prevent mattress sliding.
6. Final Tightening: Once all parts are in place and aligned, securely tighten all bolts and screws.
7. Connect LED Lights: Plug the LED strip light into its controller and then into the power adapter.

Figure 2: Product dimensions and key features.

Figure 3: Illustration of sturdy, noise-free construction.

Operating Instructions (LED Lights)

The integrated LED strip behind the rattan headboard offers customizable lighting options.

• Power On/Off: Use the included remote control or a compatible mobile application to turn the LED lights on or off.
• Color Adjustment: Select from over 60,000 colors to match your preference.
• Brightness Control: Adjust the brightness level to create the desired ambiance.
• Modes: Explore various modes such as Music Mode (lights react to sound), Mic Mode, Timing Function, and Dynamic Mode.
• App Control: Download the recommended mobile application (refer to LED controller instructions for app details) for advanced control features.

Figure 4: LED headboard features.

Maintenance

Proper care will extend the life and appearance of your bed frame.

• Cleaning: Wipe the wood and rattan surfaces with a dry, soft cloth. Avoid abrasive cleaners or harsh chemicals.
• Dusting: Regularly dust the headboard and frame to prevent buildup.
• Fastener Check: Periodically check all bolts and screws and retighten if necessary to maintain stability.

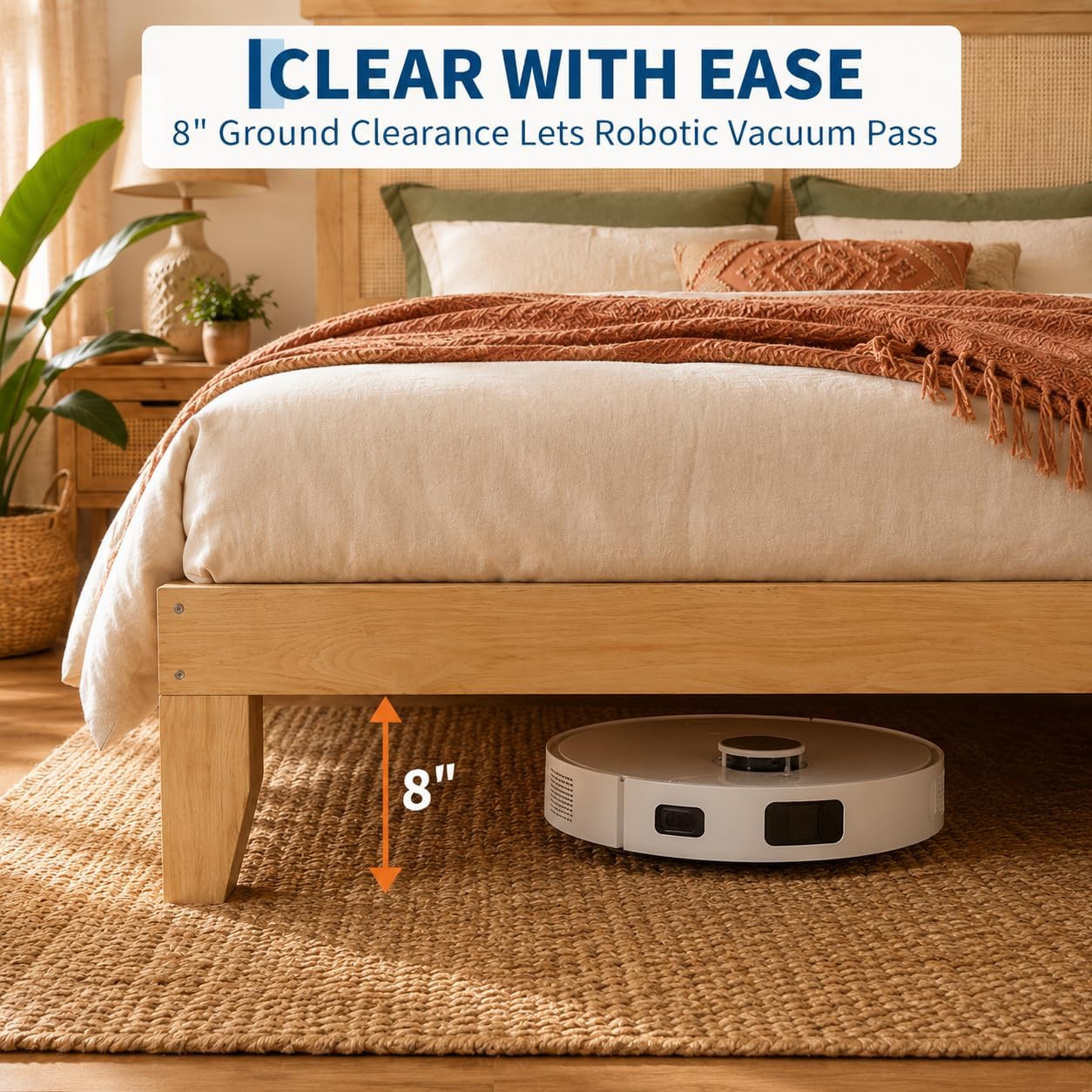

• Under-Bed Clearance: The 8-inch ground clearance allows for easy cleaning underneath the bed, including robotic vacuum access.

Figure 5: Under-bed clearance for easy cleaning.

Troubleshooting

If you encounter any issues, refer to the following common problems and solutions.

Specifications

Warranty and Support

For warranty information or technical support, please contact GAOMON customer service.

• Refer to your purchase documentation for specific warranty terms and conditions.
• For assistance with assembly, missing parts, or product issues, please reach out to the seller or manufacturer directly.
• Contact information can typically be found on the product packaging or the retailer's website where the product was purchased.
