Introduction
Thank you for choosing the GAOMON All-Aluminum Louvered Pergola. This manual provides essential information for the safe and efficient assembly, operation, and maintenance of your new pergola. Please read all instructions carefully before beginning assembly and retain this manual for future reference.
Safety Information
Always prioritize safety during assembly and use. Ensure all components are securely fastened according to the instructions. Do not attempt to assemble the pergola in strong winds or adverse weather conditions. It is recommended to have at least two people for assembly.
- Wear appropriate safety gear, including gloves and eye protection.
- Keep children and pets away from the assembly area.
- Verify that all parts are present and undamaged before starting assembly.
- Do not modify the product in any way, as this may compromise its structural integrity and void the warranty.
- Ensure the pergola is anchored securely to the ground to prevent tipping in strong winds.
Setup and Assembly
Your GAOMON pergola is designed for straightforward assembly. The product arrives in multiple clearly labeled boxes, which may ship separately. It is recommended to allocate 3-4 hours for a typical setup with two individuals.
Unpacking and Part Identification
- Carefully unpack all boxes and lay out the components.
- Refer to the included parts list to identify and verify all pre-labeled parts.
- Inspect all components for any shipping damage. Contact customer support immediately if any parts are damaged or missing.
Site Preparation
Choose a level and stable surface for installation. The pergola can be mounted on decks, concrete, or grass. Ensure adequate clearance around the structure.
Figure 1: Product Dimensions. This image illustrates the overall dimensions of the pergola, approximately 278 inches (23.17 ft) long, 143 inches (11.92 ft) wide, and 89 inches (7.42 ft) high.
Assembly Steps
- Follow the detailed step-by-step video guides provided by GAOMON for visual assistance.
- Assemble the main frame structure, ensuring all connections are tight and secure.
- Install the louvered roof panels according to the instructions.
- Secure the pergola to the ground using the pre-drilled bases and appropriate expansion screws for your chosen surface (decks, concrete, or grass). This ensures stability against strong winds and snow loads.
Figure 2: Base Plate Installation. This image shows how the pergola's base is secured to a solid surface using expansion screws, highlighting the robust anchoring system for stability.
Operating Instructions
The GAOMON pergola features an adjustable louvered roof system, allowing you to control sunlight and airflow.
Adjusting the Louvers
- Locate the hand crank mechanism.
- Turn the hand crank to smoothly adjust the louvers from 0° (fully open for maximum sunlight and ventilation) to 90° (fully closed for shade and rain protection).
- Adjust the louvers as needed to customize your outdoor comfort based on weather conditions.
Figure 3: Louver Adjustment. This image demonstrates the hand crank used to open or close the pergola's louvers, allowing control over sunlight and shade.
Maintenance
Regular maintenance will ensure the longevity and optimal performance of your GAOMON pergola.
Cleaning
- Clean the aluminum frame and louvers periodically with mild soap and water.
- Avoid using abrasive cleaners or harsh chemicals, as these can damage the finish.
- Rinse thoroughly with clean water after cleaning.
Drainage System
The pergola features a built-in concealed gutter system that directs rainwater away from the roof louvers and into integrated columns, draining discreetly at the base. Periodically inspect the gutters and drainage points for any debris (leaves, dirt) that might obstruct water flow. Clear any blockages to ensure efficient drainage.

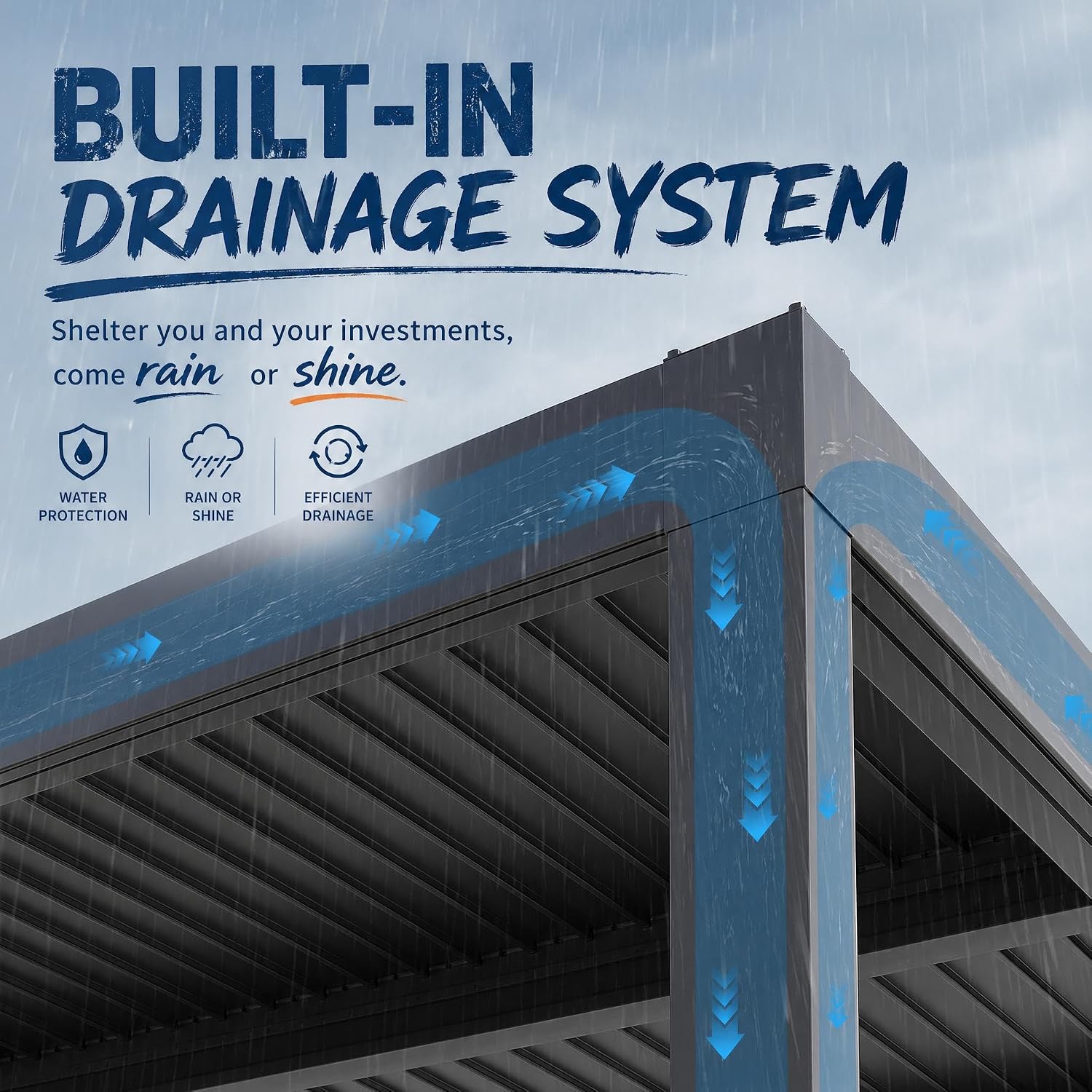

Figure 4: Built-In Drainage System. This image details the internal gutter system that efficiently channels rainwater from the louvered roof down through the support columns.
Structural Inspection
- Regularly check all bolts, screws, and connections to ensure they remain tight.
- Inspect the frame for any signs of damage or wear.
- Ensure the base anchors are secure, especially after severe weather.
Troubleshooting
This section addresses common issues you might encounter with your pergola.
| Problem | Possible Cause | Solution |
|---|---|---|
| Louvers do not adjust smoothly. | Debris in the mechanism; mechanism requires lubrication; bent louver. | Clean any debris from the louver tracks. Apply a silicone-based lubricant to moving parts. Inspect for damage and contact support if a louver is bent. |
| Water pooling on the roof or leaking. | Louvers not fully closed; drainage system blocked. | Ensure louvers are completely closed. Clear any debris from the concealed gutters and column drainage points. |
| Pergola feels unstable. | Loose anchor bolts; uneven ground. | Check and tighten all anchor bolts. Ensure the installation surface is level. Re-anchor if necessary. |
If you encounter issues not listed here or require further assistance, please contact GAOMON customer support.
Specifications
| Feature | Detail |
|---|---|
| Brand | GAOMON |
| Model Number | sdioghbwieojldfikbnrfoiebg03 |
| Product Dimensions (L x W x H) | 278.13" x 143.23" x 89.02" (approximately 23.17 ft x 11.92 ft x 7.42 ft) |
| Item Weight | 523.46 Pounds |
| Frame Material | Alloy Steel (All-Aluminum construction) |
| Water Resistance Level | Water Repellent |
| Ultraviolet Light Protection | No UV Protection (for the material itself, provides shade) |
| Color | Gray |
| Assembly Required | Yes |
| UPC / GTIN | 824126175875 |
Warranty and Support
For warranty information, please refer to the documentation included with your purchase or contact GAOMON customer support directly. GAOMON provides customer support and detailed step-by-step video guides to assist with assembly and any product-related inquiries.
For assistance, please contact the seller or manufacturer through the platform where the purchase was made.
