1. Important Safety Information
Before operating the TopMate ES15 electric scooter, please read and understand all safety instructions. Failure to follow these instructions may result in injury or damage to the scooter.
- Always wear appropriate safety gear, including a helmet.
- Do not exceed the maximum weight capacity of 300 lbs (136 kg).
- Operate the scooter on stable, level surfaces. Avoid steep inclines beyond 10 degrees.
- Ensure the battery is fully charged before each use.
- Keep hands and feet clear of moving parts.
- Do not operate the scooter under the influence of alcohol or medication.
- Regularly inspect the scooter for any signs of wear or damage.
2. Product Overview
The TopMate ES15 is a lightweight, folding 3-wheel electric scooter designed for personal mobility. It features a dual-motor drive, removable battery, and a user-friendly control system.
Key Components:
- Handlebar with joystick control and display
- Padded seat and backrest
- Front and rear wheels with pneumatic tires
- Removable lithium-ion battery
- Front basket and rear pouch for storage
- LED headlight and rear reflectors
Image: TopMate ES15 scooter displaying its adjustable speed levels on the handlebar and the large capacity detachable front basket.
3. Setup and Assembly
3.1 Unfolding the Scooter
- Place the folded scooter on a flat, stable surface.
- Release any locking mechanisms securing the folded position.
- Carefully unfold the main frame until it locks into place.
- Raise the handlebar stem and secure it.
- Adjust the seat height if necessary and ensure it is securely fastened.

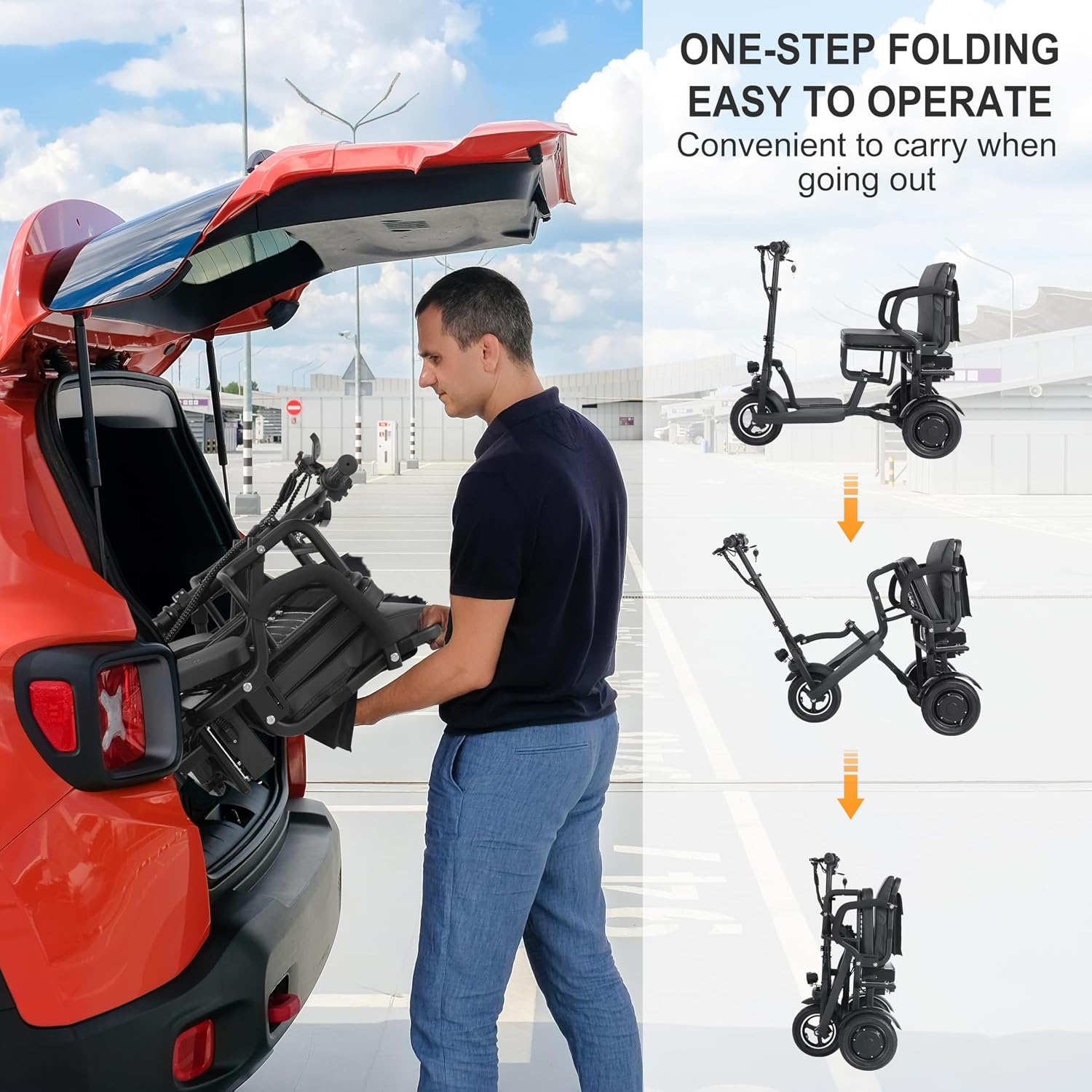

Image: Demonstration of the scooter's one-step folding mechanism and its compact storage in a car trunk.
3.2 Attaching the Basket
The front basket is detachable and can be used as a carry bag. Attach it to the front of the scooter using the designated hooks or clips.
4. Battery Charging and Installation
The TopMate ES15 is powered by a 36V 7.8Ah lithium-ion battery, providing a range of 16-19 miles per charge.
4.1 Charging the Battery
The battery can be charged in two ways:
- On-Scooter Charging: Connect the charger directly to the charging port on the scooter.
- Off-Scooter Charging: Remove the battery from the scooter and connect the charger to the battery's charging port.
A full charge typically takes 3-4 hours. The charger indicator light will change when charging is complete.
Image: Removable lithium battery with illustrations of two charging methods: directly on the scooter or detached.
4.2 Battery Installation/Removal
To install the battery, slide it into its compartment until it clicks securely into place. To remove, unlock the battery compartment (if applicable) and slide the battery out.
5. Operation
5.1 Powering On/Off
Insert the key into the ignition and turn it to the 'ON' position to power on the scooter. Turn the key to 'OFF' to power off.
5.2 Controls
- Joystick: Use the intuitive joystick for acceleration and steering.
- Speed System: The scooter features an adjustable 3-speed system (3 MPH, 7 MPH, 15 MPH). Select your desired speed using the controls on the handlebar.
- Reverse Function: Engage the reverse function for backing up.
- Brakes: The scooter is equipped with dual drum brakes and an incline parking brake for stopping and securing the scooter on slopes.
- Lights and Horn: Activate the bright LED headlights for visibility and use the warning horn as needed.
Video: Official product video demonstrating the operation and features of the TopMate ES15 3-wheel electric scooter.
6. Riding Guidelines
The TopMate ES15 is designed for various terrains, providing a smooth ride with its three 10-inch pneumatic tires.
- Suitable Terrains: Sidewalks, gravel paths, grass, and other uneven outdoor surfaces.
- Slope Capability: The 500W dual-motor drive allows the scooter to handle slopes up to 10 degrees.
- Maximum Speed: The scooter can reach a top speed of 15 MPH.
Image: The TopMate ES15 scooter being ridden, illustrating its adaptability to various road conditions including grassland, city roads, gravel roads, and dirt roads.
7. Maintenance
Regular maintenance ensures the longevity and safe operation of your scooter.
- Cleaning: Wipe down the scooter with a damp cloth. Avoid using harsh chemicals or excessive water.
- Tires: Check tire pressure regularly. Pneumatic tires require proper inflation for optimal performance and safety. Refer to the tire sidewall for recommended pressure.
- Battery Care: Store the battery in a cool, dry place. If storing for extended periods, charge the battery periodically to maintain its health.
- General Inspection: Periodically check all bolts, nuts, and moving parts for tightness and wear. Ensure brakes are functioning correctly.
8. Troubleshooting
If you encounter issues with your TopMate ES15 scooter, refer to the following common troubleshooting tips:
| Problem | Possible Cause | Solution |
|---|---|---|
| Scooter does not power on | Battery not charged or improperly installed; Key not in 'ON' position | Charge battery; Ensure battery is correctly installed; Turn key to 'ON' |
| Reduced range or power | Low battery charge; Overloaded scooter; Low tire pressure | Fully charge battery; Reduce load; Inflate tires to recommended pressure |
| Brakes not effective | Brake cable adjustment needed; Worn brake pads | Adjust brake cables; Inspect and replace brake pads if worn |
| Unusual noises during operation | Loose components; Debris in wheels/motor | Inspect and tighten all fasteners; Clear any obstructions |
If the problem persists after attempting these solutions, please contact customer support.
9. Specifications
| Feature | Detail |
|---|---|
| Model Name | ES15 |
| Brand | TopMate |
| Motor | Dual 36V 250W Brushless (500W total) |
| Battery | 36V 7.8Ah Lithium-ion |
| Max Speed | 15 MPH |
| Range per Charge | 16-19 miles |
| Charge Time | 3-4 hours |
| Max Incline | 10 degrees |
| Wheel Size | 10 inches |
| Wheel Type | Pneumatic |
| Brake Style | Front Braking (Dual Drum Brakes) |
| Max Weight Capacity | 300 lbs (136 kg) |
| Material | Aluminum Frame |
| Additional Features | Lightweight, Folding, Joystick Controller, LED Headlight |
10. Warranty and Support
10.1 Warranty Information
The TopMate ES15 electric scooter comes with a 2-Year Warranty. This warranty covers manufacturing defects under normal use. Please retain your proof of purchase for warranty claims. The warranty does not cover damage caused by misuse, accidents, or unauthorized modifications.
10.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your TopMate ES15 scooter, please contact the manufacturer or authorized dealer. Refer to your purchase documentation for specific contact details.
You may also visit the TopMate Store on Amazon for more information.
