1. Introduction
The GEARGO 30 Amp RV Surge Protector is designed to safeguard your recreational vehicle's electrical system from power surges, voltage fluctuations, and wiring faults. Featuring a 28000 Joule surge energy rating, smart app monitoring, and an IP68 waterproof rating, this device provides comprehensive protection and real-time electrical insights for your RV. This manual provides essential information for proper installation, operation, and maintenance to ensure the longevity and safety of your unit and connected appliances.

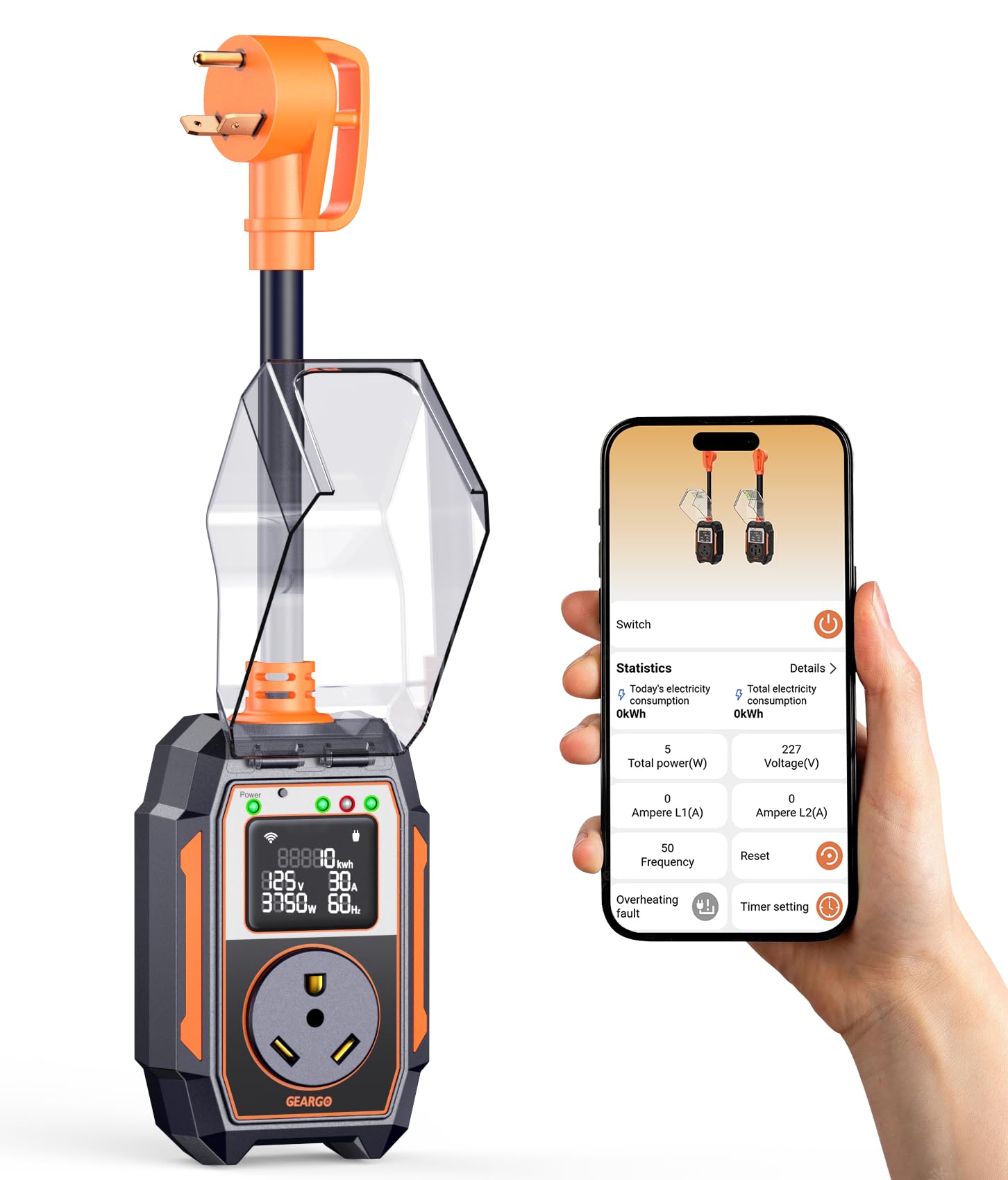

Image 1.1: The GEARGO 30 Amp RV Surge Protector, showcasing its robust design and digital display.
Image 1.2: An RV utilizing the GEARGO surge protector for enhanced electrical safety, highlighting its 28000 Joule protection capability.
2. Key Features
- 28000 Joule Surge Protection: Provides robust defense against power surges and voltage spikes, protecting sensitive RV electronics.
- Smart APP Monitoring & Control: Connects via Bluetooth to a smartphone app for real-time monitoring of voltage, current, power, and wiring status. Allows remote alerts and management.
- High & Low Voltage Protection: Automatically disconnects power when voltage exceeds or falls below safe thresholds, reconnecting once stable.
- Circuit Analyzer & Fault Detection: Detects common wiring issues such as reverse polarity, open ground, and open neutral before power connection.
- IP68 Waterproof Construction: Durable, impact-resistant housing with a sealed protective cover ensures reliable operation in various weather conditions.
- Large LED Display: Clear, easy-to-read display shows real-time electrical parameters and fault indicators.
Image 2.1: Evolution of surge protection, highlighting the 28000 Joule rating of the new generation GEARGO protector.
Image 2.2: Depiction of the internal smart chip for real-time monitoring and examples of the smartphone app interface.
Image 2.3: The surge protector demonstrating its all-weather resistance, including protection from sun, electricity, and rain.
3. What's in the Box
Upon opening your product packaging, you should find the following items:
- 1 x GEARGO RV Surge Protector (30 Amp)
- 1 x User Manual
Video 3.1: This video demonstrates the contents of the GEARGO RV Surge Protector package, showing the surge protector unit and the user manual.
4. Setup Instructions
Follow these steps to properly set up your GEARGO RV Surge Protector:
- Download the App: Before connecting the surge protector, download the companion app. Search for "Smart Life" or "Tuya" in your smartphone's app store (App Store for iOS, Google Play Store for Android).
- Inspect the Power Pedestal: Visually inspect the campground power pedestal for any signs of damage or wear. Ensure the circuit breaker is in the OFF position.
- Connect the Surge Protector: Plug the male end of the GEARGO RV Surge Protector into the 30 Amp receptacle on the power pedestal. Ensure a secure connection.
- Verify Wiring Status: Once plugged in, the surge protector's LED display will illuminate and perform a diagnostic check. Observe the indicator lights for wiring status. A green "Correct Wiring" light indicates a safe connection. If any other fault lights appear, do not proceed; refer to the Troubleshooting section.
- Connect Your RV: Plug your RV's 30 Amp power cord into the female receptacle of the surge protector.
- Turn On Power: Flip the circuit breaker on the power pedestal to the ON position.
- Pair with App (Optional): Open the downloaded app on your smartphone and follow the in-app instructions to pair your surge protector via Bluetooth for real-time monitoring.
Image 4.1: Step-by-step guide on downloading the required smartphone application for the surge protector.
Image 4.2: Visual instructions for the simple plug-and-play setup of the surge protector with an RV.
Image 4.3: Illustration differentiating between 30 Amp (3-prong) and 50 Amp (4-prong) RV connections. This product is for 30 Amp systems.
5. Operating Instructions
Once connected, the GEARGO RV Surge Protector operates automatically to protect your RV. Monitor its status using the integrated LED display or the smartphone app.
5.1 LED Display Indicators
The large LED display provides real-time information and diagnostic feedback:
- Voltage (V): Displays the incoming voltage.
- Current (A): Shows the current draw of your RV.
- Power (W/kW): Indicates the power consumption.
- Frequency (Hz): Displays the electrical frequency.
- Wiring Status Lights: A series of lights indicate the status of the power pedestal's wiring. Refer to the Troubleshooting section for detailed interpretation.
Image 5.1: The clear LED display of the surge protector, showing various electrical readings and the wiring status indicators.
5.2 Energy Consumption Tracking
The smart app allows you to track your RV's electricity consumption over customizable periods (daily, weekly, monthly, yearly). This feature helps you monitor usage and manage energy efficiency.
Image 5.2: The smartphone app displaying energy consumption data, allowing users to select custom time periods for tracking.
6. Smart App & Bluetooth Connectivity
The GEARGO RV Surge Protector integrates with a smartphone application via Bluetooth, offering advanced monitoring and control features.
6.1 Pairing the Device
- Ensure Bluetooth is enabled on your smartphone.
- Open the "Smart Life" or "Tuya" app.
- Follow the in-app instructions to add a new device. The app will typically auto-detect the surge protector when it's powered on and within Bluetooth range.
- Confirm pairing within the app.
6.2 App Features
- Real-Time Data: View live voltage, current, power, and frequency readings.
- Wiring Status: Get instant alerts on wiring faults (e.g., open ground, reverse polarity).
- Alerts & Notifications: Receive push notifications for over/under voltage events, power outages, or wiring issues.
- Historical Data: Review past electrical data and consumption trends.
- Remote Management: (If supported by app version) Potentially manage power settings or receive firmware updates.
Image 6.1: A visual comparison highlighting the benefits of a smart surge protector with app monitoring over a standard unit.
7. Maintenance
To ensure optimal performance and longevity of your GEARGO RV Surge Protector, follow these maintenance guidelines:
- Regular Cleaning: Periodically wipe the exterior of the unit with a damp cloth to remove dirt and debris. Ensure the unit is unplugged before cleaning. Do not use harsh chemicals or abrasive cleaners.
- Inspect Connections: Before each use, check the male and female plugs for any signs of corrosion, bending, or damage. Ensure they fit snugly into the receptacles.
- Protective Cover: Always ensure the clear protective cover is securely closed when the unit is in use or stored to maintain its IP68 waterproof rating and protect the display and receptacle from elements.
- Storage: When not in use, store the surge protector in a cool, dry place, away from direct sunlight and extreme temperatures.
- Avoid Submersion: While IP68 rated for water and dust resistance, avoid intentionally submerging the unit in water.
Image 7.1: The surge protector's design for all-weather resistance, emphasizing its durability against environmental factors.
8. Troubleshooting
The GEARGO RV Surge Protector includes a circuit analyzer to detect common wiring faults. Refer to the table below for interpreting the LED indicator lights and suggested actions.
| Pattern | Indicates | Result / Action |
|---|---|---|
| ● ● ● | Correct Wiring | Proceed with connection. |
| ● ○ ○ | Open Ground | Do not connect. Consult campground management or an electrician. |
| ● ○ ● | Reverse Polarity | Do not connect. Consult campground management or an electrician. |
| ● ○ ○ | Open Hot | Do not connect. Consult campground management or an electrician. |
| ● ● ○ | Open Neutral | Do not connect. Consult campground management or an electrician. |
| ○ ● ● | Hot on Neutral with Hot Open | Do not connect. Consult campground management or an electrician. |
If the surge protector disconnects power due to high or low voltage, it will automatically reconnect once the voltage stabilizes within the safe operating range. If issues persist, contact customer support.
Image 8.1: A detailed guide to interpreting the wiring indicator lights on the surge protector and the corresponding troubleshooting steps.
9. Specifications
- Brand: GEARGO
- Model: VC-05-30A
- Power Source: Corded Electric
- Amperage: 30 Amp
- Surge Energy Rating: 28000 Joules
- Protection Features: Over/Under Voltage, Surge Protection, Circuit Analysis
- Connectivity: Bluetooth (Smart App)
- Environmental Rating: IP68 Waterproof
- Included Components: RV Surge Protector, User Manual
Image 9.1: Illustration of the surge protector's robust construction, including its waterproof cover, 30 Amp plug, and high-quality copper wiring.
10. Warranty Information
The GEARGO RV Surge Protector (Model VC-05-30A) comes with a 3-Year Warranty from the date of purchase. This warranty covers defects in materials and workmanship under normal use. It does not cover damage caused by misuse, accident, unauthorized modification, or improper installation. Please retain your proof of purchase for warranty claims.
11. Customer Support
For any questions, technical assistance, or warranty claims regarding your GEARGO RV Surge Protector, please contact our customer support team. Refer to the contact information provided in your product packaging or visit the official GEARGO website for the most up-to-date support details.
We are committed to providing reliable products and excellent service.
