EliteEdge Heavy Duty 5-Tier Metal Adjustable Storage Shelving Unit

Introduction

This manual provides comprehensive instructions for the assembly, operation, and maintenance of your EliteEdge Heavy Duty 5-Tier Metal Adjustable Storage Shelving Unit. Designed for durability and versatility, this unit offers a robust storage solution for various environments, including garages, pantries, basements, and laundry rooms. Please read this manual thoroughly before assembly and use to ensure safe and efficient operation.

The EliteEdge shelving unit features a reinforced metal frame and thick MDF panels, providing a total load capacity of 2500 lbs, with each shelf supporting up to 500 lbs. Its boltless, press-fit design allows for quick and straightforward assembly, and the shelves are fully adjustable in 1.4-inch increments to accommodate items of various heights.

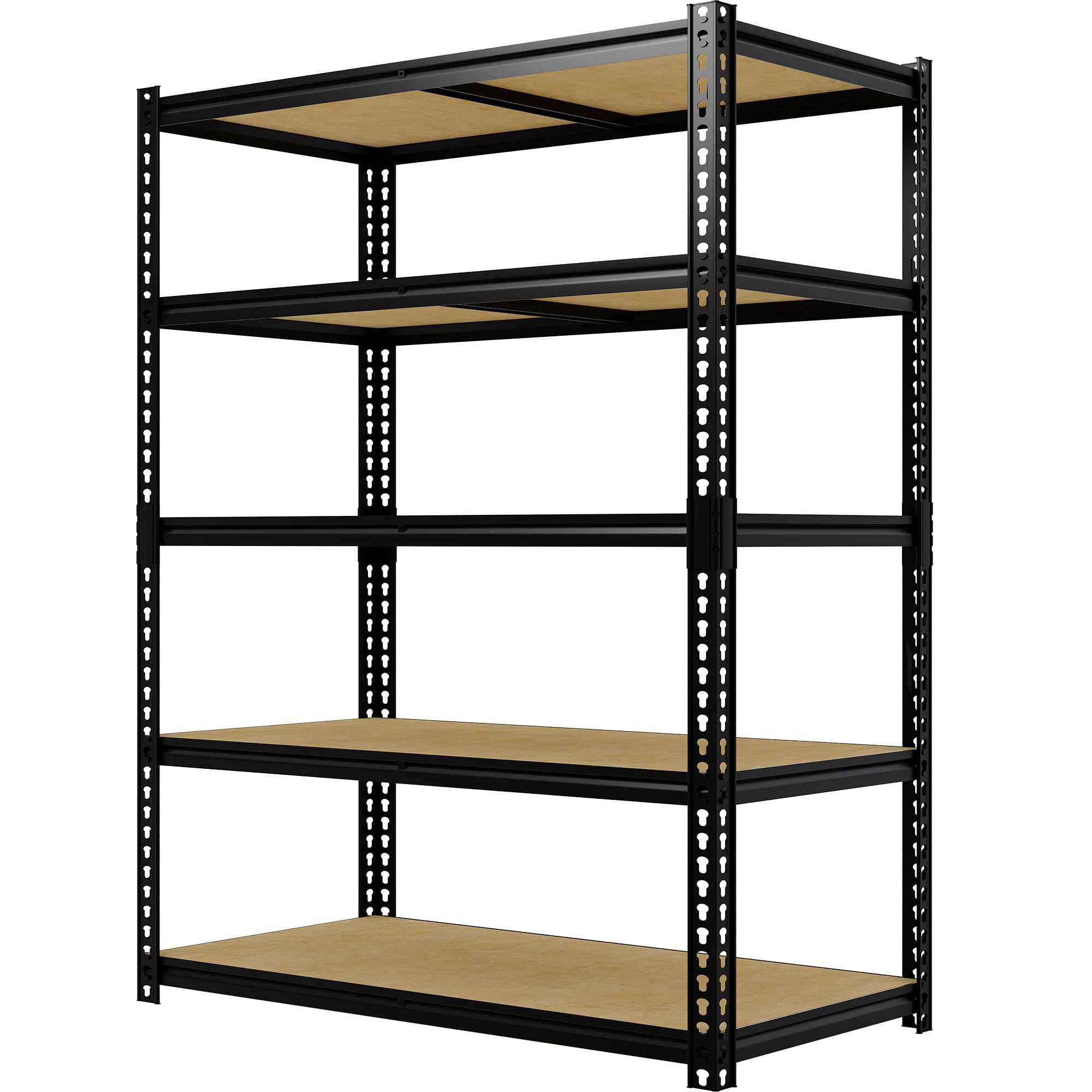

Image: The EliteEdge 5-Tier Metal Adjustable Storage Shelving Unit, showcasing its robust design and ample storage capacity.

Safety Information

• Always assemble the unit on a flat, stable surface.
• Ensure all components are securely connected before loading the shelves.
• Do not exceed the maximum weight capacity of 500 lbs per shelf or 2500 lbs total.
• Distribute weight evenly on each shelf to prevent tipping.
• For added stability, especially when storing heavy items or in high-traffic areas, consider anchoring the unit to a wall.
• Keep children and pets away from the unit during assembly and ensure they do not climb on the shelves.
• Wear appropriate safety gear, such as gloves, during assembly to prevent cuts or pinches.
• The MDF shelves are not moisture-resistant. Avoid use in high-humidity environments or where direct water exposure is possible.

Image: Rolled edge design on load-bearing posts, designed for safety and to prevent injury during handling.

Package Contents

Before beginning assembly, verify that all parts are present and undamaged. If any parts are missing or damaged, please contact customer support.

Setup Instructions

The EliteEdge shelving unit features a boltless design for easy assembly. A rubber mallet (not included) may be helpful for securing connections.

1. Prepare the Area: Choose a clear, level surface for assembly. Ensure adequate space around the unit.
2. Assemble the Base Frame: Connect two long horizontal beams and two short horizontal beams to four vertical posts to form the bottom frame. Ensure the keyhole slots on the posts face inwards. Gently tap connections with a rubber mallet to secure.
3. Install First Shelf: Place one MDF panel into the assembled base frame.
4. Extend Vertical Posts: Attach the remaining vertical posts to the top of the existing posts using the coupling plates if assembling as one tall unit. If assembling two shorter units, skip this step for the second unit.
5. Add Remaining Shelves: Determine your desired shelf heights. Attach horizontal beams at the chosen increments (1.4-inch adjustments are possible) to the vertical posts. Insert MDF panels onto the beams. Repeat for all five shelves.
6. Attach Foot Caps: Place the plastic foot caps onto the bottom of the vertical posts to protect your floor.
7. Final Check: Ensure all connections are tight and the unit is stable before loading.

Image: Visual guide illustrating the easy, boltless assembly process of the shelving unit.

Operating Instructions

This shelving unit is designed for straightforward use and adjustability.

• Loading Shelves: Place items on the shelves, ensuring weight is distributed evenly. Avoid concentrating heavy loads in one small area.
• Adjusting Shelf Height: To adjust a shelf, first unload all items from that shelf. Carefully lift the MDF panel. Disconnect the horizontal beams from the vertical posts by gently tapping upwards with a rubber mallet if necessary. Reattach the beams at the desired height using the keyhole slots, ensuring they are fully seated. Replace the MDF panel.
• Configuration Options: The unit can be assembled as one tall 5-tier shelf or separated into two shorter, standalone units (e.g., a 3-tier and a 2-tier unit) for increased flexibility.

Image: Detailed view of the adjustable shelf mechanism, allowing for 1.4-inch height increments.

Maintenance

• Cleaning: Wipe down metal parts with a damp cloth and mild detergent. Dry thoroughly. For MDF panels, use a dry or slightly damp cloth and avoid excessive moisture.
• Regular Inspection: Periodically check all connections to ensure they remain secure. Retighten or reseat any loose components.
• Rust Prevention: The unit features a powder-coated finish for rust resistance. Avoid scratching the finish, as this can expose the metal to moisture and lead to rust.
• Environmental Conditions: Store and use the shelving unit in a dry environment. Prolonged exposure to high humidity or moisture can damage the MDF panels.

Troubleshooting

Specifications

Image: Product dimensions of the EliteEdge 5-Tier Shelving Unit.

• Brand: EliteEdge
• Model Number: ci9RLzu1LROQba8ev1FJFgqikEX3l
• Dimensions (L x W x H): 48" x 18" x 72" (48.23"D x 18.23"W x 71.38"H)
• Material: Metal (Steel) frame, MDF (Medium-Density Fiberboard) shelves
• Finish: Powder Coated (Black)
• Number of Tiers: 5
• Total Weight Capacity: 2500 lbs
• Per Shelf Weight Capacity: 500 lbs
• Adjustability: Shelves adjustable in 1.4-inch increments
• Assembly Type: Boltless, Freestanding
• Item Weight: 55.3 pounds

Warranty and Support

EliteEdge products are manufactured to high-quality standards. For specific warranty details, please refer to the documentation included with your purchase or contact EliteEdge customer support directly. If you encounter any issues or have questions regarding your shelving unit, please reach out to EliteEdge customer service for assistance.

For support, please visit the official EliteEdge website or contact their customer service department using the information provided at the time of purchase.
