PVWIIK Queen Size Murphy Bed Instruction Manual

1. Introduction

Thank you for choosing the PVWIIK Queen Size Murphy Bed. This product is designed to provide a space-saving sleeping solution, seamlessly converting from a comfortable queen-size bed to a sleek cabinet. This manual provides essential information for the safe and proper setup, operation, and maintenance of your new Murphy bed. Please read all instructions carefully before assembly and use.

2. Safety Information

• Wall Mounting is Mandatory: This Murphy bed must be securely anchored to a solid wall (e.g., concrete or wood studs) using the provided hardware. Failure to properly anchor the unit can result in serious injury or death. Do not attempt to use the bed without proper wall mounting.
• Professional Installation Recommended: If you are unsure about wall mounting procedures, consult a qualified professional.
• Keep Clear: Ensure the area around the bed is clear of obstructions before opening or closing.
• Children and Pets: Keep children and pets away from the bed during operation to prevent pinching or injury.
• Weight Capacity: Do not exceed the recommended weight capacity for the bed. Refer to the specifications section for details.
• Mattress Compatibility: Use only a mattress that fits the specified dimensions and weight requirements. An overly heavy or light mattress may affect the hydraulic mechanism.
• Regular Inspection: Periodically check all fasteners and connections to ensure they are tight and secure.

3. Package Contents

Before beginning assembly, verify that all components are present and undamaged. If any parts are missing or damaged, do not proceed with assembly and contact customer support.

• Murphy Bed Cabinet Components
• Queen Size Bed Frame with Slats
• Hydraulic Lift Mechanism
• Assembly Hardware Kit (screws, bolts, wall anchors)
• Installation Manual (this document)

4. Setup Instructions

Assembly of the PVWIIK Queen Size Murphy Bed requires careful attention to detail and adherence to the step-by-step instructions provided in the included assembly guide. It is recommended that two adults perform the assembly.

1. Prepare the Area: Clear a spacious, level area for assembly. Ensure you have adequate lighting and access to power tools if needed.
2. Unpack Components: Carefully unpack all boxes and lay out components, checking against the parts list in the separate assembly guide.
3. Assemble Cabinet Frame: Follow the detailed instructions in the assembly guide to construct the main cabinet frame.
4. Install Bed Frame and Mechanism: Integrate the bed frame and hydraulic lift mechanism into the cabinet structure as per the guide.
5. Secure to Wall: This is a critical step. The Murphy bed must be securely fixed to a solid wall (e.g., concrete wall or wall studs) using the provided screws and anchors. Locate wall studs if applicable. Use appropriate tools for drilling and fastening.
6. Final Checks: After assembly, ensure all bolts and screws are tightened. Test the opening and closing mechanism slowly to confirm smooth operation.

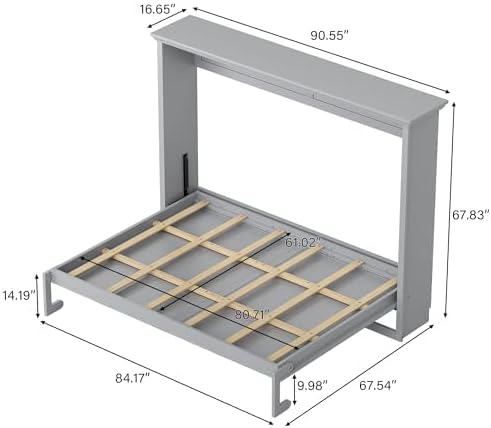

Image: The PVWIIK Queen Size Murphy Bed in its fully open position, illustrating key dimensions for installation planning.

5. Operating Instructions

The PVWIIK Queen Size Murphy Bed features a hydraulic lift system for smooth and effortless operation.

5.1 Opening the Bed

1. Clear the Area: Ensure there are no objects in the path of the bed as it lowers.
2. Unlock (if applicable): If your model includes a locking mechanism, disengage it.
3. Gently Pull Down: Grasp the handle(s) on the front panel of the cabinet. With a controlled motion, gently pull the bed downwards. The hydraulic system will assist in the lowering process.
4. Fully Extend: Continue lowering until the bed frame is fully extended and rests securely on its support legs.

Image: The Murphy bed fully deployed, showcasing the bed frame and slatted support.

5.2 Closing the Bed

1. Remove Bedding: For easiest operation, remove heavy bedding (comforters, multiple pillows) before closing. A thin mattress and light sheets can typically remain.
2. Lift Gently: Grasp the handle(s) and gently lift the bed frame upwards. The hydraulic system will assist in lifting the bed.
3. Guide into Cabinet: Guide the bed frame smoothly back into the cabinet opening until it is fully retracted and the front panel is flush with the cabinet.
4. Lock (if applicable): If your model includes a locking mechanism, engage it to secure the bed in the closed position.

Image: The Murphy bed in its closed position, appearing as a compact cabinet.

6. Maintenance

• Cleaning: Wipe surfaces with a soft, damp cloth. Avoid harsh chemicals or abrasive cleaners that may damage the finish.
• Hardware Check: Periodically (e.g., every 3-6 months) inspect all screws, bolts, and connections. Tighten any loose hardware to ensure stability and safety.
• Hydraulic Mechanism: The hydraulic system is designed for long-term use and typically requires no special maintenance. If you notice any stiffness or unusual noise, contact customer support. Do not attempt to lubricate or disassemble the hydraulic cylinders yourself.
• Slats: Check bed slats for any signs of damage or cracking. Replace damaged slats immediately to maintain proper mattress support.

7. Troubleshooting

• Bed is difficult to open/close:
  • Ensure the mattress weight is within the recommended range. An incorrect mattress weight can affect hydraulic performance.
  • Check for any obstructions around the bed frame or within the cabinet.
  • Verify that all assembly hardware is properly tightened.
• Bed feels wobbly or unstable:
  • Confirm that the unit is securely anchored to the wall. This is the most common cause of instability.
  • Check all assembly connections and tighten any loose bolts or screws.
  • Ensure the floor is level where the bed is installed.
• Squeaking noises:
  • Inspect bed slats for proper seating and any friction points.
  • Tighten all bed frame hardware.

8. Specifications

9. Warranty and Support

For warranty information and customer support, please refer to the documentation included with your purchase or contact the retailer where the product was purchased. You may also visit the official PVWIIK website for further assistance.
