Moulinex Easy Fry Compact Air Fryer EZ8618F0 User Manual

1. Introduction

Welcome to the Moulinex Easy Fry Compact Air Fryer user manual. This appliance is designed to provide a healthy and convenient way to cook a variety of meals with little to no oil. Its compact design and large 7.5-liter capacity make it suitable for any kitchen, allowing you to prepare generous portions for the whole family. Please read these instructions carefully before using the appliance and keep them for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed, including the following:

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface.
• Do not block any ventilation openings.

3. Product Overview

The Moulinex Easy Fry Compact Air Fryer EZ8618F0 features a sleek design with an intuitive touch screen for easy operation. It includes a large cooking basket and a powerful heating element for efficient air frying.

3.1 Components

• Main Unit with Heating Element
• Removable Cooking Basket (7.5 L capacity)
• Integrated Handle
• Intuitive Touch Screen Control Panel

Figure 1: Overview of the Moulinex Easy Fry Compact Air Fryer. This image shows the complete air fryer unit with its sleek black finish and silver handle.

3.2 Control Panel

The touch screen control panel allows for easy selection of cooking modes, temperature, and time settings.

Figure 2: Close-up of the intuitive touch screen control panel. It displays temperature (180°C), time, and various preset icons for different food types, along with power, manual, and start/stop buttons.

• Power Button: Turns the appliance on/off.
• Manual Mode: Allows custom setting of temperature and time.
• Temperature/Time Adjustment: Use '+' and '-' buttons to increase or decrease values.
• Preset Programs: Icons for common foods like fries, chicken, fish, pizza, etc.
• Start/Stop Button: Initiates or pauses the cooking process.

4. Setup and First Use

1. Unpack: Carefully remove all packaging materials and any promotional labels from the appliance.
2. Clean: Wash the cooking basket and any removable accessories with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely. Wipe the interior and exterior of the main unit with a damp cloth.
3. Placement: Place the air fryer on a stable, level, heat-resistant surface, away from walls or other appliances to ensure proper ventilation. Ensure there is at least 10 cm of free space on the back and sides, and 20 cm above the appliance.
4. Power Connection: Plug the power cord into a grounded wall outlet.
5. Initial Run (Optional): For the first use, it is recommended to run the air fryer empty for about 10-15 minutes at 180°C to eliminate any manufacturing odors. A slight smell or smoke may occur, which is normal. Ensure good ventilation during this process.

5. Operating Instructions

5.1 Preparing for Cooking

1. Ensure the cooking basket is clean and properly inserted into the main unit.
2. Place your ingredients into the cooking basket. Do not overfill the basket; ensure air can circulate freely for even cooking. The 7.5L capacity allows for generous portions, such as a whole chicken, a large pizza, or up to 1.2 kg of fries.

Figure 3: Examples of food capacity in the 7.5L basket, including a 2kg chicken, 1.2kg of fries, a 24cm pizza, and 9 muffins, demonstrating its versatility for family meals.

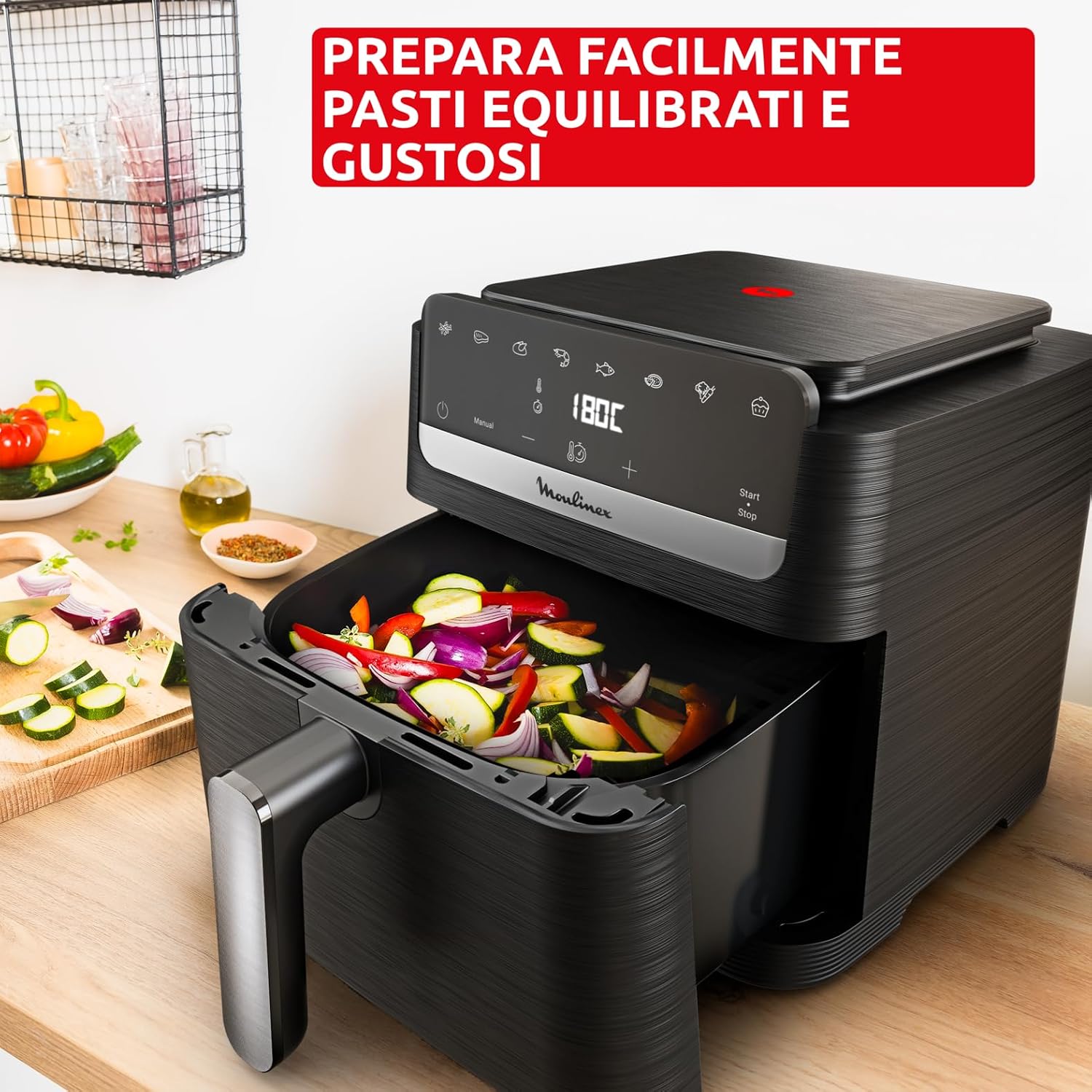

Figure 4: The air fryer basket filled with chopped vegetables, illustrating how to load ingredients for cooking.

5.2 Using the Control Panel

1. Power On: Press the power button to turn on the appliance. The display will light up.
2. Select Cooking Mode:
   • Preset Programs: Tap the desired food icon (e.g., fries, chicken) on the touch screen. The appliance will automatically set a recommended temperature and time.
   • Manual Mode: Tap the "Manual" button. Then, use the '+' and '-' buttons to adjust the temperature and cooking time according to your recipe.
3. Start Cooking: Press the "Start/Stop" button to begin the cooking cycle. The fan and heating element will activate.
4. During Cooking: For best results, especially with larger quantities or certain foods, it is recommended to shake the basket or turn the food halfway through the cooking time. The appliance may have a reminder function for this.
5. Pause/Stop: You can pause cooking at any time by pressing the "Start/Stop" button. Press it again to resume. To stop cooking completely, press and hold the "Start/Stop" button or the power button.
6. Cooking Completion: The appliance will beep when the cooking time is complete. Carefully pull out the basket using the handle.
7. Serve: Remove the cooked food from the basket. Be cautious of hot steam and surfaces.

5.3 Energy Saving

The Moulinex Easy Fry Compact is designed for energy efficiency, offering up to 65% energy savings compared to a traditional oven and cooking up to 37% faster.

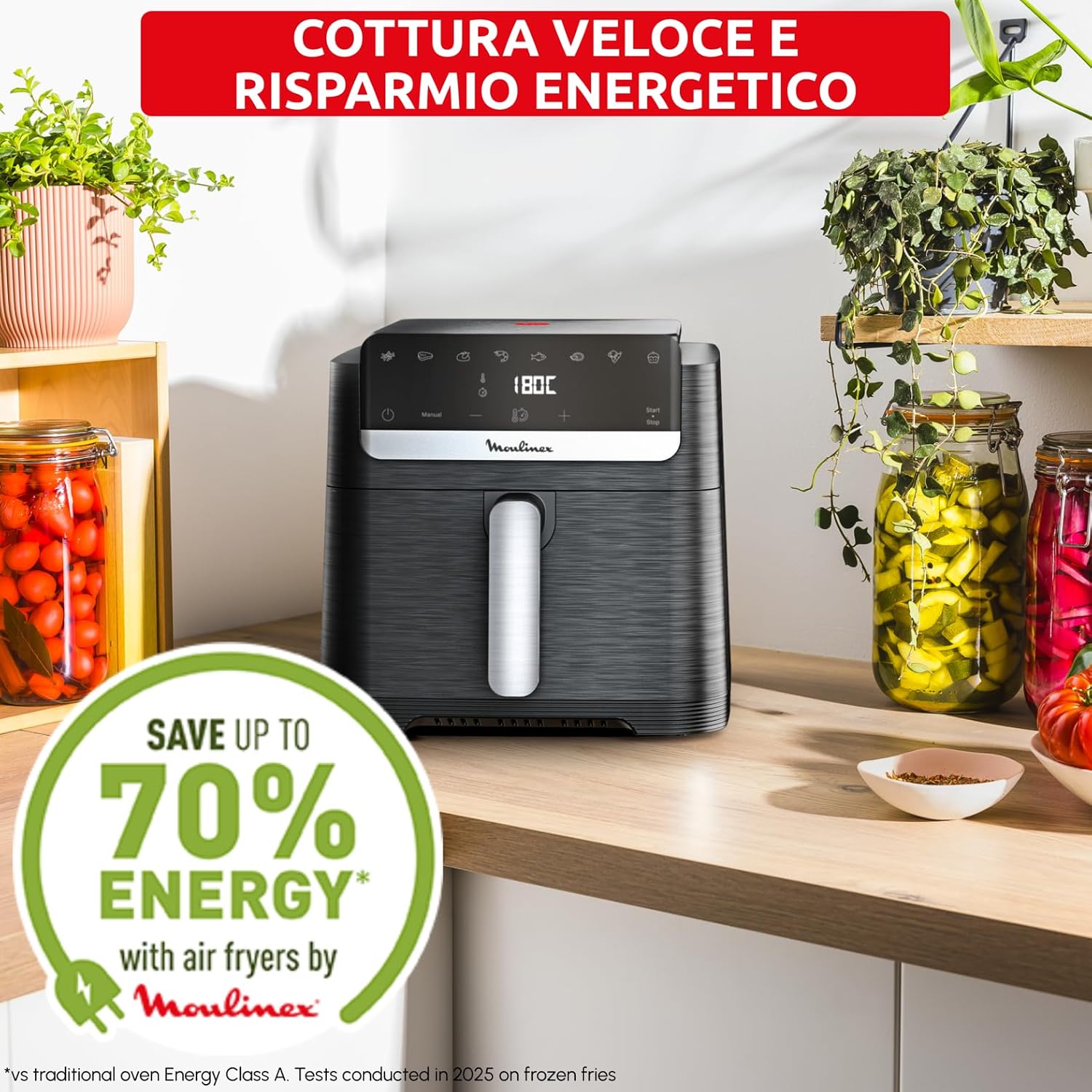

Figure 5: Graphic illustrating energy savings of up to 70% when using Moulinex air fryers compared to traditional ovens (based on tests conducted in 2025 on frozen fries).

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the life of your air fryer.

1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool down completely before cleaning.
2. Clean the Basket: The cooking basket is dishwasher safe. Alternatively, wash it with hot water, dish soap, and a non-abrasive sponge. For stubborn food residues, soak the basket in hot water with dish soap for about 10 minutes before cleaning.
3. Clean the Interior: Wipe the interior of the appliance with a damp cloth. Do not use abrasive cleaners or metal scouring pads.
4. Clean the Exterior: Wipe the exterior of the air fryer with a damp cloth.
5. Heating Element: Gently clean the heating element with a cleaning brush to remove any food residues. Do not use water or liquid directly on the heating element.
6. Storage: Ensure all parts are clean and dry before storing the appliance in a cool, dry place.

7. Troubleshooting

8. Specifications

• Model Name: Easy Fry Compact
• Model Number: EZ8618F0
• Brand: Moulinex
• Capacity: 7.5 Liters
• Control Method: Touch Screen
• Special Feature: Touch screen
• Color: Black
• Product Dimensions (D x W x H): 30.6P x 39.2l x 29.7H cm (12.05 x 15.43 x 11.69 inches)
• Item Weight: 4.6 Kilograms (10.14 lbs)
• Manufacturer: Groupe SEB
• Country of Origin: China

Figure 6: Diagram showing the dimensions of the Moulinex Easy Fry Compact Air Fryer: 30.6 cm depth, 39.2 cm width, and 29.6 cm height.

9. Warranty and Support

Moulinex is committed to the durability of its products. This appliance benefits from a 15-year repairability commitment within the EU. We recommend having your product repaired within our global network of 6,200 repair centers to extend its lifespan.

For further assistance, troubleshooting, or to locate a repair center, please visit the official Moulinex website or contact their customer support.
