Hafele Nero 60cm Built-in Induction Hob User Manual

1. Introduction

This manual provides essential information for the safe and efficient use of your Hafele Nero 60cm Built-in Induction Hob. Please read these instructions carefully before installation and operation, and keep them for future reference. The Hafele Nero induction hob is designed to integrate seamlessly into modern kitchens, offering advanced cooking technology with enhanced safety and efficiency.

2. Safety Information

General Safety:

• Ensure the appliance is installed by a qualified technician in accordance with local regulations.
• Do not operate the hob if the glass ceramic surface is cracked or broken. Disconnect from power immediately.
• Keep children away from the appliance during operation and when it is cooling down.
• Do not store flammable materials on or near the hob.
• Use only induction-compatible cookware.
• Avoid placing metallic objects like knives, forks, spoons, and lids on the hob surface as they can become hot.

Electrical Safety:

• The appliance must be properly earthed.
• Do not use high-pressure cleaners or steam cleaners on the hob.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.

3. Setup and Installation

The Hafele Nero 60cm Induction Hob is designed for drop-in installation into a kitchen countertop. Professional installation is highly recommended to ensure proper fitting and electrical connection.

Image: The Hafele Nero 60cm Built-in Induction Hob seamlessly integrated into a modern kitchen countertop, demonstrating its sleek design.

Installation Requirements:

• Ensure adequate ventilation around the appliance.
• The countertop material must be heat-resistant.
• Refer to the provided installation template for precise cutout dimensions.

Product Dimensions:

Image: Diagram showing the physical dimensions of the Hafele Nero 60cm Induction Hob: Length (L) 520 mm, Width (W) 590 mm, and Height (H) 62.5 mm.

• Length (Depth): 520 mm (52 cm)
• Width: 590 mm (59 cm)
• Height: 62.5 mm (6.25 cm)

4. Operating Instructions

Your Hafele Nero Induction Hob features intuitive touch controls for precise cooking.

4.1 Power On/Off:

• Touch the power symbol to turn the hob on or off.

4.2 Touch Control with Slider:

Image: A close-up view of the hob's touch control panel, highlighting the slider mechanism for adjusting heat levels with a simple touch and slide motion.

• Select a cooking zone by touching its corresponding control.
• Slide your finger along the slider control to increase or decrease the heat level (Power Levels: 9).

4.3 Flex Zones:

Image: The Hafele Nero induction hob demonstrating its Flex Zones feature, where two individual cooking zones are combined to create a larger heating area, accommodating an oversized rectangular pan.

• The Flex Zones allow you to combine two cooking zones into one larger zone. This is ideal for larger or irregularly shaped cookware.
• To activate, place the large cookware over the designated Flex Zone area and select the Flex Zone control.

4.4 Power Boost Function:

• Activate the Power Boost function for rapid heating. This temporarily increases the power to a selected zone, significantly reducing cooking time.
• Refer to the control panel for the specific boost symbol and activation method.

4.5 Automatic Pan Detection:

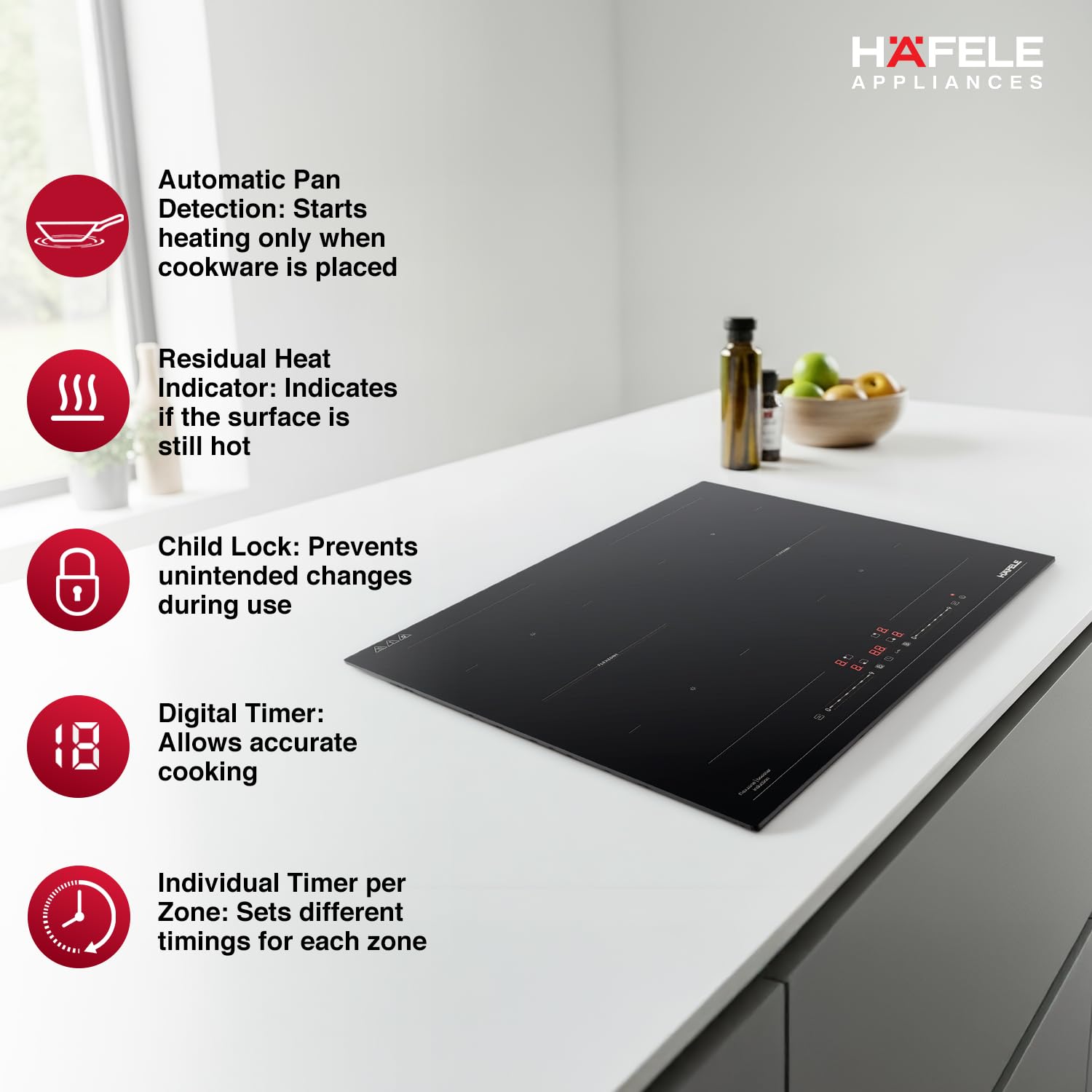

Image: An overview of the Hafele Nero induction hob's safety and convenience features, including Automatic Pan Detection, Residual Heat Indicator, Child Lock, Digital Timer, and Individual Timer per Zone.

• The hob automatically detects if suitable cookware is placed on a cooking zone. Heating will only begin when a pan is present.
• If no pan is detected or an incompatible pan is used, an error indicator may appear, and the zone will not heat.

4.6 Residual Heat Indicator:

• After cooking, the display for a hot zone will show an 'H' (or similar symbol) to indicate that the surface is still hot and caution is required.

4.7 Child Lock:

• Activate the Child Lock to prevent unintended operation, especially by children.
• To activate/deactivate, press and hold the child lock symbol until the indicator appears/disappears.

4.8 Digital Timer & Individual Timer per Zone:

• Use the digital timer for general cooking duration.
• Set individual timers for each cooking zone to manage different dishes simultaneously.
• Refer to the control panel for timer setting instructions.

5. Maintenance and Cleaning

Regular cleaning and maintenance will ensure the longevity and optimal performance of your induction hob.

• Cleaning the Glass Ceramic Surface: Allow the hob to cool completely before cleaning. Use a soft cloth and a non-abrasive cleaner specifically designed for ceramic or induction hobs. For stubborn stains, a ceramic hob scraper can be used carefully.
• Spills: Wipe up spills immediately, especially sugary liquids, to prevent them from burning onto the surface.
• Avoid: Do not use abrasive sponges, scouring pads, or harsh chemical cleaners as they can scratch or damage the surface.

6. Troubleshooting

If you encounter issues with your induction hob, refer to the following common troubleshooting steps:

For issues not resolved by these steps, please contact Hafele customer support.

7. Specifications

8. Warranty and Support

Warranty:

• This product comes with a 1-year warranty from the date of purchase. Please retain your proof of purchase for warranty claims.

Customer Support:

For technical assistance, service requests, or any queries regarding your Hafele Nero Induction Hob, please contact:
