Instruction Manual

1. Introduction

This manual provides essential instructions for the installation, operation, and maintenance of the Generic MIYOTA 2115 Quartz Watch Movement. This movement is designed as a replacement part for men's watches featuring a date display at the 3 o'clock position. It is a reliable and durable component for watch repair and restoration.

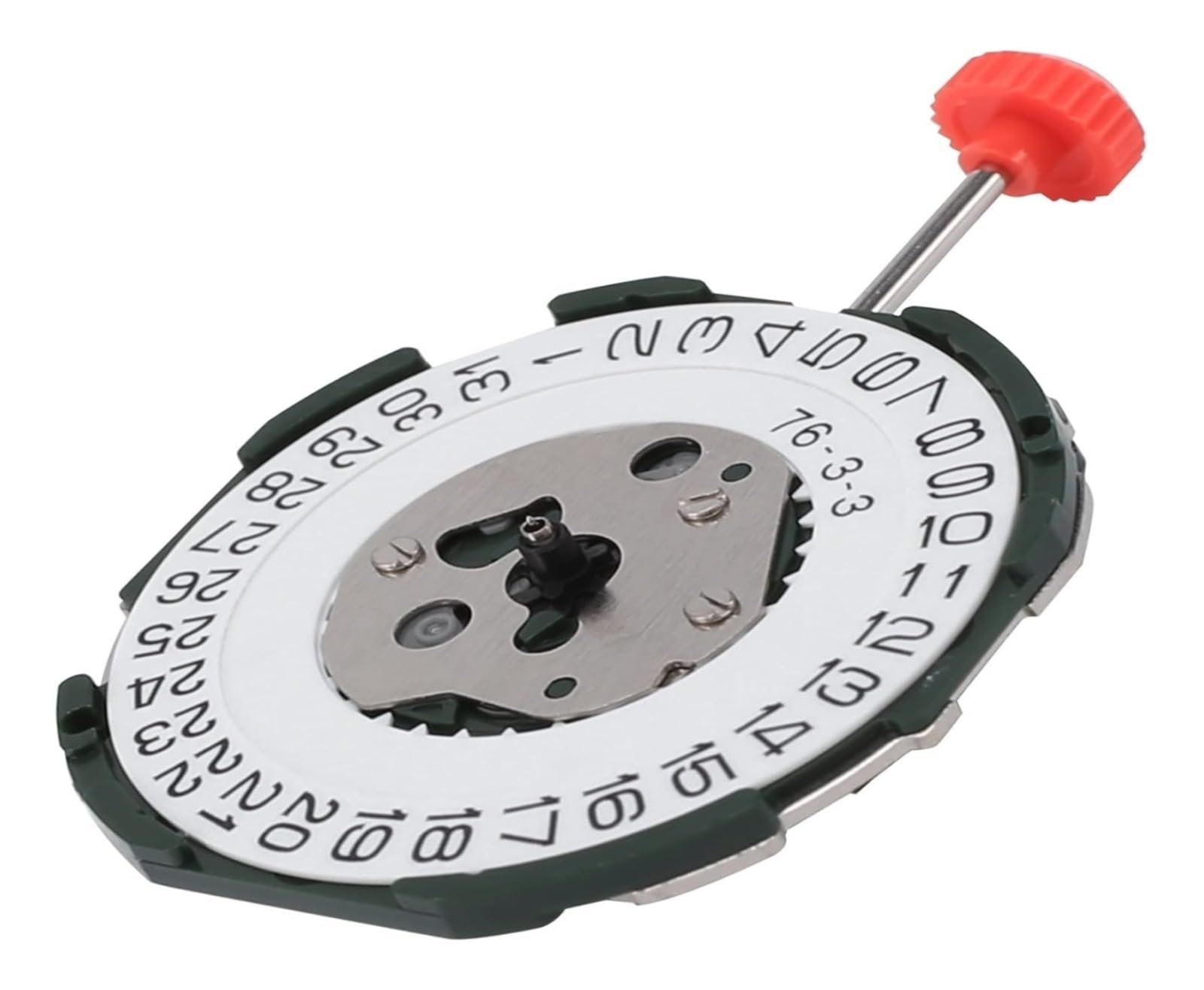

Image 1.1: Front view of the MIYOTA 2115 quartz watch movement, showing the date wheel, crown stem, and setting mechanism. The date display is positioned at 3 o'clock.

2. Safety Information

Please read and understand the following safety precautions before handling or installing the watch movement:

• Always handle the movement with clean, non-magnetic tools to prevent damage or magnetization.
• Avoid touching the movement's delicate components directly with bare hands. Use finger cots or gloves.
• Keep the movement away from dust, moisture, and extreme temperatures.
• Store the movement in its protective packaging until ready for installation.
• Battery replacement should be performed by a qualified technician to avoid damage to the movement.

3. Package Contents

The package includes the following items:

• 1 x MIYOTA 2115 Quartz Watch Movement
• 1 x Crown Stem
• 1 x Battery (pre-installed or separate)

4. Specifications

5. Setup and Installation

The MIYOTA 2115 movement is a precision component. Installation should ideally be performed by an experienced watchmaker or a person with appropriate watch repair skills and tools.

5.1 Preparing for Installation

• Ensure your workspace is clean, dust-free, and well-lit.
• Gather necessary watchmaking tools, including movement holders, tweezers, screwdrivers, and a loupe.
• Carefully remove the old movement from the watch case, if applicable.

5.2 Installing the Movement

1. Gently place the new MIYOTA 2115 movement into a movement holder.
2. Install the watch hands (hour, minute, second) onto the movement's pinions. Ensure they are properly aligned and do not touch each other or the dial.
3. Carefully place the dial onto the movement, aligning the dial feet with the movement's holes.
4. Insert the crown stem into the movement. The stem should click into place. Do not force it.
5. Place the assembled movement and dial into the watch case. Secure it using the appropriate movement clamps or screws, if required by the case design.
6. Ensure the crown stem aligns correctly with the crown tube of the watch case.
7. Close the watch case back securely.

Image 5.1: Rear view of the MIYOTA 2115 movement, illustrating the battery compartment and the quartz crystal oscillator coil. The battery is typically a SR626SW or equivalent.

Image 5.2: An angled view of the MIYOTA 2115 movement's rear, providing a clearer perspective of its internal components and construction.

6. Operating Instructions

Once the movement is installed in the watch case, you can set the time and date.

6.1 Setting the Time

1. Pull the crown out to the second click position (farthest out). The second hand will stop.
2. Turn the crown to move the hands clockwise until the desired time is displayed.
3. Push the crown back to the normal position to start the watch.

6.2 Setting the Date

1. Pull the crown out to the first click position.
2. Turn the crown counter-clockwise (or clockwise, depending on the specific watch case design) until the correct date is displayed in the 3 o'clock window.
3. Push the crown back to the normal position.

Note: Avoid setting the date between 9:00 PM and 3:00 AM, as this can interfere with the automatic date change mechanism and potentially damage the movement.

Image 6.1: Front view of the MIYOTA 2115 movement, showing the date wheel and the stem with its red crown. This view highlights the mechanism for time and date adjustment.

7. Maintenance

Proper maintenance ensures the longevity and accuracy of your MIYOTA 2115 quartz movement.

• Cleaning: Keep the watch case and crystal clean to prevent dust and debris from entering the movement.
• Battery Replacement: The battery typically lasts for several years. When the watch stops or runs intermittently, it's time for a battery change. Use a fresh SR626SW battery or equivalent. It is recommended to have this done by a professional watchmaker.
• Avoid Shocks: While robust, excessive shocks can damage the movement.
• Water Resistance: The movement itself is not water-resistant. The water resistance of the watch depends entirely on the watch case and its seals.

Image 7.1: An angled rear view of the MIYOTA 2115 movement, clearly showing the battery and its retaining clip, which is crucial for battery replacement procedures.

8. Troubleshooting

If you encounter issues with your watch after installing the MIYOTA 2115 movement, consider the following:

• Watch Not Running:
  • Check if the crown is pushed fully into the normal operating position.
  • Verify the battery is correctly installed and has sufficient charge. Replace if necessary.
  • Ensure no hands are touching each other or the dial, causing obstruction.
• Incorrect Time/Date:
  • Re-set the time and date according to the operating instructions.
  • Ensure the crown is fully pushed in after setting.
• Intermittent Operation:
  • This often indicates a low battery. Replace the battery.
  • Check for any debris or foreign objects within the movement.

If problems persist after attempting these troubleshooting steps, it is recommended to consult a professional watchmaker.

9. Warranty and Support

This MIYOTA 2115 quartz movement is supplied as a replacement part. For specific warranty information, please refer to the terms and conditions provided by your original seller at the time of purchase. For technical support or assistance with installation, it is recommended to contact a qualified watch repair professional or the seller directly.
