1. Important Safety Information
Please read all instructions carefully before operating this appliance. Keep this manual for future reference.
- Ensure the unit is placed on a flat, stable surface to prevent tipping.
- Do not operate the unit with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer or a qualified service agent.
- Do not insert objects into the air outlet or inlet.
- Keep a minimum distance of 20 cm (8 inches) from walls and other objects for proper airflow.
- Always unplug the unit before cleaning or performing any maintenance.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Do not use this unit in wet environments such as bathrooms or laundry rooms.
2. Product Overview
The MERXENG 12000 BTU Portable Air Conditioner is a versatile 3-in-1 unit designed for efficient cooling, dehumidification, and fan operation in rooms up to 450-550 sq.ft.
Key Features:
- Powerful Cooling: 12000 BTU capacity for rapid cooling.
- 3-in-1 Functionality: Offers Cool, Dry (Dehumidifier), and Fan modes.
- Ultra-Quiet Operation: Noise levels as low as 52 dB, ideal for sleep or work.
- User-Friendly Controls: Features an LED touch panel and a remote control for convenient operation.
- Portability: Equipped with built-in handles and smooth-rolling casters for easy movement.
- Automatic Evaporation Technology: Reduces the need for manual draining.
- Washable Filter: For improved air quality and easy maintenance.
- 4-Way Swing: Ensures even air distribution.
Image: The MERXENG portable air conditioner demonstrating its fast cooling capability, suitable for rooms up to 550 sq.ft.
Image: Close-up view of the MERXENG portable AC highlighting its 3-in-1 functionality: two-speed fan, cooling mode, and dehumidification mode.
3. Setup and Installation
This portable air conditioner is designed for flexible installation in both hanging and sliding windows. Ensure the exhaust hose is properly vented to the outside to expel hot air.
Components for Installation:
- Adjustable Slide Bar
- Slide Bar Connector
- Exhaust Hose
- Exhaust Hose Joint
- Remote Control
Installation Steps:
- Attach the exhaust hose to the unit and the window kit connector.
- Install the adjustable slide bar into your window opening. Ensure the window is sealed around the kit to prevent air leakage. The window opening should be no more than 40 inches.
- Connect the exhaust hose joint to the slide bar connector.
- Position the unit near the window, ensuring the exhaust hose is not kinked or blocked.
- Plug the unit into a grounded electrical outlet.
Image: Diagram showing the MERXENG portable AC with its flexible installation components, including the adjustable slide bar, exhaust hose, and remote control, for use with hanging or sliding windows.
4. Operating Instructions
The unit can be controlled via the LED touch panel on top of the unit or the included remote control.
Control Panel and Remote Functions:
- Power (ON/OFF): Turns the unit on or off.
- Mode: Cycles through Cool, Dehumidification (Dry), and Fan modes.
- Fan Speed: Adjusts fan speed between Low and High.
- Temperature Adjustment (+/-): Sets the desired temperature in Cool mode (61°F-89°F / 16°C-32°C).
- Timer: Sets an auto-on or auto-off timer for up to 24 hours.
- Sleep Mode: Activates ultra-quiet operation for a peaceful environment.
- Swing: Initiates automatic louver swing for wider air distribution.
Image: Detailed view of the MERXENG portable AC's LED touch control panel and the accompanying remote control, showing various function buttons like Swing, Fan, Timer, Sleep, Mode, and Power.
Operating Modes:
- Cool Mode: Provides powerful cooling. Set your desired temperature and fan speed.
- Dry Mode (Dehumidifier): Removes excess moisture from the air. The fan speed is typically fixed in this mode.
- Fan Mode: Circulates air without cooling. Choose between low and high fan speeds.
Image: The MERXENG portable AC in a bedroom setting, illustrating its quiet sleep mode operation with noise levels as low as 53dB, a 24-hour timer, and auto shut-off feature.
5. Maintenance
Regular maintenance ensures optimal performance and longevity of your portable air conditioner. Always unplug the unit before cleaning.
Filter Cleaning:
The unit features a washable air filter. It is recommended to clean the filter every two weeks, or more frequently depending on usage and air quality.
- Turn off and unplug the air conditioner.
- Locate and remove the air filter from the back or side of the unit.
- Wash the filter under running water with a mild detergent.
- Allow the filter to air dry completely before reinstalling. Do not expose to direct sunlight.
Image: An illustration of the MERXENG portable AC's internal components, highlighting the automatic evaporation technology (no need to drain) and the washable air filter for air purification.
Unit Cleaning:
- Wipe the exterior of the unit with a soft, damp cloth.
- Do not use harsh chemicals, abrasives, or solvents.
- Ensure no water enters the electrical components.
Storage:
If storing the unit for an extended period, ensure it is clean and dry. Store it in a cool, dry place, covered to protect from dust.
6. Troubleshooting
Before contacting customer support, please refer to the following troubleshooting guide for common issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| Unit does not turn on | No power; Power cord not plugged in; Circuit breaker tripped. | Ensure unit is plugged in; Check power outlet; Reset circuit breaker. |
| Unit not cooling effectively | Air filter dirty; Exhaust hose blocked or improperly installed; Room size too large; Doors/windows open. | Clean air filter; Check exhaust hose for blockages and proper sealing; Ensure room size is within specifications; Close all doors and windows. |
| Unit is noisy | Unit not on a level surface; Fan obstruction. | Place unit on a flat, level surface; Check for any obstructions in the fan area. |
| Water leakage | Drain plug not properly sealed (if applicable); Unit tilted. | Ensure drain plug is secure; Place unit on a level surface. (Note: This model features automatic evaporation, reducing the need for draining). |
7. Specifications
- Brand: MERXENG
- Model Number: Ob57h-Z9ZSEss6YV3ctjYQhNc0I
- Cooling Power: 12000 British Thermal Units (BTU)
- Coverage Area: 450-550 Sq.ft
- Product Dimensions (D x W x H): 18.5" x 15.35" x 35.24"
- Item Weight: 68.3 Pounds
- Voltage: 115V
- Wattage: 1200W
- Noise Level: 52 Decibels
- Special Feature: 4 Way Swing
- Included Components: Remote Control

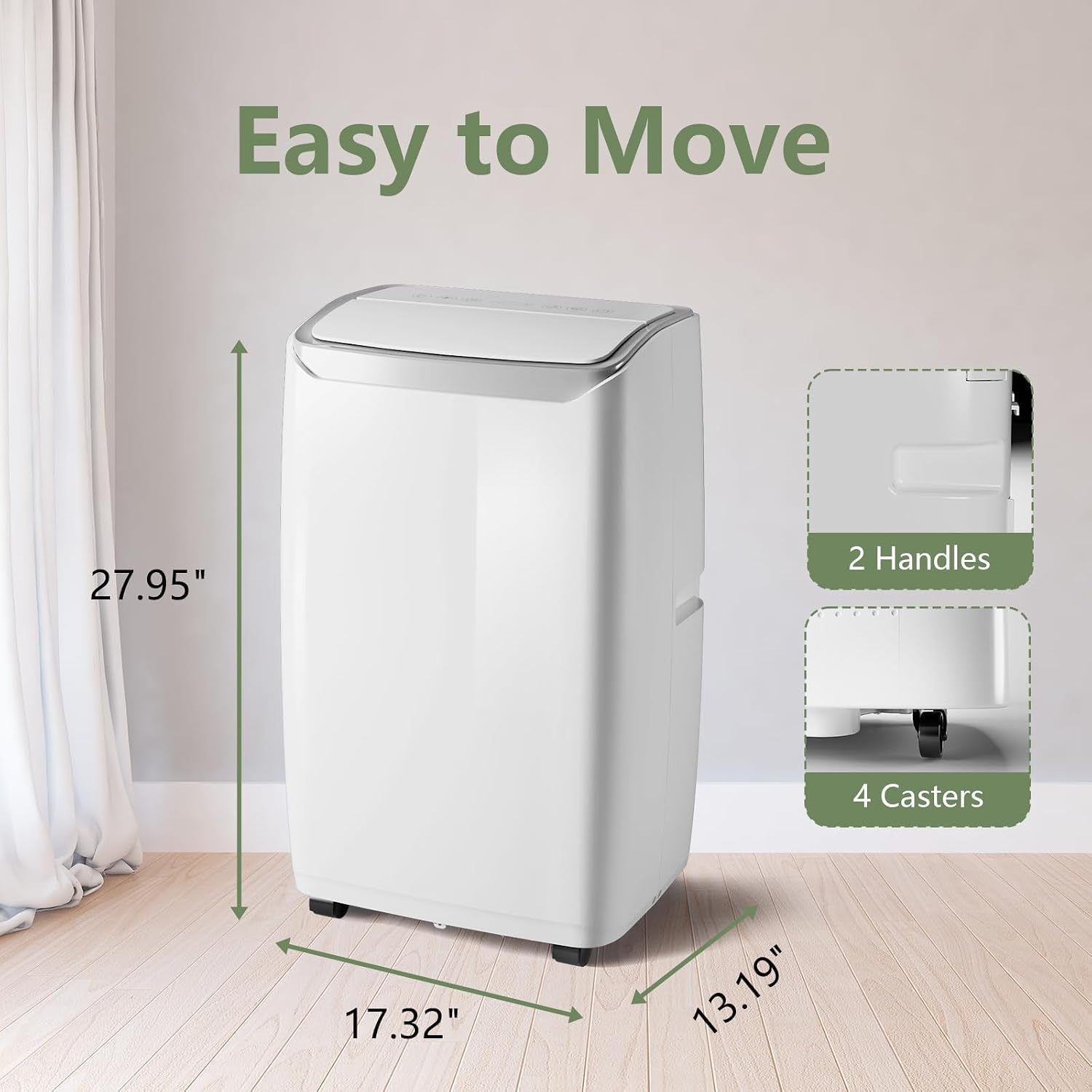

Image: The MERXENG portable AC with its dimensions (27.95" H, 17.32" W, 13.19" D) and features for easy movement, including two handles and four casters.
8. Warranty and Support
No specific warranty information is provided in the product specifications. For any issues or inquiries, please contact the manufacturer or your retailer.
For technical support or service, please refer to the contact information provided with your purchase documentation or visit the MERXENG official website.
