YOSUDA Foldable 5-in-1 Exercise Bike Instruction Manual

1. Safety Information

Please read this entire manual carefully before assembling or operating the YOSUDA Foldable 5-in-1 Exercise Bike. Retain this manual for future reference.

• Consult your physician before starting any exercise program.
• This equipment is designed for home use only.
• Place the exercise bike on a flat, stable surface. Ensure adequate space around the bike for safe operation.
• The maximum user weight capacity for this exercise bike is 172 kg (379 lbs). Do not exceed this limit.
• Keep children and pets away from the equipment during use.
• Wear appropriate exercise attire and footwear.
• Stop exercising immediately if you feel faint, dizzy, or experience pain.
• Regularly inspect the bike for loose or worn parts. Do not use if damaged.

2. Product Overview

The YOSUDA Foldable 5-in-1 Exercise Bike is a versatile fitness solution designed for various home workouts. It combines five training modes into one compact device, offering a comprehensive exercise experience.

• Multi-functional Design: Offers upright cycling, relaxed cycling, recumbent cycling, and arm/leg exercises using integrated resistance bands.
• Silent Magnetic Resistance: Features a 16-level magnetic resistance system and a 3 kg flywheel for smooth and quiet operation.
• LCD Monitor: Tracks real-time data including time, heart rate, speed, distance, and calories burned.
• Foldable and Portable: Space-saving design with transport wheels for easy storage and relocation.
• Comfort: Equipped with a wide, comfortable seat and backrest.

3. Setup and Assembly

The YOSUDA exercise bike is designed for straightforward assembly. All necessary tools are included.

Assembly Steps:

1. Unpack all components and ensure all parts listed in the included assembly guide are present.
2. Attach the front and rear stabilizers to the main frame using the provided bolts and washers.
3. Install the pedals, ensuring the left and right pedals are correctly oriented (marked 'L' and 'R').
4. Mount the seat and backrest onto the seat post. Adjust the seat height and position for comfort.
5. Attach the handlebars and the LCD monitor to the main frame, connecting any necessary cables.
6. Securely attach the resistance bands to their designated points on the frame.
7. Perform a final check to ensure all bolts are tightened and the bike is stable.

4. Operating Instructions

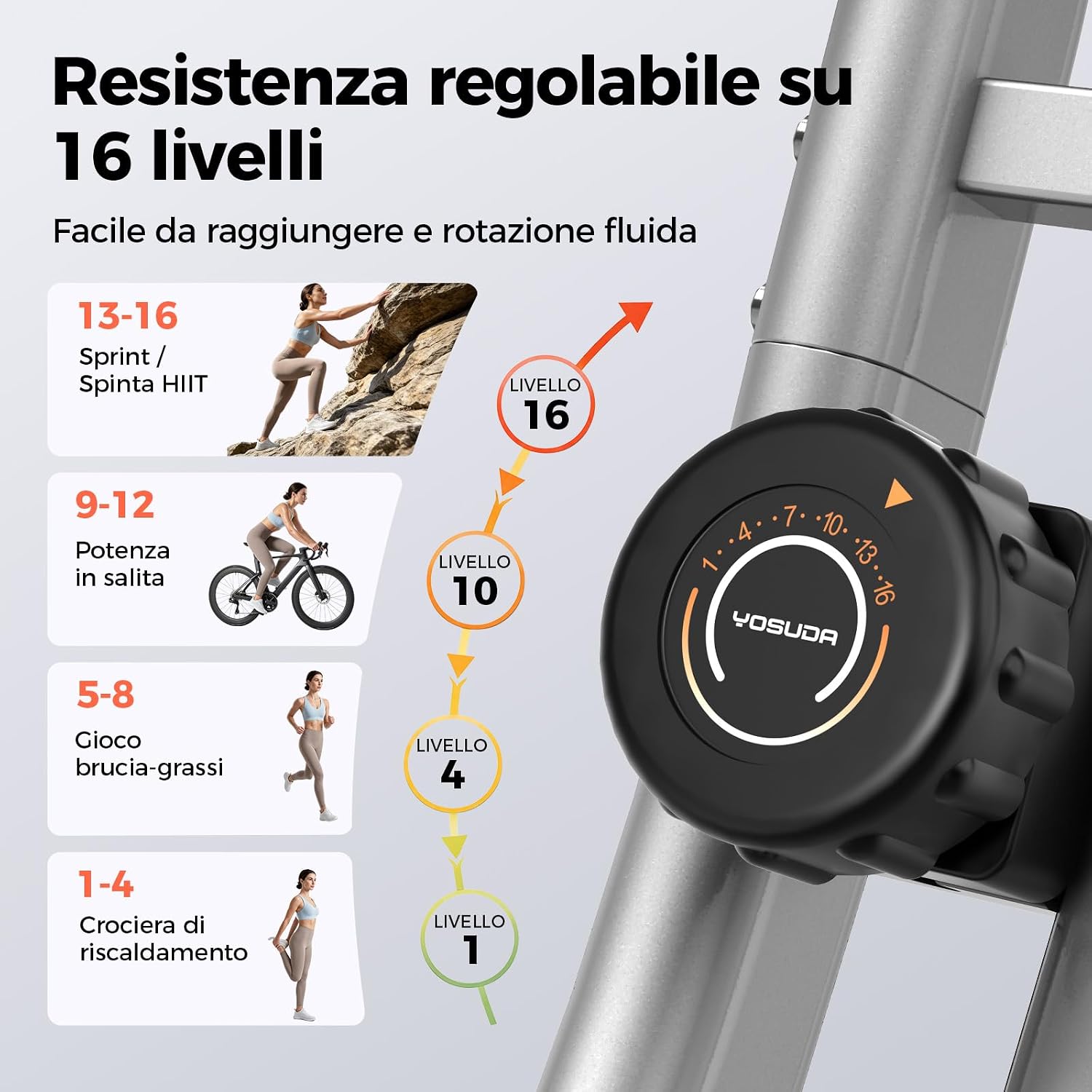

4.1 Adjusting Resistance

The bike features 16 levels of magnetic resistance. To adjust the resistance, turn the knob located on the main frame. Turn clockwise for higher resistance and counter-clockwise for lower resistance.

• Levels 1-4: Warm-up / Light Cruise
• Levels 5-8: Fat Burning / Moderate Pace
• Levels 9-12: Hill Climb / Increased Intensity
• Levels 13-16: Sprint / HIIT Training

4.2 Using the LCD Monitor

The integrated LCD monitor displays your workout data in real-time. It is powered by batteries (not included, typically AA).

• Time: Duration of your current workout.
• Speed: Current cycling speed.
• Distance: Distance covered during the current workout.
• Calories: Estimated calories burned.
• Odometer: Total accumulated distance.
• Pulse: Your heart rate, measured by sensors on the handlebars.
• SCAN: Automatically cycles through all display functions.

Use the 'MODE' button to select specific display functions or 'RESET' to clear current workout data.

4.3 Multi-functional Training Modes

The 5-in-1 design allows for diverse workouts:

• Upright Cycling: Standard cycling position for cardio and leg strength.
• Relaxed Cycling: A more upright position with back support for comfort.
• Recumbent Cycling: Utilizes the backrest for a reclined position, reducing strain on the back.
• Arm Exercises: Use the integrated resistance bands for upper body workouts while cycling or stationary.
• Leg Exercises: The resistance bands can also be used for various leg and glute exercises.

4.4 App Connectivity

The YOSUDA exercise bike supports connectivity with fitness apps. Refer to the specific app instructions for pairing and tracking your workouts. This allows for real-time progress tracking and access to various training programs.

5. Maintenance

Proper maintenance ensures the longevity and optimal performance of your YOSUDA exercise bike.

5.1 Cleaning

• Wipe down the bike regularly with a damp cloth after each use to remove sweat and dust.
• Avoid using abrasive cleaners or solvents, as these can damage the finish.

5.2 Inspection and Lubrication

• Periodically check all bolts and nuts to ensure they are securely tightened. Tighten if necessary.
• Inspect pedals, straps, and resistance bands for any signs of wear or damage. Replace if needed.
• No lubrication is typically required for the magnetic resistance system.

5.3 Storage

The YOSUDA exercise bike features a foldable design for convenient storage.

• To fold, follow the instructions in the assembly guide to collapse the frame.
• Use the integrated transport wheels to easily move the folded bike to a storage location, such as a corner, behind a door, or next to furniture.
• Store in a dry, cool place away from direct sunlight and extreme temperatures.

6. Troubleshooting

If you encounter any issues with your YOSUDA exercise bike, refer to the following common troubleshooting steps:

• Monitor Not Displaying Data:
  • Check if the batteries are correctly installed and not depleted. Replace if necessary.
  • Ensure all monitor cables are securely connected.
• Unusual Noises During Operation:
  • Verify that all bolts and nuts are tightened. Loose components can cause noise.
  • Ensure the bike is on a level surface.
  • The magnetic resistance system is designed to be silent. If you hear grinding or rubbing, contact customer support.



• Resistance Not Changing:
  • Check the resistance knob and its connection to the internal mechanism.
• Unstable Bike:
  • Ensure the bike is placed on a firm, level surface.
  • Check and tighten all assembly bolts.

If these steps do not resolve the issue, please contact YOSUDA customer support for further assistance.

7. Specifications

8. Warranty and Support

YOSUDA is committed to providing high-quality fitness equipment. While specific warranty details are not provided in this manual, YOSUDA typically offers support for its products.

For warranty claims, technical assistance, or any questions regarding your YOSUDA Foldable 5-in-1 Exercise Bike, please contact YOSUDA customer service through the retailer where you purchased the product or visit the official YOSUDA website for support contact information.

Please have your model number (X-2-01A) and purchase information ready when contacting support.
