Robocraze Sunny Sky A2212 980KV Brushless Motor Instruction Manual

1. Introduction

The Sunny Sky A2212 980KV Brushless Motor is designed for RC aircraft applications, including multi-rotor drones and RC planes. This motor provides a balanced combination of power, efficiency, and reliability, featuring a 980KV rating for optimal speed and torque. Its counterclockwise (CCW) rotation is specifically engineered for proper synchronization in drone configurations. Integrated cooling fins ensure effective heat dissipation for consistent performance during extended flight sessions. Constructed with high-quality materials, this motor offers durability and a long service life, with standard mounting compatibility for straightforward installation.

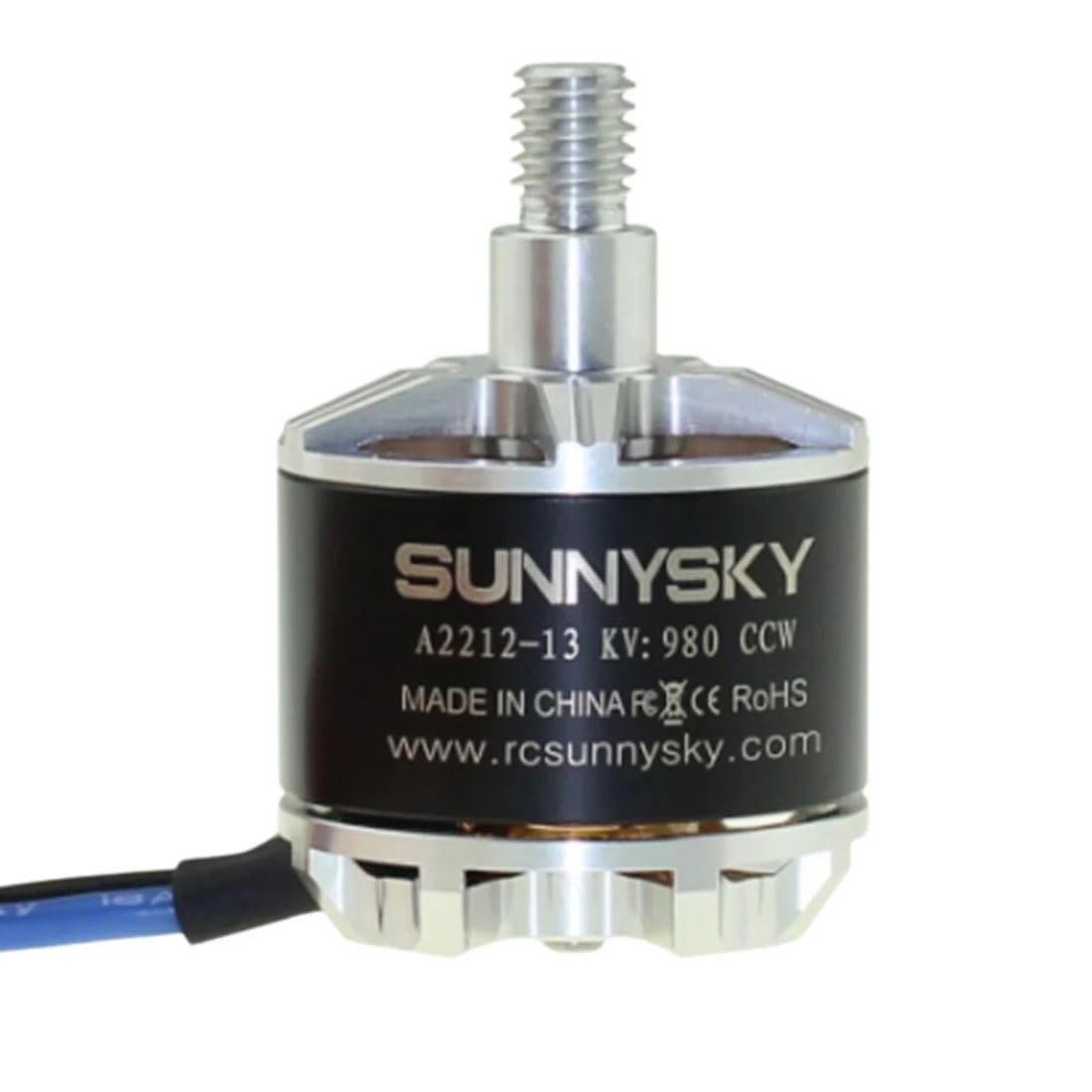

Image 1.1: The Sunny Sky A2212 980KV Brushless Motor, showing its compact design and branding.

2. Setup and Installation

2.1 Mounting the Motor

Securely mount the motor to your aircraft's motor mount using appropriate screws. Ensure that the motor is firmly attached to prevent vibrations and ensure stable flight. The motor features standard mounting holes for easy integration with most RC frames.

Image 2.1: Front view of the Sunny Sky A2212 motor, highlighting its mounting base and shaft.

2.2 Wiring Connections

Connect the three motor wires to your Electronic Speed Controller (ESC). Brushless motors do not have a specific polarity for these three wires; however, the order determines the rotation direction. If the motor spins in the wrong direction, swap any two of the three wires connected to the ESC to reverse the rotation.

3. Operation Guidelines

3.1 Initial Power-Up

Before connecting the battery, ensure all connections are secure and correct. Power on your remote control transmitter first, then connect the battery to the ESC. Follow your ESC's specific calibration procedure to synchronize it with your transmitter's throttle range.

3.2 Rotation Direction

This Sunny Sky A2212 motor is specifically designed for Counterclockwise (CCW) rotation. When installing propellers, ensure you use CCW propellers that are appropriate for this rotation direction to generate lift. If the motor spins clockwise, reverse any two of the three motor-to-ESC wires.

4. Maintenance

4.1 Cleaning

Regularly inspect and clean the motor to remove any dust, dirt, or debris that may accumulate, especially around the cooling fins and bearings. Use a soft brush or compressed air for cleaning. Avoid using liquids that could damage the motor's internal components.

4.2 Inspection

Periodically check the motor for any signs of wear or damage. Inspect the motor wires for fraying or cuts, and ensure connectors are tight. Examine the cooling fins for obstructions or damage. Listen for unusual noises during operation, which could indicate bearing wear.

Image 4.1: Internal view of the Sunny Sky A2212 motor, showing the copper windings and rotor assembly, important for inspection.

5. Troubleshooting

• Motor Not Spinning: Check all wiring connections between the motor, ESC, and battery. Ensure the battery is charged and the ESC is properly calibrated with the transmitter.
• Motor Stutters or Runs Roughly: This often indicates an issue with one of the motor phases. Check for loose connections or damaged wires. It could also be an ESC issue.
• Motor Overheating: Ensure the motor is not overloaded (e.g., using too large a propeller). Check for proper airflow around the motor. Verify that the cooling fins are clean and unobstructed.
• Abnormal Noise: Unusual noises can indicate worn bearings or contact between the rotor and stator. Disassemble and inspect if necessary, or consider replacing the motor.

6. Technical Specifications

7. Package Contents

The package for the Sunny Sky A2212 980KV Brushless Motor typically includes:

• 1x Sunny Sky A2212 980KV Brushless Motor (Counterclockwise)

Image 7.1: Example of Robocraze product packaging, similar to what the motor is shipped in.

8. Warranty Information

For detailed warranty information regarding your Sunny Sky A2212 980KV Brushless Motor, please refer to the manufacturer's official warranty policy or contact Robocraze customer support directly. Warranty terms typically cover manufacturing defects for a specified period from the date of purchase.

9. Customer Support

Should you require assistance, have questions, or encounter any issues with your Sunny Sky A2212 980KV Brushless Motor, please contact Robocraze customer support:

• Manufacturer/Importer: Robocraze
• Address: Ground Floor, 912/10 Survey no. 104 4th G street, Chelekare, Kalyan Nagar, Bengaluru - 560043
• Phone: 8123057137
