Jasion EB6 Foldable Electric Bike User Manual

1. Introduction

Welcome to the Jasion EB6 Foldable Electric Bike user manual. This guide provides essential information for the safe assembly, operation, maintenance, and troubleshooting of your new electric bicycle. Please read this manual thoroughly before your first ride to ensure optimal performance and safety.

The Jasion EB6 is a versatile electric bike designed for convenience and performance. It features a lightweight aluminum frame, a powerful 1200W peak motor, and a 48V built-in battery, offering a range of up to 50 miles and a top speed of 25 MPH. Its foldable design makes it ideal for commuting, travel, and storage in small spaces.

2. Safety Information

Your safety is paramount. Always wear a helmet and appropriate safety gear when riding. Familiarize yourself with local laws and regulations regarding electric bicycles.

• Pre-Ride Check: Before each ride, inspect brakes, tires, battery level, and ensure all quick releases and fasteners are secure.
• Helmet Use: Always wear a certified bicycle helmet.
• Traffic Laws: Obey all traffic laws, signals, and signs. Ride predictably and signal your turns.
• Weather Conditions: Exercise caution in wet conditions, as braking distance increases. Avoid riding in heavy rain or snow.
• Night Riding: Use the integrated lights and wear reflective clothing when riding at night or in low-light conditions.
• Battery Safety: Do not tamper with the battery. Charge only with the provided charger in a well-ventilated area. Avoid extreme temperatures.
• Weight Limit: Do not exceed the maximum load capacity of 330 lbs (150 kg).

3. Package Contents

Upon unpacking, please verify that all the following items are included:

• Jasion EB6 Electric Bike (90% pre-assembled)
• Battery Charger
• Tool Kit
• Pedals
• Keys (for battery lock)

If any items are missing or damaged, please contact Jasion customer support immediately.

4. Assembly and Setup

Your Jasion EB6 electric bike arrives 90% pre-assembled. The remaining steps involve attaching the handlebars, pedals, and adjusting the seat. A basic tool kit is included for your convenience.

4.1 Unboxing and Initial Inspection

Carefully remove the bike from its packaging. Inspect the frame, wheels, and components for any signs of damage during transit.

4.2 Handlebar Installation

1. Unfold the handlebar stem and secure the locking mechanism.
2. Insert the handlebar into the stem, ensuring it is aligned straight with the front wheel.
3. Tighten the handlebar clamp bolts securely using the provided Allen key.

4.3 Pedal Attachment

Identify the left (L) and right (R) pedals. The left pedal tightens counter-clockwise, and the right pedal tightens clockwise. Apply a small amount of grease to the pedal threads before installation.

1. Screw the 'L' pedal into the left crank arm (counter-clockwise).
2. Screw the 'R' pedal into the right crank arm (clockwise).
3. Tighten both pedals firmly with a wrench.

4.4 Seat Adjustment

Adjust the seat height for a comfortable and safe riding position. Your feet should be able to touch the ground when stopped, and your leg should have a slight bend at the knee when the pedal is at its lowest point.

1. Open the seat post quick-release lever.
2. Adjust the seat to your desired height.
3. Close the quick-release lever firmly. Ensure the seat does not twist or slide down.

Video: Jasion EB6 Unboxing and Assembly. This video provides a visual guide for the initial setup of your Jasion EB6 electric bike, including attaching components and making basic adjustments.

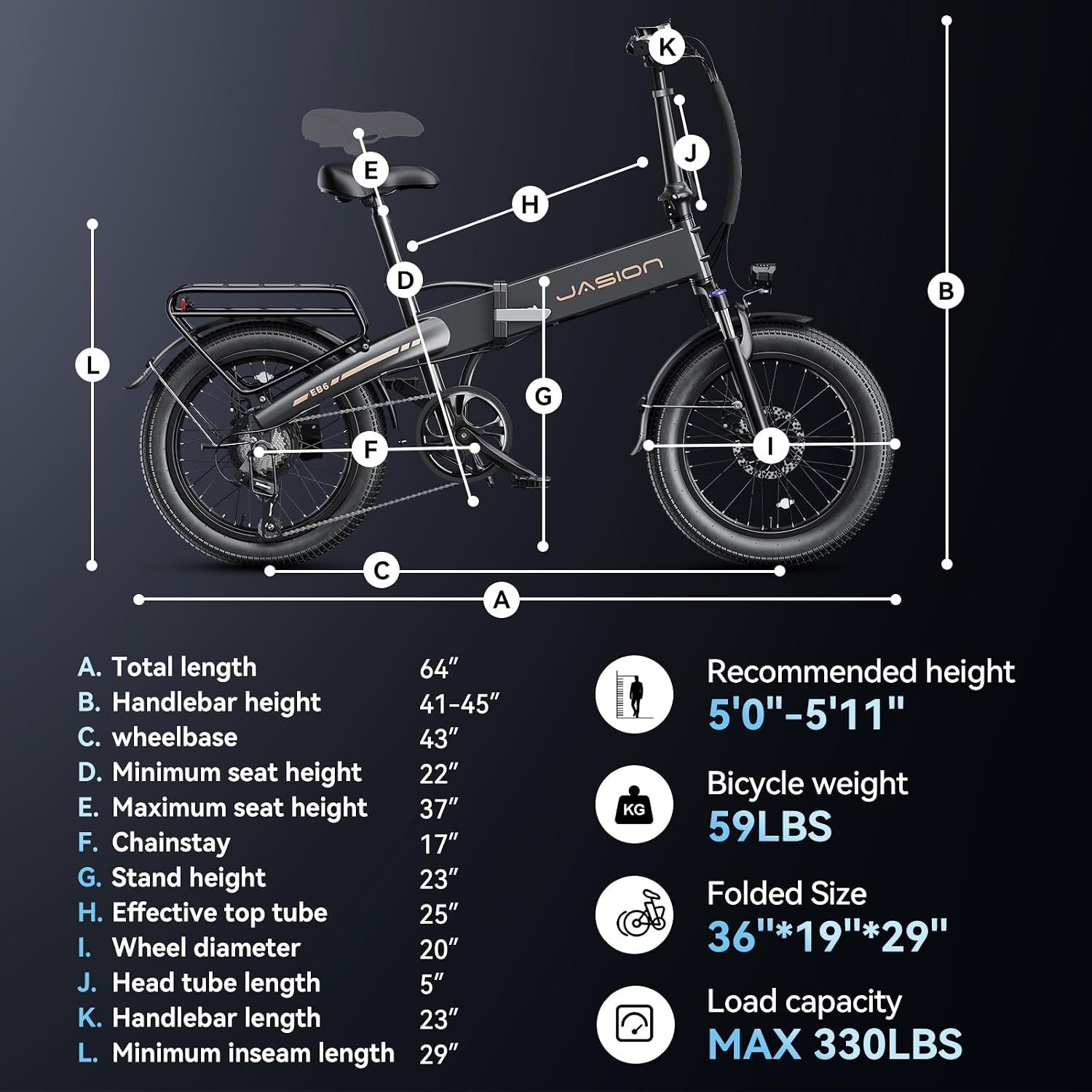

Image: Jasion EB6 Electric Bike Dimensions. This image illustrates the key measurements of the Jasion EB6, including total length, handlebar height, wheelbase, seat heights, and folded size, useful for setup and storage planning.

5. Operating Instructions

Understanding the controls and riding modes of your Jasion EB6 will enhance your riding experience.

5.1 Powering On/Off

1. Insert the key into the battery lock and turn it to the 'ON' position.
2. Press and hold the power button on the display panel for a few seconds to turn on the bike.
3. To power off, press and hold the power button again.

5.2 Riding Modes

The Jasion EB6 offers 3+1 riding modes:

• Pedal-Assist Mode (PAS): Provides motor assistance as you pedal. Adjust the assist level (1-5) using the '+' and '-' buttons on the control panel. Higher levels provide more assistance.
• Throttle Mode: Allows you to ride without pedaling by twisting the throttle. The speed will correspond to the amount of throttle applied, up to the maximum assisted speed.
• Walking Mode: When activated, the bike provides a low-speed assist (approx. 6 km/h or 3.7 mph) to help you push the bike while walking.
• Manual Pedal Mode: Ride the bike like a traditional bicycle without any motor assistance.

Image: Jasion EB6 Riding Modes and Display. This image illustrates the various riding modes available on the Jasion EB6, including Walking Mode, Pedal-Assist Mode, Throttle Mode, and Manual Pedal Mode, along with a view of the central LCD display showing speed and battery level.

5.3 Display Functions

The central LCD display shows important riding data:

• Current Speed (MPH/KMH)
• Battery Level Indicator
• Pedal Assist Level (PAS 1-5)
• Odometer (ODO)
• Trip Distance
• Headlight Indicator

5.4 Gear Shifting

The Jasion EB6 is equipped with a 7-speed shifter. Use the shifter to change gears according to terrain and desired pedaling effort. Lower gears are for climbing hills, and higher gears are for flat terrain and higher speeds.

Image: Jasion EB6 7-Speed Shifter. This image highlights the 7-speed gear shifter, explaining how different gears allow riders to adjust power assist and riding intensity for various terrains, from easier uphill climbs to faster rides.

5.5 Braking

The bike features disc brakes for reliable stopping power. Always apply both front and rear brakes simultaneously for controlled stopping. Practice braking in a safe area before riding in traffic.

Image: Jasion EB6 Dual Protection Features. This image showcases the dual protection features of the Jasion EB6, including the double sensitivity disc brakes, integrated headlight for double safety, and front suspension for double stability.

5.6 Folding Mechanism

The Jasion EB6 is designed for easy folding for transport and storage.

1. Ensure the bike is powered off.
2. Lower the seat post to its lowest position.
3. Open the frame folding latch, usually located in the middle of the main frame tube.
4. Fold the frame in half.
5. Fold down the handlebar stem.
6. Fold the pedals inward.

Image: Jasion EB6 Folded in Car Trunk. This image demonstrates the compact folded size of the Jasion EB6, showing it easily fitting into a car trunk, highlighting its portability for RV travel, storage, or transport in an SUV.

6. Maintenance

Regular maintenance ensures the longevity and safe operation of your Jasion EB6.

6.1 Battery Care

• Charge the battery fully before the first use.
• Charge the battery regularly, even if not in use, to maintain its health.
• Store the battery in a cool, dry place, away from direct sunlight and extreme temperatures.
• Use only the original Jasion charger.

Image: Jasion EB6 Battery Information. This image details the 374WH 48V 7.8AH built-in battery, highlighting its 50-mile range, IPX4 water resistance, and integrated charging port, contrasting it with external battery designs.

6.2 Tire Pressure

Check tire pressure before each ride. Maintain the recommended pressure (usually indicated on the tire sidewall) for optimal performance and safety.

6.3 Brake Inspection

Regularly check brake pads for wear and brake levers for proper tension. Adjust or replace components as needed.

6.4 Cleaning

Clean your bike with a damp cloth and mild soap. Avoid high-pressure washing directly on electrical components. Lubricate the chain regularly.

Image: Jasion EB6 Full-Covered Fenders. This image highlights the full-coverage fenders of the Jasion EB6, emphasizing their role in providing all-round protection from flying sand and splashing water during travel, ensuring a cleaner ride.

7. Troubleshooting

This section addresses common issues you might encounter with your Jasion EB6.

For issues not listed here or if troubleshooting steps do not resolve the problem, please contact Jasion customer support.

8. Specifications

Detailed technical specifications for the Jasion EB6 Foldable Electric Bike:

• Bike Type: Electric Bike, Folding Bike
• Age Range: Adult
• Brand: Jasion
• Number of Speeds: 7
• Wheel Size: 20 Inches (Fat Tire)
• Frame Material: Aluminum
• Suspension Type: Front
• Motor: 1200W Peak
• Battery: 48V 7.8Ah (375 WH) Built-in Lithium Battery
• Max Speed: 25 MPH
• Max Range: Up to 50 Miles
• Maximum Weight Recommendation: 330 Pounds (150 kg)
• Brake Style: Disc
• Folded Size: 36" x 19" x 29"
• Bicycle Weight: 59 lbs (26 kg)
• Recommended Height: 5'0" - 5'11"
• Included Components: Charger, Electric Bike, Keys, Pedals, Tool Kit

Image: Jasion EB6 Aluminum Frame and Weight. This image highlights the lightweight aluminum frame of the Jasion EB6, showing its weight at 59 lbs and its robust load capacity of 330 lbs, comparing it favorably to other bikes.

Image: Jasion EB6 Dimensions and Rider Fit. This image provides a comprehensive diagram of the Jasion EB6's dimensions, including recommended rider height (5'0"-5'11"), bicycle weight (59 lbs), minimum inseam length (29"), folded size (36"x19"x29"), and load capacity (330 lbs).

9. Warranty and Support

Jasion is committed to providing quality products and customer service.

9.1 Warranty Information

Your Jasion EB6 electric bike comes with a 1-Year Warranty from the date of purchase, covering manufacturing defects in materials and workmanship. Please retain your proof of purchase for warranty claims. The warranty does not cover normal wear and tear, misuse, accidents, or unauthorized modifications.

9.2 Customer Support

For any questions, technical assistance, or warranty claims, please contact Jasion customer support:

• Phone: 1 (888) 825-6366 (9am-6pm, Mon-Fri. EST)
• Email: support@jasionbike.com
