Introduction
The VAXCEL Smith T0820 outdoor wall light is designed to provide reliable and efficient exterior illumination. This fixture features a contemporary design with a textured black finish and integrates both motion sensing and dusk-to-dawn capabilities for enhanced security and convenience. This manual provides detailed instructions for installation, operation, maintenance, and troubleshooting to ensure optimal performance and longevity of your light fixture.
The Dualux dual-level motion technology provides soft dusk lighting, activates full brightness when motion is detected, and automatically returns to low-level illumination for efficient, always-on security. Its wet-rated steel construction ensures dependable outdoor performance.
Safety Information
- WARNING: Risk of electric shock. Disconnect power at the fuse or circuit breaker before installation or servicing.
- All wiring connections must be in accordance with local and national electrical codes. If you are unfamiliar with proper electrical wiring connections, consult a qualified electrician.
- Use only UL or ETL listed wire connectors.
- Do not exceed the recommended wattage for the bulb (1 x 60-watt E26 medium bulb).
- Ensure the fixture is securely mounted to a structural element.
- This fixture is rated for outdoor, wet locations.
What's in the Box
Carefully unpack the contents and ensure all items are present:
- VAXCEL Smith T0820 Wall Light Fixture (with integrated shade)
- Mounting Hardware (screws, wire nuts, mounting plate)
- Instruction Manual
Note: Bulb is not included. Requires 1 x 60-watt E26 medium bulb (LED compatible).
Setup and Installation
Tools Required (Not Included):
- Screwdriver
- Wire Strippers
- Pliers
- Electrical Tape
- Safety Glasses
Installation Steps:
- Turn Off Power: Before beginning installation, ensure the power to the circuit is turned off at the main fuse box or circuit breaker to prevent electrical shock.
- Prepare Mounting Surface: Remove the existing fixture (if any) and its mounting plate. Ensure the junction box is clean and accessible.
- Attach Mounting Plate: Secure the provided mounting plate to the junction box using the screws supplied with the junction box.
- Make Electrical Connections:
- Connect the black wire from the fixture to the black (hot) wire from the junction box.
- Connect the white wire from the fixture to the white (neutral) wire from the junction box.
- Connect the ground wire from the fixture to the ground wire from the junction box (usually bare copper or green).
- Secure all connections with wire nuts and wrap with electrical tape for added safety.
- Mount the Fixture: Carefully tuck the wires into the junction box. Align the fixture with the mounting plate and secure it using the provided screws.
- Install Bulb: Insert one E26 medium base bulb (max 60W, not included) into the socket. LED bulbs are compatible.
- Restore Power: Once the fixture is securely installed and the bulb is in place, restore power at the circuit breaker.
Image: The VAXCEL Smith T0820 outdoor wall light, showcasing its textured black finish and downward light direction when installed.
Operating Instructions
The VAXCEL Smith T0820 features a 3-in-1 function: Motion Sensor, Dusk-to-Dawn, and Switch Controlled operation.
Image: Visual representation of the three operational modes: Motion Sensor, Dusk to Dawn, and standard Switch Control.
Motion Sensor Operation:
- The integrated 180-degree motion sensor detects movement up to 30 feet away.
- When motion is detected, the light will activate to full brightness.
- The motion shut-off delay is adjustable from 5 seconds to 3 minutes.

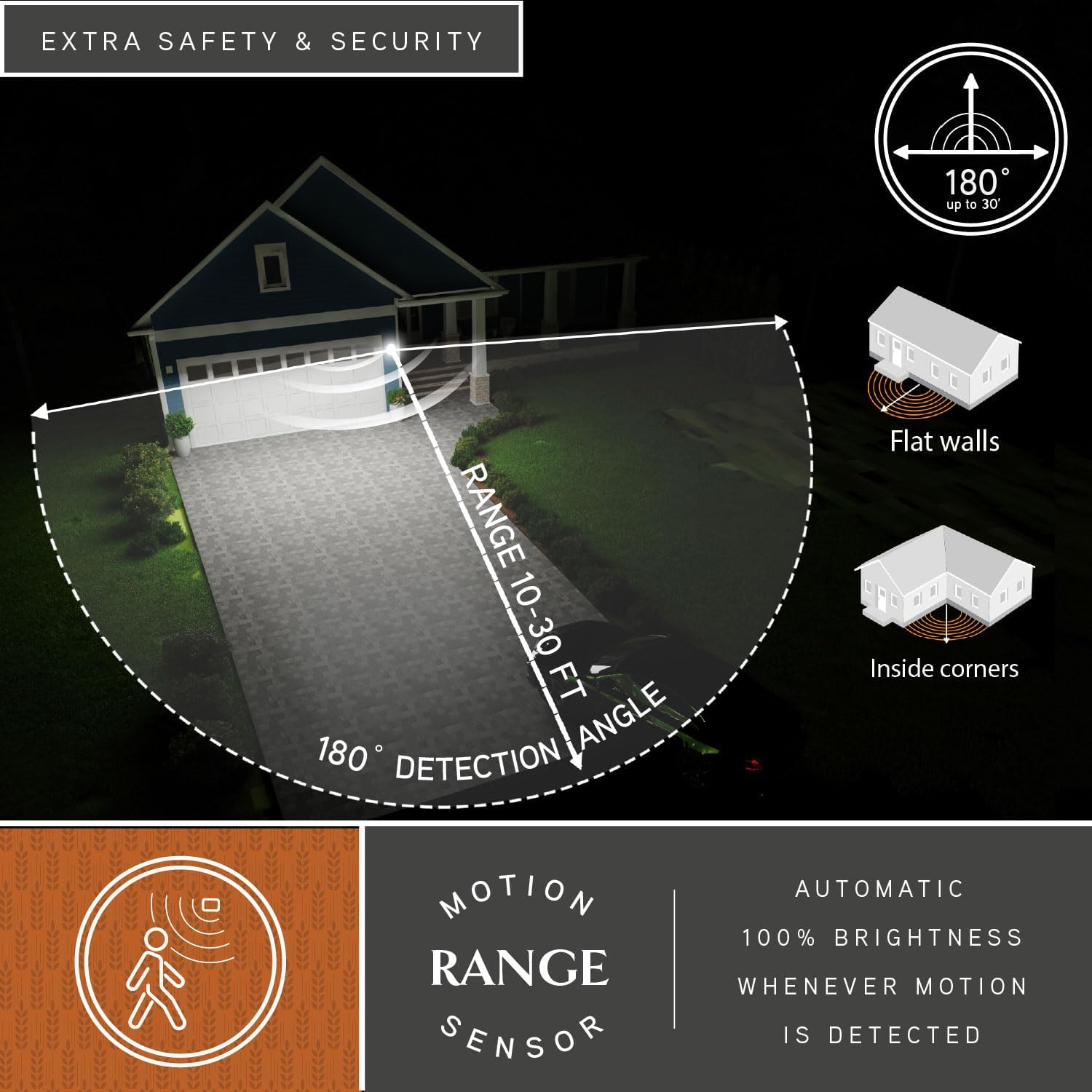

Image: Illustration of the motion sensor's 180-degree detection angle and 10-30 foot range, providing extra safety and security.
Dusk-to-Dawn Sensor:
- A built-in photocell automatically turns the light on at night and off at dawn.
- This feature helps conserve energy by ensuring the light is only active when needed.
Dualux Dual-Level Brightness:
- The fixture can operate in a low-level standby mode (up to 30% brightness) during dusk-to-dawn periods.
- Upon motion detection, the light will instantly switch to 100% brightness.
- After the set delay, it will return to the low-level standby mode.
Image: Customizable settings for the motion sensor and Dualux feature, including motion shut-off delay and sensitivity.
Dark Sky Compliant:
The design of the VAXCEL Smith T0820 directs light downwards, minimizing light pollution and making it suitable for illuminating address numbers, pathways, and entryways while being an eco-friendly choice.
Image: The VAXCEL Smith T0820 is Dark Sky Compliant, preventing upward light pollution.
Official Product Video:
Video: An official VAXCEL video demonstrating the Smith 8.5-inch W Outdoor Motion Sensor Wall Light in Black, highlighting its features and appearance.
Maintenance
Cleaning:
To maintain the appearance of your fixture, clean it regularly with a soft, damp cloth. Do not use abrasive cleaners or solvents, as these may damage the finish. Ensure the power is off before cleaning.
Bulb Replacement:
The open-bottom design allows for quick and simple bulb replacement without removing the fixture. Ensure the power is off before replacing the bulb. Allow the old bulb to cool before handling. Replace with a new E26 medium base bulb, not exceeding 60 watts.
Image: The VAXCEL Smith T0820 is constructed from durable, weather-resistant steel for long-lasting outdoor performance.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Light does not turn on. | No power, faulty bulb, incorrect wiring, sensor malfunction. | Check circuit breaker/fuse. Replace bulb. Verify wiring connections. Ensure sensor is not obstructed. |
| Light stays on continuously. | Sensor sensitivity too high, constant motion detected, dusk-to-dawn sensor issue. | Adjust sensor sensitivity. Ensure no constant heat sources or movement in detection zone. Check for ambient light interfering with photocell. |
| Light flickers or dims. | Loose wiring, incompatible bulb, power fluctuations. | Check all wiring connections. Ensure bulb is fully screwed in and compatible. Consult an electrician if power fluctuations are suspected. |
| Motion sensor not detecting. | Sensor obstructed, incorrect sensitivity setting, sensor faulty. | Clear any obstructions from the sensor. Adjust sensitivity setting. Ensure sensor is clean. |
Specifications
| Feature | Detail |
|---|---|
| Model Number | T0820 |
| Brand | VAXCEL |
| Dimensions (L x W x H) | 9.25" x 8.5" x 8.75" |
| Color | Textured Black |
| Material | Alloy Steel, Metal Shade |
| Power Source | Hardwired |
| Voltage | 120 volts |
| Wattage (Max) | 60 watts |
| Bulb Base | E26 Medium |
| Number of Light Sources | 1 |
| Light Source Type | LED Compatible |
| Motion Sensor | 180-degree detection, up to 30 ft range |
| Motion Shut-off Delay | Adjustable 5 sec - 3 min |
| Dusk-to-Dawn Sensor | Yes |
| Dualux Feature | Low-level standby (up to 30%), 100% on motion |
| Water Resistance Level | Wet Rated (Water Repellent) |
| Compliance | ETL Listed, Dark Sky Compliant |
| Item Weight | 1.8 pounds |
Warranty
This VAXCEL Smith T0820 outdoor wall light is covered by a 5-year limited warranty from the manufacturer. This warranty covers defects in materials and workmanship under normal use. Please retain your proof of purchase for warranty claims. For specific terms and conditions, refer to the warranty documentation provided with your product or contact VAXCEL customer support.
Support
For technical assistance, replacement parts, or further inquiries regarding your VAXCEL Smith T0820 outdoor wall light, please contact VAXCEL customer support.
